Alumina Fish Spine Beads for Thermocouple Leads, Vacuum Wiring, and High-Temperature Wire Insulation

Alumina Fish Spine Beads Applications

• Thermocouple and Temperature Sensor Assemblies

  Alumina Fish Spine Beads are used to insulate bare thermocouple conductors, reduce conductor-to-sheath contact risk, and maintain routing flexibility near the hot zone.

  ✅Key Advantages

  1. Ball-and-socket structure keeps wire insulation continuous during bending and probe assembly.
  2. Small standard sizes support compact thermocouple layouts, including around 3.5 mm OD / 1.0 mm bore class products.
  3. Alumina grades are used in high-temperature sensor assemblies up to about 1900°C depending on grade and setup.

  ✅ Problem Solved

  A thermocouple assembly manufacturer often needs a ceramic insulator that can pass through tight probe heads without losing insulation coverage at curved wire sections. Rigid straight sleeves can leave exposed transition points. Alumina Fish Spine Beads solve this by creating a segmented insulation path around the conductor. Public product data shows their use specifically for thermocouple wires and wire-lead insulation in high-temperature assemblies, which makes them suitable for sensor leads where compact routing and thermal endurance are both required.

• Vacuum Equipment and Scientific Instruments

  Alumina Fish Spine Beads are used in vacuum chambers, feedthrough-adjacent wiring, and instrument assemblies where bare wire insulation must remain stable in vacuum or air-side high-temperature zones.

  ✅Key Advantages

  1. Public product data specifically lists use in vacuum and air systems.
  2. The segmented structure provides continuous conductor shielding while still allowing routing movement.
  3. 95% and higher alumina grades are commonly used for electrical insulation around wires sized roughly 0.045–0.128 in in some vacuum hardware ranges.

  ✅ Problem Solved

  Vacuum equipment builders often face a layout problem: the conductor must remain electrically isolated, but the wire path cannot stay perfectly straight from feedthrough to internal connection point. Standard tube insulators are difficult to route through bends or tight instrument spaces. Alumina Fish Spine Beads address this by combining ceramic insulation with controlled flexibility, which is why vacuum hardware suppliers position them for vacuum wiring and scientific instrument use rather than as general ceramic spacers.

• Furnace Wiring and Heater Lead Insulation

  Alumina Fish Spine Beads are used to protect heater leads and bare conductors near hot zones in industrial furnaces, thermal processing systems, and resistance heating assemblies.

  ✅Key Advantages

  1. Designed for high-temperature heater lead insulation rather than only static spacing.
  2. Public supplier data lists alumina fish spine beads with working temperature up to about 1800°C, while some scientific grades are noted up to about 1900°C.
  3. Standard and custom bead formats support straight runs, local bends, and maintenance replacement needs.

  ✅ Problem Solved

  In furnace wiring, bare leads near the heated area often need ceramic insulation that survives temperature exposure and still fits a routed assembly path. Fiberglass or polymer sleeves cannot cover the same temperature range, while straight ceramic tubes are less convenient in bent sections. Alumina Fish Spine Beads provide modular ceramic coverage around the wire path, making them a practical choice for heating element lead protection and furnace service replacement parts.

Alumina Fish Spine Beads Usage Guide

• Installation

  1. Confirm wire diameter before installation and select the bore with adequate passing clearance.
  2. Inspect each bead for chipping, blocked bore, or damaged ball-and-socket end before assembly.
  3. String the beads in the same direction so the concave and convex ends engage correctly.
  4. Leave enough routing radius to avoid forcing the bead chain into a sharp angle.
  5. Where the wire exits a hot zone, check the transition point between the bead chain and terminal connection.

• Operation

  1. Use Alumina Fish Spine Beads only within the temperature range suitable for the selected alumina grade and wire material.
  2. Keep the bead chain aligned with the actual wire path rather than using it as a structural support part.
  3. Prevent repeated impact or vibration against metal walls in moving equipment.
  4. In furnace or heater applications, verify that the wire insulation system matches the conductor alloy and electrical load.

• Storage

  1. Store by size and lot to prevent mixed installation errors.
  2. Keep small beads in closed trays or sealed bags to reduce edge damage and contamination.
  3. Avoid mixing used beads with new production lots in maintenance stock.
  4. Keep in a dry area to reduce dust and shop-floor contamination before assembly.

• Cleaning

  1. Remove loose dust with dry compressed air or a lint-free cloth before assembly.
  2. For light contamination, use a clean alcohol wipe and dry fully before use.
  3. Do not use aggressive mechanical scraping on the ball-and-socket ends.
  4. If a bead has chips at the engagement area, replace it instead of reworking it.

• Three Common Questions During Use

  1. The wire does not pass through smoothly. What should the user check?
  Check the actual conductor diameter, oxide buildup on the wire, and bore consistency. If the wire is insulated or braided, Alumina Fish Spine Beads may need a larger bore than the nominal conductor size.

  2. The bead chain becomes stiff at a bend point. How should this be handled?
  Reduce the local bend angle, check whether the ball-and-socket ends are correctly engaged, and consider a shorter bead length or a different OD/ID combination for that section.

  3. Some beads crack during maintenance installation. What is the likely cause?
  The most common causes are impact during handling, forced insertion onto oversized wire, or side loading at the bend point. Replace damaged beads and recheck bore fit and routing geometry.

Alumina Fish Spine Beads FAQ

1. What are Alumina Fish Spine Beads used for?
   Alumina Fish Spine Beads are used to insulate bare electrical wires, thermocouple leads, and heater conductors in air systems, vacuum systems, scientific instruments, and furnace wiring assemblies.

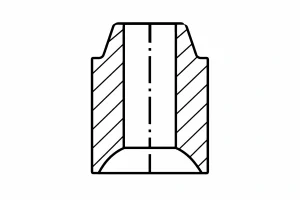

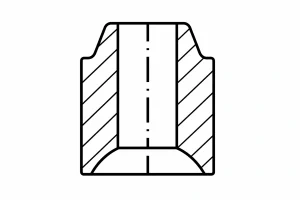

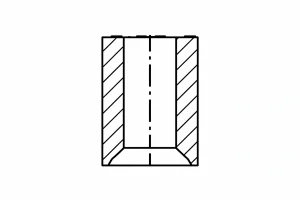

2.  Are Alumina Fish Spine Beads the same as ball and socket ceramic beads?
   Yes. Alumina Fish Spine Beads are commonly described as ball and socket ceramic beads because each bead has one convex end and one concave end that interlock during assembly.
3. What alumina purity is commonly used for Alumina Fish Spine Beads?
   Common grades for Alumina Fish Spine Beads include 95%, 96%, and 99.5% alumina, depending on temperature, dielectric requirement, and application cleanliness.

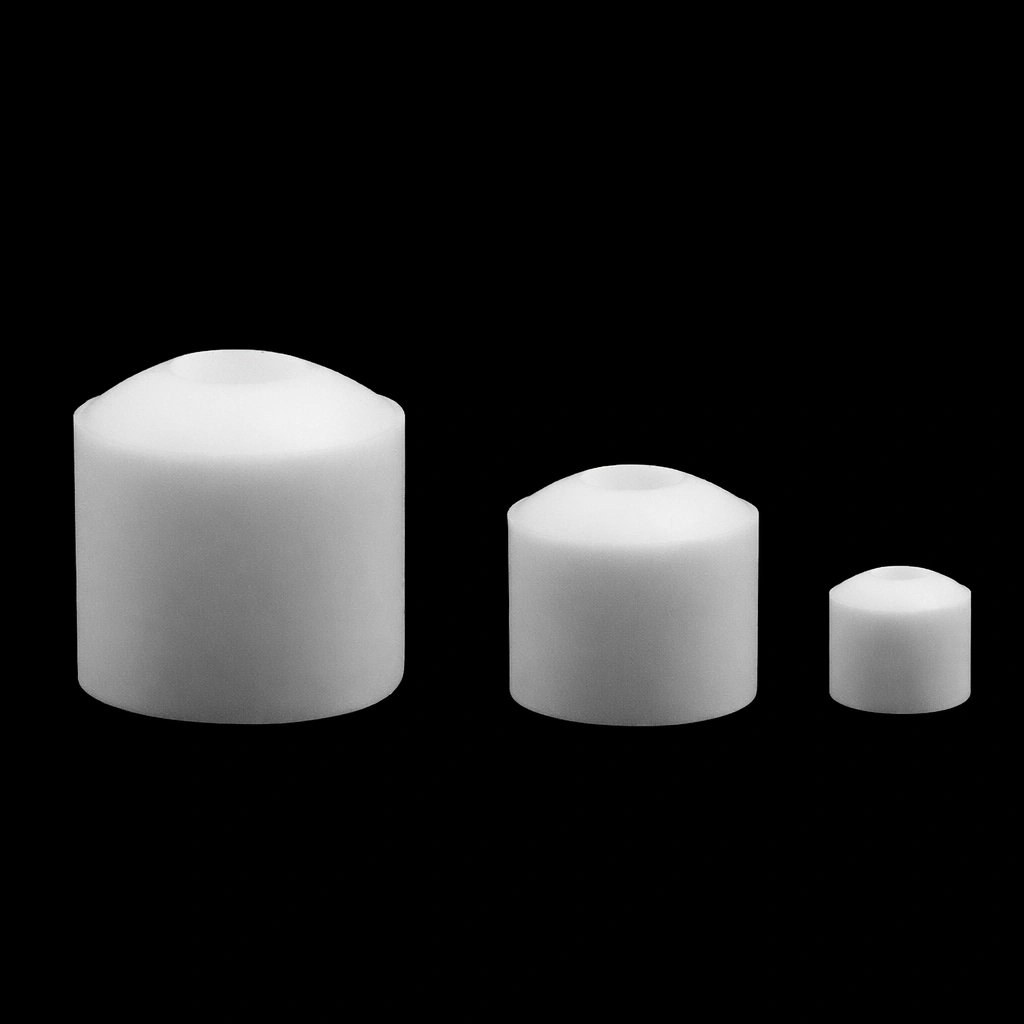

4. What standard sizes are available for Alumina Fish Spine Beads?
   Common standard references include about 2.29 × 1.02 × 3.18 mm, 4.32 × 1.52 × 4.78 mm, and 8.38 × 3.38 × 7.95 mm, with custom sizes also used for OEM assemblies.

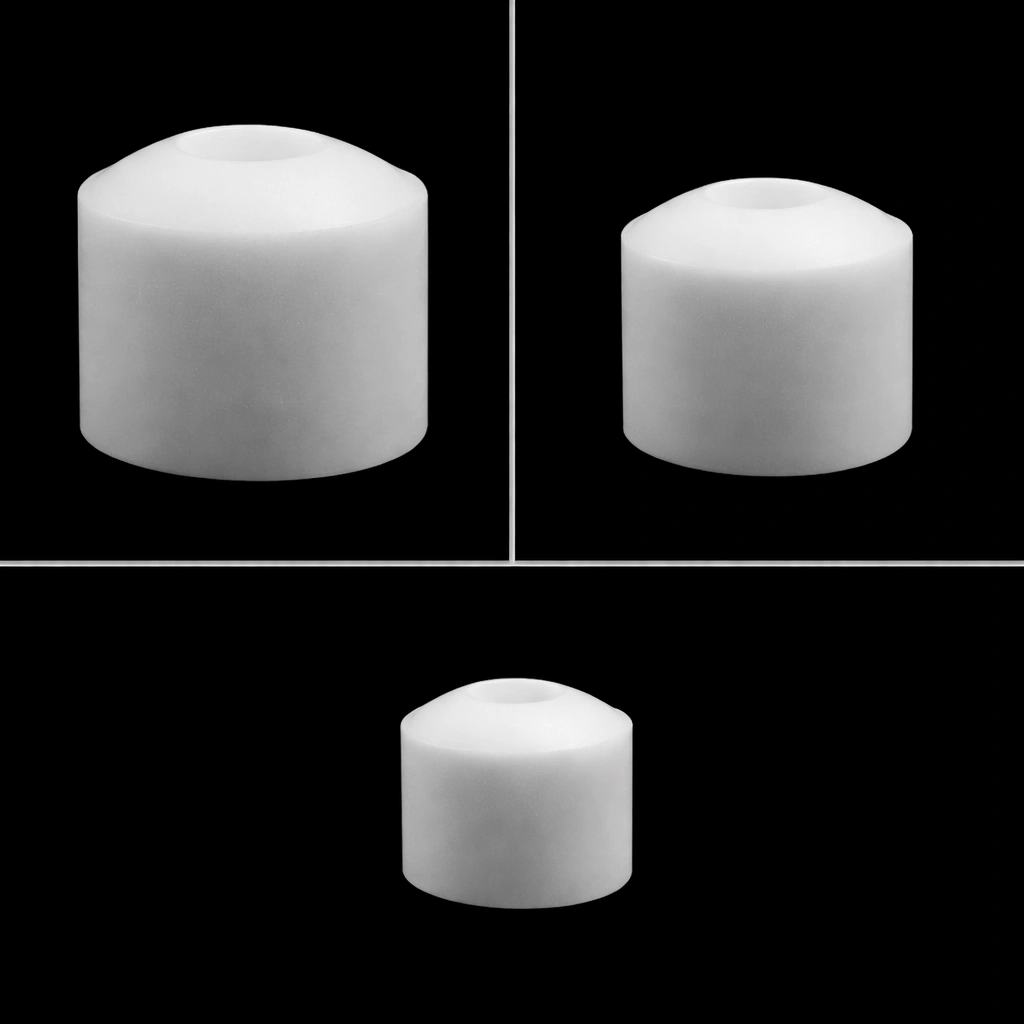

5. Can Alumina Fish Spine Beads be customized for a specific wire size?
   Yes. Custom Alumina Fish Spine Beads can be adjusted by inner bore, outer diameter, bead length, material grade, and ball-and-socket geometry to match a specific conductor or assembly path.
6. Are Alumina Fish Spine Beads suitable for vacuum systems?
   Yes. Alumina Fish Spine Beads are widely used for bare wire insulation in vacuum systems and air-side vacuum assemblies where ceramic insulation and routing flexibility are both required.
