Zirconia Pump for Precision Fluid Handling
ADCERAX is a China-based manufacturer of custom precision ceramic components, supporting zirconia pump component projects through drawing-based engineering review. The review covers requirements for pistons, plungers, cylinders, sleeves and valve components used in metering, dosing and filling applications.
Zirconia grade, critical dimensions, working clearance and surface finish are reviewed alongside mating-part requirements, fluid characteristics and operating conditions to establish a clear basis for manufacturing and inspection.
6.00–6.08 g/cm³
Bulk Density
What is a Zirconia Pump?

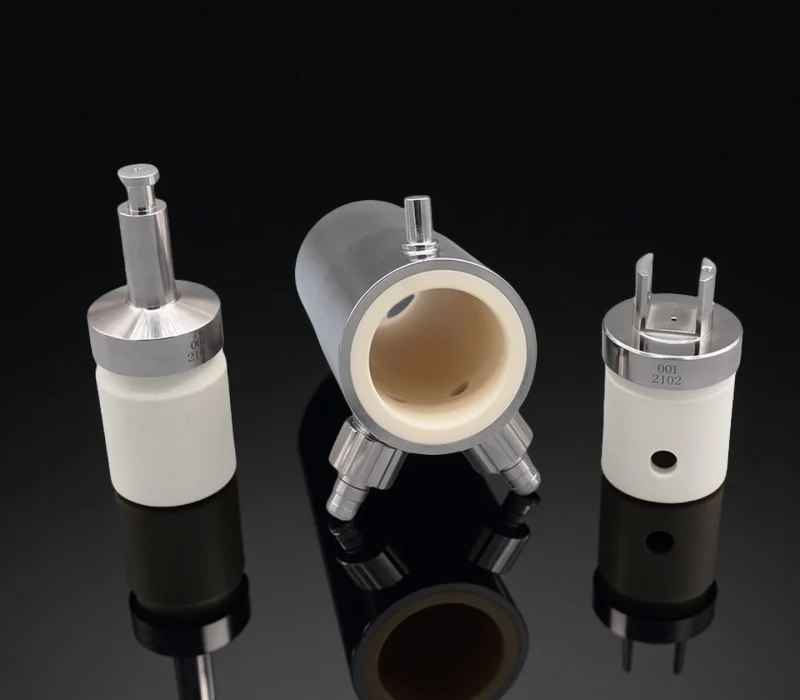

A zirconia pump uses zirconia ceramic components, such as pistons, plungers and cylinders, to control liquid delivery in dosing and filling systems. These components provide wear-resistant working surfaces, with ceramic grade, working clearance and surface finish selected to suit the fluid and operating conditions.
ADCERAX Advanced Zirconia Pump Product Range
Controlled liquid dosing helps maintain consistent process flow in industrial mixing and dispensing systems across production cycles.
Repeatable dispensing supports consistent fill volumes, with ceramic components matched to the liquid and filling requirements.
Precision zirconia pistons and cylinders support controlled delivery, while wear-resistant surfaces help maintain the working fit.
Wear-resistant zirconia plungers support repeated dosing cycles, with dimensions and surface finish tailored to mating components.
Zirconia Pump Component Material Properties
Comprehensive specifications demonstrate how Zirconia Pumps integrate material science with precision processing to achieve stable and repeatable dosing under industrial conditions.
| Property | Unit / Test Conditions | 3Y-TZP — AD-ZRO-3Y | Mg-PSZ — AD-ZRO-MG |
|---|---|---|---|
| Bulk Density | g/cm³ | 6.00–6.08 | 5.70–5.80 |
| Vickers Hardness | GPa | 12.5 | 11.5 |
| Flexural Strength | MPa, 20°C | 800–1000 | 500–755 |
| Fracture Toughness | MPa·m½, 20°C | 7.2–9.0 | 6–12 |
| Compressive Strength | MPa, 20°C | 2000–3500 | 2100 |
| Young’s Modulus | GPa, 20°C | 200–220 | 200 |
| Thermal Expansion Coefficient | × 10⁻⁶/K, 40–80°C | 11 | 10.5 |
Typical material-selection values for the stated grades, not finished-component acceptance limits or pump performance ratings. Hardness and fracture toughness depend on the specified test method and conditions. Thermal expansion values apply only to 40–80°C.
Ready to Connect with ADCERAX Zirconia Pump Solutions?
ADCERAX is committed to supporting your engineering projects with tailored Zirconia Pump solutions. Whether you need metering, filling, piston, plunger, or dosing pumps, our team ensures fast response, accurate guidance, and seamless supply.
We welcome your inquiries and will provide practical options suited to your requirements.
Zirconia Pump Applications Across Industrial Sectors

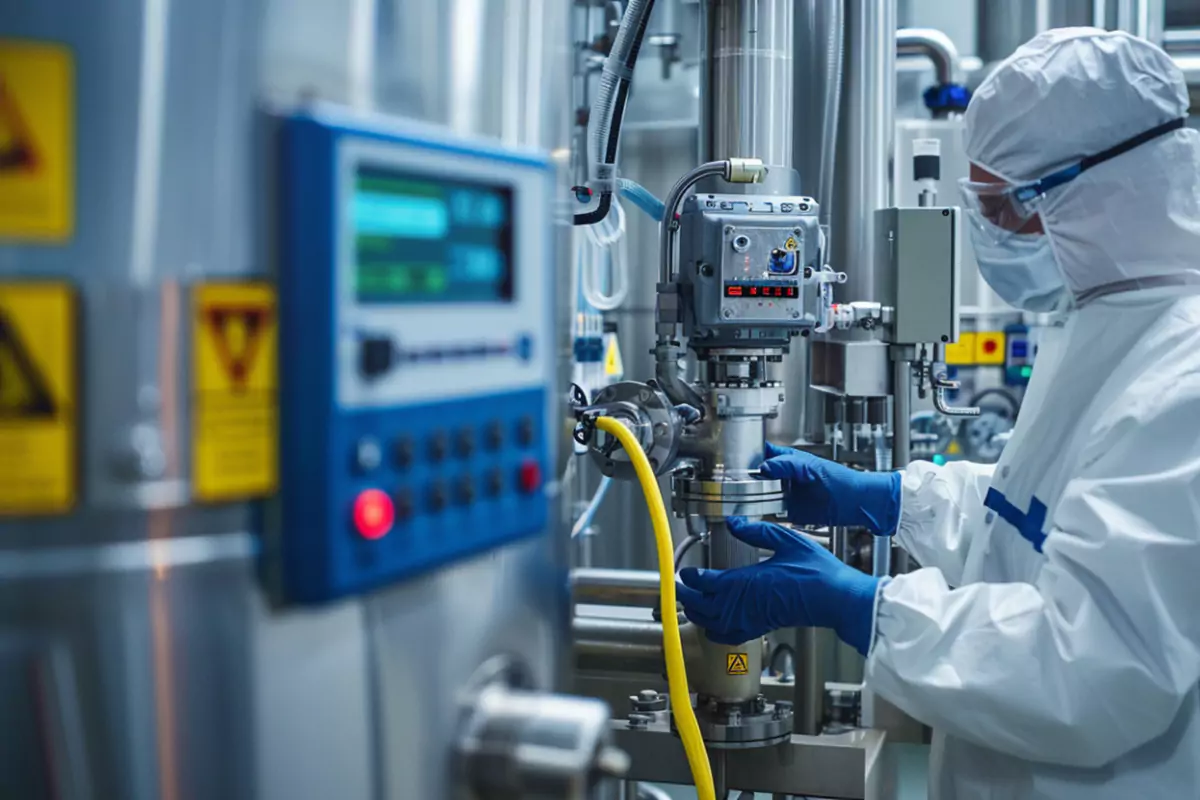

Zirconia Metering Pump Components for Chemical Processing
Zirconia pistons, plungers and cylinders provide hard, wear-resistant working surfaces for chemical dosing. Material grade and component geometry are selected to suit the fluid composition, concentration and operating conditions.
- 3Y-TZP and Mg-PSZ options for different operating conditions.
- Typical Vickers hardness: 11.5–12.5 GPa, depending on grade.
- Custom working surfaces and interfaces based on your drawings.

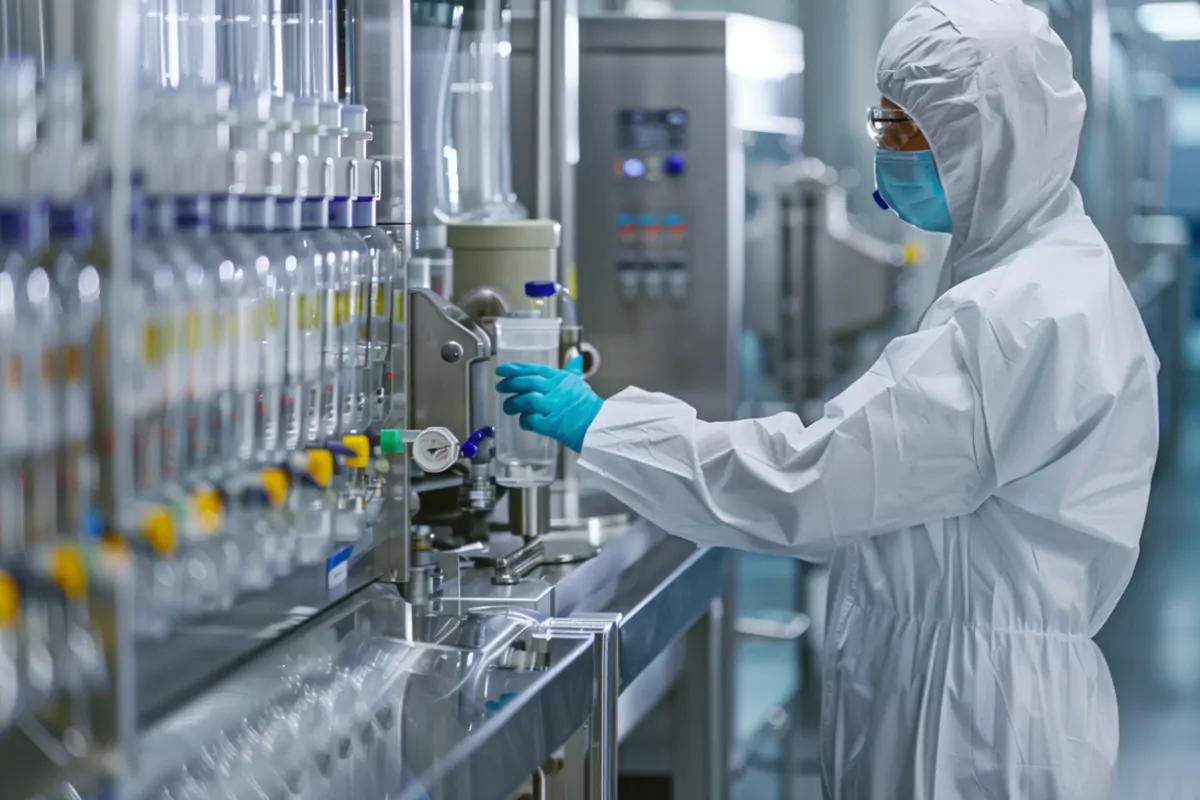

Zirconia Filling Pump Components for Food and Beverage Systems
Zirconia filling components offer polished working surfaces and custom piston-to-cylinder geometry. For food and beverage equipment, material selection considers the product, cleaning process and complete wetted assembly.
- Polished working surfaces for liquid-contact components.
- Custom piston and cylinder dimensions for filling equipment.
- Material selection considers product and cleaning-agent compatibility.

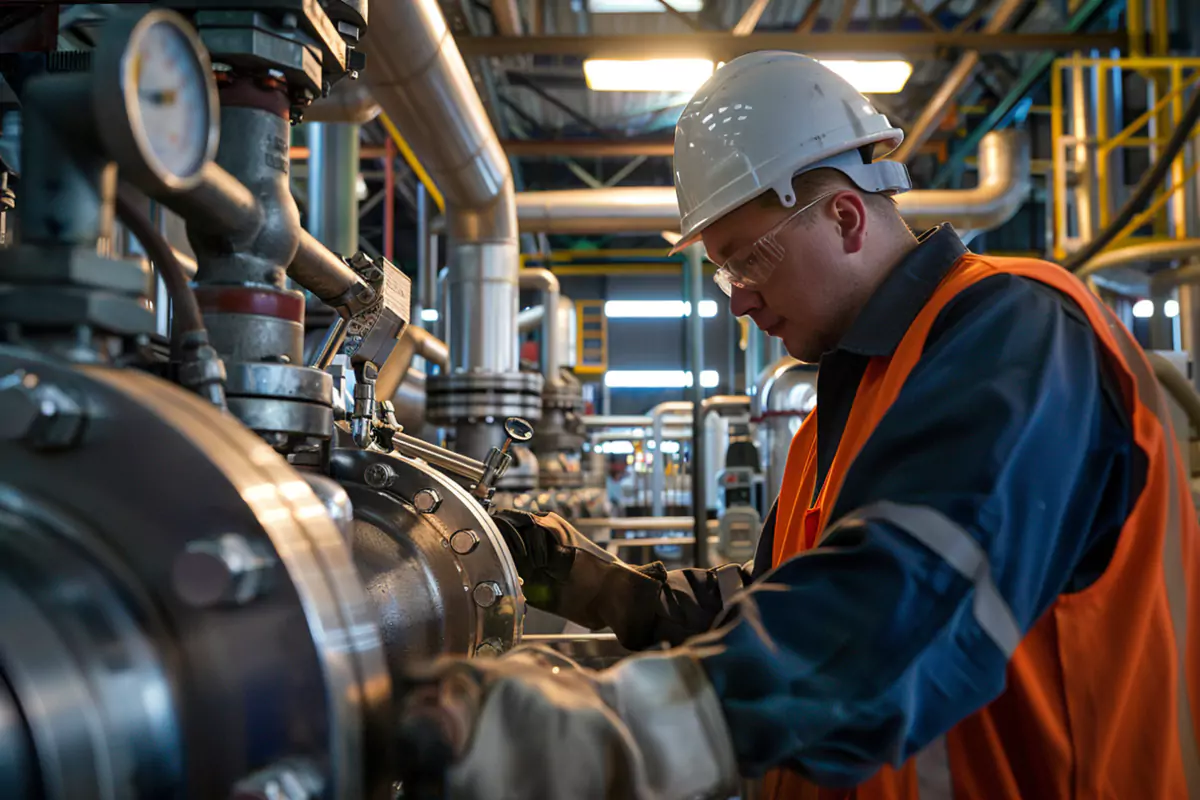

Zirconia Piston Pump Components for Energy and Petrochemical Systems
Zirconia pistons and plungers combine hardness and fracture toughness for mechanically demanding pump applications. Component geometry and material grade are selected for the fluid, operating temperature and loading conditions.
- Typical flexural strength: 500–1000 MPa at 20°C.
- Typical fracture toughness: 6–12 MPa·m½ at 20°C.
- Custom mating geometry for the specified pump design.

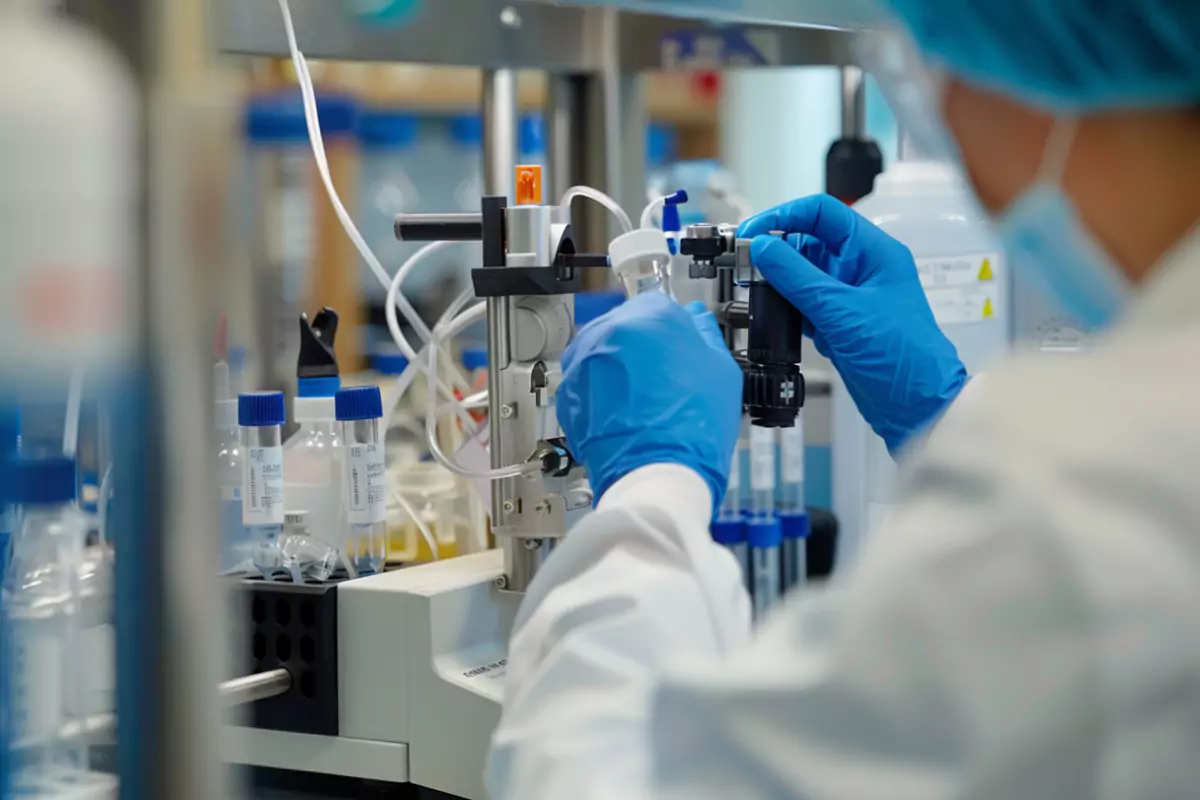

Zirconia Plunger Pump Components for Laboratory Dosing
Zirconia plungers and cylinders combine wear-resistant surfaces with custom geometry for laboratory dosing equipment. Dimensions, working clearances and surface finish are specified to suit the instrument and process fluid.
- Custom plunger diameters and cylinder bores.
- Working clearance specified for the mating components.
- Material selection considers reagents and cleaning media.

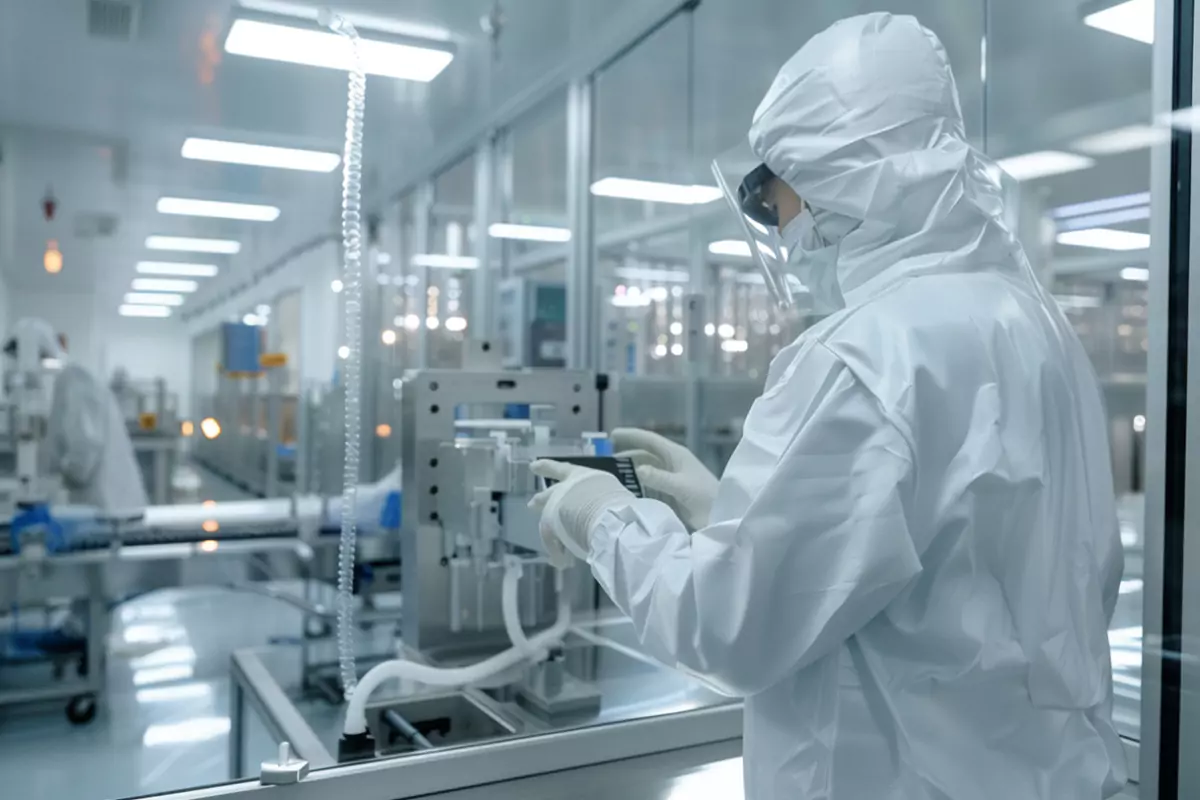

Zirconia Dosing Pump Components for Liquid Crystal Filling
Zirconia dosing components provide wear-resistant working surfaces for electronics fluid handling. For liquid crystal filling, component profiles and surface finish are specified around the dispensing system, fluid compatibility and cleanliness requirements.
- Custom piston and cylinder profiles for system integration.
- Polished contact surfaces with specified surface roughness.
- Material selection based on the liquid formulation.
ADCERAX One‑Stop Supplier for Custom Zirconia Plate Solutions
One-Stop Zirconia Plate Solutions That Eliminate Engineering Disruptions
ADCERAX's one-stop supply model is built to directly resolve the core pain points faced by technical buyers of zirconia ceramic Plate products. From unstable lead times to tolerance mismatch in local production, we provide full-cycle support—ensuring your sourcing plan stays on track.
- Fast prototyping: Samples delivered within 7 days to cut validation time.
- Precision assurance: ±0.5% dosing stability verified across 10,000 cycles.
- Custom adaptation: Interface machining adjusted to non-standard system sizes.
- Downtime prevention: Spare-parts support avoids losses exceeding $50,000 per line.
- Efficient cleaning: Polished surfaces Ra ≤ 0.2 μm reduce wash cycles by 30%.
- Stable supply: In-stock standard pumps shipped within 24 hours globally.
ADCERAX Manufacturing Strength for Zirconia Pump Production
ADCERAX one-stop service is backed by measurable factory strength, combining advanced equipment with strict quality data to solve client pain points.
| Manufacturing Capabilities Overview | |||
|---|---|---|---|
| Manufacturing Category | Capability Details with Data Evidence | ||
| CNC Machining Precision | Over 40 CNC units, tolerance control up to ±0.01 mm | ||
| Deep-Hole Processing | Drilling capacity: Ø1.5 mm × 25 mm depth, Ø5 mm × 50 mm length | ||
| Surface Finishing | Automated polishing lines, surface roughness Ra ≤ 0.2 µm | ||
| Strength Validation | flexural strength: 500–1000 MPa at 20°C; Vickers hardness: 11.5–12.5 GPa. | ||
| Durability Testing | Life-cycle rigs verify 10 million+ piston strokes without fracture | ||
| Rapid Production Capacity | 24 h dispatch for stock pumps, monthly output over 5,000 custom units | ||
customized zirconia pumps supplier
We specialize in custom zirconia ceramic pumps with special sizes, tight tolerances, and complex features. OEM and small-batch support available.
Customization Options

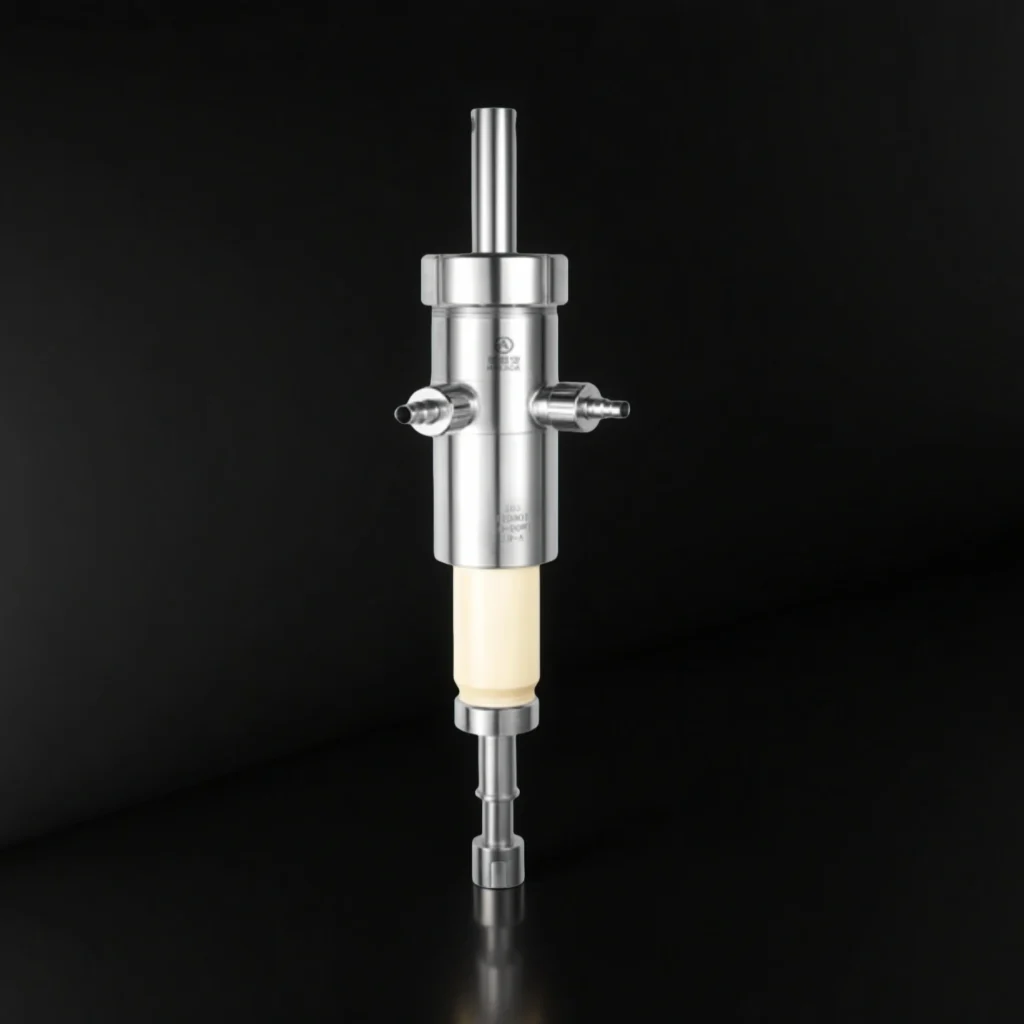

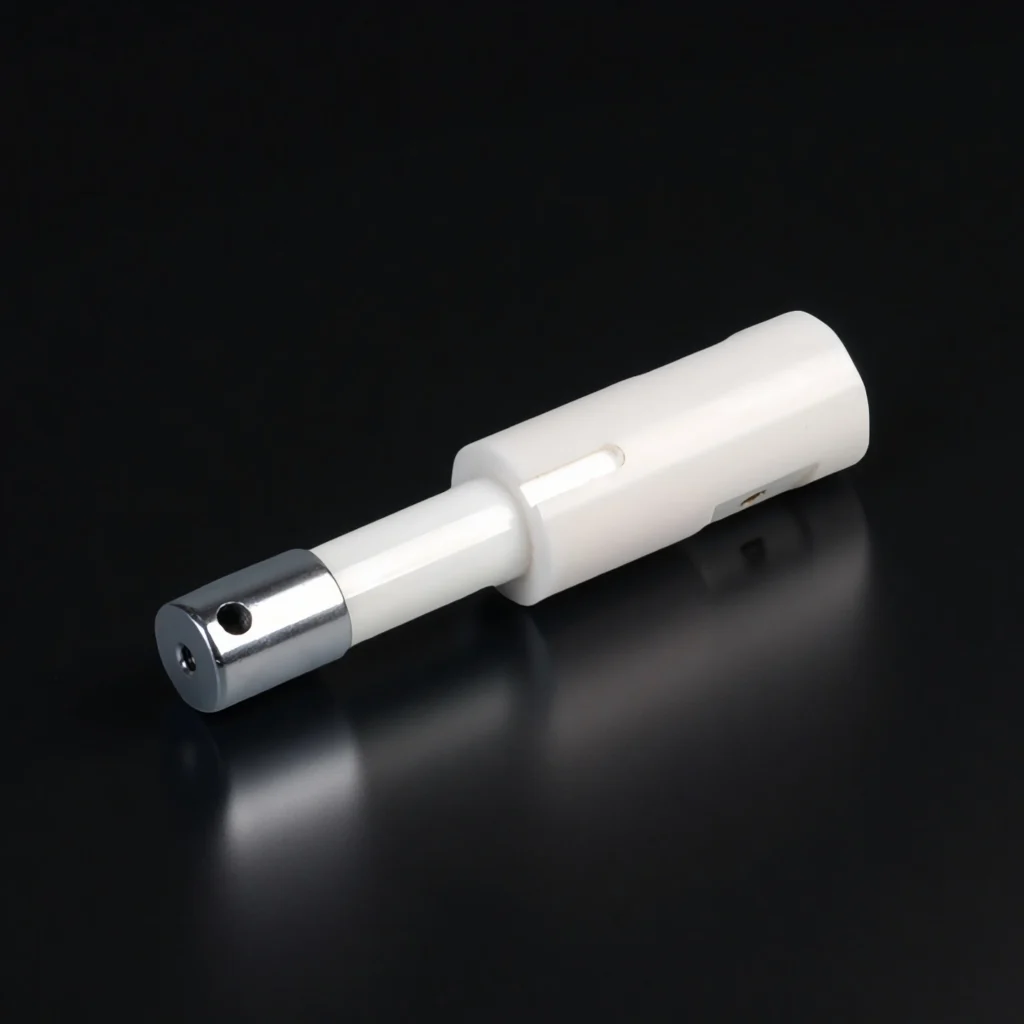

Custom diameters, bores and lengths for zirconia pump components, based on your drawings.
Drawing-specific tolerances, roundness and cylindricity for proper fit between zirconia parts and mating components.

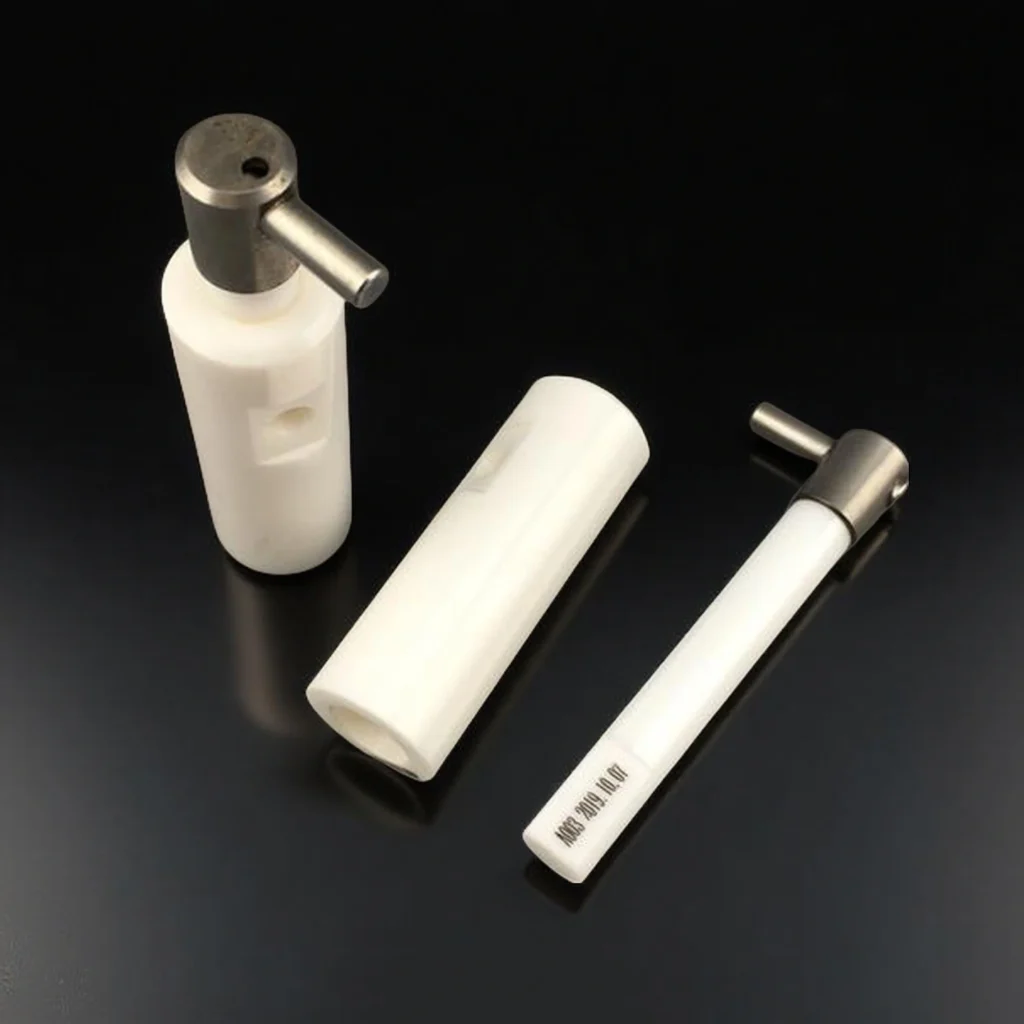

Custom zirconia piston, plunger and cylinder profiles based on your drawings and assembly requirements.
3Y-TZP and Mg-PSZ evaluated for fluid compatibility, wear, loads and operating temperatures.
Ground and polished surfaces with specified roughness for sliding, sealing and cleaning.
Customization Process
Send your drawing, requested quantity and delivery destination to start the quotation process.
Receive feedback on manufacturability and any points requiring clarification before a quotation is prepared.
Review the proposed price, delivery schedule and supply scope, then confirm the order.
Manufacturing follows the approved order, with any subsequent changes agreed upon before implementation.
Finished zirconia pump components are inspected against agreed requirements, then packaged for shipment.
Frequently Asked Questions about Zirconia Pump
Replacing metal wetted parts with zirconia reduces direct fluid contact with metal. Contamination control also depends on the ceramic grade, remaining wetted materials and cleaning process. Compatibility and cleanliness should be verified with the actual process fluid.
Absolutely, zirconia ceramic pumps integrate into automated filling and dosing systems. Their stability across millions of cycles makes them compatible with high-throughput operations. This scalability is essential for industries with mass production needs.
Neither route is a universal choice. Compare the specific commercial grades against the fluid, temperature cycle, geometry and validation requirements. Supplier material data describe that grade and test method; they do not establish assembled pump performance.
Accuracy and service life are system results. Define displacement or flow range, drive, test fluid, backpressure, calibration, duty cycle and acceptance criteria. Distinguish accuracy from repeatability and evaluate leakage under a stated test method.
Evaluate the complete fluid formulation, concentration, temperature and contact time with every wetted material, including seals, housing and fittings. A pH value or polished ceramic surface alone cannot establish compatibility, cleanability or sterilization suitability.
Provide the worn part, its mating component and the original drawing where available. Check wear, interfaces, working clearance and interchangeability before deciding between an individual replacement and a matched pair. Replacement evaluation does not establish a drop-in fit.
The pressure rating depends on the complete pump design, including ceramic component geometry, housing, seals and operating temperature. Zirconia’s material strength alone does not establish a pressure rating; the assembled pump requires testing under the specified operating conditions.
Leakage depends on working clearance, surface finish, seal design and pressure differences. These factors must be evaluated together, with an acceptable leakage rate specified and verified using the intended fluid, operating pressure and temperature.
Cleaning performance depends on surface finish, internal geometry and the residues left by the process fluid. Cleaning agents and temperatures should be compatible with all wetted materials, and residue removal should be verified before the next production run.
