Precision Silicon Nitride Ring for Sealing, Wear, and High-Temperature Stability
ADCERAX manufactures custom silicon nitride (Si₃N₄) rings — seal, wear, bearing and insulating/spacer rings — for pumps, valves, mechanical seals, rotating equipment and high-temperature systems where metal rings corrode and wear, or alumina rings chip under thermal shock.
Work from your drawing, old-part photo or key dimensions. Our engineers review OD, ID, thickness, sealing-face flatness/Ra, material route and working conditions before quotation, and can re-create discontinued parts.
What is Silicon Nitride Ring?
Silicon nitride ring is a precision-machined ceramic component made from Si₃N₄, a high-performance engineering material known for its exceptional combination of strength, hardness, low density, and thermal shock resistance.
These rings are commonly used in mechanical seals, bearings, pumps, compressors, and vacuum systems, where conventional metals or plastics cannot withstand high temperature, friction, or corrosive environments.
Silicon Nitride Ring vs. Metal Ring
| Parameter | Silicon Nitride Ring (Si₃N₄) | Metal Ring (Alloy Steel) | User Benefit |
|---|---|---|---|
| Density | ~3.2 g/cm³ | ~7.8 g/cm³ | 60% lighter, reducing rotational inertia and energy loss. |
| Hardness (Vickers) | 1400–1700 HV | 200–800 HV | Superior wear resistance and scratch durability. |
| Flexural Strength | 700–900 MPa | 600–900 MPa | Maintains strength under load at high temperatures. |
| Thermal Expansion (CTE) | 3.1–3.5 ×10⁻⁶ /K | 10–17 × 10⁻⁶/K | Stable geometry with minimal distortion during heat cycles. |
| Working Temperature | Up to 1200°C in air | ≤400°C | Ideal for high-temperature sealing and bearing systems. |
| Corrosion Resistance | Excellent resistance to acids, alkalis, and gases | Moderate resistance and prone to rust | Provides long-term reliability in harsh or wet environments. |
Silicon Nitride (Si3N4) Ring Properties
Silicon nitride (Si₃N₄) rings feature high hardness, low density, and excellent heat and wear resistance. They stay stable under high speed and temperature, making them ideal for mechanical seals, bearings, and other demanding industrial applications.
Silicon Nitride Ring Technical Data
| Si3N4 Type | Gas Pressure Sintering Si3N4 | Hot Pressing Sintering Si3N4 | High Thermal Conductivity Si3N4 |
|---|---|---|---|
| Density (g/cm³) | 3.2 | 3.3 | 3.25 |
| Flexural Strength (MPa) | 700 | 900 | 600–800 |
| Young’s Modulus (GPa) | 300 | 300 | 300–320 |
| Poisson’s Ratio | 0.25 | 0.28 | 0.25 |
| Compressive Strength (MPa) | 2500 | 3000 | 2500 |
| Hardness (GPa) | 15 | 16 | 15 |
| Fracture Toughness (MPa·m¹ᐟ²) | 5–7 | 6–8 | 6–7 |
| Maximum Working Temperature (°C) | Up to ~1200 °C in air (typical); higher-temperature duty in protective or reducing atmospheres is reviewed per application and grade — not quoted as a blanket rating | ||
| Thermal Conductivity (W/m·K) | 20 | 25 | 80–100 |
| Thermal Expansion Coefficient (/°C) | 3×10⁻⁶ | 3.1×10⁻⁶ | 3×10⁻⁶ |
| Thermal Shock Resistance (ΔT °C) | 550 | 800 | — |
Why Engineers Choose Silicon Nitride Rings
The ring holds its geometry under load and speed, so sealing faces stay flat and bearing seats stay round in service — fewer leaks, less vibration, and longer intervals between rebuilds.
Where alumina rings chip and metal rings distort on rapid temperature swings, silicon nitride stays dimensionally stable through thermal cycling — dependable in pumps, seals and hot equipment that heat up and cool down repeatedly.
Resistant to abrasion, oxidation and corrosive gases or fluids, the ring keeps its sealing and wear face far longer than metal in aggressive service — fewer replacements and less unplanned downtime in pumps, compressors and vacuum systems.
Much lighter than steel, so rotating rings carry less inertia — lower friction, less heat build-up and higher achievable speed in spindles, motors and hybrid bearings, with less energy lost to the ring itself.
Silicon Nitride Ring Products
ADCERAX produces precision silicon nitride ceramic rings with precise dimensions and smooth surfaces for sealing, bearing, and wear applications. Each ring is engineered for high strength, heat resistance, and long service life in demanding industrial environments.

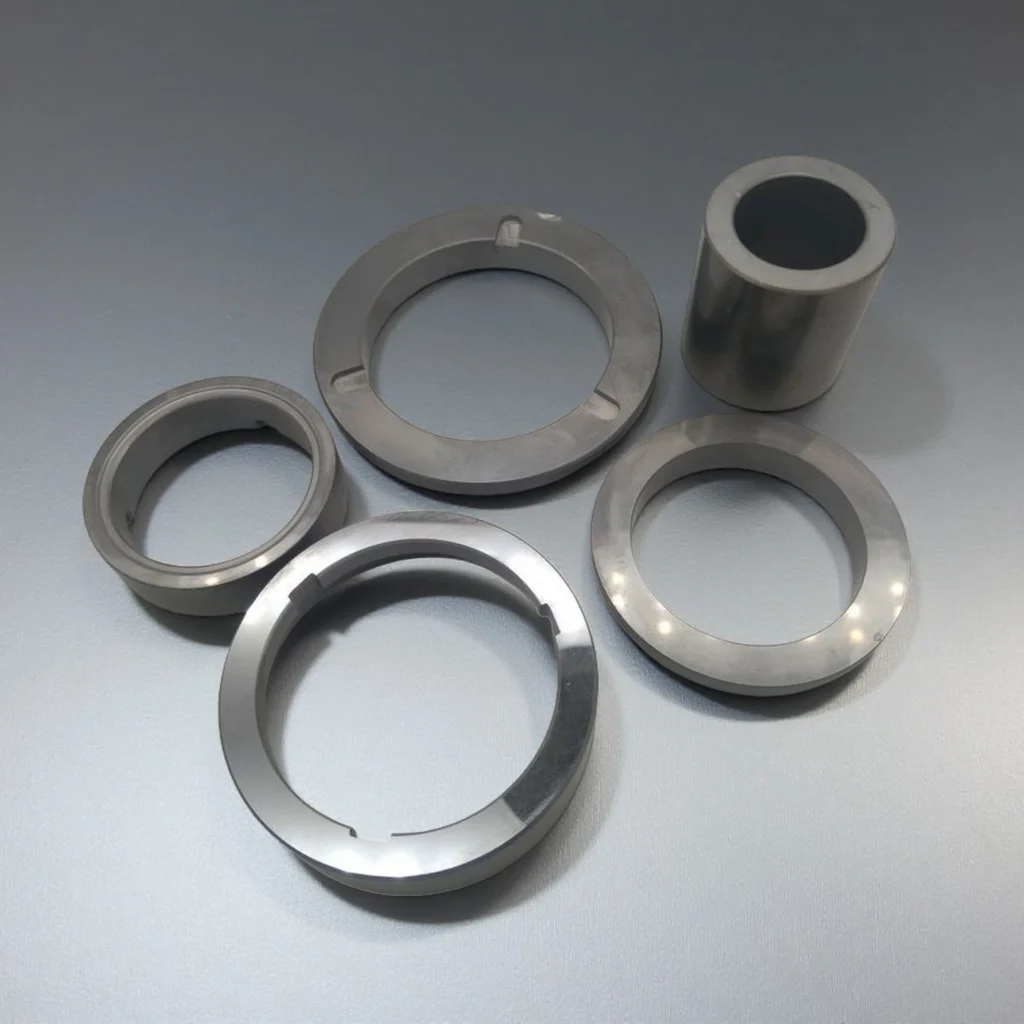

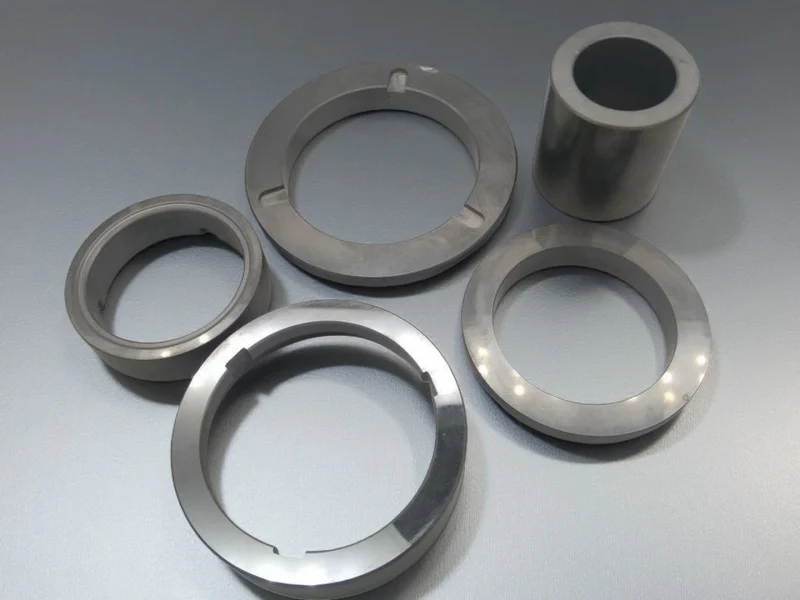

Seal Ring — Precision-lapped Si₃N₄ seal rings for pumps, compressors and mechanical seals: low friction, high wear resistance, long service life.

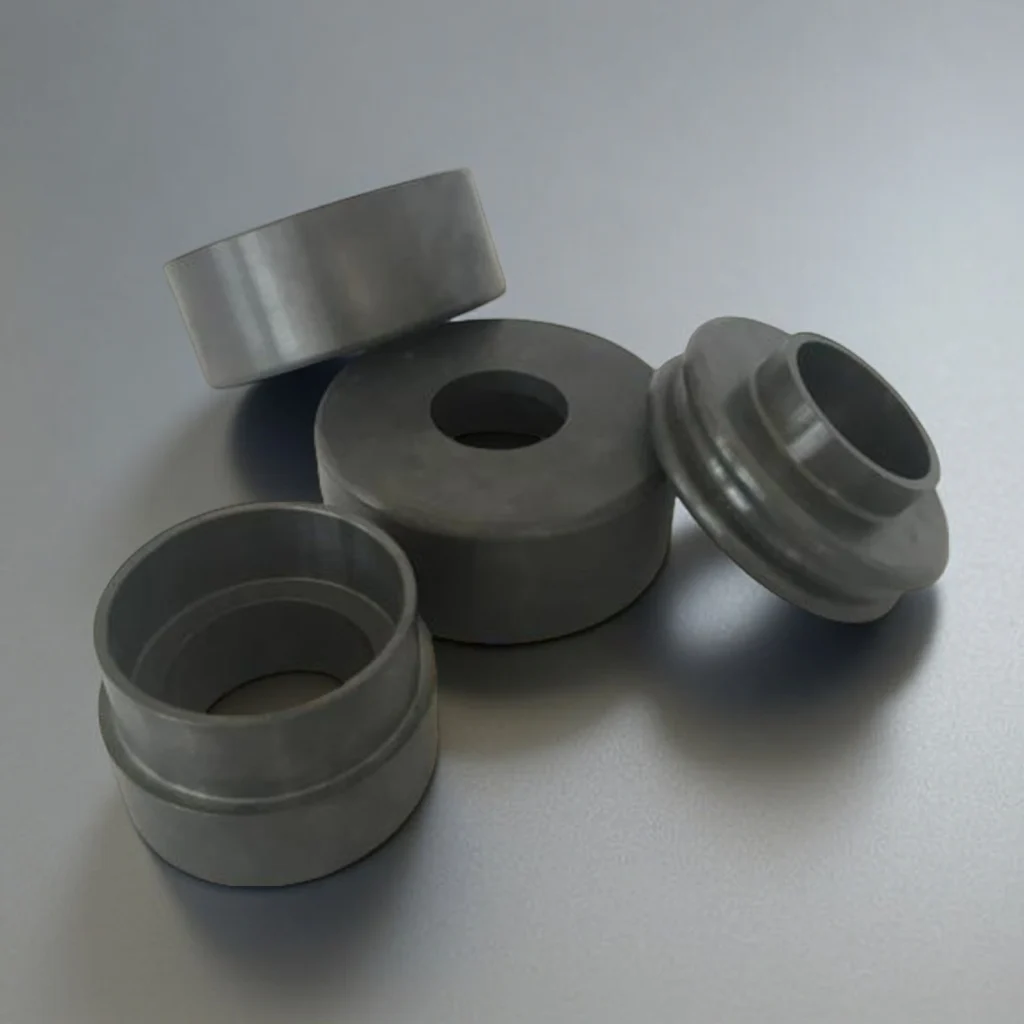

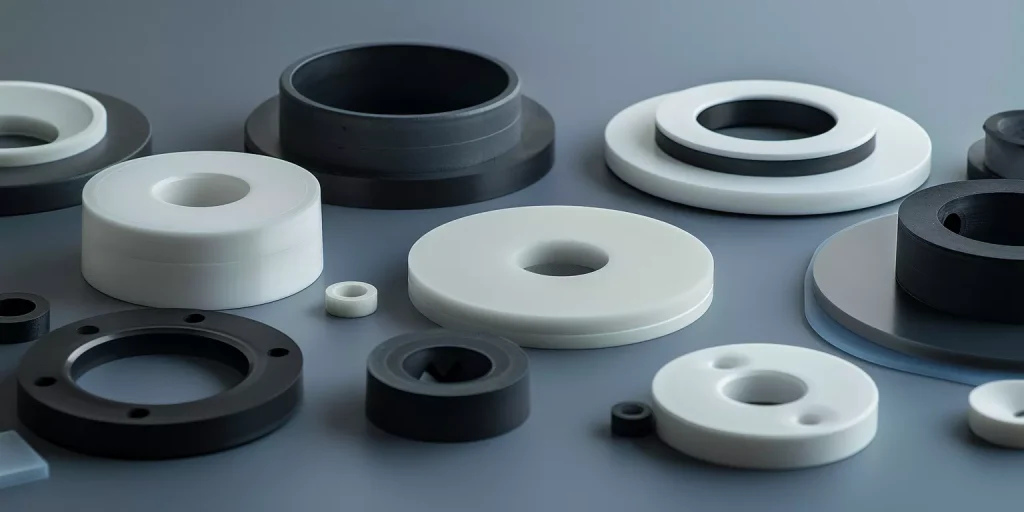

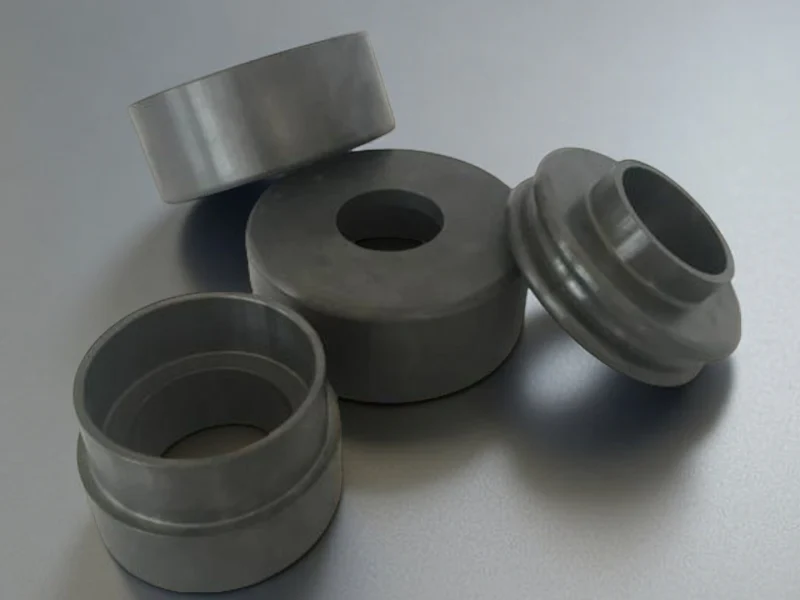

Insulation Ring — Si₃N₄ insulation rings for power modules and furnaces: high dielectric strength, stable under heat and vacuum.
Not sure which ring fits your assembly?
Send a drawing, old-part photo, or just your OD / ID / thickness plus the medium and temperature. Our engineers confirm the ring type, material route and what to check — before you quote.
Silicon Nitride Ring Applications
Si₃N₄ rings are widely applied in mechanical seals, pump systems, industrial bearings, high-temperature furnaces, and precision instruments, serving as critical components for sealing, wear protection, insulation, and structural support in demanding environments.

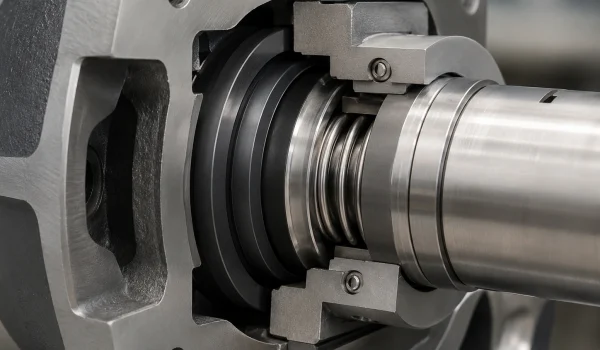

Mechanical Seals & Pumps
Lapped Si₃N₄ sealing faces for mechanical seals, chemical/vacuum pumps and compressors — corrosion- and wear-resistant where metal erodes and alumina chips.
- Confirm: medium, temperature, speed, OD/ID/thickness, flatness, Ra.

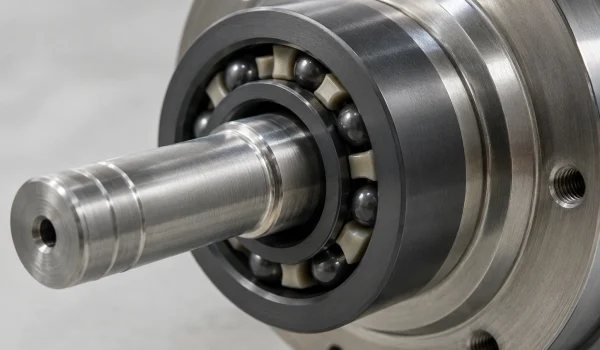

Bearings & Rotating Assemblies
Si₃N₄ bearing rings and spacers for hybrid bearings, spindles and motor shafts — light and low-expansion for higher, cooler-running speeds.
- Confirm: OD/bore to spec, roundness, Ra, speed, load.

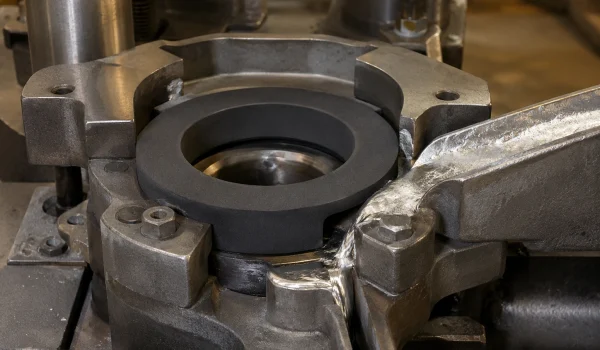

Foundry & High-Temperature (Break / Insulating Rings)
Break and insulating rings for molten metal, LPDC / die-casting and furnace fixtures — thermal-shock resistant and non-wetting where alumina cracks.
- Confirm: medium, thermal cycling, mounting; adjacent Si-Al-O-N / BN-Si₃N₄ route if needed.

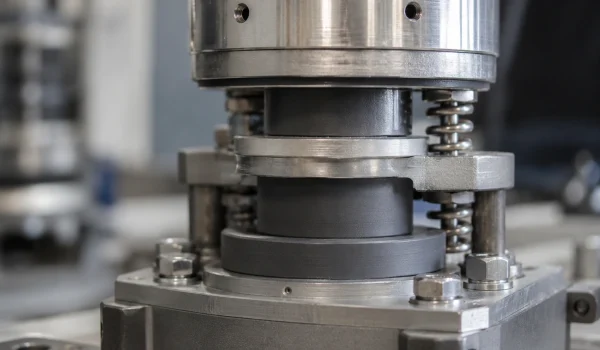

Precision Spacers, Locating & Insulating Rings
Si₃N₄ spacers, locating and insulating rings for instruments and power/thermal assemblies — dimensionally stable and electrically insulating.
- Confirm: flatness, thickness tolerance, parallelism, temperature, insulation need.
Custom Silicon Nitride Rings Supplier
We customize silicon nitride (Si₃N₄) rings — seal, wear, bearing, spacer and insulating rings — to your drawing: special sizes, tight tolerances, complex features, OEM and small-batch
Customization Options
Extra-large / extra-small OD & ID, non-standard thicknesses, thin-wall and large-diameter rings.
Tighter dimensional accuracy, sealing-face flatness/parallelism, roundness and concentricity control.
Chamfers, grooves, steps, slots and drilled holes to print.
GPSN / HPSN / HIP-SN, and adjacent Si-Al-O-N / BN-Si₃N₄ routes for foundry rings, matched to your working condition.
Fine grinding and lapping to a target sealing-face roughness (Ra).
Customization Process
Send your drawing, CAD or old-part photo with material, OD/ID/thickness, tolerances and quantity.
We review manufacturability before quotation and prototype 1–50 pcs for validation if needed.
CNC grinding, sintering and lapping; parts checked for dimensions, flatness/Ra and material.
Securely packed and shipped via DHL/FedEx/UPS or your preferred method, DDP available.
ADCERAX – Precision Silicon Nitride Ring Supplier
ADCERAX is a silicon nitride ring manufacturer from China. With in-house forming, HIP sintering and precision grinding, and engineering review before every quote, we help engineers turn a drawing or old part into a ring that fits the working condition.
We check dimensions, tolerances and working conditions before quoting, so the ring fits.
Professional team providing comprehensive technical support and collaborative design
Small batch orders to large-scale production with complex geometries and tight tolerances
Each inquiry is reviewed in context; lead time is confirmed per order by ring type, size, tolerances and quantity.
ADCERAX integrates Si₃N₄ ring production, precision machining, HIP sintering, and quality inspection into a unified process. We deliver both standard and custom silicon nitride rings for sealing, bearing, and wear-resistant applications — from prototype to mass production.
-
Precision Machining & Dimensional Control
Each Si₃N₄ ring is CNC-ground to meet strict roundness, flatness, and surface finish standards. This ensures smooth sealing performance, stable rotation, and extended service life under heavy load or high speed. -
Batch Consistency & Quality Verification
Our controlled HIP and polishing processes are run to keep batch performance consistent and reduce failure risk in demanding environments — verified by density, hardness and microstructure inspection per batch. -
Customization & Engineering Support
We provide custom silicon nitride ring solutions based on drawings or samples, supporting non-standard sizes, tolerances, and surface treatments. ADCERAX's engineering team assists with material selection and packaging, ensuring fast delivery and reliable global supply.
ADCERAX specializes in producing silicon nitride rings (Si₃N₄) using advanced forming, HIP sintering, and precision CNC grinding. Each ring is crafted for high strength, tight dimensional accuracy, and smooth sealing surfaces, ensuring reliable performance under high speed, pressure, and temperature. As a professional Si₃N₄ ring manufacturer, ADCERAX runs batch-level inspection for consistent quality and low-friction sealing faces — with service life reviewed against your load, speed and temperature duty rather than promised as a fixed figure.
| Manufacturing Capabilities Overview | |||
|---|---|---|---|
| Capability Item | Typical Value / Description | ||
| Material Grades | Pressureless or HIP-sintered Si₃N₄ with dense, uniform microstructure. Hardness ≥1500 HV, fracture toughness > 6 MPa·m½, and density ≈ 3.2 g/cm³ — ensuring high strength and thermal stability for sealing, bearing, and wear applications. | ||
| Precision Machining | CNC grinding and lapping achieve inner/outer diameter tolerances within ±0.01 mm and flatness ≤ 0.005 mm. Mirror surface finish up to Ra ≤ 0.2 µm ensures tight sealing, smooth rotation, and reduced leakage or friction. | ||
| Forming & Shaping | Advanced isostatic pressing and pre-sintering enable custom geometries, slots, and chamfers. Tailored shaping supports both standard and non-standard silicon nitride ring dimensions for various industrial assemblies. | ||
| Flatness & Dimensional Control | Controlled sintering minimizes porosity and warpage, maintaining consistent wall thickness and roundness under high mechanical or thermal stress. Ideal for precision-fit sealing and bearing interfaces. | ||
| Surface Finishing | Precision polishing and ultrasonic cleaning deliver defect-free surfaces with low roughness and stable contact. Each Si₃N₄ ring batch is inspected for density, flatness, and dimensional uniformity to ensure consistent assembly performance. | ||
FAQs About Silicon Nitride Rings
Structural Si₃N₄ ring grades typically retain strength to about 1200 °C in air; higher only in protective or inert atmospheres, depending on grade and route, confirmed per Engineering Review. We do not claim 1500 °C in air.
Our CNC-ground Si₃N₄ rings maintain ±0.01 mm tolerance, flatness ≤ 0.005 mm, and surface finish up to Ra 0.2 µm, ensuring tight sealing and smooth bearing operation.
Yes. Their combination of low density (~3.2 g/cm³) and high strength (700–900 MPa by route, typical) minimizes centrifugal stress, making them ideal for high-speed shafts, pumps, and gas compressors.
Yes. Custom Si₃N₄ rings are our core work: send a drawing, CAD file, sample or old-part photos with OD/ID, thickness, tolerances (flatness, parallelism, roundness, concentricity, Ra) and the working condition (temperature, medium, speed, load). Our engineers run a manufacturability review before quotation, support old-part replication and second-source evaluation, and prototype from 1–50 pcs for testing before batch production.
Hot pressing provides high density for small batches, while HIP-sintered (Hot Isostatic Pressed) rings offer better uniformity, mechanical strength, and crack resistance — suitable for continuous production.
ADCERAX integrates forming, HIP sintering, CNC grinding, and inspection in-house to ensure stable quality and full traceability. We provide custom silicon nitride rings with tight tolerances, smooth sealing surfaces, and reliable consistency. With factory-direct pricing, fast global delivery, and engineering support, ADCERAX helps OEMs achieve higher performance and lower maintenance costs.
Yes. Silicon nitride (Si₃N₄) rings are widely used as replacements for alumina and carbide rings in high-load, high-speed, and high-temperature systems. Compared with alumina, Si₃N₄ offers higher fracture toughness (5–7 MPa·m½), better thermal shock resistance, and lower thermal expansion, reducing cracking under rapid temperature changes. Compared with tungsten carbide, it is lighter (only 40% of the density) and maintains excellent hardness and chemical stability without corrosion or oxidation.
These advantages make silicon nitride rings ideal for sealing, bearing, and mechanical wear components where strength, durability, and long service life are critical.
Service life depends on the application. In sealing and bearing duty, Si₃N₄ rings can outlast metal or alumina rings, with the margin depending on load, speed, temperature, medium and installation design — it is reviewed per application at engineering evaluation rather than quoted as a fixed multiple.
What to Send for a Silicon Nitride Ring Quote
To quote a Si₃N₄ ring, send what you have:
- Ring type: seal / wear / bearing / spacer / break-insulating
- Material route if known: GPSN / HPSN / HIP-SN
- OD, ID and thickness
- Sealing-face flatness, parallelism and Ra
- Roundness / concentricity (if critical)
- Chamfer, groove or mounting face
- Operating temperature and atmosphere
- Media or corrosion (acids, alkalis, molten metal, gases)
- Speed and load (bearing and rotating rings)
- Drawing, sketch or photo of the old part
- Old-part material and failure mode (for replacement)
- Quantity and target lead time
Send what you have — even a drawing or old-part photo is enough to start. Our engineers confirm ring type, material route and feasibility before quoting.
