Silicon Nitride Ceramic Bearings for High-Speed, Insulated & Corrosion-Resistant Applications
Silicon nitride ceramic bearings bring electrical insulation, low density, high-speed stability and corrosion resistance to rotating equipment — cutting shaft-current erosion in VFD and EV motors, resisting rust in corrosive or vacuum duty, and helping spindles hold accuracy at speed. In suitable duties this means fewer unplanned stoppages and longer service intervals, confirmed by review of your speed, load and environment.
1100°C
Thermal Shock Resistant
(Stable under rapid temperature change)
(Stops motor bearing currents)
Low Density ~60% lighter than steel
(Cooler at high speed)
(Inert in acids, DI water & vacuum)
What is Silicon Nitride Ceramic Bearing?
A precision rolling bearing made from Si₃N₄ advanced ceramic — it stays stable under extreme speed, temperature and mechanical stress where steel bearings fail.
High strength
Low density
Wear resistant
Insulating
Si₃N₄ vs steel vs zirconia bearings
Where they win — and where they don't.
| Property | Silicon nitride best fit |
Steel | Zirconia |
|---|---|---|---|
| Density | ~3.2 g/cm³ | ~7.8 | ~6.0 |
| Hardness (HV) | 1,400–1,700 | 700–800 | 1,100–1,200 |
| Electrical | ✓ Insulating | ✕ Conductive | Insulating |
| Corrosion resistance | ✓ Excellent | ✕ Poor | Good |
| Temperature (material) | High* | below ~300°C | ~600°C |
| Weight vs steel | ~60% lighter | — | ~30% lighter |
Si₃N₄ vs. Steel Bearings:
Runs cooler, resists electrical erosion and corrosion; steel wears and corrodes faster in humid or hot service.
Si₃N₄ vs. Zirconia Bearings:
Zirconia resists corrosion but is heavier and less thermally stable; Si₃N₄ holds strength at temperature with better high-speed balance.
Best fit
For high-speed, inverter-driven or corrosive conditions — confirm load, speed, temperature and medium first.
Silicon Nitride (Si3N4) Ceramic Bearing Properties
Si₃N₄ ceramic bearings offer exceptional mechanical strength, thermal stability, and insulation, making them ideal for high-speed motors, precision spindles, and chemical systems operating under heat, load, and corrosive environments.
| Si₃N₄ type | Gas pressure sintering | Hot pressing sintering | High thermal conductivity |
|---|---|---|---|
| Typical use / when to choose | General-purpose, best value | Heavy load & high precision | High-speed motors & spindles (heat removal) |
| Density (g/cm³) | 3.2 | 3.3 | 3.25 |
| Flexural strength (MPa) | 700 | 900 | 600–800 |
| Young’s modulus (GPa) | 300 | 300 | 300–320 |
| Poisson’s ratio | 0.25 | 0.28 | 0.25 |
| Compressive strength (MPa) | 2500 | 3000 | 2500 |
| Hardness (GPa) | 15 | 16 | 15 |
| Fracture toughness (MPa·m¹ᐟ²) | 5–7 | 6–8 | 6–7 |
| Max working temperature (material) | 1100°C | 1300°C | 1100°C |
| Thermal conductivity (W/m·K) | 20 | 25 | 80–100 |
| Thermal expansion (/°C) | 3×10⁻⁶ | 3.1×10⁻⁶ | 3×10⁻⁶ |
| Thermal shock resistance (ΔT °C) | 550 | 800 | / |
Si3N4 Silicon Nitride Ceramic Bearing Products
ADCERAX supplies silicon nitride ceramic bearings in various configurations, including ball bearings, roller bearings, and bearing rollers. Each type is designed for high-speed, high-temperature, and corrosive environments, providing low friction, electrical insulation, and long-term durability for industrial equipment.
Full or hybrid, with Si₃N₄ balls — for high-speed, insulated motors & spindles. Low friction, long life.

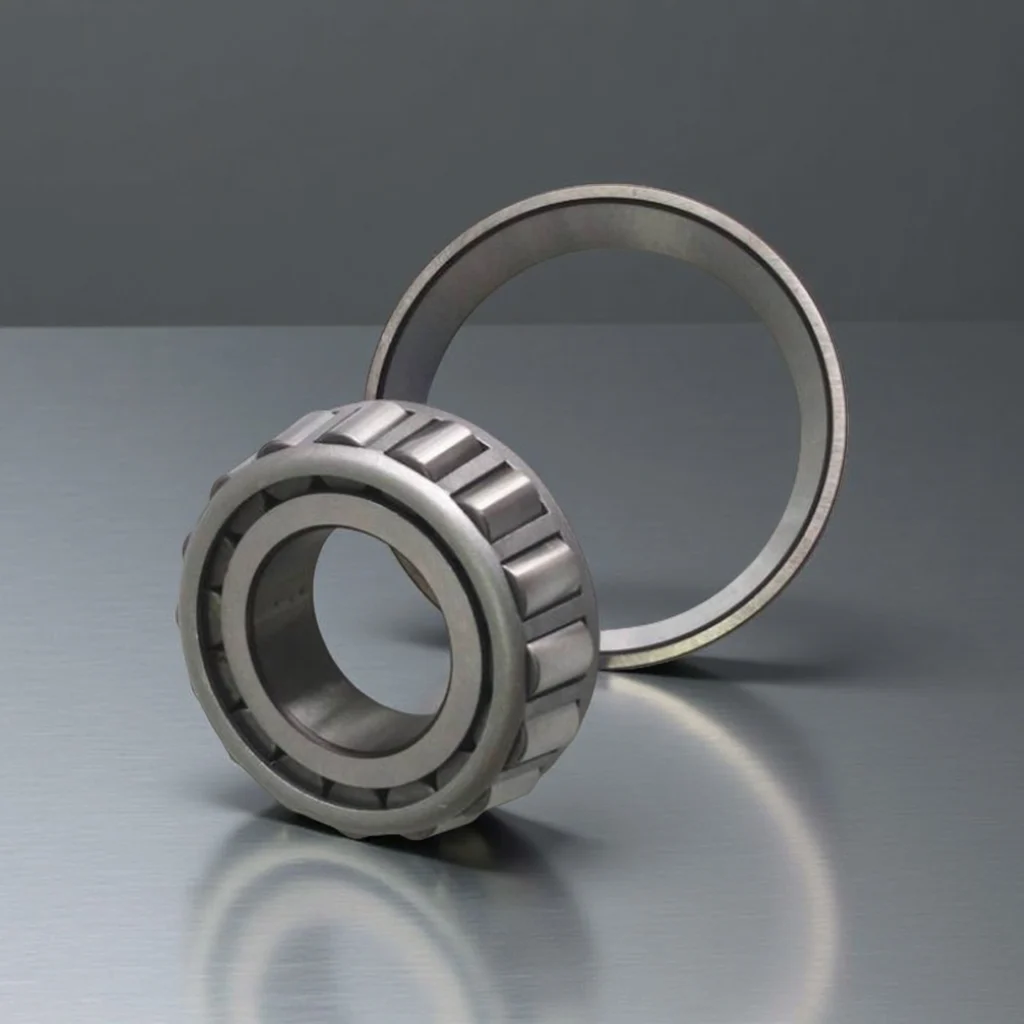

Higher load capacity — for heavy load, e-drive and wind. Thermally stable under load and temperature swings.

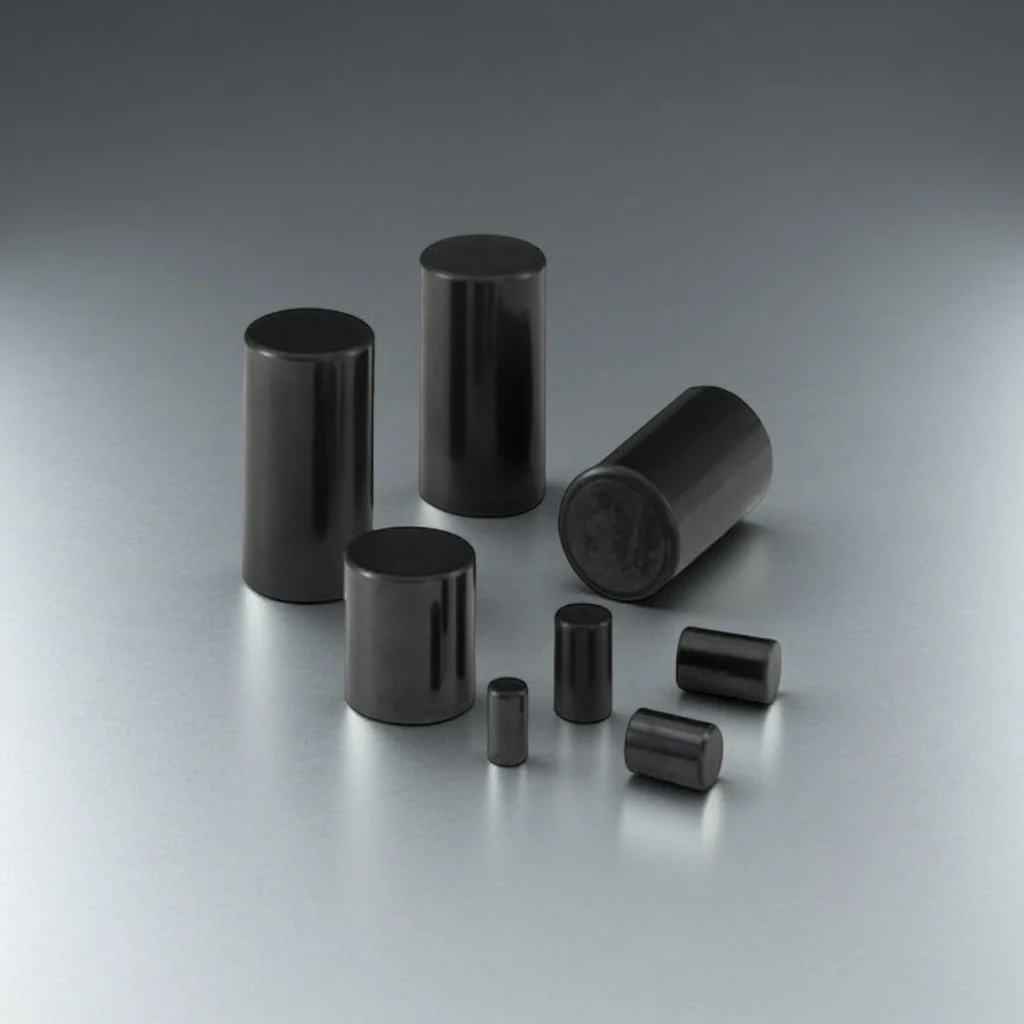

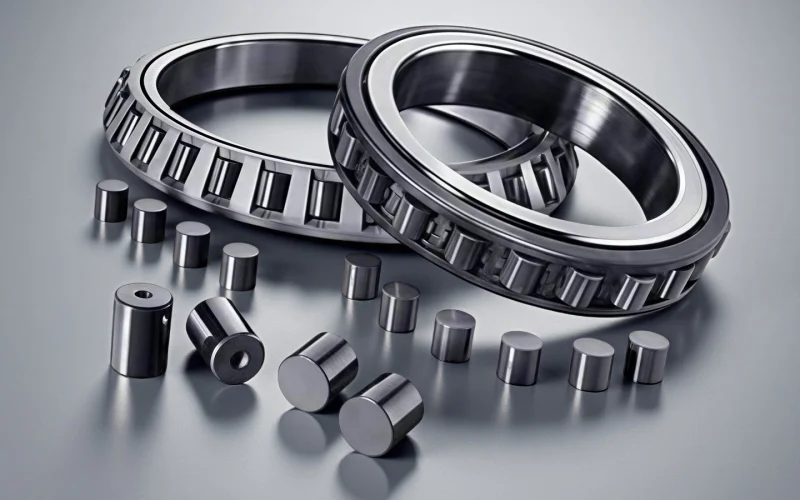

Loose Si₃N₄ rolling elements (G3/G5/G10, needle → spherical) — for hybrid/full builds & repair.
Si3N4 Silicon Nitride Ceramic Bearing Applications
Silicon nitride (Si₃N₄) bearings are used in demanding environments where traditional steel bearings fail due to wear, corrosion, or electrical erosion. They are commonly applied in motors, machine tools, chemical pumps, and vacuum or energy systems, supporting industries such as automotive, aerospace, and manufacturing.

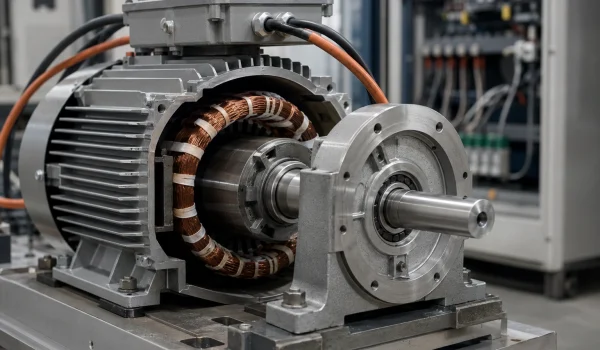

Motors
Stops bearing currents that pit and flute VFD / EV motor.
Insulating Si₃N₄ rolling elements break the rotor–stator current path; low density cuts heat at high RPM.
- Insulating — no electrical erosion
- Low density — less heat at speed
- Hybrid or full ceramic
- Typical: VFD & EV traction motors, servo systems, generators.

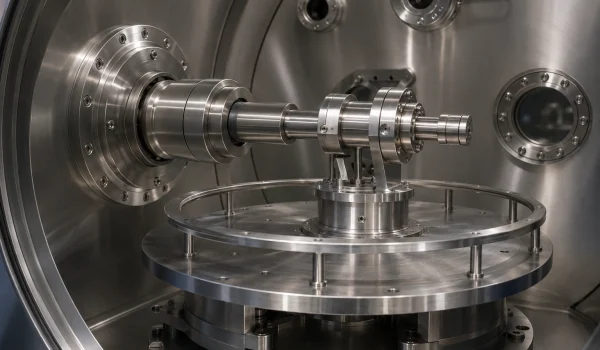

Vacuum
Clean, non-magnetic operation for vacuum & high-temperature rotary systems. High-purity Si₃N₄ with no metallic binder gives low outgassing and stays stable under thermal cycling.
- Low outgassing
- Non-magnetic & thermally stable
- Usable temp set per design
- Typical: vacuum furnaces, coating chambers, semiconductor rotary stages.

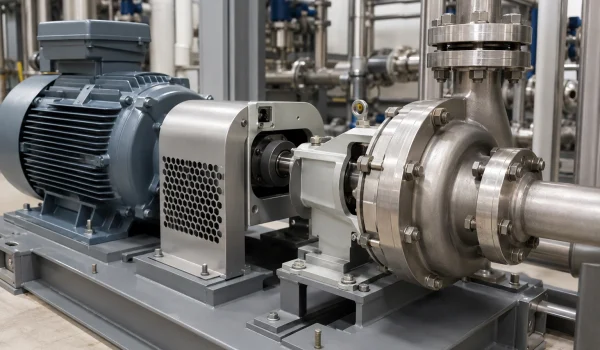

Pumps
Runs in corrosive media where steel bearings corrode and seize. Chemically inert Si₃N₄ resists acids, alkalis and DI water, and can run oil-free to avoid contamination.
- Chemically inert
- Oil-free / DI-water & clean service
- Full ceramic or Si₃N₄ elements
- Typical: chemical & dosing pumps, wet benches, food-grade equipment.

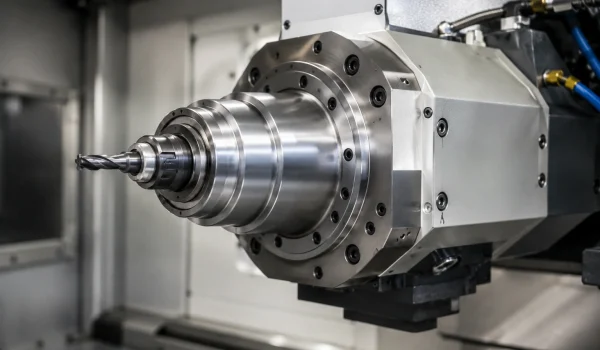

Spindles
Holds accuracy at high speed where steel bearings overheat and drift. Low thermal expansion limits spindle growth; low friction reduces heat and extends grease life.
- Low thermal growth — stable precision
- Low friction — longer grease life
- High-speed balance
- Typical: CNC & grinding spindles, precision equipment, robotics.
Custom Silicon Nitride Ceramic Bearings Manufacturer
ADCERAX specializes in custom silicon nitride ceramic bearings built to your drawings and engineering requirements. We support non-standard dimensions, special clearances or preload, PEEK/PI cages, custom raceway geometry, and precision grinding for hybrid and full-ceramic bearing designs. Prototype samples and volume production are available with stable quality, verified tolerances, and on-time delivery.
Customization Options
Extra-large / Extra-small diameters, non-standard thicknesses, and ultra-long / ultra-short lengths.
Provide higher - level dimensional accuracy and concentricity control than the standard.
Flanges, steps, threads, drilling holes, grooves, etc.
Adjust the material according to the application requirements.
Polish and grind the surface to achieve a specific surface roughness.
Customization Process
Send us your drawing, CAD file, or physical sample with material grade, dimensions, tolerances, and quantity. Our engineers will evaluate the design and provide a detailed quotation with lead time and pricing.
Once the quote is approved, we proceed with sample prototyping (1–50 pcs) if needed, for testing and validation.
After sample approval or direct confirmation, we begin batch manufacturing using CNC machining, sintering, and polishing. All parts undergo dimensional checks, material purity testing, and surface finish inspection.
Finished products are securely packed and shipped via DHL/FedEx/UPS or your preferred method. We support global delivery with full documentation.
Manufacturing & quality — Si₃N₄ ceramic bearings
ADCERAX manufactures and exports Si₃N₄ ceramic bearings, custom and volume, with in-house forming, sintering, precision grinding and inspection for OEM and engineering clients.
Made in our own workshop, drawing-based.
We match material, load, speed and temperature before quoting.
From samples to repeat production.
Fast reply; lead time confirmed per order.
In-house process, batch inspection you can request, and verifiable standards.
Density, roundness / sphericity, surface finish and dynamic balance.
COC, dimensional report and material data sheet with your order.
Tolerance and surface finish confirmed per part — not a fixed catalogue value.
FAQ about Silicon Nitride Ceramic Bearing
A silicon nitride ceramic bearing is made from Si₃N₄ material that offers higher hardness, lighter weight, and complete corrosion resistance. Compared with steel bearings, it operates reliably under high-speed, high-temperature, and electrical environments.
Yes. Si₃N₄ ceramic bearings can be either full-ceramic (both balls and races made of Si₃N₄) or hybrid designs that use silicon nitride ceramic balls with steel races for lower cost and improved performance.
They are widely applied in machine tool spindles, chemical pumps, vacuum systems, and electric motors, where reliability, insulation, and clean operation are essential.
Yes. ADCERAX offers custom silicon nitride ceramic bearings according to your drawings or samples, including non-standard dimensions, cage materials, and hybrid configurations.
They can run dry in clean environments. However, adding light lubrication or grease significantly extends lifespan and reduces wear in high-speed silicon nitride ceramic bearings.
They can be made to standard bearing dimensions, but a reliable swap depends on internal clearance, preload, fit, lubrication and duty. We review your bearing and application and confirm the right construction rather than promising an unverified direct replacement.
Send us the bearing size or part number, the construction you need (hybrid or full-ceramic), and the speed, load, temperature and environment — plus a photo of the worn part if it is a replacement. Our engineers review the selection and reply with what we can make and a typical lead time. We quote on an engineering basis after that review rather than publishing a fixed turnaround.
Tight tolerances and fine raceway finishes are made to your drawing and verified by inspection. We can hold dimensional tolerances to ±0.002 mm and surface roughness of Ra 0.01–0.05 µm depending on the bearing grade and construction, and we treat ISO/ABEC classes as dimensional references for selection rather than a default certification.
Si₃N₄ ceramic bearings are electrically insulating, blocking current flow between the rotor and stator.
This prevents arcing, surface pitting, and grease damage, ensuring stable operation and a much longer service life in inverter-driven motors.
ADCERAX applies strict quality control from raw material to finished bearing. Each Si₃N₄ bearing is inspected for density, roundness and surface finish, with dimensional tolerances to ±0.002 mm and surface roughness of Ra 0.01–0.05 µm depending on the bearing grade. All products undergo vibration and durability testing to ensure reliable performance under high speed and load.
Silicon nitride as a material tolerates very high temperatures, but a finished bearing is limited by its cage (often PEEK or 316 stainless), its lubrication, and — in hybrid bearings — the steel rings. So the working temperature is set by the bearing construction and duty, not by the raw-material figure. Tell us your temperature and environment and we confirm a suitable construction.
What to Send for a Silicon Nitride Ceramic Bearing Quote
For a fast engineering review, please share:
- bearing model or part number and size
- construction (hybrid or full-ceramic)
- required precision, internal clearance and preload
- cage and seal type; lubrication
- operating speed and load; temperature and medium
- the failure you are solving (e.g. bearing-current fluting, high-speed heat, corrosion)
plus old-part photos and quantity. Replacing a steel bearing? We confirm the fit and selection by review rather than promising an unverified direct swap.
