Transparent Ceramic & Sapphire Optics for Laser, IR and High-Temperature Applications
ADCERAX is a China-based advanced ceramics manufacturer supporting custom transparent ceramic and sapphire optics, including sapphire windows, substrates, tubes and viewports, as well as transparent alumina, spinel, ALON and yttria (Y₂O₃) material. We engineer these materials into windows, domes, plates, tubes and protective optical components for laser, infrared and high-temperature applications.
Our engineering team evaluates your wavelength band, application environment, drawings, dimensions and surface requirements to recommend a suitable material route and manufacturing approach. We support precision machining, polishing and AR/DLC coating preparation, with material availability, transmission data and tolerances confirmed per RFQ.
What is Transparent Ceramic?
Transparent ceramic is a polycrystalline optical material that combines glass-like transparency with the mechanical strength and thermal stability of advanced ceramics. By tightly controlling grain size, density, and impurities during sintering, light-scattering defects are minimized — allowing UV, visible, or infrared transmission while keeping ceramic-grade hardness and heat resistance.

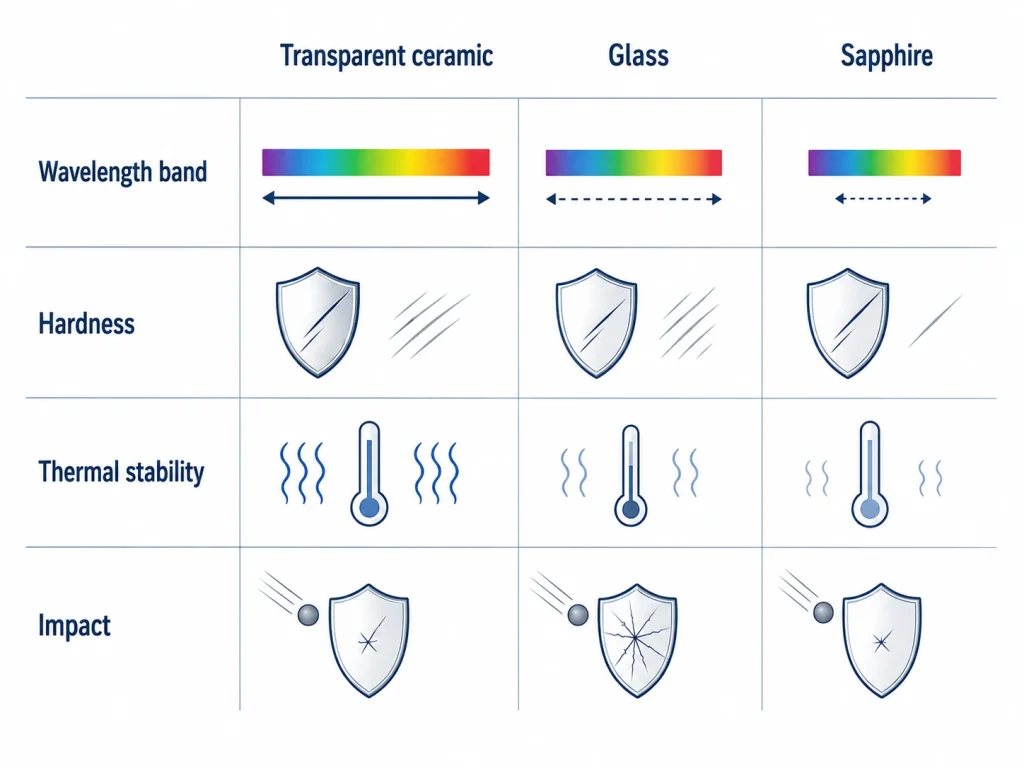

Compared with optical glass, transparent ceramics offer higher hardness, better thermal-shock resistance, and a broader transmission band (UV–IR), making them suited to environments where glass or polymer optics fail — high heat, high pressure, abrasion, or repeated laser exposure.
Typical bands for material selection only. Actual transmission, coatings, and tolerances are confirmed per RFQ and your drawing.

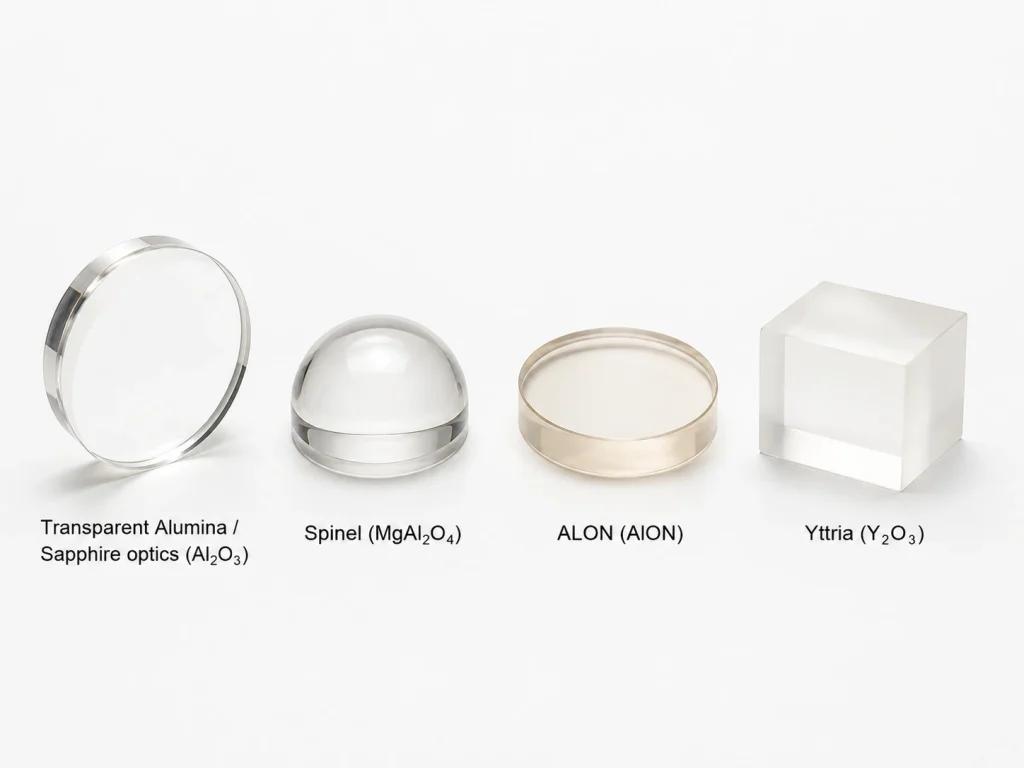

| Material Family | Typical Transmission Band | Stands Out For | Best-Fit Applications |
|---|---|---|---|
| Transparent Alumina (Al₂O₃) / Sapphire optics | ~0.2–5 µm (UV–MWIR) | Extreme hardness & scratch resistance; high-temp clarity | High-temperature viewing windows, furnace sight glass, scratch-resistant protective covers, sapphire substrates/tubes |
| Spinel (MgAl₂O₄) | ~0.2–6 µm (UV–MWIR) | Broadband VIS–MWIR clarity; impact resistance | EO/sensor windows & domes, multispectral windows, transparent armor, optical protection plates |
| ALON (aluminum oxynitride) | ~0.2–5 µm (UV–MWIR) | Very high hardness in a polishable optic | IR domes, transparent armor windows, optical sensor protection, aerospace optics |
| Yttria (Y₂O₃) | ~0.25–7 µm (extends into mid-IR) | Widest mid-IR window; high heat tolerance | Laser gain media, mid-IR optics, high-heat optical components, precision instruments |
Transparent Ceramic Material Selection Guide
Each transparent ceramic family balances optical band, strength, and temperature differently. Use the guide below to shortlist a material, then send your drawing — our engineers confirm the best fit for your wavelength and environment.
Typical reference values for selection; not a guarantee. Supply, exact transmission, coating, and dimensional tolerances are confirmed per RFQ.
| Property | Transparent Alumina | Spinel | ALON | Yttria (Y₂O₃) |
|---|---|---|---|---|
| Transmission band | 0.2–5 µm | 0.2–6 µm | 0.2–5 µm | 0.25–7 µm |
| In-band transmission | >80–86% | ~80–85% | 80–85% | 78–85% |
| Hardness (Vickers) | high (≈1700 HV) | moderate–high | very high (≈1800 HV) | moderate (≈650 HV, easy to polish) |
| Max working temp | up to ~1900 °C | high | up to ~1200 °C | up to ~1900 °C |
| Key strength | hardness + high-temp clarity | broadband + impact | hardness + armor | mid-IR + heat |
Transparent Ceramic Properties
Representative values to support material selection. Final values are confirmed per RFQ against your drawing and acceptance criteria.
Alignment carriers and mounting bases for high-power lasers, optical assemblies, and semiconductor systems.
Viewports and sight glasses for vacuum chambers, pressure housings, and laser/IR systems.
Protective sleeves and viewports for heaters, thermocouples, UV/plasma lamps, and high-temperature industrial sensors.
IR windows and covers for laser systems, mid-infrared optics, and high-temperature instruments.

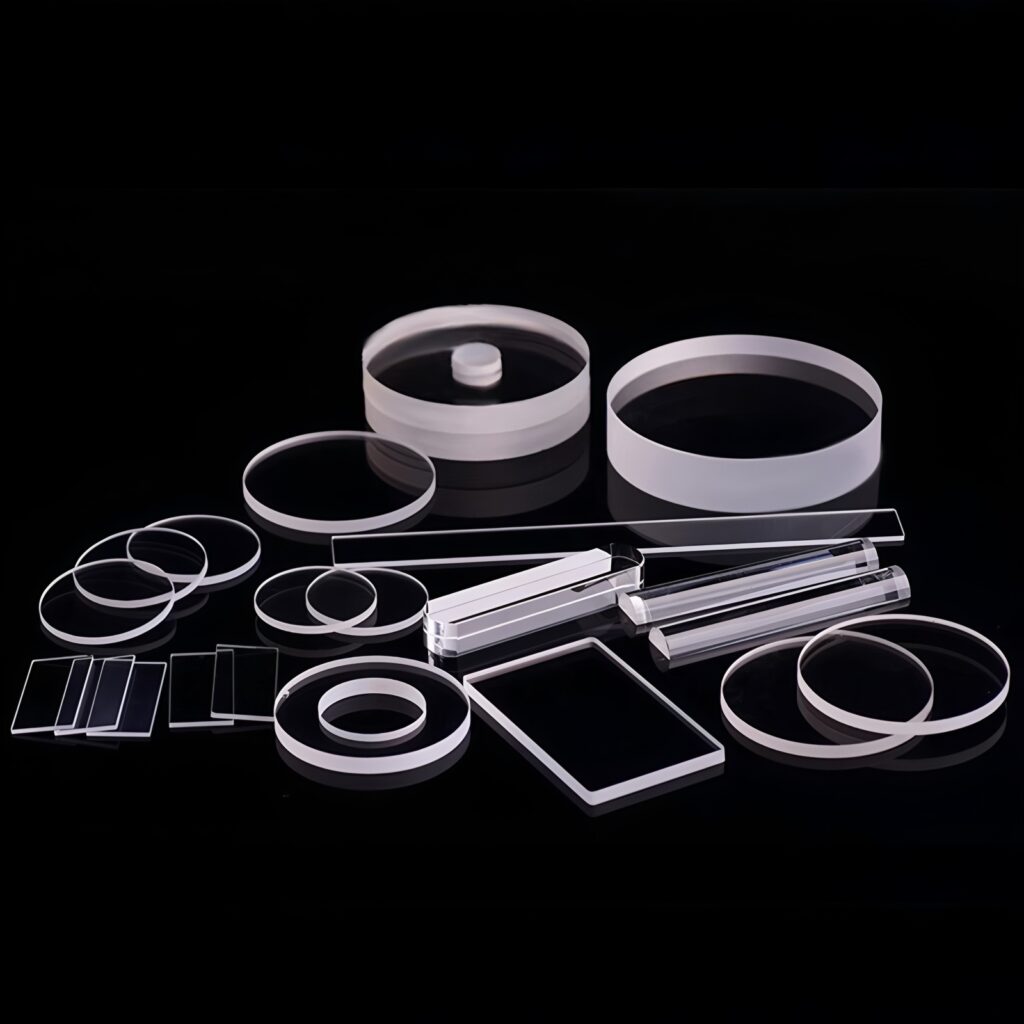

Transparent Ceramic & Sapphire Products
ADCERAX supplies transparent ceramic and sapphire optics—including substrates, optical windows, tubes, and yttria covers—engineered for laser and IR systems. Every component is verified for transmission and haze and ships with full dimensional inspection for stable, repeatable performance.
💡Clear Strength. Optical Precision. ADCERAX Transparent Ceramic Solutions.
Every ADCERAX clear ceramic is engineered for clarity, strength, and performance —delivering superior transmission, tighter tolerance, and higher heat stability in the world’s toughest optical and industrial applications.
Laser & Optical Systems
🔹Need: laser gain media, optical windows, sensor domes, beam-alignment optics.
🔹Challenge: high-energy beams cause heat, stress, and optical distortion in glass.
🔹 ADCERAX approach: ALON and yttria optics for high thermal stability, low refractive deviation, and lasting clarity under repeated exposure.

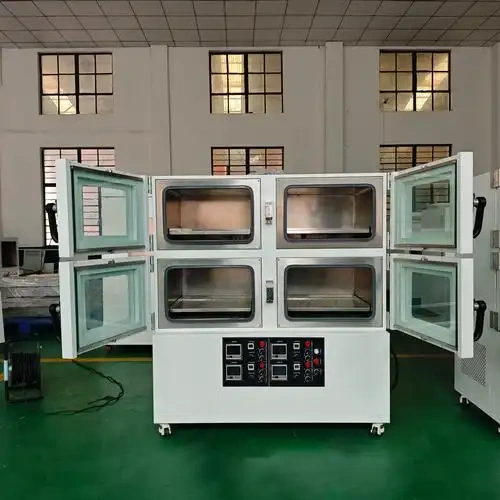

Semiconductor & High-Temperature Equipment
🔹Need: furnace viewports, process-monitoring windows, industrial viewing windows, vacuum / high-pressure viewports, protective sight glasses.
🔹Challenge: >1700 °C devitrifies ordinary materials and clouds optical paths.
🔹ADCERAX approach: transparent alumina for high-temperature stability and high purity to keep process visibility.
Lighting & Energy Systems
🔹Need: high-intensity discharge lamps, LED encapsulation lenses, IR-transparent covers.
🔹Challenge: prolonged heat/UV causes discoloration and efficiency loss.
🔹ADCERAX approach: yttrium-based ceramics for high light transmittance and thermal-degradation resistance.

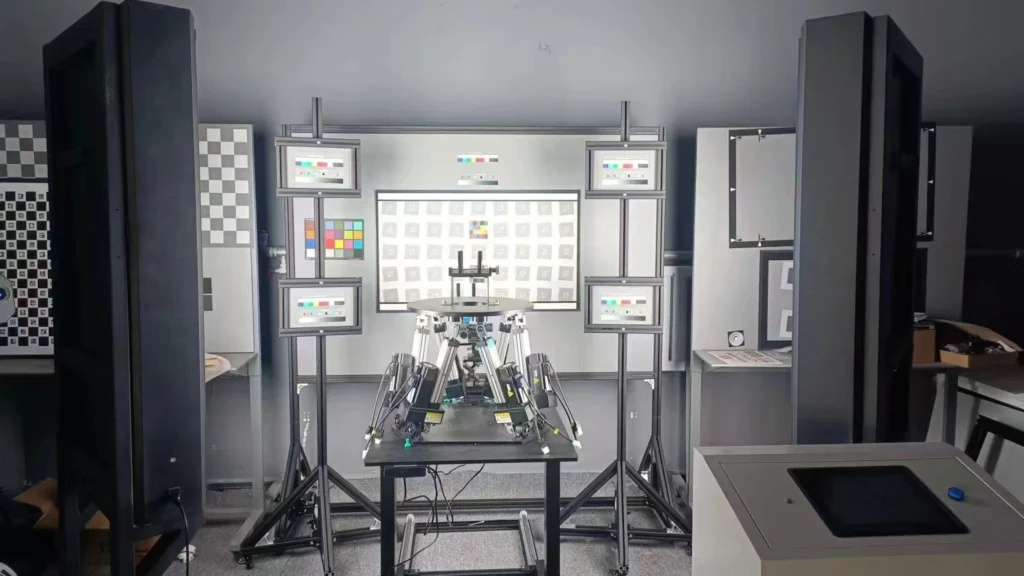

Scientific & Analytical Instruments
🔹Need: spectroscopy cells, optical windows, radiation shields.
🔹Challenge: precise calibration with zero interference from defects.
🔹ADCERAX approach: fine surface finish and high optical uniformity for research-grade performance.
Transparent Ceramics Applications
Transparent ceramic glass is widely applied across industries where visibility, durability, and precision alignment are critical. They are used in laser and optical systems, aerospace and defense optics, semiconductor processing equipment, high-temperature furnaces, and scientific instruments.
Transparent Ceramics Applications
Transparent ceramic glass is widely applied across industries where visibility, durability, and precision alignment are critical. They are used in laser and optical systems, aerospace and defense optics, semiconductor processing equipment, high-temperature furnaces, and scientific instruments.
Most projects are custom. Send a drawing or sample and we quote feasibility, lead time, and price.
Customization Options
Windows, domes, plates, and tubes in non-standard diameters, thicknesses, and lengths.
Higher dimensional accuracy, flatness, and parallelism than standard optical parts.
Flanges, steps, bevels, drilled holes, grooves, and stepped optical profiles.
Alumina, spinel, ALON, or yttria matched to your wavelength and environment.
Polishing to target roughness and flatness, ready for AR/DLC coatings.
Customization Process
For the fastest quote, include: material (or wavelength/application if unsure), OD/ID/thickness, tolerance, surface finish/coating, quantity, working temperature/environment, and a drawing if available.
drawing/CAD/sample + material grade, dimensions, tolerance, quantity, working conditions.
engineering review, then quotation with lead time and price.
1–50 pcs for testing and validation.
CNC machining, sintering, polishing; dimensional, purity, and surface inspection.
secure packing, DHL/FedEx/UPS or your forwarder, with documentation.

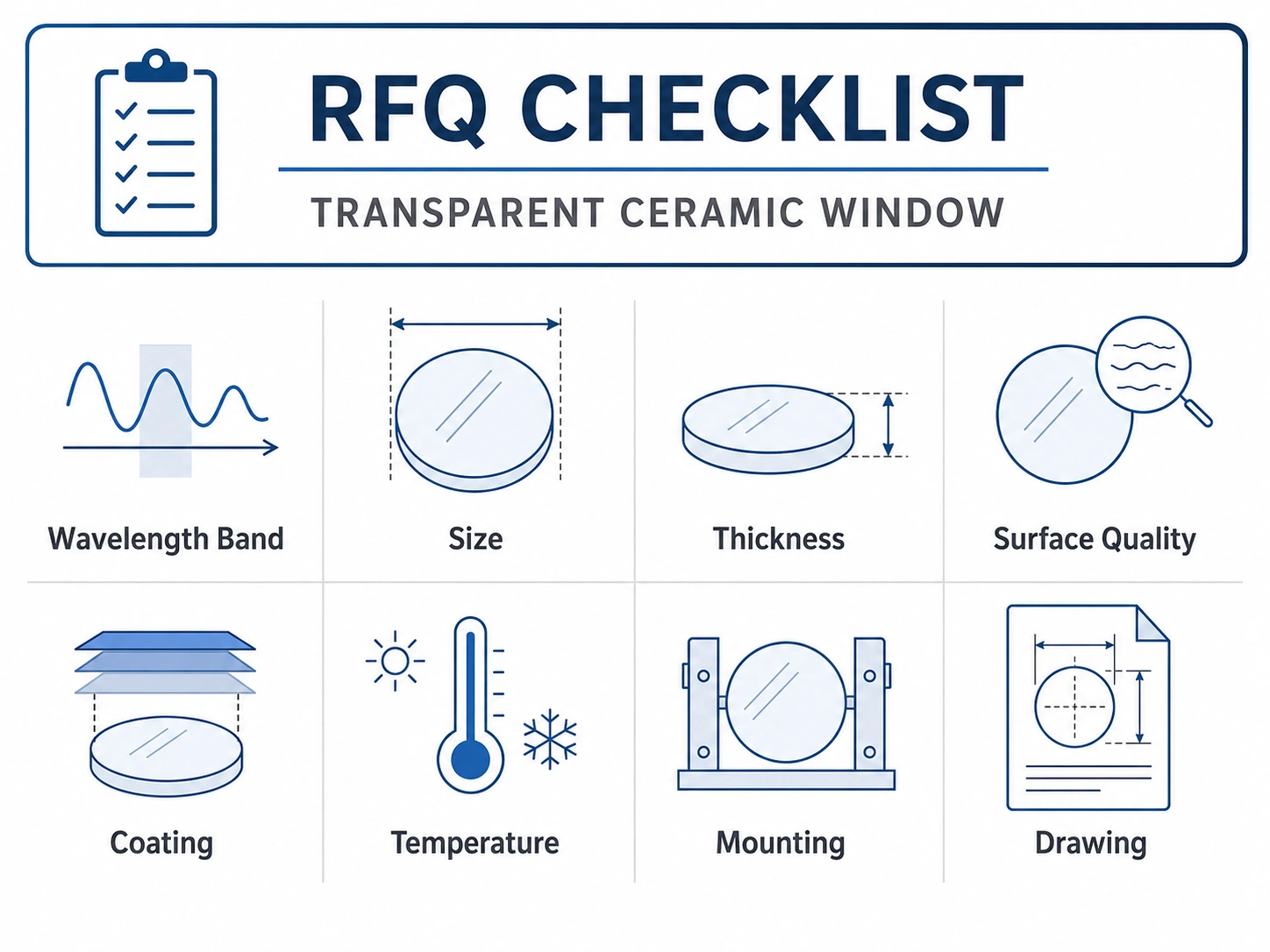

What to send for a transparent ceramic RFQ
- Material family or "help me choose" (sapphire, transparent alumina, spinel, ALON, Yttria)
- Why transparent ceramic (scratch, wavelength, impact, thermal, environment, old-part failure)
- Wavelength band (visible / NIR / SWIR / MWIR / LWIR)
- Transmission target
- Size and thickness
- Shape (window / dome / lens / tube / plate / cover)
- Surface quality (scratch-dig, roughness, flatness, polish)
- Coating requirement (AR / protective / conductive)
- Operating temperature and environment (vacuum / chemical / abrasion / impact / humidity)
- Mounting method and drawing or old-part photo
ADCERAX – Precision Transparent Ceramic Manufacturer
ADCERAX manufactures transparent ceramic optical components for laser and industrial applications. We supply both standard and custom parts, with a focus on optical clarity, dimensional precision, and stable performance. Key processes are handled in-house, from powder preparation to polishing, with quality control covering dimensions, transmission, and haze.
in-house from powder to polishing, with strict quality control and competitive pricing.
help with material selection, coating preparation, and optical design compatibility.
from small/prototype runs to volume, with complex geometries and tight tolerances.
24-hour response; standard items dispatched quickly, custom orders typically 3–7 weeks.
How We Make It — Process & Quality Control
ADCERAX controls every stage in-house, so optical quality is built in — not inspected in at the end.

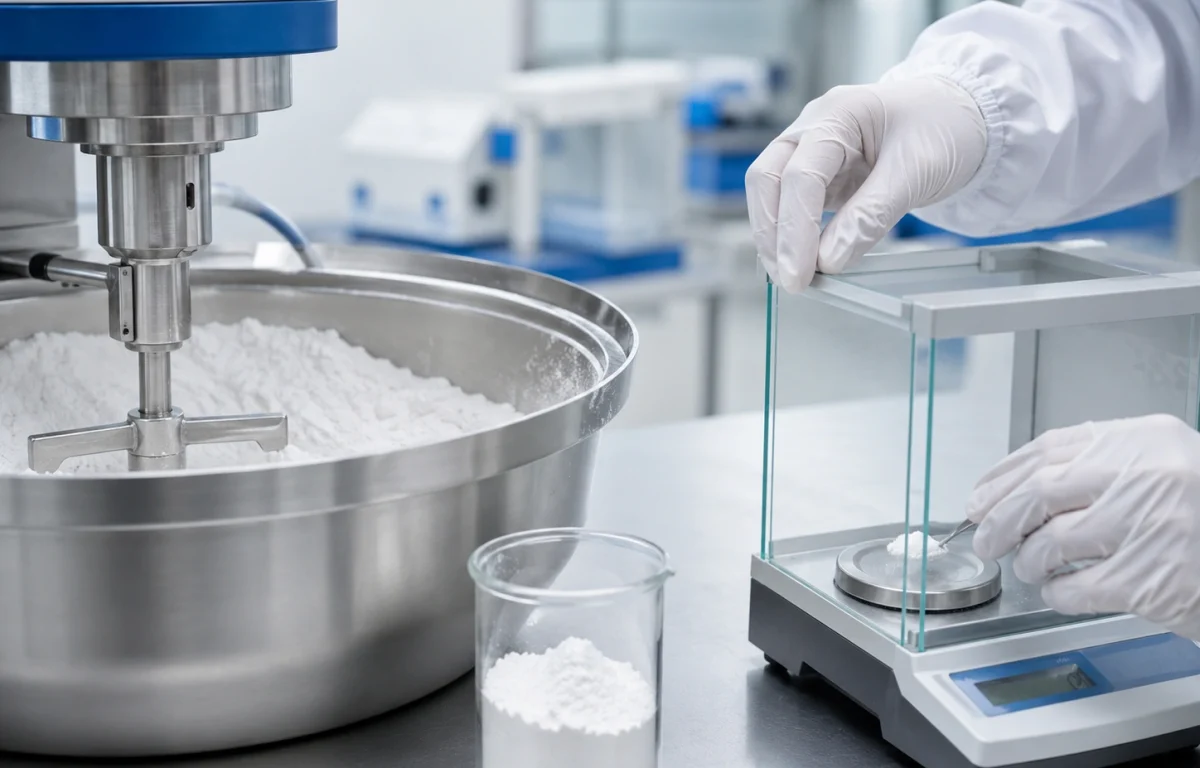

high-purity oxide/oxynitride powders blended for uniform composition and particle size.

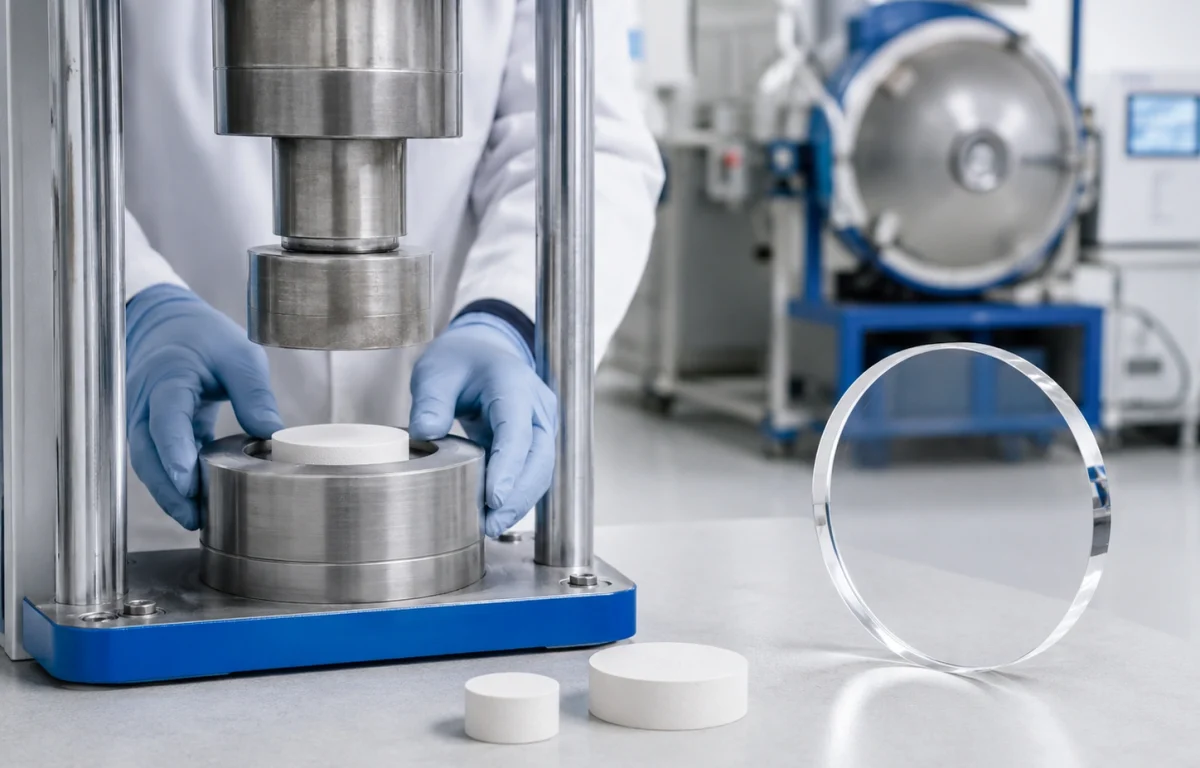

pressing, slip casting, or isostatic forming (CIP) into pre-sintered shapes.

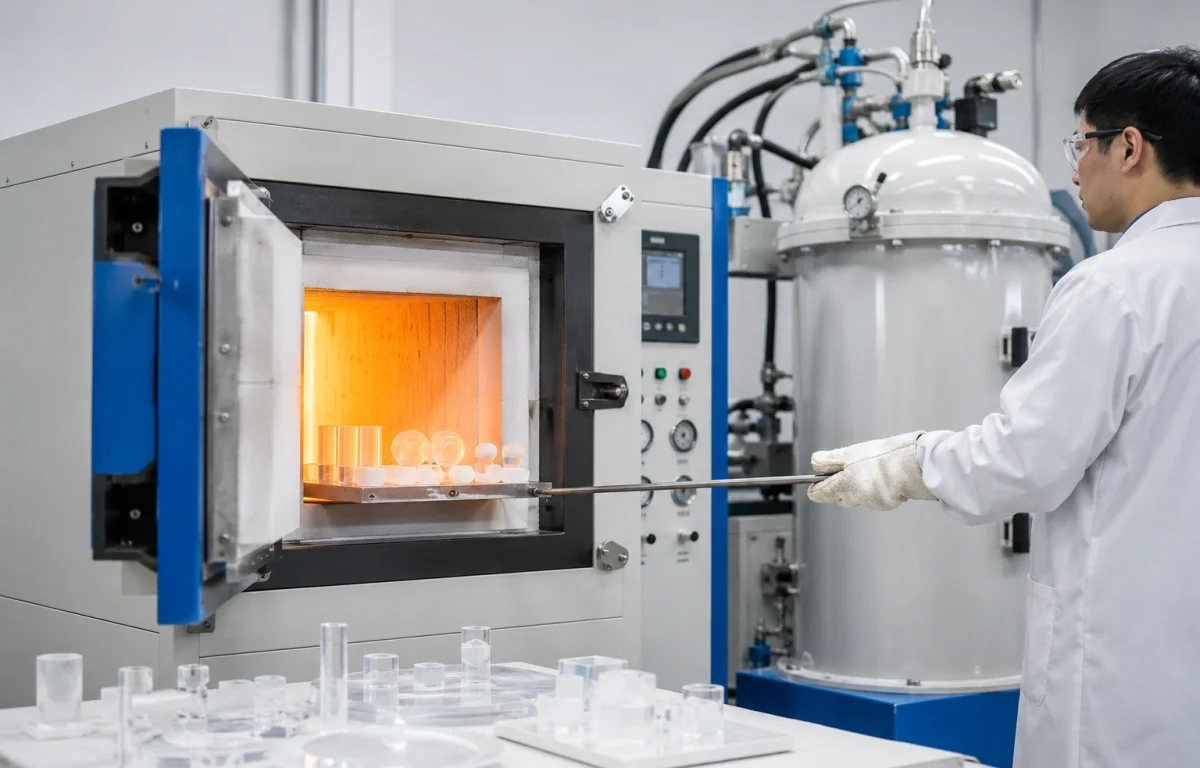

densification under controlled temperature/atmosphere to remove pores and raise transparency.

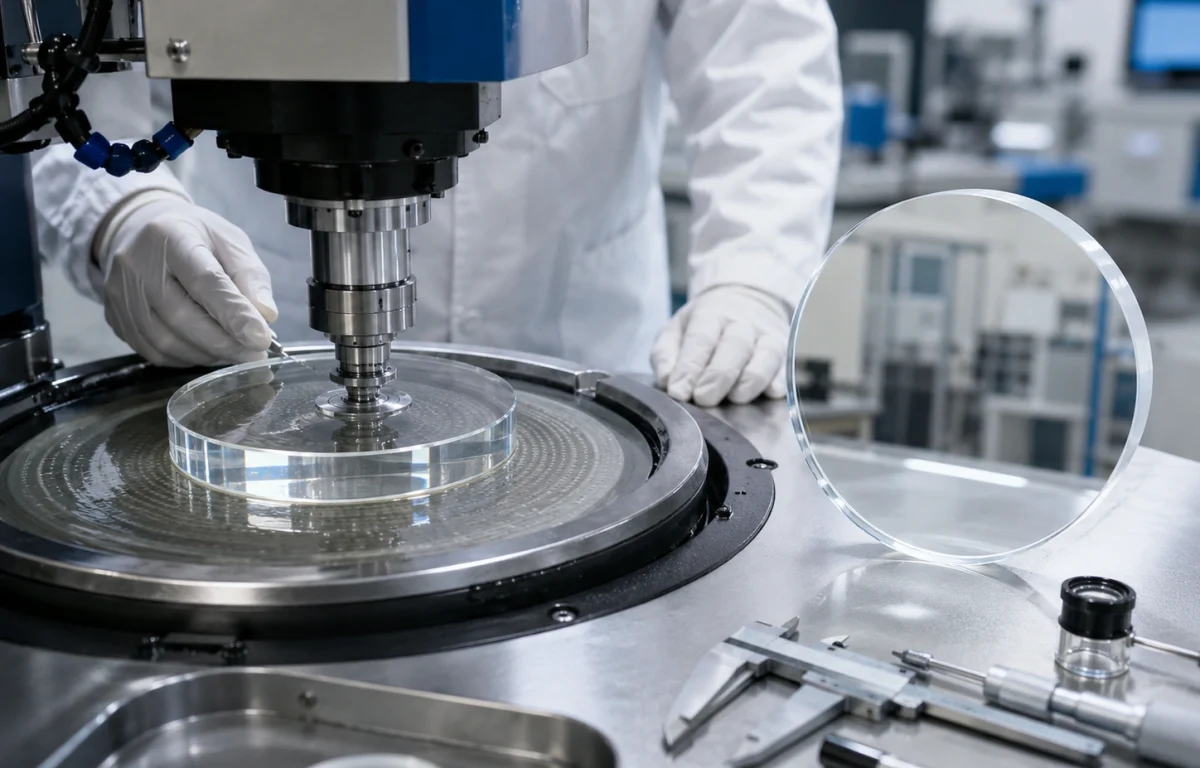

precision grinding and multi-stage polishing for flatness, figure, and surface roughness.

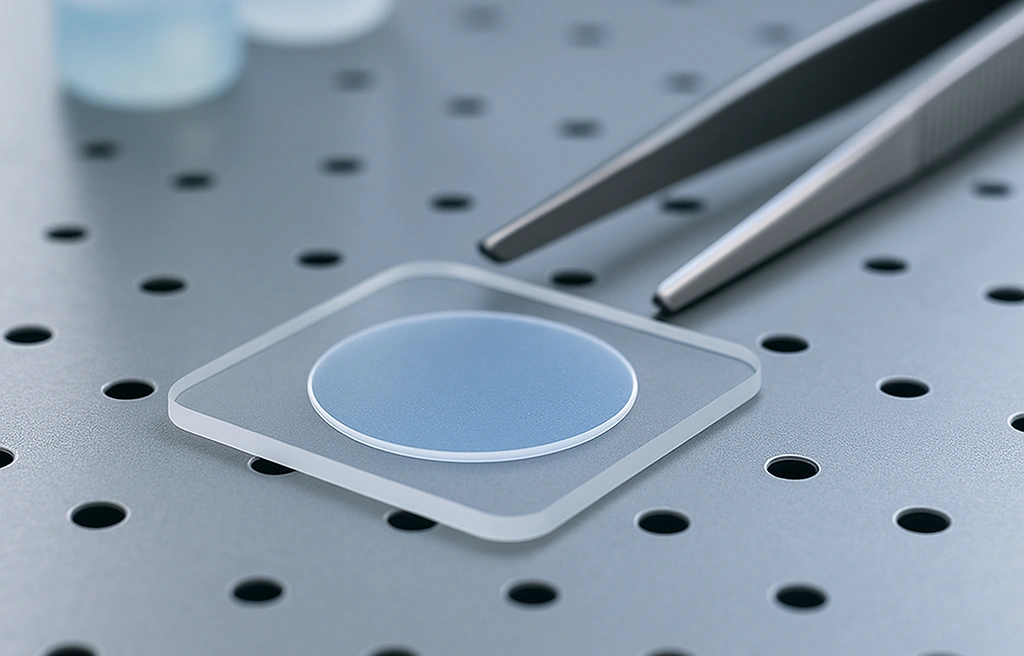

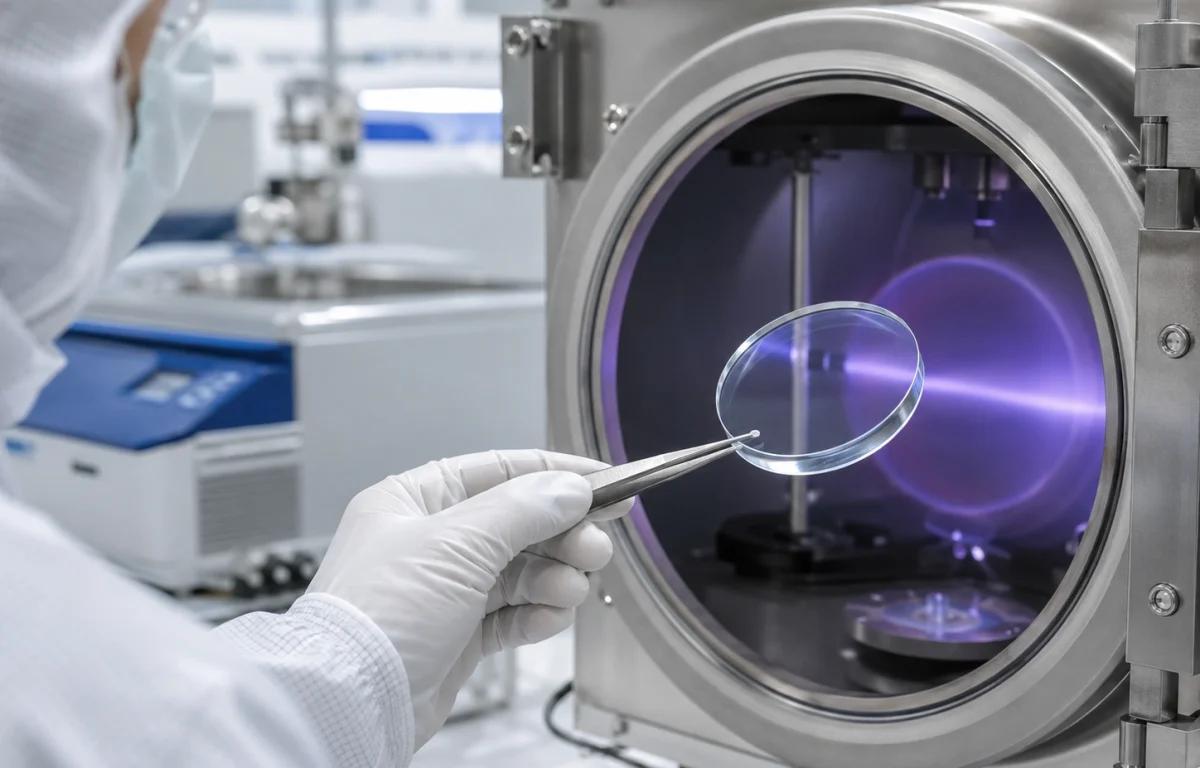

cleaning and surface activation for AR / DLC / hydrophobic coatings.

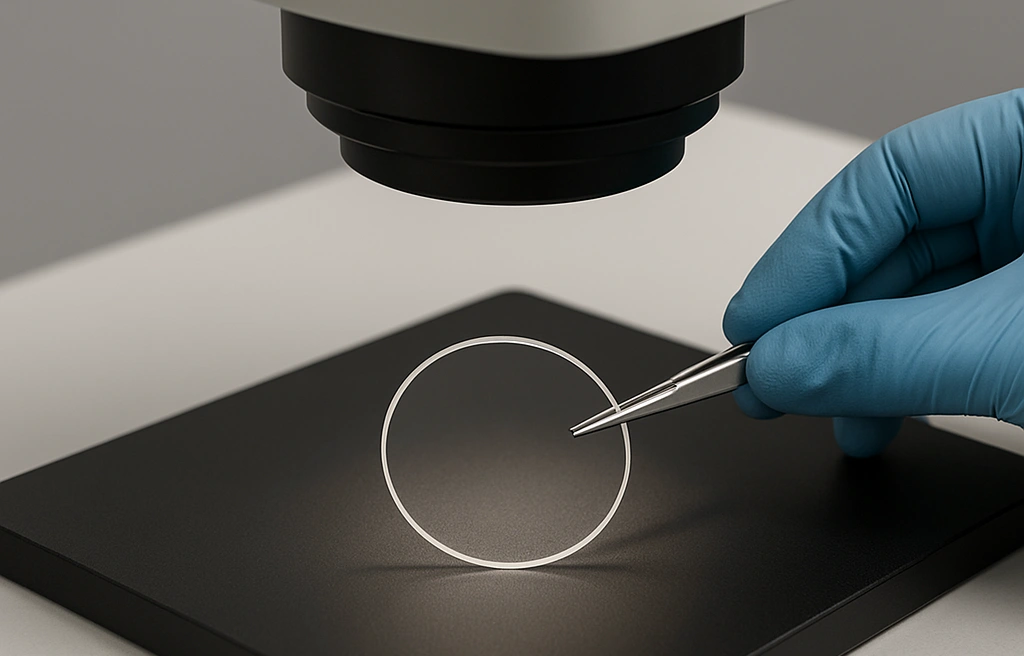

transmission, haze, and dimensional checks before protective packing.
Quality control: every batch is checked for transmission, haze, flatness, and dimensional accuracy, with full dimensional inspection shipped on request.
FAQ
Yes. Some ceramic material families can be transparent or translucent when grain structure, density and processing are controlled to reduce light scattering.
Optical windows, IR windows, sensor domes, laser components, protective/rugged windows and lamp/arc tubes.
No. Glass and transparent ceramics differ in composition and structure. Transparent ceramics are often harder and more thermally and impact durable, but the right choice depends on material family and condition.
Sapphire, transparent alumina, spinel, ALON (aluminum oxynitride) and Yttria. Supply for a specific family is confirmed per RFQ.
Material family (or "help me choose"), wavelength band, transmission target, size, thickness, shape, surface quality, coating, operating temperature, environment, mounting and a drawing or old-part photo.
Depending on material type:
ALON transmits from 0.2–5 µm,
Spinel from 0.2–6 µm,
Yttria from 0.25–7 µm,
covering UV–IR bands ideal for sensor and laser optics.
Please provide material type, dimensions (OD/ID/Thickness), tolerance, surface finish, quantity, and drawing or sample. Our engineering team can assist with material selection and optical design matching before quotation.
Sapphire is single-crystal alumina. "Transparent ceramic" covers several material families; sapphire is one route, usually for visible–NIR wear-resistant windows.
It depends on the band. Spinel and ALON are common for mid-wave IR and are reviewed per requirement; there is no single best material for every case.
Scattering, grain structure, wavelength, thickness, polish and surface defects. Exact transmission for a specific part is confirmed per RFQ.
