Achievable Precision Tolerances for Custom Ceramic Components

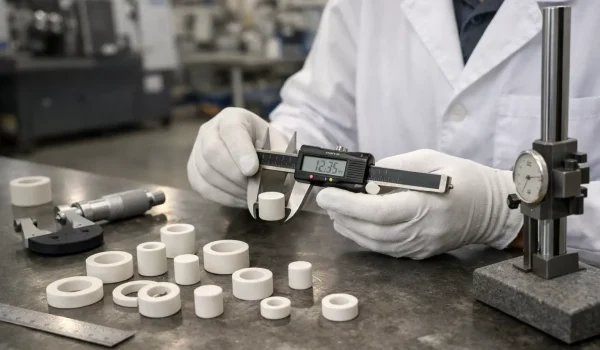

Tolerance capability determines whether custom ceramic parts perform reliably in assemblies with metal housings, seals, or tight clearances. ADCERAX's grinding and inspection systems achieve the following precision levels on critical dimensions:
Diameter Precision
±0.01mm
Outer diameter, inner diameter on tubes and rods
Hole Depth Precision
Minimum Wall Thickness
Surface Roughness
Cylindricity
±0.004mm
Straightness control on tubes and rods
Concentricity
±0.003mm
Inner/outer diameter alignment on tubes
Internal Thread
M2 and larger
Ceramic tapped holes for mechanical assemblies
Flatness
±0.002mm
Plate surfaces, mounting faces, sealing surfaces
Common applications requiring these precision levels:

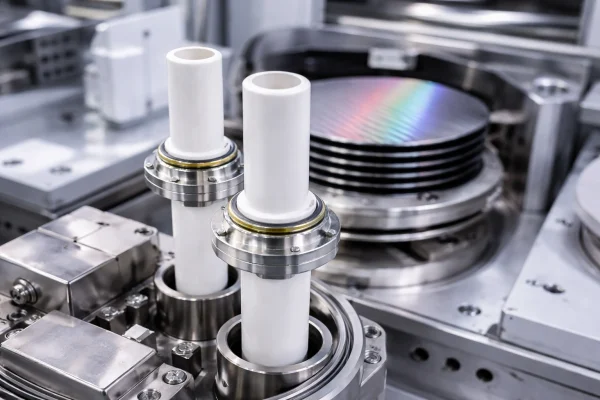

Semiconductor equipment seal faces (±0.01mm flatness), vacuum furnace thermocouple protection tubes (±0.01mm OD for housing fit), analytical instrument sampling probes (±0.005mm concentricity), high-pressure pump plungers (Ra 0.5μm surface finish).
Size Range and Dimensional Capabilities
| Feature Type | Minimum Size | Maximum Size | Typical Applications |
|---|---|---|---|
| Tube Outer Diameter | 2mm | 300mm | Micro sampling probes to large furnace liners |
| Tube Length | 10mm | 3000mm | Short bushings to continuous process tubes |
| Wall Thickness | 0.2mm | 50mm | Thin-walled insulators to thick crucible walls |
| Hole Diameter (drilled) | 0.5mm | 200mm | Gas injection holes to large bore tubes |
| Internal Thread | M2 | M100 | Mounting screws to large threaded fittings |
The general-purpose choice for wear parts, insulators, tubes and plates.
Grades: 95%, 99%, 99.5%, 99.7%, 99.9% purity
Chosen for toughness and fine surface finish — pins, plungers, cutting edges.
Grades:yttria-stabilized (3Y-TZP), magnesia-stabilized (MSZ)
For high-temperature supports, nozzles and wear parts in furnace and chemical duty
Routes: sintered, reaction-bonded, nitride-bonded
The choice for dynamic load: bearings, rollers, parts under impact and thermal cycling.
Grades: hot-pressed and sintered.
For heat spreaders and substrates that must conduct heat and insulate electrically.
Where the part must be machinable, non-wetting or easy to release — crucibles, nozzles, break rings.
Grades: hot-pressed and machinable.
Zirconia-toughened alumina (ZTA)
A middle route for wear parts needing more toughness than alumina without zirconia cost. Formulation: 10–20% ZrO₂ dispersion.
💡 Material Selection Guidance: Material selection depends on operating temperature, chemical exposure, thermal shock resistance, and mechanical load. Engineering teams can recommend the optimal grade based on your application conditions.

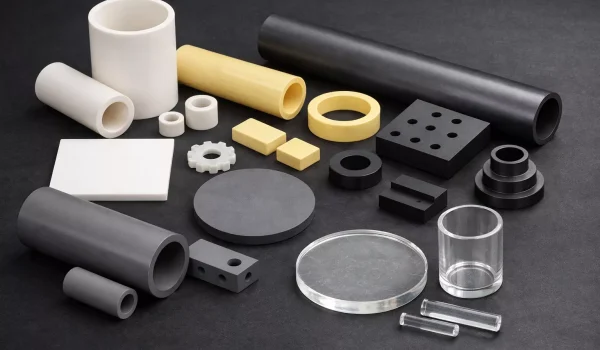

Material Options for Custom Work
Customization Triggers in Real Projects
Most projects arrive at customization because something no longer works as expected. The need rarely comes from ambition, but from practical constraints inside existing systems.

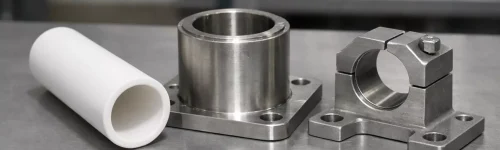

Standard parts clash with housings, mounts, or fixtures

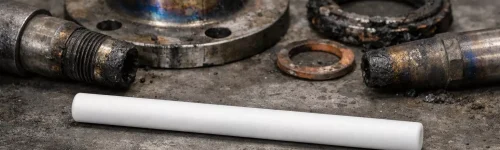

Cracks or wear appear once real operating conditions combine
Older systems leave little room for substitution

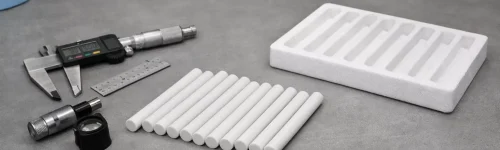

Small batches must balance reliability with delivery speed
Engineering-First Custom Ceramic Services
Custom Services for Ceramic Parts work best when engineering judgment leads decisions rather than drawings alone. Real operating conditions, assembly context, and failure history shape outcomes far more than geometry on paper.
Operating Condition Anchoring

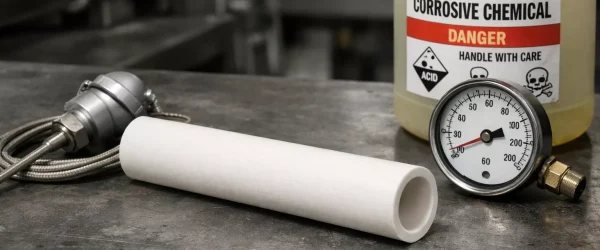

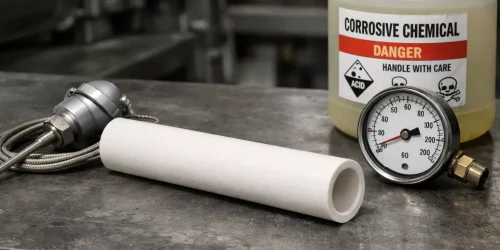

Temperature, load, and media define success more than shape
Thermal mismatch and stress paths surface before production
Durability expectations guide material and structure choices
Failure-Mode-Driven Design

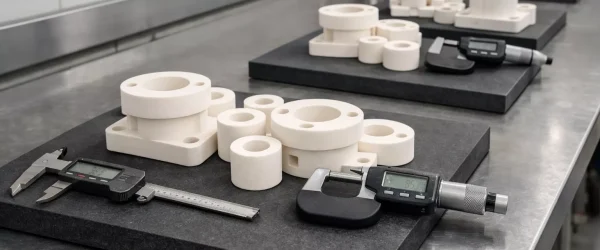

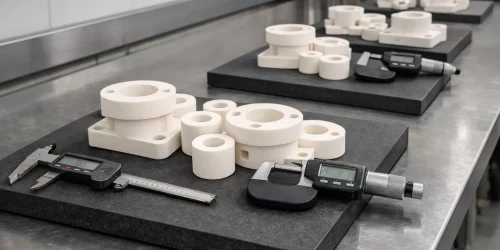

Geometry choices reduce chipping and thermal shock risks
Contact areas receive attention where damage actually starts
Interfaces are shaped to seal reliably, not just look precise

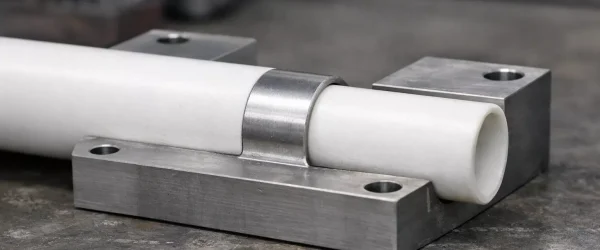

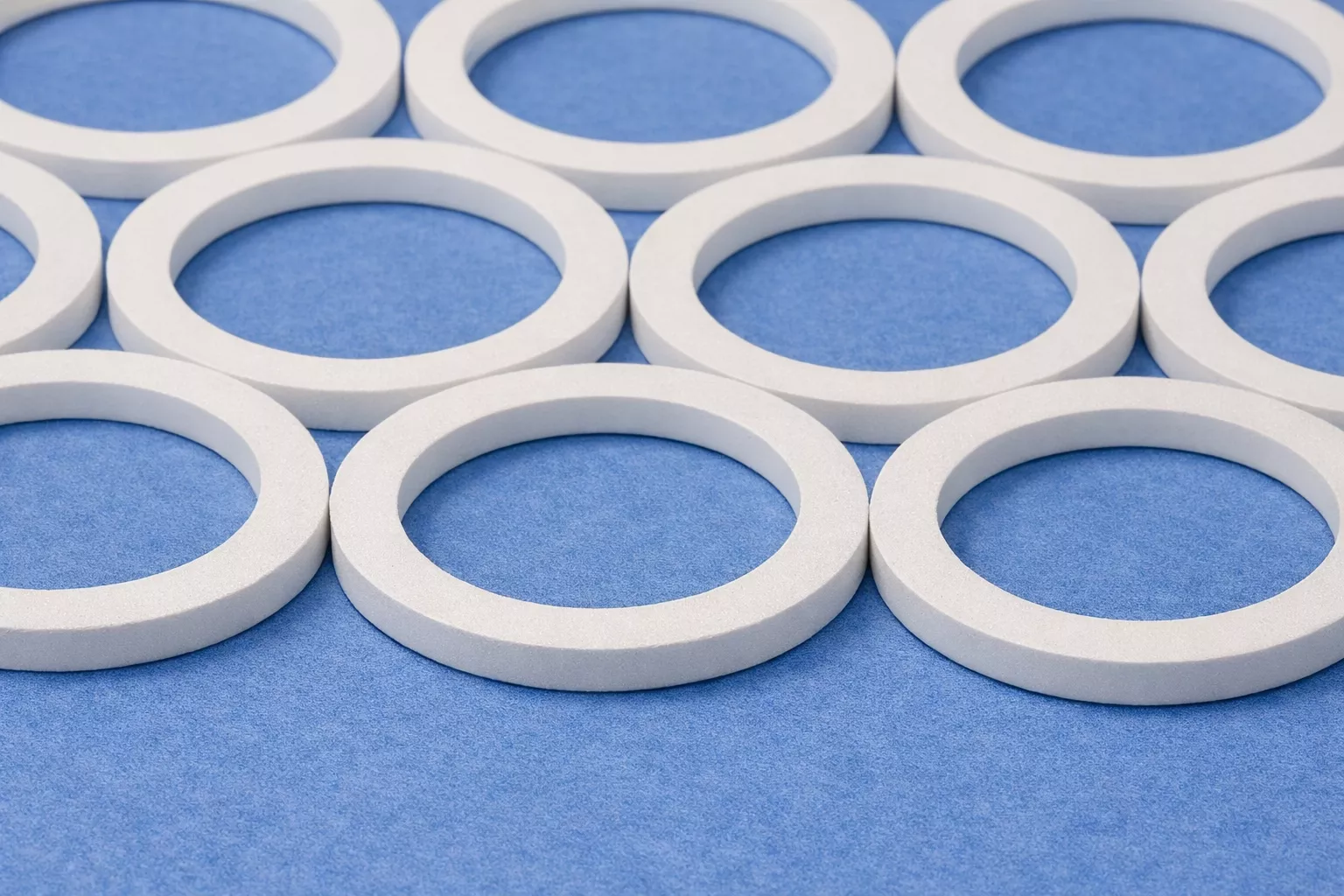

Interface-Focused Customization
Engineering effort concentrates where performance truly depends
Non-critical zones remain manufacturable and cost-controlled

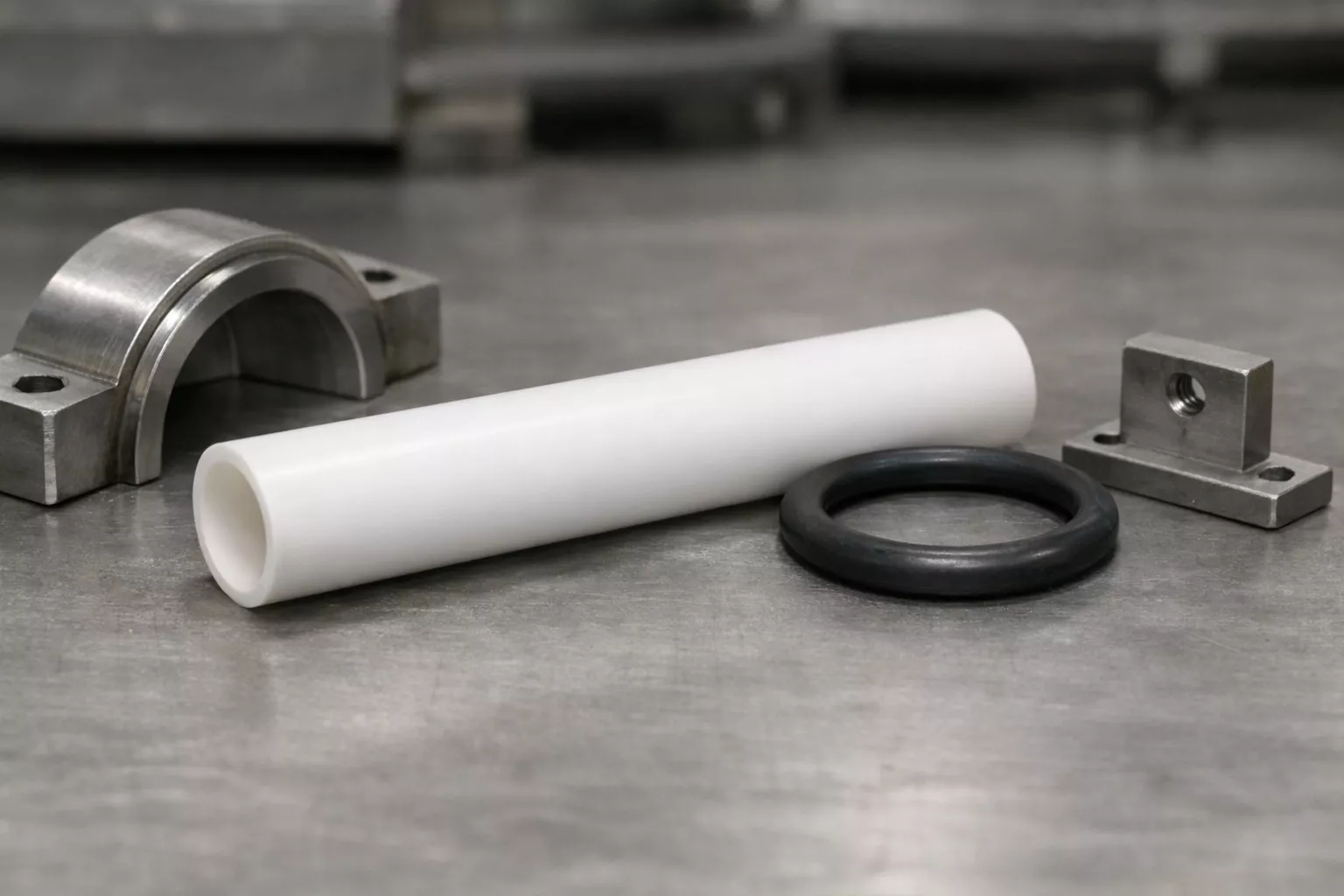

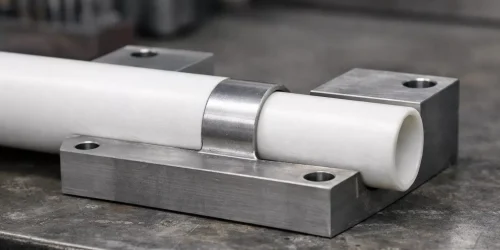

Ceramics are shaped to work with metals, not fight them

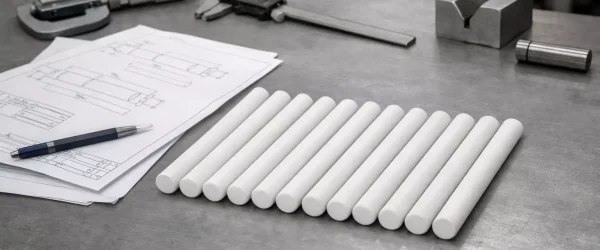

Production-Ready Engineering Logic

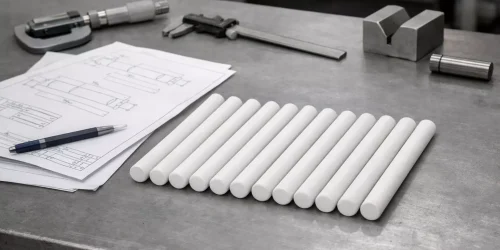

Repeatable routes replace one-time success
Dimensional consistency improves across batches
Quality checks follow function, not formality

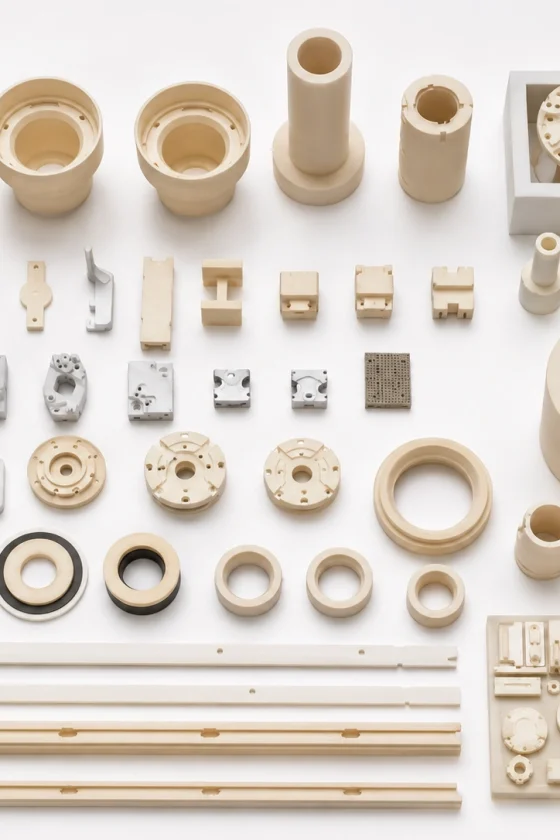

Customization Beyond Standard Ceramic Parts
Custom Services for Ceramic Parts go deeper than dimensions, focusing on parameters that decide real-world performance.
Material System Selection
Materials are chosen for risk, not labels
Expansion and heat flow match system demands
Media exposure guides long-term stability
Purity and Microstructure
Stability comes from what happens inside the material
Small inclusions often cause large failures
Uniform behavior matters more than peak values
Tolerance Strategy
Tight tolerances appear only where assemblies depend on them
Ceramic forming limits are respected early
Tolerances reflect how different materials move together
Surface Engineering
Smoothness applied only where contact requires it
Avoiding unnecessary polishing shortens lead time
Finish decisions follow function, not appearance
Customization Starts with the Information You Have
A project does not need a finished drawing to begin. Three starting routes cover most cases.
Drawing formats: PDF, DWG, DXF. CAD formats: STEP (.stp), IGES (.igs), Parasolid (.x_t). A hand sketch with dimensions is enough for a first concept discussion.
Send the file, the intended use and the quantity.
You get back: material and tolerance direction, plus any feature that needs changing for ceramic.
Send photographs, the machine position and the mating parts.
You get back: the geometry to keep, the material to use and the replacement scope.
Describe the function, temperature, medium and available space.
You get back: a first part concept and the information needed to complete it.
How a Custom Ceramic Part Project Runs, Step by Step
From first inquiry to repeat supply, here is what happens at each step — and what you send and receive.
Start with a drawing, a model, an old part or a written duty.
- You provide: drawing, part or duty
- You receive: first response + the questions the review needs answered
The part is checked against operating conditions, failure modes, interfaces and repeatability — the four fronts above.
- You provide: working conditions, mating parts, quantity
- You receive: material direction + critical-feature notes
Drawing revision, tolerances, finish and inspection scope are fixed before anything is made.
- You confirm: revision, tolerances, finish
- You receive: one part definition both sides work from
Quotes specify pricing, lead time, sampling and MOQ. Samples typically take 1–4 weeks, depending on material and geometry.
- You confirm: quantity, target date
- You receive: quotation + sample plan
You measure the sample against the agreed criteria; results are reviewed together and drawing changes are recorded.
- You send: measurement feedback
- You receive: inspection results + agreed revisions
Reorders follow approved specifications. Typical lead times: 2–6 weeks; simple modifications using existing tooling: 3–5 days.
- You place: order on approved revision
- You receive: parts to the same specification
The Right Time to Involve Engineering
Projects benefit most when engineering joins before decisions harden.
Early involvement prevents small uncertainties from becoming expensive corrections later.
Minor changes avoid major rework
Teams agree on what truly matters
Fewer surprises shorten validation
How to Prepare a Custom Ceramic Parts RFQ
Prepare your drawing, material requirement, dimensions, critical tolerances, quantity, and working conditions, then request an engineering review through the Custom Services form.
Prepare the Engineering Details for Your Application
Use the part's working position to identify the interface, operating duty and acceptance requirement that matter in your project.
Tube and sealing interface
Typical parts: thermocouple protection tubes, sealing sleeves, probe housings.
What to define
- bore and OD, sealing zone, mating fitting, probe clearance, medium and thermal cycle.
What to inspect
- fit, surface condition, alignment and the specified leak or functional test.
Custom Crucible or Boat

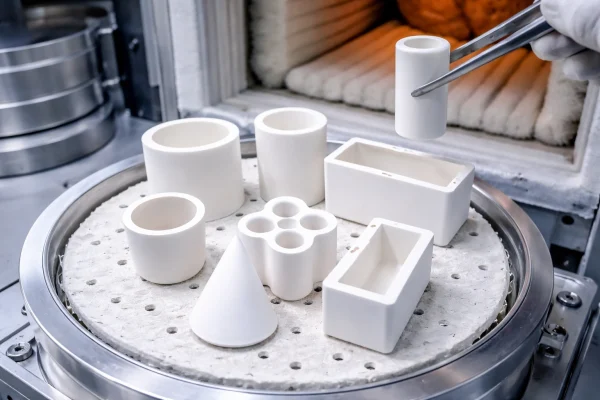

Typical parts: crucibles and boats with drain or gas holes.
What to define
- vessel geometry, hole position and size, edge condition, contents and heating cycle.
What to inspect
- hole and edge condition, working dimensions, application-specific trial.
Furnace tube and supports

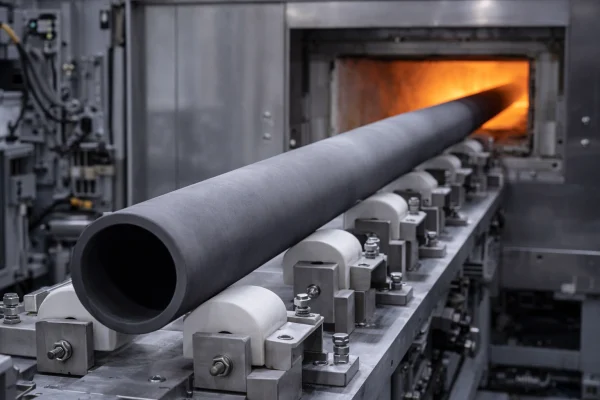

Typical parts: muffle and process tubes, support rails, load beams.
What to define
- tube length and section, support positions, material route, atmosphere, load and temperature cycle.
Solution
- What to inspect
What is the minimum order quantity for custom ceramic parts?
As few as 3 pieces for simple dimensional modifications (length adjustments, diameter changes within existing tooling capabilities).
For completely new geometries requiring new tooling (molds, fixtures), the practical minimum is typically 10-50 pieces depending on part complexity and material. This accounts for the setup, trial runs, and inspection required to validate new ceramic forming processes.
Can you make 3-5 test pieces before a full production run?
Yes. Sample production is standard practice for custom ceramic parts, especially when tolerances are critical or the part will be installed in expensive equipment.
Typical sample process:
- Engineering review of drawing and requirements (1-2 days)
- Trial production of 3-5 sample pieces (3-14 days depending on material and geometry)
- Dimensional inspection report provided with samples
- Customer approval before proceeding to batch production
Sample costs are typically credited toward the final order if the project moves to production quantities (>50 pieces).
How long does custom ceramic part production take?
- Simple modifications (using existing tooling): 3-5 days
Examples: Cutting standard tubes to non-catalog lengths, drilling additional holes, grinding specific surface zones - New geometries (requiring new tooling or molds): 2-4 weeks
Includes tooling fabrication, trial runs, dimensional validation, and first article inspection - Complex multi-feature assemblies: 4-6 weeks
Parts with tight tolerances on multiple features, multi-step machining, or materials requiring specialized firing cycles
Rush service: Available for critical projects. Lead time can often be reduced by 30-50% with priority scheduling. Contact engineering to discuss feasibility.
How much do custom ceramic parts cost compared to standard catalog items?
Custom pricing depends on several factors: material grade, dimensional complexity, tolerance requirements, surface finish needs, and order quantity.
General guidelines:
- Simple modifications: Similar to catalog pricing for quantities >20 pieces. Small quantity premium (3-10 pieces) adds setup overhead.
- New tooling required: One-time tooling cost (amortized across order quantity) plus part cost. Tooling investment is typically recovered at 100-200 piece volumes.
- Precision grinding: Tight tolerance zones (±0.01mm or better) require additional grinding operations. Cost impact depends on number of critical features.
Most custom quotes are provided within 24-48 hours of receiving drawings and application details. No-obligation quotations include lead time estimates and any engineering recommendations.
Do you provide material certificates and inspection reports?
Yes. Material certifications and dimensional inspection reports are provided with all custom orders.
Standard documentation includes:
- Material Certificate: Chemical composition, purity grade, density, and key physical properties from powder supplier or in-house testing
- Dimensional Inspection Report: Measurement results for all specified tolerances, performed with calibrated CMM, calipers, or optical measurement systems
- Surface Quality Report: Roughness measurements (Ra/Rz) for critical surfaces when specified
Additional testing available on request: Hardness testing, leak testing (for sealed components), thermal shock testing, or third-party certification (SGS, TÜV, etc.).
All reports are provided in PDF format via email. Hard copies can be included with shipment if required for quality system documentation.
What information do you need to quote a custom ceramic part?
Minimum information for quotation:
- Drawing or sketch showing dimensions and tolerances (2D PDF, DWG, or 3D STEP file preferred)
- Material specification (e.g., “99.7% alumina” or “sintered silicon carbide”) or operating temperature if material is flexible
- Quantity required (even an approximate range helps determine tooling approach)
- Surface finish requirements if critical (as-fired, ground, polished, or specific Ra value)
Additional helpful information:
- Operating temperature and chemical environment
- Mating part materials (metal housing, rubber seal, etc.)
- Failure history if replacing an existing part
- Target delivery date if time-sensitive
Engineering teams can work from incomplete information and suggest options, but detailed specifications reduce revision cycles and accelerate delivery.
Can you work from my CAD files or do I need to provide 2D drawings?
Both 2D and 3D formats are accepted.
Preferred file formats:
- 3D CAD: STEP (.stp), IGES (.igs), Parasolid (.x_t)
- 2D drawings: PDF, DWG, DXF
- Sketches: Hand-drawn dimensions (photo or scan) for early-stage concept discussions
Engineering teams will review for ceramic manufacturability—features like sharp internal corners, undercuts, or extremely thin walls may require design adjustments. Recommendations are provided during the quotation stage, not after tooling is built.
What if the custom parts don’t meet the specified tolerances?
Quality guarantee: Parts that do not meet agreed-upon dimensional or material specifications are reproduced at no additional cost, or the order is refunded.
Process:
- Customer reports dimensional non-conformance with measurement data
- ADCERAX engineering reviews measurements and compares to inspection records
- If confirmed out-of-specification, replacement parts are prioritized and expedited
First article inspection (FAI) option: For critical applications, a single sample part can be produced, inspected, and shipped for customer verification before the full batch is manufactured. This eliminates risk on high-tolerance or high-value orders.
Custom Ceramic Parts: Frequently Asked Questions
Technical answers to help you specify, source, and use ceramics product effectively.
Talk With
ADCERAX Engineering Team
Many ceramic challenges become clearer through conversation rather than revision cycles.
Sharing how a part actually works inside your system often reveals workable paths forward.
Engineering teams at ADCERAX focus on turning real operating constraints into ceramic solutions that fit assemblies, timelines, and long-term performance expectations.
Related reading
Share your operating conditions or drawings, and engineers can assess feasibility and customization direction.
