Alumina Ceramic Pump Components –Plungers, Liners, Valve Seats & Metering Wet-End Parts
ADCERAX supplies alumina ceramic pump components tailored by drawing for corrosive, high-purity and precision-dosing duties — plungers, liners, valve seats, shaft sleeves and metering/filling wet-end parts.
We supply the ceramic wear parts that go inside the pump, reviewed against your medium, pressure and fit; complete pumps and pump systems are outside our scope.
≥1200 °C
High Temperature
Resistance Suitable for corrosive fluid transfer in heated processes
High-Purity Alumina
What are Alumina Pump Components?
Alumina pump components are the ceramic wet-end parts inside metering, dosing, plunger, high-pressure and filling pumps — plungers/pistons, cylinder sleeves/liners, valve cores and seats, shaft sleeves/bushings and pump-head wet-end parts. Made from high-purity Al₂O₃, they replace metal or polymer parts that corrode, wear, leak, contaminate the medium, or drift out of metering accuracy. ADCERAX supplies these components — not complete pumps — reviewed from a drawing or worn-part photo before quotation.
Alumina Ceramic Pump Benefits & Properties
Alumina ceramic pumps ensure reliable performance in both acidic and alkaline media, combining purity assurance with long-term operational strength. They are widely applied in chemical processing, pharmaceuticals, plating solutions, and water treatment systems, supporting consistent fluid control and reduced upkeep demands.
Why ceramic wet-end parts instead of metal or polymer?
— inert ceramic, no metal-ion leaching or polymer particles into the medium (important for pharma, food and electrolyte).
— mirror-ground ceramic surfaces hold a tight fit, so metering and dosing accuracy stays steady over long runs.
— Al₂O₃ resists acids and alkalis across a wide pH range and stays hard, so wet-end parts outlast metal or polymer in corrosive, abrasive dosing.
— higher part cost but fewer change-outs in suitable duties; actual life confirmed at engineering review.
Alumina Ceramic Pumps Properties
| Property | 96% Al₂O₃ | 99% Al₂O₃ | 99.5% Al₂O₃ | 99.7% Al₂O₃ |
|---|---|---|---|---|
| Density (g/cm³) | 3.65–3.8 | 3.8–3.9 | 3.9 | ≥3.93 |
| Hardness (Mohs) | 8.8 | 9 | 9 | 9.1 |
| Max Operating Temperature (°C) | 1450 | 1680 | 1700 | 1730 |
| Flexural Strength (MPa) | 260 | 300 | 320 | 330 |
| Thermal Conductivity [W/(m·K)] | 22 | 24 | 27 | 29 |
| Volume Resistivity (Ω·cm) | 10¹³–10¹⁵ | 10¹⁴–10¹⁵ | >10¹⁴ | >10¹⁵ |
| Dielectric Strength (kV/mm) | 15 | 19 | 21 | 22 |
Typical material values, not certified until review; a component’s working temperature is limited by medium/seal and is lower.
Not sure which alumina Pump Component or grade fits your duty?
See the component types below, or send a drawing for a material review.
Alumina Pump Products & Function

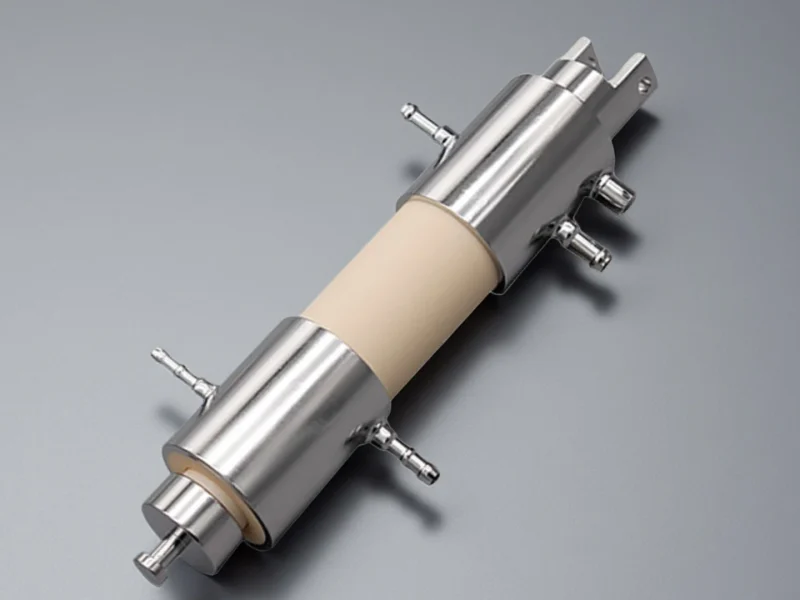

Alumina ceramic pump components include metering, plunger, filling, and piston designs, all built with high-purity Al₂O₃ components. They are perfect for critical fluid-handling systems.

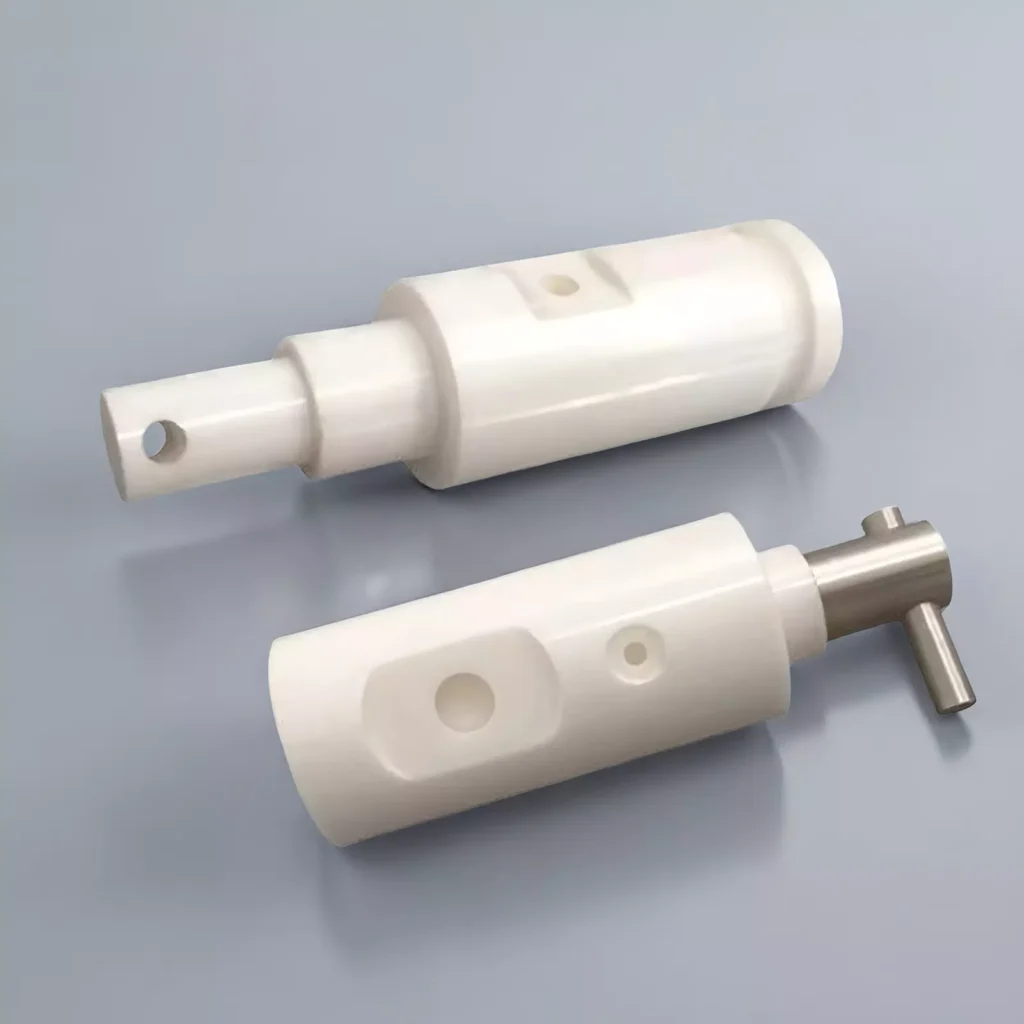

Contamination-free Al₂O₃ pump-head wet-end parts for filling pumps — clean, repeatable dosing for pharma, food and high-purity fluids.

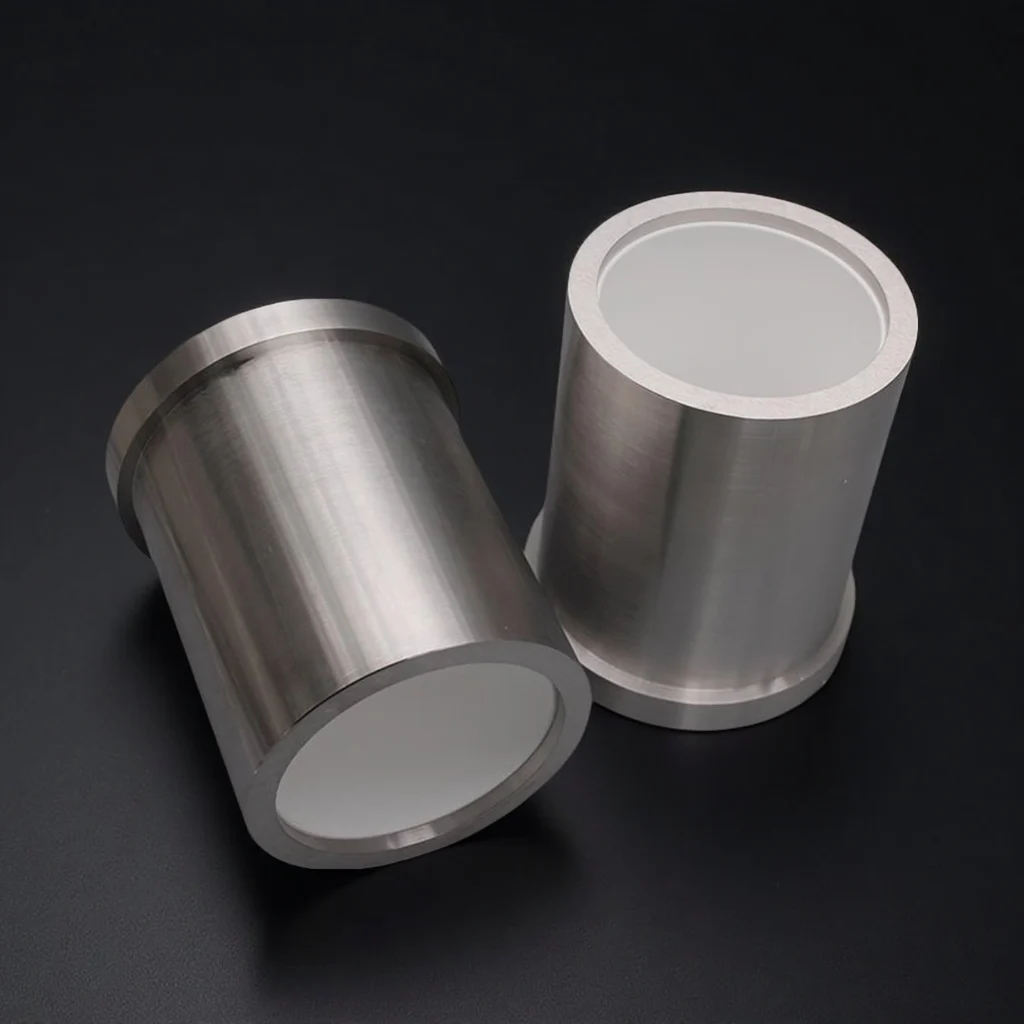

Wear- and corrosion-resistant Al₂O₃ cylinder liners with tight OD/ID and concentricity for stable sealing in high-pressure pumps.

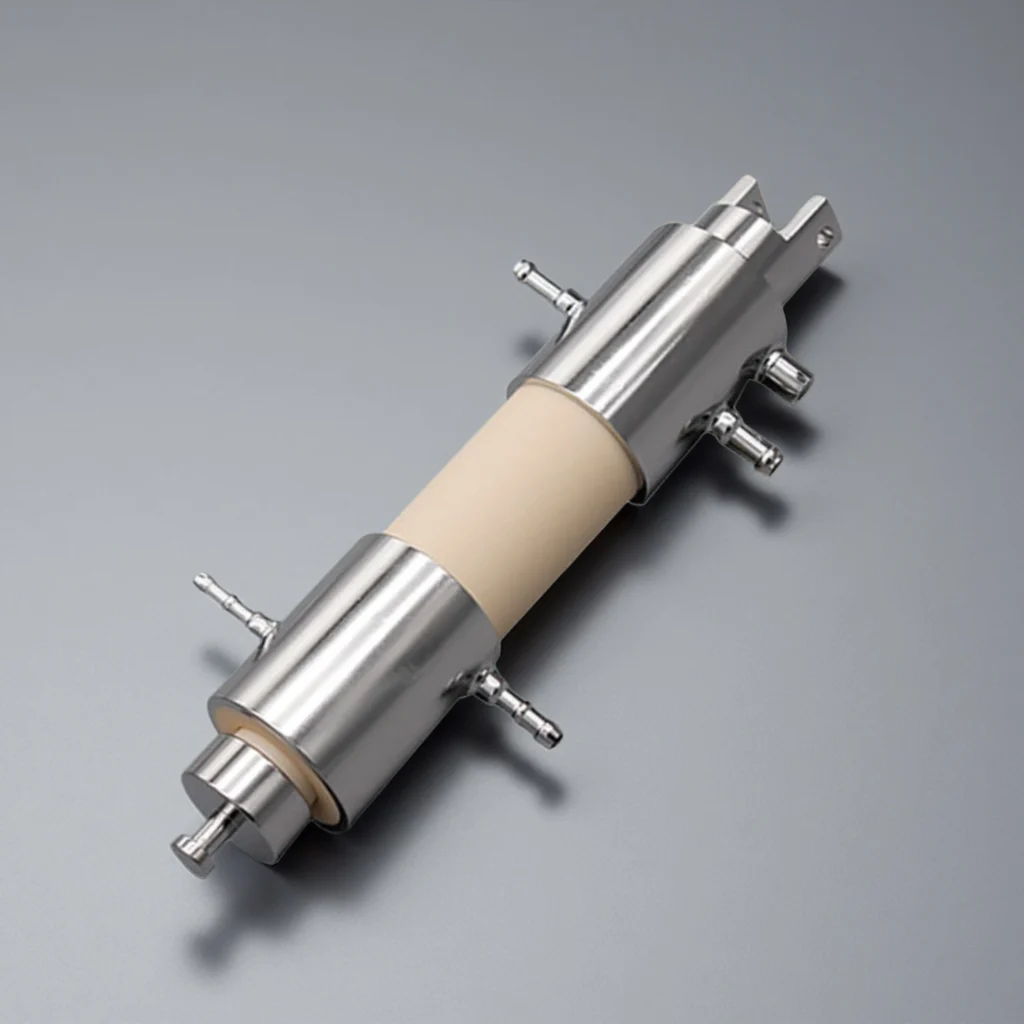

Precision-ground Al₂O₃ plungers and wet-end parts for metering pumps — stable micro-volume dosing in corrosive, high-purity duties.

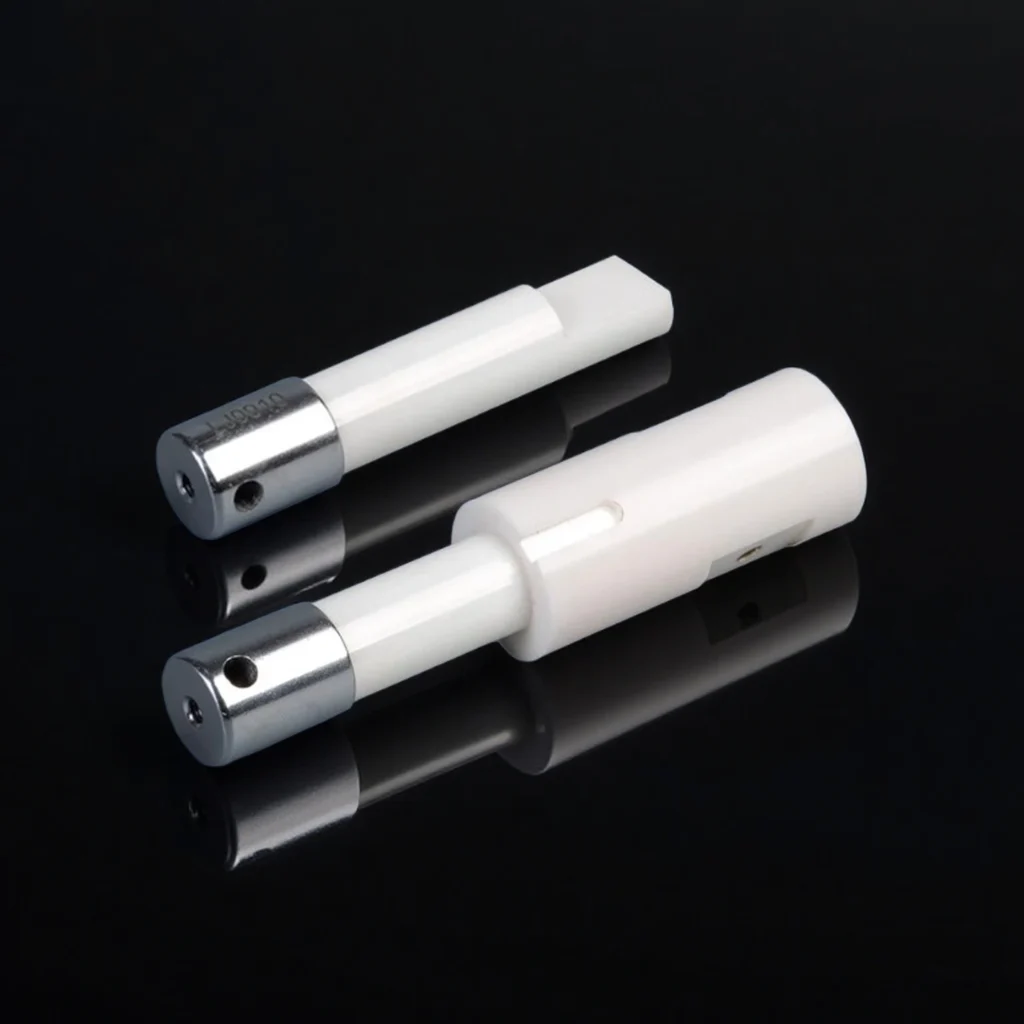

Wear-resistant Al₂O₃ plungers for high-pressure plunger pumps — tight fit and stable sealing under continuous reciprocating duty.
Alumina Pump Applications Across Industries
Alumina pumps are widely applied in chemical dosing, pharmaceutical fluid handling, plating baths, and water treatment, offering accurate flow control.
Ceramic plungers and valve seats keep dosing accuracy stable in corrosive chemical-feed and water-treatment systems, where metal or polymer parts wear and let the dose drift. Send your plunger or valve-seat drawing with the medium and pH for a ceramic-route review.

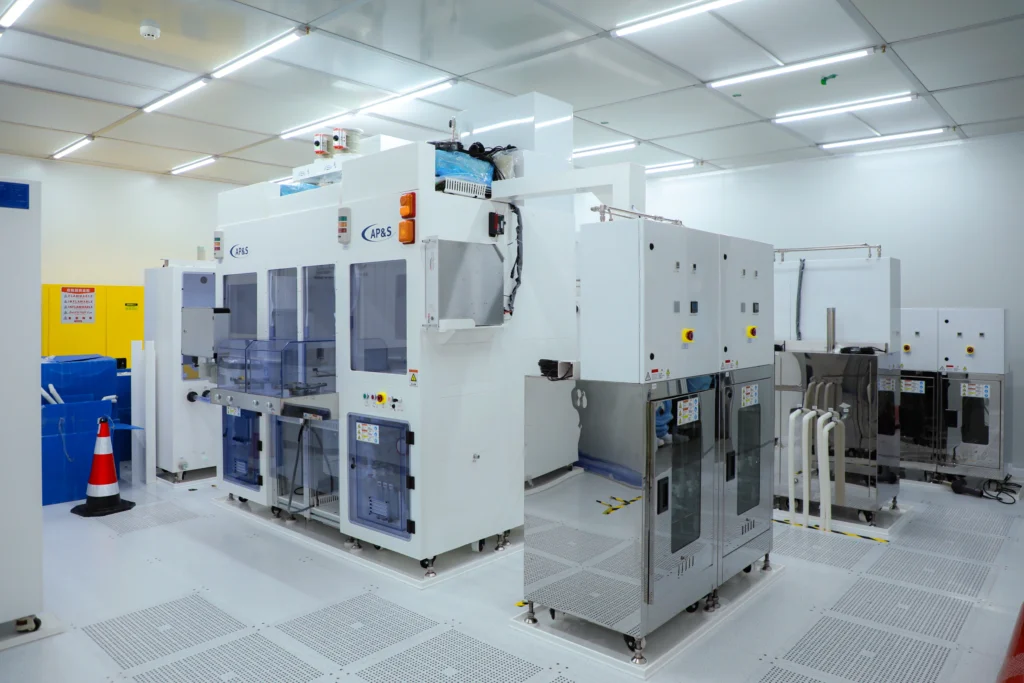

Al₂O₃ wet-end parts resist acids, alkalis and abrasion where metal or polymer plungers and liners corrode, scale or wear out, cutting unplanned change-outs on dosing and transfer pumps. Actual life depends on medium, pressure and particles, confirmed at engineering review.

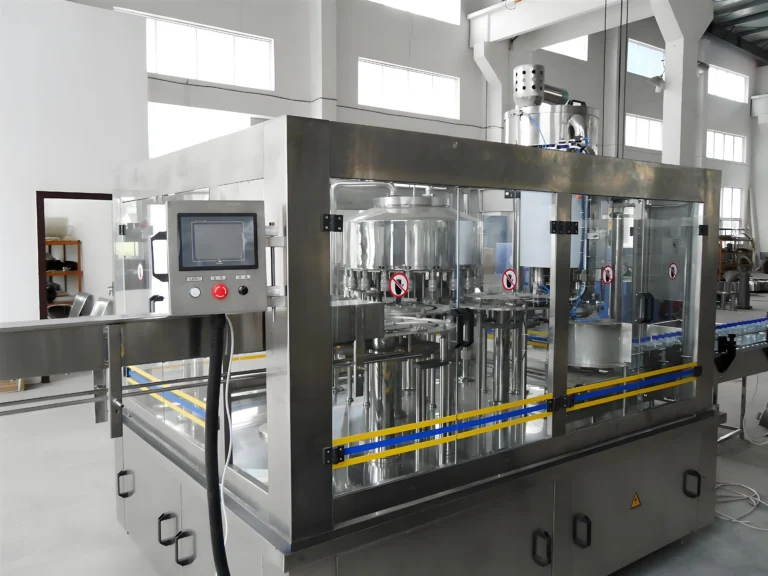

Contamination-free ceramic pump-head and plunger parts give clean, repeatable filling and micro-dosing with no metal-ion leaching. Cleanliness-critical requirements are reviewed against your process; we do not claim food or pharma certification unless separately confirmed.
Corrosion-resistant plungers, sleeves and valve seats handle chemical dosing in water and wastewater skids, where chloride and pH cycling attack metal parts. Send the worn part or drawing with the medium and dosing conditions for a component review.
Customize Alumina Pump Component Manufacturer
Custom alumina pump components — from your drawing, sample or worn part. We review dimensions, tolerance, sealing surfaces, medium and pump type, then confirm a manufacturable route. Standard component types can ship quickly; custom parts follow a review-quote-prototype-production flow.
Customization Options
Plungers, liners and sleeves in extra-long, extra-short, or non-standard OD, ID, length and wall thickness — confirmed per drawing.

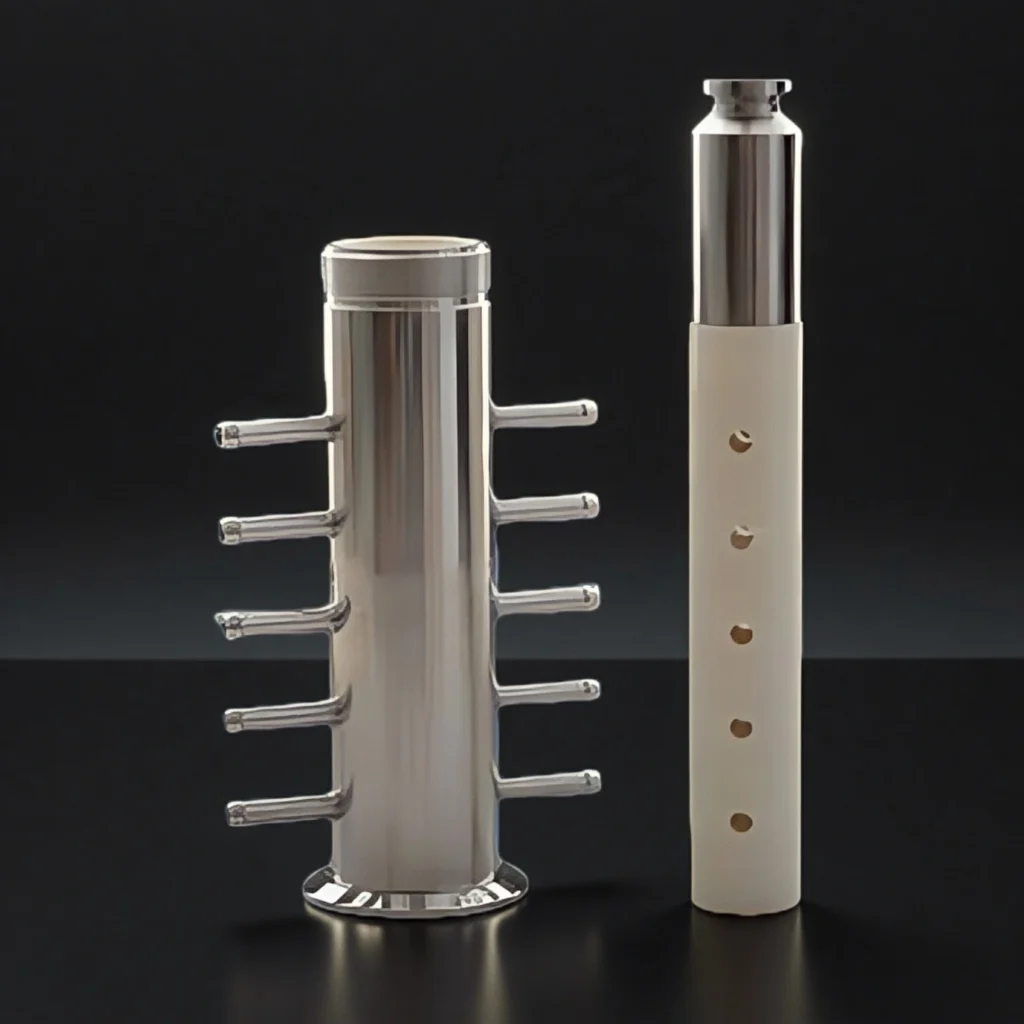

Tighter tolerance on sealing faces and fits by grinding, defined from your drawing. As-fired tolerance is wider.
Grooves, end holes, steps, chamfers and mating faces — subject to an alumina machinability review.
Choose 95%, 99% ,99.5% alumina to match your medium, wear and contamination limits.
Ground or mirror-polished sealing surfaces to a target Ra on request.
Customization Process
Send your drawing, CAD file, sample, or worn-part photo with material grade, dimensions, tolerances, and quantity.
Our engineers review the alumina grade route and feasibility, then prototype samples for testing and validation.
Alumina forming, sintering, and CNC grinding, with dimensional, purity, and surface-finish inspection on every batch.
Finished components are securely packed and shipped worldwide with full documentation via your preferred carrier.
ADCERAX — Your Trusted Alumina Pump Components Supplier
ADCERAX is a trusted China manufacturer of alumina ceramic pump components, with in-house machining, quality control and engineering support. From standard component types to drawing-based custom parts, we back your project with responsive service worldwide.

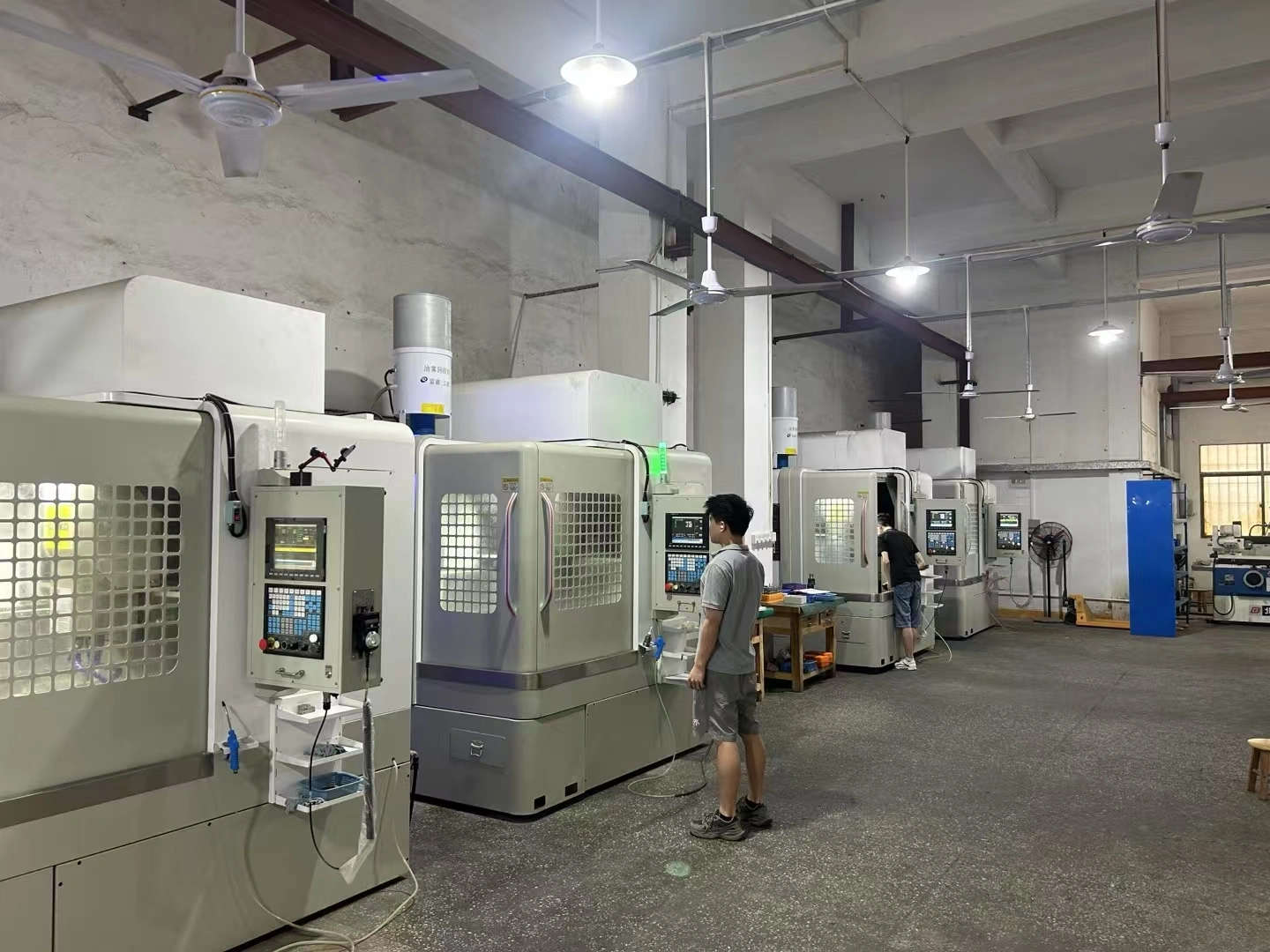

Made and checked in-house — from material and forming to sintering, grinding and final dimensional inspection.
A professional team providing drawing review, material selection and collaborative component design.
From small-batch prototypes to volume production, with complex geometries and tight, drawing-based tolerances.
Quick engineering-review replies; standard component types ship quickly, custom parts typically in 3–7 weeks.
Alumina Ceramic Pump Components Factory — ADCERAX
ADCERAX is a professional China manufacturer of alumina ceramic pump components — plungers, cylinder liners, valve seats, shaft sleeves and metering/filling wet-end parts. With advanced ceramic manufacturing experience since 2010, we serve customers in the USA, Germany, Japan and other industrial markets, supplying wet-end parts that meet stringent requirements for precision, chemical stability and low maintenance.
- 96%–99.5% Al₂O₃ ceramic for chemical stability and process cleanliness
- Pump heads, plungers and sealing components made from your drawings or samples
- Prototyping and flexible MOQ for new or replacement parts
- Inspection on tolerance, dielectric strength and surface finish
- Engineering support for OEM designs and application-specific parts
Alumina Pump Component Processing
Forming, sintering and CNC machining give tight tolerances and clean, corrosion-resistant sealing surfaces. Every component is QC-inspected for dosing, filling, plating and ultrapure-water duties.
| Item | Specification |
|---|---|
| Material Grades | 96%, 99%, and 99.5% Al₂O₃ |
| Component Range | Dimensions are customizable by outer diameter, inner diameter, length, wall thickness, and sealing fit. Typical tolerances range from ±0.05 to ±0.2 mm and are confirmed according to the drawing. |
| Forming Methods | Dry pressing, isostatic pressing, and CNC machining are available for high-precision plungers, liners, and sealing parts. |
| Processing | High-temperature sintering, precision grinding, polishing, and sealing-surface finishing are used to produce smooth, tightly sealing components. |
| Surface Finish | Smooth, ground, or mirror-polished sealing interfaces are available to reduce wear and leakage. |
| Customization | Custom parts can be manufactured according to drawings or physical samples. |
FAQs About Alumina Ceramic Pumps Components
Typical alumina pumps are manufactured with 96%-99.5% Al₂O₃, depending on the chemical compatibility, temperature, and contamination requirements of the application.
Service life depends on medium, pressure, cycle and seal design, so we do not publish a fixed wear life. In suitable duties, alumina wet-end parts commonly outlast metal parts; confirmed at review.
Yes, we offer full customization of ID, OD, length, sealing interfaces, and tolerances (down to ±0.05 mm) based on drawings or samples.
We ensure precision by combining isostatic pressing, CNC machining, and high-temperature sintering, allowing tolerances as tight as ±0.05 mm. Each component undergoes surface grinding, polishing, and dimensional inspection to guarantee consistent fit, smooth operation, and reliable sealing in demanding applications.
Yes, we provide design compatibility support and OEM adaptation to existing pump housings or assemblies.
For standard stock items, shipment is typically arranged within 7 days.
For custom alumina pumps, the lead time is usually 3–5 weeks, depending on the design requirements.
For projects with complex geometries, tighter tolerances, or multi-component assemblies, production may extend to 6–8 weeks to ensure precise quality control and reliable performance.
The price of alumina pumps is determined by several key factors:
| Factor | Impact on Price | Customer Note |
|---|---|---|
| Alumina Purity | Higher purity (99.5–99.7% Al₂O₃) costs more due to refined raw materials & processing | Improves durability & chemical resistance |
| Design Complexity | Tight tolerances (±0.05 mm), intricate structures, multi-part assemblies increase cost | Ensures precision & reliable performance |
| Size & Dimensions | Larger pump bodies use more material & longer sintering cycles → higher price | Needed for heavy-duty or large-volume transfer |
| Order Volume | Small lots & prototypes = higher unit cost; bulk orders lower cost | Consider MOQ & batch discounts |
| Customization | Special coatings, polishing, sealing interfaces, OEM solutions add cost | Enhances fit for unique applications |
In general, the higher the purity and the more complex the design, the higher the unit cost. However, these factors also improve pump durability and reduce long-term maintenance expenses, balancing overall value for critical applications.
Alumina Pump vs. Zirconia Pump Comparison:
| Property | Alumina Pump (Al₂O₃) | Zirconia Pump (ZrO₂) |
|---|---|---|
| Material Strength | High hardness, good wear resistance, lower fracture toughness | Very high strength, excellent wear resistance, high toughness |
| Corrosion Resistance | Excellent resistance to acids, alkalis, and most chemicals | Comparable corrosion resistance, but better under extreme stress |
| Operating Conditions | Suitable for chemical dosing, plating baths, water treatment | Ideal for high-pressure, high-impact, or abrasive applications |
| Purity & Cleanliness | >99% purity, stable for pharma and water treatment | High purity, used where contamination-free operation is critical |
| Cost Level | More economical, widely used as standard solution | Higher cost due to tougher processing and superior properties |
| Typical Applications | Chemical processing, pharmaceuticals, plating, water treatment | Semiconductor, advanced manufacturing, aerospace, precision dosing |
Alumina pumps (Al₂O₃): High purity, strong corrosion resistance, cost-effective, widely used in chemical dosing, plating baths, pharma, and water treatment.
Zirconia pumps (ZrO₂): Higher strength and fracture toughness, better for high-pressure or high-impact conditions, commonly used in semiconductor and advanced manufacturing.
👉 Conclusion: Alumina pumps are reliable and economical for most corrosive environments, while zirconia pumps are chosen for extreme strength and precision-demanding applications.
No. We supply alumina ceramic pump components — the wet-end wear parts (plungers, liners, valve balls and seats, shaft sleeves, metering/filling parts) that go inside a pump. Whole-pump or pump-system enquiries are referred out.
For high-impact or large-particle service we route to zirconia (higher toughness), and for extreme abrasion or strong-alkali/HF service to silicon carbide. We confirm the material by your medium, pressure and duty before quoting.
What to Send for a Pump Component Quote
To quote custom alumina pump components, send what you have:
- Part type: plunger / liner / sleeve / valve seat / metering wet-end
- Dimensions: OD / ID, length, wall, cylindricity, Ra
- Alumina grade: 95% / 99% / 99.5%
- Medium / pH, pressure, temperature and pump type
- Quantity and annual need
- Drawing, photo, or worn-part sample
Alumina pump components serve metering, dosing, high-pressure and filling pumps. Send your details and our engineers will review the fit before quoting.
