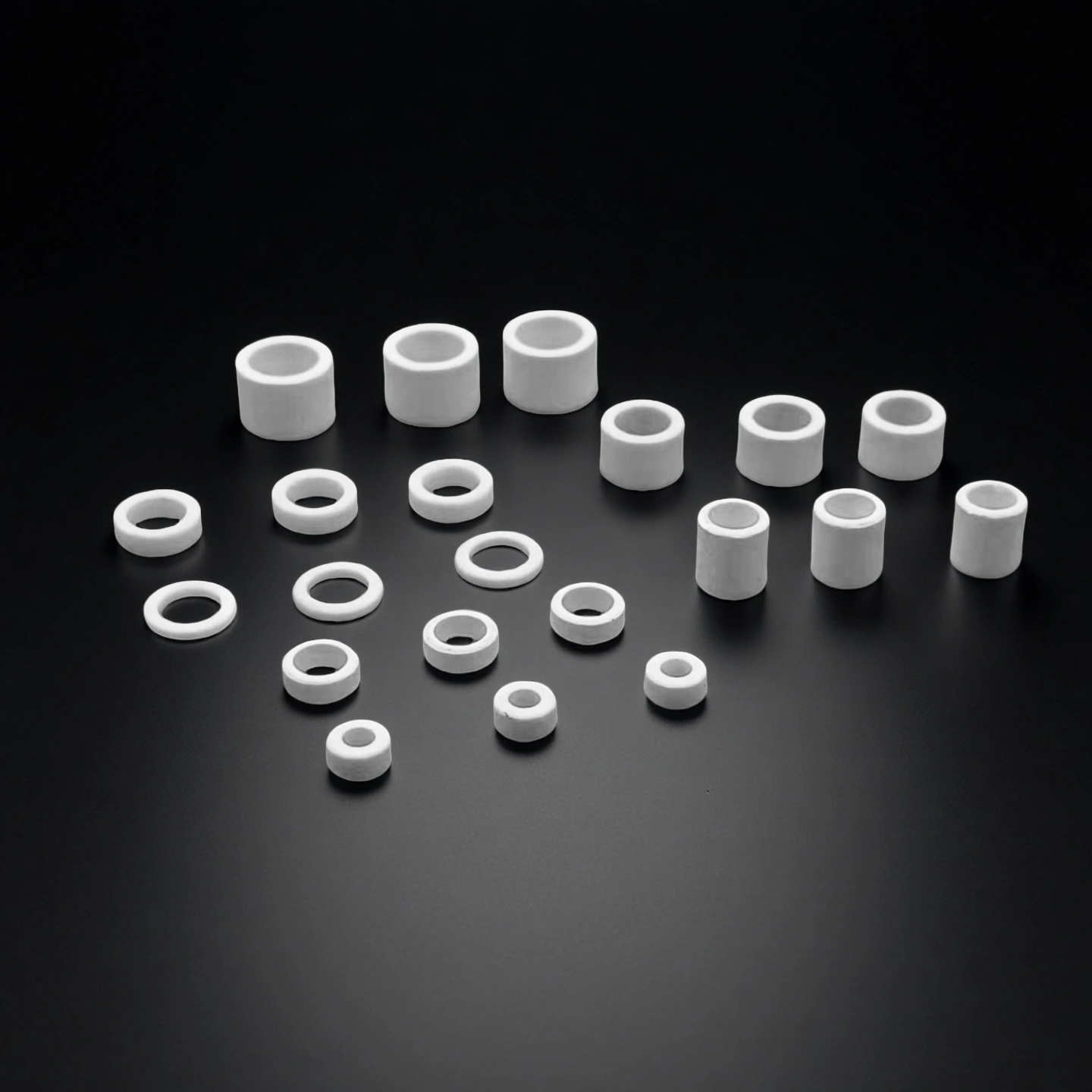

Alumina Washer for Heat Treatment and Vacuum Furnaces – High Temperature Insulating Spacer

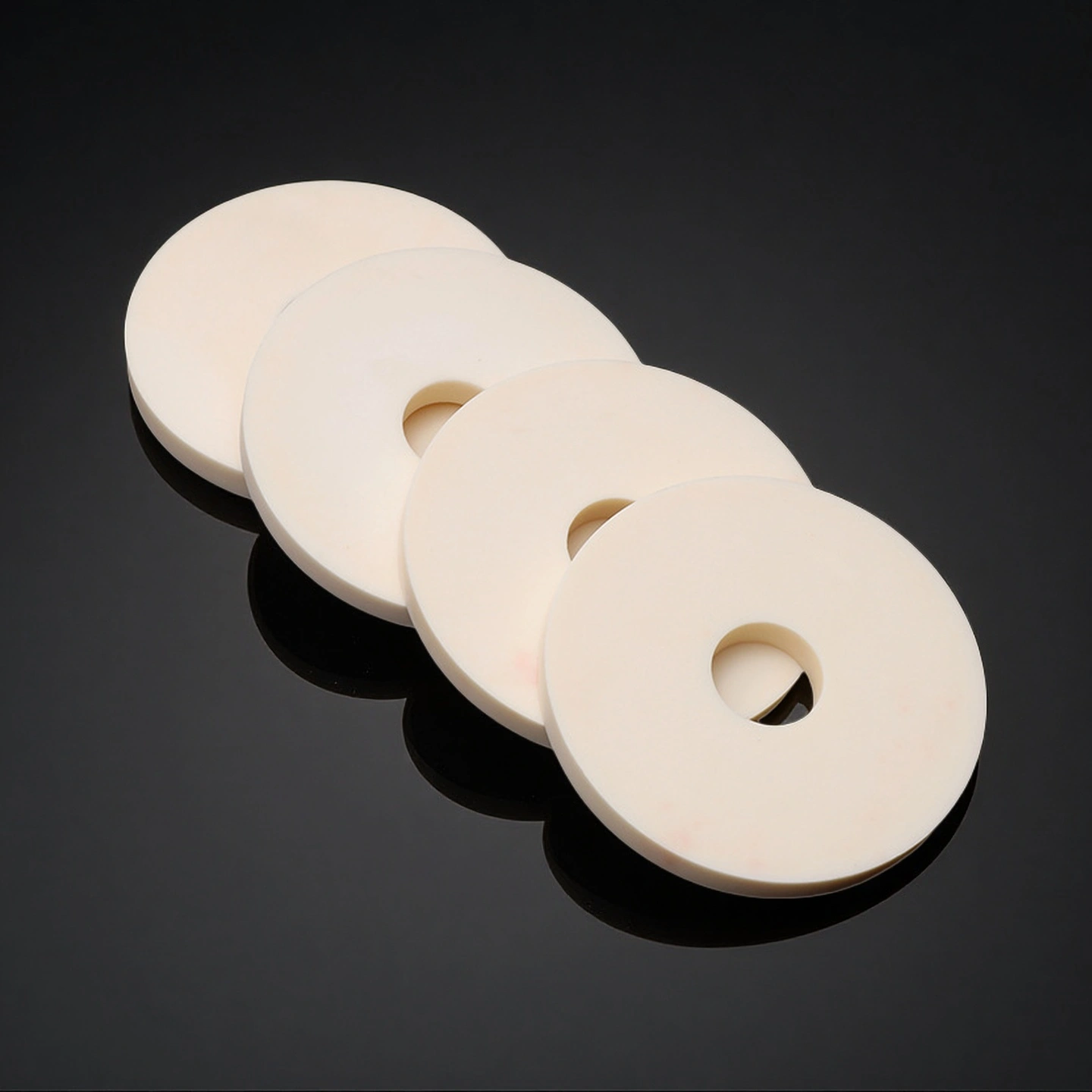

Alumina Ceramic Washer Applications

• Alumina Washer for Heat Treatment and Vacuum Furnaces

  ✅Key Advantages

  1. Temperature-stable insulation at furnace working temperature – Alumina washers maintain mechanical integrity and insulation in fixtures where continuous service temperatures exceed 1,600°C.

  2. Uniform load distribution on refractory and alloy plates – Flat alumina washers spread clamping forces from threaded rods and alloy fixtures, reducing local stress and distortion on base plates.

  3. Vacuum and controlled-atmosphere compatibility – Non-porous high-purity alumina washers withstand furnace vacuum and process gases, and can be baked without outgassing, which is important for vacuum and brazing furnaces.

  ✅ Problem Solved

  In many heat treatment and vacuum furnaces, metal washers soften, oxidize or lose spring under repeated cycles above 1,000°C, which leads to fixture movement and uneven load distribution. Published specifications for ceramic furnace washers show ratings around 1,750°C, significantly higher than typical alloy hardware limits. By replacing the load-bearing insulating elements with alumina washers, users can maintain clamping force and electrical isolation over hundreds of cycles, reducing fixture re-build frequency and lowering unplanned maintenance time by several shifts per year on busy production lines.

• Alumina Washer for Laser Cutting Heads and High Temperature Tooling

  ✅Key Advantages

  1. Rigid thermal barrier around the cutting nozzle – Alumina washers help separate the hot nozzle region from cooler mechanical parts, retaining dimensional accuracy around the optical path.

  2. Stable ceramic interface for repeatable alignment – Tight tolerance washers keep the nozzle, shield and lens housings in consistent position, which supports repeatable focus and cut quality.

  3. Resistance to cutting fumes and process gases – Alumina shows good resistance to oxidation and many cutting atmospheres, so washers maintain surface condition even after long exposure to hot gas streams.

  ✅ Problem Solved

  Laser cutting heads are exposed to high local temperature, pressure and fume loading around the nozzle and shielding region. Inconsistent or degraded insulating washers can shift the nozzle position by tenths of a millimetre, which is enough to change kerf shape and edge quality. By using precision alumina washers with controlled thickness and low thermal distortion, machine builders can hold alignment within design tolerance while keeping the metallic structure thermally insulated. This helps reduce re-adjustment work during machine maintenance and supports more stable cutting performance throughout the life of the consumable parts.

• Alumina Washer for Power Electronics, Motors and Busbar Insulation

  ✅  Key Advantages

  1. High dielectric strength for compact designs – Alumina ceramics can reach dielectric strengths around 14 kV/mm in high-purity grades, allowing short creepage paths and compact fastener spacing.

  2. Low leakage and stable insulation over temperature – Volume resistivity values often exceed 10¹⁴ Ω·cm at room temperature, and remain high as temperature rises, supporting consistent insulation behaviour in power modules and busbar joints.

  3. Mechanical hardness to resist clamping and vibration – High hardness and compressive strength help alumina washers keep their shape under clamping torque and vibration in motors and power racks.

  ✅  Problem Solved

  In high current modules and busbar stacks, conventional fibre or polymer washers can relax or carbonize under continuous temperature and electrical stress, which raises the risk of partial discharge and creepage failures. With alumina washers, designers can achieve compact stack-ups while maintaining clear insulation margins defined by the dielectric strength of the ceramic. When washers are specified correctly, field failures related to insulation washers can be reduced significantly, helping power equipment meet target MTBF and reducing downtime costs in critical systems such as drives, converters and power distribution panels.

Al2O3 Ceramic Washer Usage Instructions

• Installation

  1. Check that all alumina washers are free from cracks, edge chipping and surface contamination before installation.
  2. Place the alumina washer between the metal nut/bolt head and the part to be insulated, ensuring full contact between surfaces.
  3. Apply torque using the values recommended for the metal fastener; avoid over-tightening, as ceramic does not deform plastically like metal.

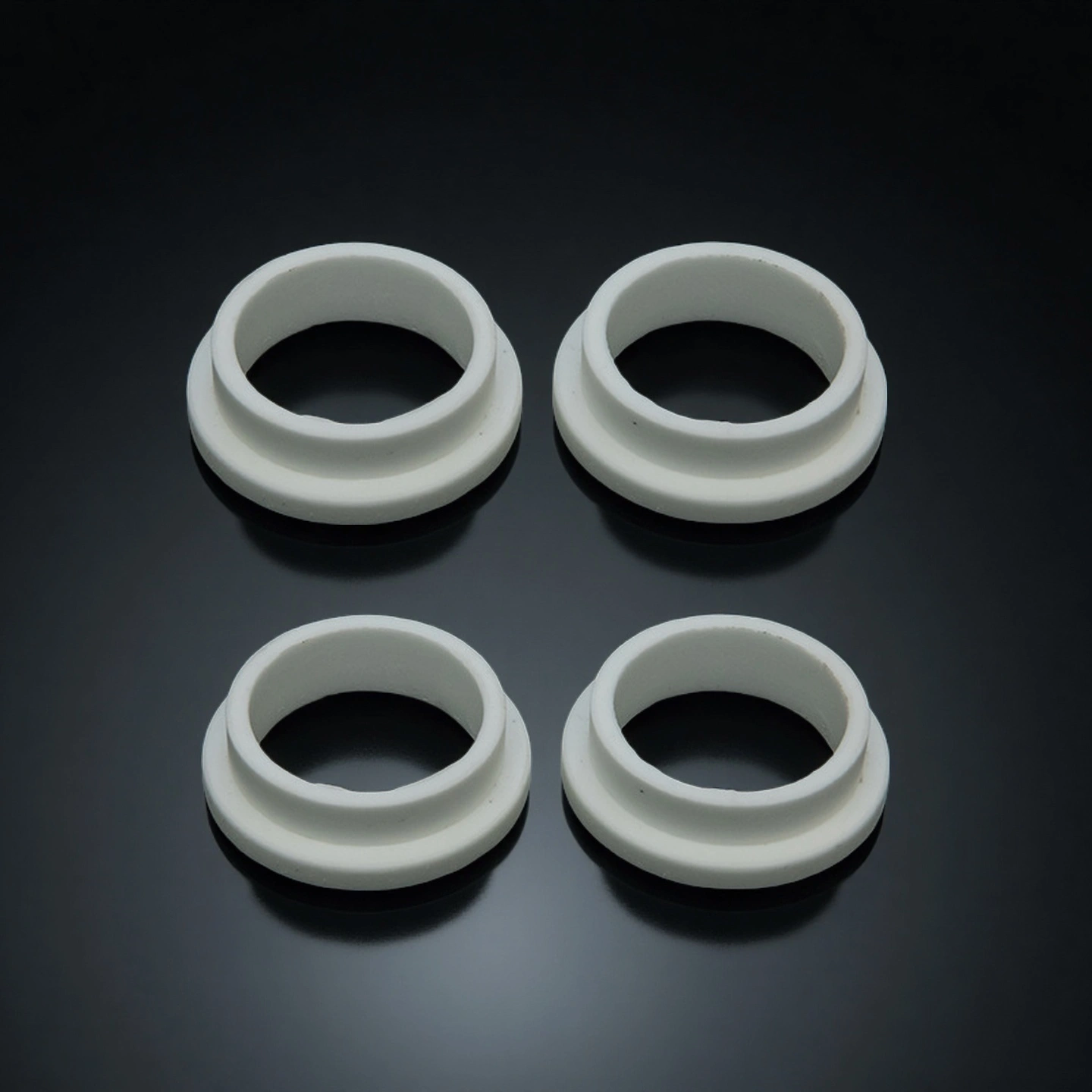

  4. For shoulder washers, make sure the shoulder fully fills the clearance hole and that the metal screw does not touch the surrounding metal part.

• Use and Operation

  1. Use alumina washers in applications that are within the specified maximum service temperature and mechanical loading conditions.
  2. Avoid impact loading, bending or prying forces on the washer; ceramic is strong in compression but sensitive to tensile shock.
  3. In electrical assemblies, respect the minimum creepage and clearance distances defined in your design standards, using the washer as an additional insulation layer rather than the only safeguard.

• Storage

  1. Store alumina washers in dry, clean containers or trays, separated by size and type to avoid confusion during maintenance.
  2. Avoid stacking heavy items on top of the boxes holding thin or small washers to reduce the risk of hidden cracks.
  3. Keep washers away from loose metal parts that could scratch or chip the ceramic surfaces.

• Cleaning

  1. For general use, dust and light contamination can be removed with soft brushes or lint-free cloths.
  2. For vacuum, optical or electronics applications, ultrasonic cleaning in suitable solvents or de-ionized water can be used to remove fine particles and residues, as is recommended for alumina components used in clean environments.
  3. Dry thoroughly in a clean oven at moderate temperature before assembly, especially for vacuum service.

• Common Misuse Points and Fixes

  1. Misuse: Over-tightening the bolt until the alumina washer cracks at the edge.
  Fix: Reduce applied torque, use a washer with slightly larger bearing area, or introduce a metal backing washer above the ceramic to spread the load.

  2. Misuse: Using an alumina washer as the only structural spacer in a joint subject to strong bending or shock.
  Fix: Add a separate metal support or redesign the joint so that the alumina washer works mainly in compression and insulation, not as the primary bending member.

  3. Misuse: Installing an alumina shoulder washer in a hole that is too tight or misaligned, forcing the shoulder and causing hidden cracks.
  Fix: Machine the hole with suitable clearance, deburr sharp edges, and verify fit on a sample before assembling large batches.

Alumina Ceramic Washer FAQ

1. Q: Which alumina purity should I choose for my washer?
   A: Common choices are 95%, 97%, 99% and 99.7–99.8% Al₂O₃. Medium purity grades (around 95–97%) suit many mechanical and furnace fixtures, while 99%+ grades are preferred for demanding electrical insulation, vacuum, microelectronics and clean equipment.
2. Q: What maximum temperature can an alumina washer withstand?
   A: High purity alumina ceramics can operate continuously above 1,600°C, and several stocked ceramic washers for furnace service are specified around 1,750°C. For design safety, the working temperature of an alumina washer should stay within the published range of the selected material grade.
3. Q: How does an alumina washer compare with metal or PTFE washers?
   A: Unlike metal washers, alumina washers do not conduct electricity and keep high resistivity over a wide temperature range. Compared with PTFE or other polymers, alumina washers withstand much higher temperature and do not soften or creep in long-term hot service, at the cost of being more brittle under impact.
4. Q: Can alumina washers be used in vacuum and UHV applications?
   A: Yes, high-purity, fully dense alumina washers are commonly used in vacuum fixtures and are compatible with vacuum bake-out processes. They have low outgassing and maintain mechanical and electrical properties under vacuum conditions when cleaned properly.
5. Q: Are alumina washers reusable after a thermal cycle?
   A: In many furnace and power applications, alumina washers are reused over multiple cycles as long as they show no cracking, edge chipping or excessive surface damage. Visual inspection and basic dimensional checks are recommended before re-use.
