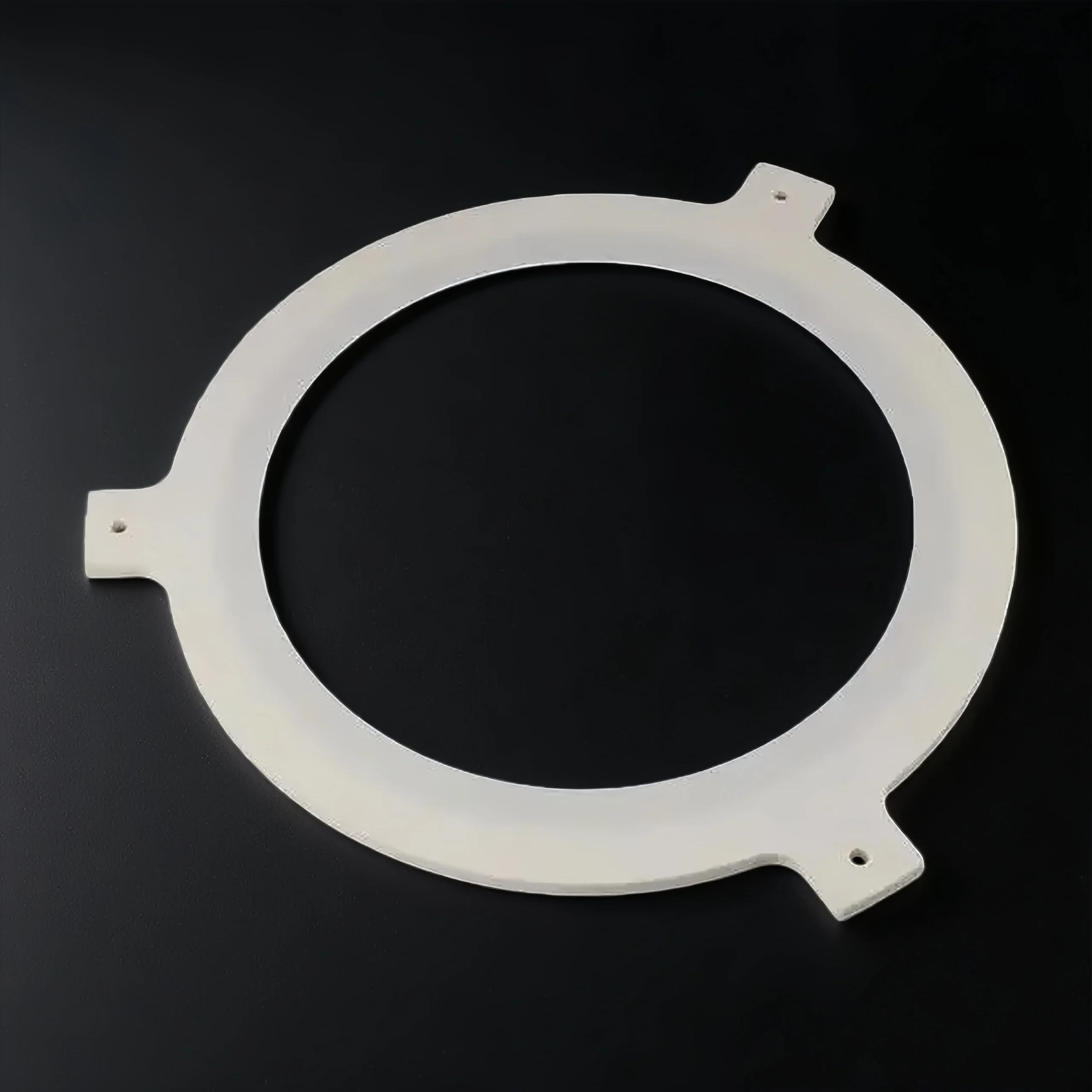

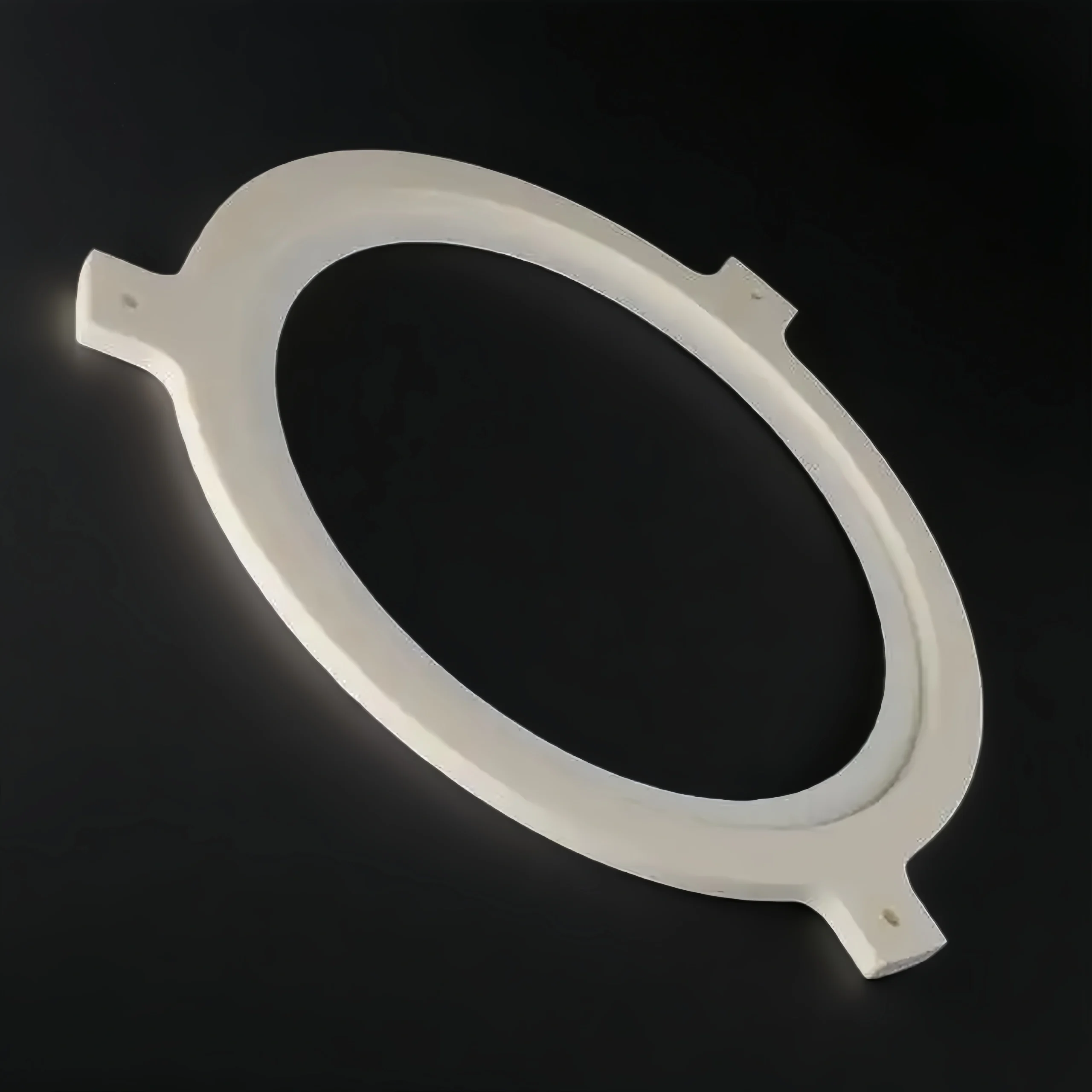

High Purity Alumina Ceramic Insulating Ring for Plasma Surface Treatment Equipment

High Purity Alumina Ceramic Insulating Ring Applications

• Vacuum Chamber Assemblies & Vacuum Tooling (integrators /OEM sub-systems)

  ✅Key Advantages

  1. Electrical isolation benchmark: dielectric strength reference ≥23 kV/mm supports isolation design targets.

  2. Thermal window: published alumina guidance shows 1675–1700°C (non-loading) capability for hot-zone proximity parts.

  3. Geometry stability: dense alumina benchmark ~3.9 g/cc supports rigid ring form factors and controlled spacing.

  ✅ Problem Solved

  A vacuum system integrator reported repeated service interruptions caused by arcing and rework after venting a chamber for part replacement. In industrial downtime studies, unplanned downtime is reported at US$125,000 per hour, and a single shift outage can exceed US$1,000,000. By switching to an insulating ring design with controlled edge finish and interface-ready faces, the team reduced assembly rework cycles and avoided emergency re-venting events tied to insulation failures, improving maintenance predictability and reducing downtime exposure.

• Industrial Plasma Surface Treatment Equipment (service-heavy, maintenance-driven)

  ✅Key Advantages

  1. Controlled isolation path: a ring spec aligned to ≥23 kV/mm reference supports HV isolation design.

  2. Heat exposure tolerance: high-purity alumina grades are published with 1675–1700°C use guidance in non-loading conditions.

  3. Repeatable stack-up: rigid ceramic spacer geometry helps maintain consistent standoff gaps during servicing.

  ✅ Problem Solved

  A plasma surface treatment line experienced recurring rework during scheduled maintenance because insulating spacers showed inconsistent thickness and edge damage, affecting alignment and electrical isolation stability. With downtime studies citing US$125,000 per hour on average for unplanned downtime, even a few hours of extra troubleshooting becomes expensive. A tightened ring drawing (thickness control + edge detail + interface surface definition) reduced re-assembly iterations and shortened the “open-tool” time needed to restore stable operation after service.

• PVD /Industrial Coating Systems (tooling coating, functional films, non-semiconductor)

  ✅Key Advantages

  1. HV isolation reference: ≥23 kV/mm dielectric strength guidance supports coating-fixture isolation requirements.

  2. High-temperature proximity: 1675–1700°C non-loading use guidance helps when rings sit near hot fixtures.

  3. Dimensional repeatability: dense alumina geometry supports consistent fixture positioning across maintenance cycles.

  ✅ Problem Solved

  A PVD coating OEM struggled with fixture rebuild variability after routine chamber cleaning, leading to longer setup times and occasional electrical instability. Industry downtime figures report US$125,000 per hour on average, so extended setup time increases cost quickly. After standardizing the insulating ring interface (controlled OD/ID alignment targets and defined contact-face prep), the OEM shortened fixture rebuild time and improved repeatability across rebuilds, reducing unplanned troubleshooting during production scheduling.

User Guide — High Purity Alumina Ceramic Insulating Ring

• Installation

  1. Confirm OD/ID/thickness against drawing callouts before installation.
  2. Inspect edges and contact faces for chips, hairline cracks, or handling marks.
  3. Clean mating metal surfaces; remove burrs that can create point loads on ceramic.
  4. Apply clamp load evenly using a cross-pattern sequence if bolted.
  5. Avoid metal-on-ceramic sliding during alignment; use controlled positioning.

• Operation

  1. Keep the ring away from impact, side loading, and prying forces during service.
  2. Minimize contamination buildup at interfaces; contamination can create leakage paths.
  3. If the ring sits near a heat source, ramp processes to reduce thermal shock risk.

• Storage

  1. Store in original packaging; keep rings separated to avoid edge-to-edge contact.
  2. Keep dry and clean; avoid exposure to abrasive dust that can scratch contact faces.

• Cleaning

  1. Use non-abrasive wipes and compatible solvents for your process environment.
  2. Do not sand or grind sealing/contact faces unless defined in your maintenance procedure.
  3. Re-check contact faces after cleaning if the ring is reused.

• Common misuse points

  1. Misuse: forcing the ring into a tight fit causes edge chipping.
  Fix: adjust fit tolerance or add chamfer/radius; use alignment tooling, not prying.

  2. Misuse: uneven bolt tightening creates point loads and cracking.
  Fix: torque in steps with a cross pattern; define a maximum clamp load in the assembly SOP.

  3. Misuse: installing with debris on the interface causes leakage paths or rocking.
  Fix: clean and inspect mating faces; define cleanliness checkpoints during rebuild.

High Purity Alumina Ceramic Insulating Ring FAQ

1. Q: What is a High Purity Alumina Ceramic Insulating Ring used for?
   A: It is used to electrically isolate metal interfaces while keeping a controlled spacer gap in vacuum, plasma, coating, and high-temperature assemblies.
2. Q: How do I specify dimensions for a High Purity Alumina Ceramic Insulating Ring?
   A: Define OD, ID, thickness, and the functional faces; add flatness/parallelism and edge detail callouts where the ring is clamped or seals.
3. Q: Can a High Purity Alumina Ceramic Insulating Ring include grooves or slots?
   A: Yes, grooves/reliefs/anti-rotation features can be added to reduce contamination traps or support fixture positioning.
4. Q: Do I need lapped faces on a High Purity Alumina Ceramic Insulating Ring?
   A: If your assembly depends on consistent contact geometry or sealing behaviour, lapped or controlled-face preparation is often specified.
5. Q: How do I reduce cracking risk during the installation of an alumina insulating ring?
   A: Avoid prying forces, keep interfaces burr-free, and tighten clamp loads evenly using a cross-pattern sequence.

High Purity Alumina Insulating Ring Reviews

• ⭐️⭐️⭐️⭐️⭐️
  We replaced a spacer stack with a High Purity Alumina Insulating Ring and the rebuild became more repeatable. The edge finish matched our handling steps, and the fit-up time dropped.
  -- Mark T. | Maintenance Manager | Vacuum Systems Integrator (US)
• ⭐️⭐️⭐️⭐️⭐️
  The High Purity Al2O3 Insulating Ring quote was clear on critical dimensions and inspection points. ADCERAX worked like a practical supplier for ongoing spare parts, and pricing was workable for annual replenishment.
  -- Elena R. | Supply Chain Manager | Industrial Coating Equipment OEM (EU)
• ⭐️⭐️⭐️⭐️⭐️
  The custom alumina ceramic insulator ring came with the groove detail we needed. The ring seated cleanly and stopped the rocking issue we had with an older spacer design.
  -- Jason L. | Process Engineer | Plasma Surface Treatment Line (CA)
• ⭐️⭐️⭐️⭐️⭐️
  We used a High Purity Alumina Ceramic Insulating Ring as a controlled standoff part. The thickness consistency helped us reduce assembly adjustments during service.
  -- Hiro K. | Purchasing Lead | Industrial Vacuum Tooling Manufacturer (JP)
