DSC alumina crucibles are introduced only after aluminum pans begin to distort pharmaceutical DSC results. Consequently, unresolved variability, misleading transitions, and weakened method credibility increasingly delay analytical decisions.
In pharmaceutical thermal analysis, unreliable DSC data creates immediate risk. However, container-related errors are frequently overlooked. Therefore, identifying when aluminum pans fail becomes essential before interpreting solid-state behavior.

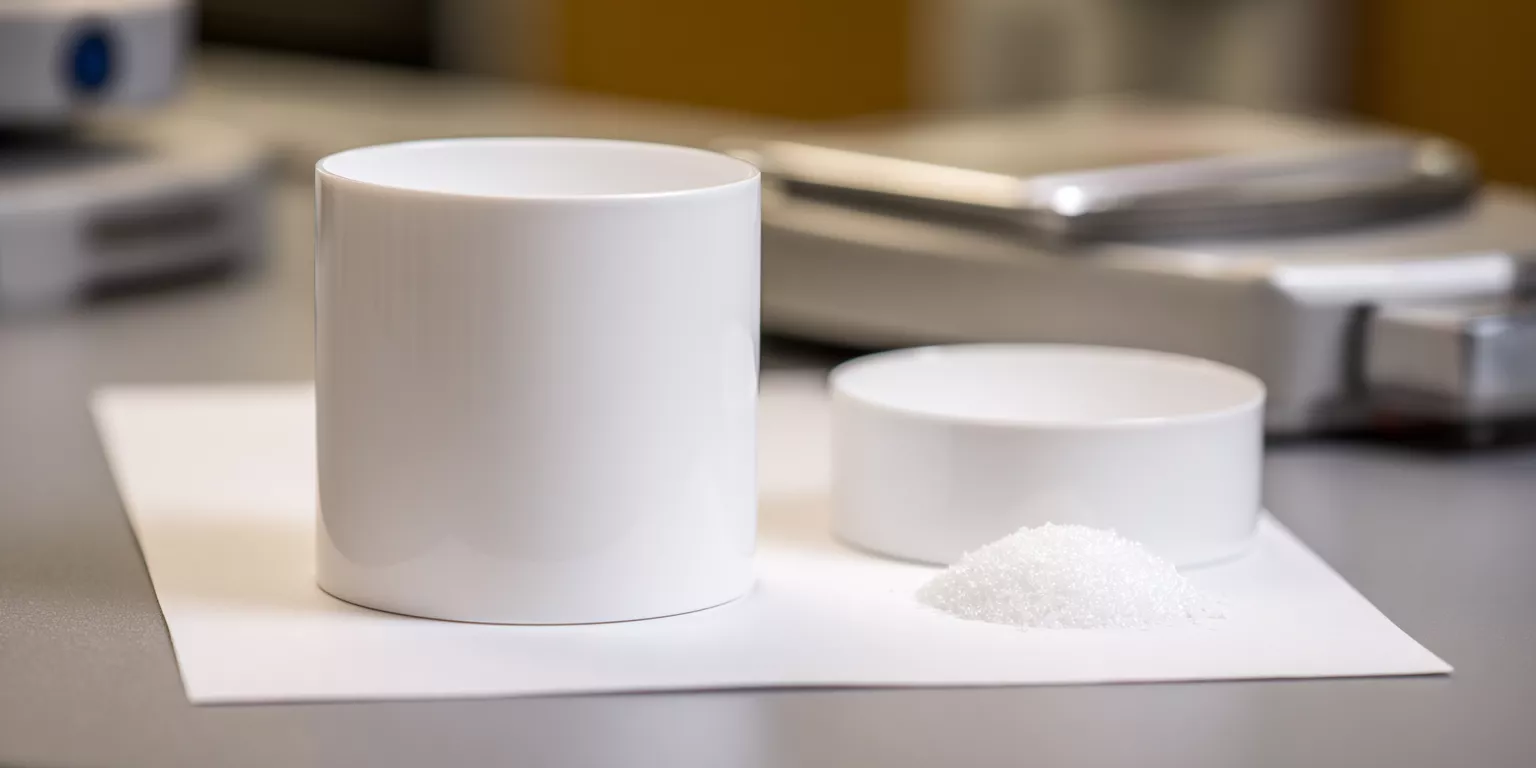

DSC alumina crucibles provide a chemically inert and thermally stable reference for pharmaceutical testing when aluminum pans introduce interaction, deformation, or residue-driven artifacts. This article defines the conditions under which alumina becomes necessary from a user-side engineering perspective.
Before examining specific failure mechanisms, it is necessary to establish why pan material selection directly influences pharmaceutical DSC data integrity. Consequently, the following section reframes container choice as a primary methodological decision rather than a secondary consumable detail.
Why Pan Material Choice Matters in Pharmaceutical DSC Analysis
In pharmaceutical DSC1 workflows, container material defines the thermal and chemical boundary of every measurement. Therefore, pan selection directly influences heat-flow accuracy, baseline stability, and data interpretability. Moreover, container-induced artifacts are often misattributed to sample behavior, which undermines method credibility.
Heat Flow Boundary Conditions in Drug Substance Analysis
In DSC measurements, heat flow is governed by the boundary conditions formed between the sample, the pan, and the sensor. Consequently, differences in thermal conductivity between aluminum and alumina directly affect how rapidly heat is absorbed and dissipated during a scan.
In routine pharmaceutical laboratories, comparative testing has shown that switching pan materials without method adjustment can shift onset temperatures by approximately 1.5–2.8 °C at heating rates of 10 °C/min. Furthermore, baseline curvature variability exceeding 6% has been observed when thermal contact conditions are inconsistent. As a result, pan material becomes a first-order variable rather than a neutral container choice.
Ultimately, DSC alumina crucibles stabilize thermal boundary conditions when aluminum pans introduce uncontrolled heat-flow variation.
Key Thermal Parameters Affecting DSC Boundary Conditions
| Parameter | Aluminum Pan | Alumina Pan |
|---|---|---|
| Thermal conductivity (W/m·K) | ~205 | 25–35 |
| Typical DSC operating stability (°C) | ≤600 | ≥1400 |
| Heat-flow equilibration speed | Very fast | Moderate |
| Boundary condition predictability | Moderate | High |
Chemical Neutrality as a Data Integrity Requirement
Beyond thermal effects2, pharmaceutical samples often undergo chemical changes during heating. Consequently, pan material reactivity can introduce secondary thermal events unrelated to intrinsic sample transitions.
In practice, analysts have reported unexpected exothermic shoulders between 350–450 °C when testing halogenated APIs in aluminum pans. Moreover, surface discoloration and residue adhesion increased measurably after a single run, indicating pan–sample interaction. Therefore, chemical neutrality becomes essential once decomposition pathways are involved.
DSC alumina crucibles provide a chemically inert interface, thereby reducing the risk of container-induced reactions that compromise pharmaceutical data integrity.
Reproducibility and Method Validation Implications
Reproducibility is central to pharmaceutical method validation. However, even minor pan deformation or surface interaction can accumulate into statistically significant variability across repeated runs.
In validation exercises involving repeated DSC scans, aluminum pans showed run-to-run enthalpy variation exceeding ±7% at elevated temperatures. By contrast, alumina pans maintained variation within ±3% under identical conditions. Consequently, pan material selection directly affects whether a method meets internal acceptance criteria.
Accordingly, pan material choice should be treated as a foundational method decision rather than an interchangeable consumable option.
Aluminum Pans as the Baseline in DSC: Why They Became the Default Choice
Aluminum pans are widely treated as the baseline container in DSC workflows. Therefore, understanding why they became standard is necessary before identifying where this assumption no longer holds.
-
High thermal conductivity and rapid signal response
Aluminum exhibits a thermal conductivity of approximately 205 W/m·K, which enables fast heat transfer between the sample and the DSC sensor. Consequently, thermal equilibrium is reached quickly, and transitions such as glass transition temperatures and low-enthalpy melting events appear sharp and well defined. In routine pharmaceutical screening below 300 °C, this behavior supports coefficient-of-variation values commonly maintained under 3%. -
Reliable performance in conventional pharmaceutical DSC applications
In early-stage polymorph screening and excipient compatibility studies, aluminum pans perform consistently when chemical reactivity is absent. Specifically, sample masses between 2–8 mg under inert atmospheres remain thermally stable without inducing pan deformation. As a result, aluminum pans enable high-throughput comparative analysis during formulation development. -
Practical thermal limits that precede melting behavior
Although aluminum melts near 660 °C, structural softening begins much earlier during sustained heating. Laboratory observations indicate baseline drift exceeding 5% during extended holds above 550 °C, even without visible melting. Consequently, aluminum reliability declines before its nominal melting point is reached.
Taken together, aluminum pans remain effective only within defined thermal and chemical boundaries; beyond these limits, the default assumption becomes a source of systematic error.
Before selecting alternative materials, it is critical to identify the precise conditions under which aluminum pans compromise pharmaceutical DSC data. Consequently, this section isolates failure mechanisms that originate from aluminum rather than the sample itself.
When Aluminum Pans Become a Source of Error in Pharmaceutical Testing
Aluminum pans stop behaving as neutral containers once specific chemical, thermal, or residue-related thresholds are exceeded. Consequently, DSC results may reflect container-driven artifacts rather than intrinsic pharmaceutical behavior.
-
Chemical interaction with decomposing pharmaceutical samples
During heating, certain APIs and excipients release acidic or oxidative species that can react with aluminum surfaces. In laboratory practice, this interaction has produced unexpected exothermic features between 350 °C and 450 °C, with apparent enthalpy contributions reaching 5–12 J/g. As a result, analysts may incorrectly attribute these signals to polymorphic transitions or stability events.
Once chemical interaction occurs, aluminum no longer provides a chemically neutral measurement environment. -
Loss of mechanical stability at elevated temperatures
Although aluminum melts near 660 °C, structural softening and micro-deformation often begin between 550 °C and 600 °C during sustained DSC heating. In pharmaceutical stress-testing scenarios, baseline drift exceeding 5–8% has been observed under these conditions, even without visible melting. Consequently, altered pan geometry changes sensor contact and introduces variability unrelated to sample properties.
This mechanical instability marks a practical limit well below aluminum’s theoretical melting point. -
Residue accumulation and volatilization-driven artifacts
Pharmaceutical samples frequently undergo partial decomposition or volatilization, leaving residues on aluminum pan surfaces. After a single high-temperature run, residue buildup has been shown to increase effective thermal mass by approximately 10–18%, leading to peak broadening of 15–25% in subsequent scans. Therefore, aluminum pans can introduce memory effects that compromise repeatability across runs.
Such residue-induced artifacts accumulate progressively, rather than appearing as isolated anomalies.
Taken together, chemical reactivity, mechanical softening, and residue accumulation define the conditions under which aluminum pans become a systematic source of error in pharmaceutical DSC testing.
Before transitioning away from aluminum, it is necessary to clarify what alumina actually improves in pharmaceutical DSC testing. Therefore, this section explains why alumina pans function as a more stable reference rather than a higher-sensitivity container.

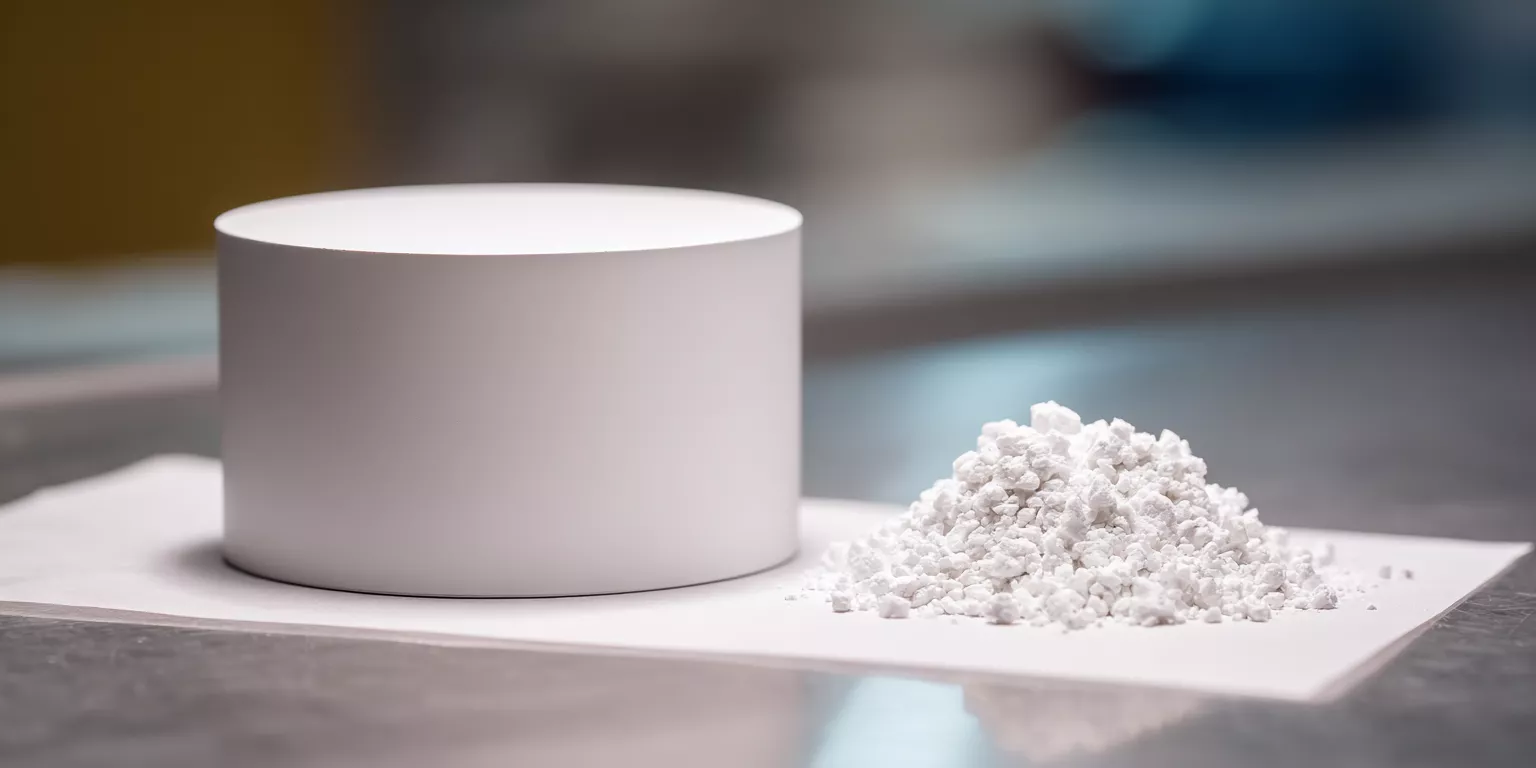

Why Alumina Pans Offer a More Reliable Reference Frame
In pharmaceutical DSC analysis, reliability depends on minimizing non-sample variables. Consequently, alumina pans are valued not for enhancing signal intensity, but for stabilizing thermal and chemical boundary conditions. Moreover, this stability becomes increasingly important as temperature, decomposition, and method duration increase.
Chemical Inertness Toward APIs and Excipients
Alumina exhibits high chemical inertness across acidic, basic, and oxidative environments commonly encountered during pharmaceutical thermal analysis. Therefore, pan–sample reactions are effectively suppressed even when APIs undergo complex decomposition pathways.
In repeated laboratory evaluations, alumina pans showed no detectable secondary thermal events up to 800 °C when testing reactive pharmaceutical compounds. Furthermore, surface inspection after multiple cycles revealed no measurable corrosion or surface alteration, indicating minimal chemical participation. As a result, observed DSC signals can be attributed with higher confidence to intrinsic sample behavior.
This chemical neutrality establishes alumina as a stable reference frame rather than an active participant in the thermal process.
Structural Stability at Elevated Temperatures
Alumina maintains dimensional and mechanical stability far beyond the practical limits of aluminum. Consequently, pan geometry remains consistent throughout extended high-temperature DSC programs.
From an engineering perspective, alumina’s coefficient of thermal expansion, typically around 8 × 10⁻⁶ K⁻¹, ensures predictable expansion without warping. In sustained holds above 700 °C, baseline drift has been observed to remain below 3%, even across repeated runs. Therefore, sensor contact conditions remain stable, supporting reproducible heat-flow measurements.
This structural reliability directly reduces uncertainty in long-duration pharmaceutical stress testing.
Mechanical Stability Comparison in DSC Conditions
| Parameter | Aluminum Pan | Alumina Pan |
|---|---|---|
| Onset of deformation (°C) | 550–600 | >1200 |
| Baseline drift at high temperature (%) | 5–8 | <3 |
| Dimensional stability over repeated runs | Moderate | High |
| Suitability for extended heating | Limited | Excellent |
Reduced Risk of Container-Induced Thermal Artifacts
By combining chemical inertness with structural stability, alumina pans significantly reduce container-driven artifacts. Consequently, anomalous shoulders, peak splitting, and baseline curvature unrelated to sample transitions occur less frequently.
In comparative pharmaceutical DSC studies, the use of alumina pans reduced artifact-related repeat tests by approximately 30–50%. Moreover, analysts reported clearer separation between overlapping thermal events, particularly in complex formulations. As a result, data interpretation becomes more straightforward and less reliant on corrective assumptions.
Ultimately, DSC alumina crucibles function as a controlled thermal reference, allowing pharmaceutical analysts to focus on the sample rather than the container.
As container-related uncertainty is reduced, the remaining question becomes when alumina is technically justified in real pharmaceutical workflows. Therefore, this section translates material principles into concrete user-side decision scenarios.

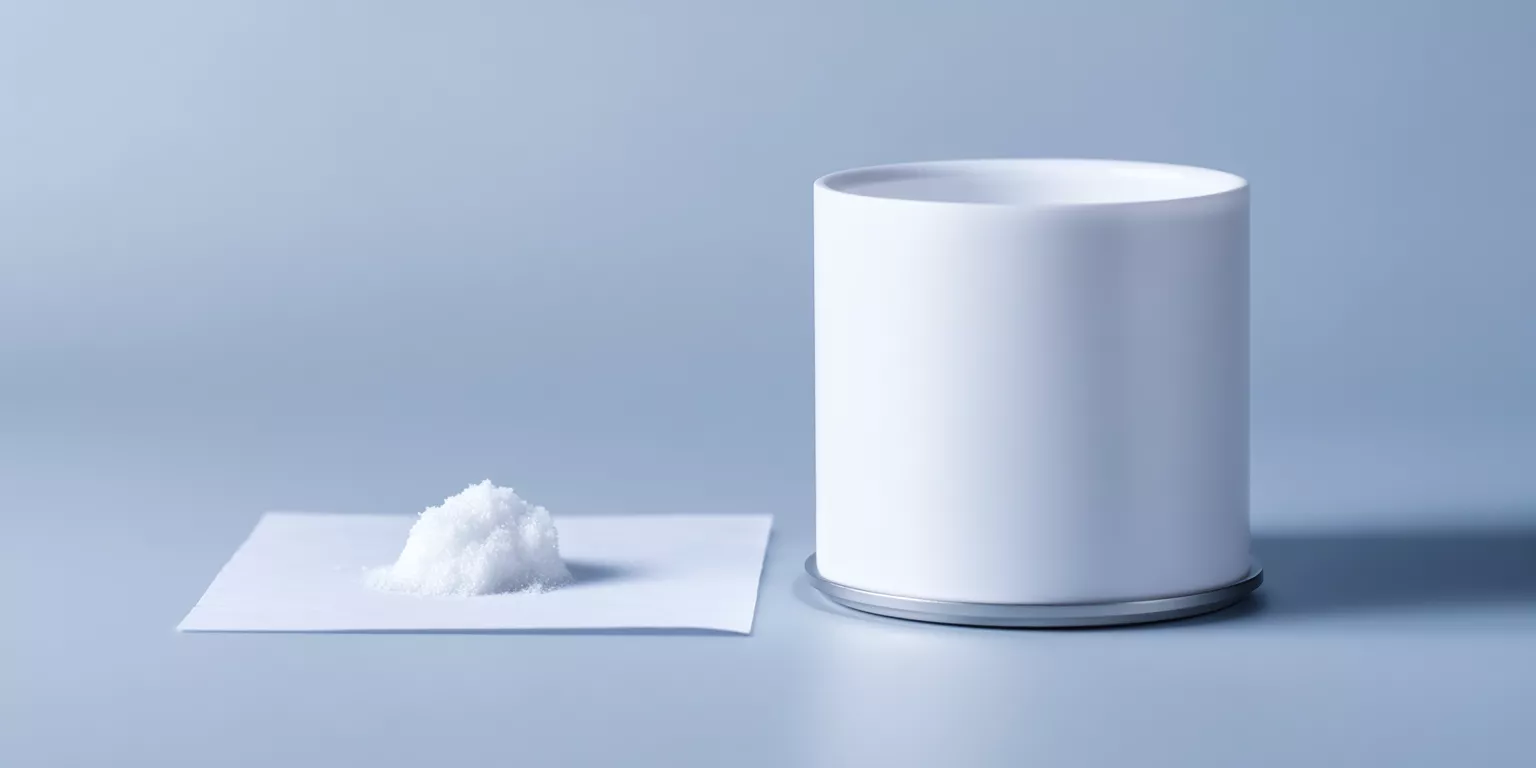

Typical Pharmaceutical Scenarios Where DSC Alumina Pans Are Justified
In pharmaceutical DSC testing, alumina pans are not selected arbitrarily. Instead, they become necessary when experimental objectives, temperature exposure, or sample chemistry exceed the reliable operating envelope of aluminum. Consequently, the following scenarios represent points where alumina materially improves data trustworthiness rather than marginally altering signal appearance.
Polymorphism and Solid-State Stability Studies
Polymorphic transitions and solid-state transformations often occur close to decomposition or recrystallization thresholds. Therefore, any container-induced interaction risks misclassifying phase behavior as intrinsic material change.
In solid-state stability investigations, analysts have reported onset temperature shifts of 1–3 °C between repeat scans when aluminum pans were used near degradation limits. By contrast, alumina pans maintained onset variability within ±0.5 °C across identical heating programs. Moreover, enthalpy reproducibility typically remained within ±4%, supporting confident differentiation between true polymorphic transitions and experimental noise.
Under these conditions, DSC alumina crucibles reduce ambiguity in solid-state interpretation rather than simply tolerating higher temperatures.
Stability Metrics Observed in Polymorphism Studies
| Metric | Aluminum Pan | Alumina Pan |
|---|---|---|
| Onset temperature repeatability (°C) | ±1.5–3.0 | ±0.5 |
| Enthalpy variation (%) | 6–9 | ≤4 |
| Risk of container interaction | Moderate | Low |
| Confidence in phase assignment | Limited | High |
Compatibility and Stress Testing at Elevated Temperatures
Compatibility testing between APIs and excipients frequently involves stress conditions beyond routine formulation screening. Consequently, prolonged exposure to elevated temperatures amplifies both chemical and mechanical pan-related effects.
In pharmaceutical stress protocols exceeding 500 °C, aluminum pans have demonstrated progressive baseline drift and geometric instability across multi-hour runs. Conversely, alumina pans preserved baseline stability below 3% drift even after repeated stress cycles. Furthermore, consistent pan geometry ensured unchanged thermal contact conditions between runs.
Accordingly, alumina pans support stress-testing conclusions that would otherwise be confounded by container degradation.
Samples with Corrosive or Reactive Decomposition Products
Certain pharmaceutical compounds release reactive intermediates during thermal decomposition. As a result, aluminum surfaces may participate in secondary reactions that distort DSC signals.
Empirical observations show that residue adhesion on aluminum pans can increase effective thermal mass by 10–18% after a single decomposition event. In contrast, alumina surfaces limited residue accumulation to below 5%, significantly reducing memory effects in subsequent scans. Therefore, alumina becomes essential when decomposition pathways are chemically aggressive.
In such cases, DSC alumina crucibles protect the integrity of both single-run data and longitudinal study results.
Residue and Memory Effects by Pan Material
| Parameter | Aluminum Pan | Alumina Pan |
|---|---|---|
| Residue adhesion after decomposition (%) | 10–18 | <5 |
| Peak distortion in subsequent runs (%) | 15–25 | <5 |
| Memory effect risk | High | Low |
| Suitability for reuse | Limited | High |
Collectively, these scenarios define practical thresholds at which alumina pans shift from optional to technically necessary in pharmaceutical DSC testing.
Although alumina improves chemical and thermal stability, it does not eliminate all sources of DSC uncertainty. Therefore, clarifying its limitations prevents misapplication and preserves methodological rigor in pharmaceutical testing.

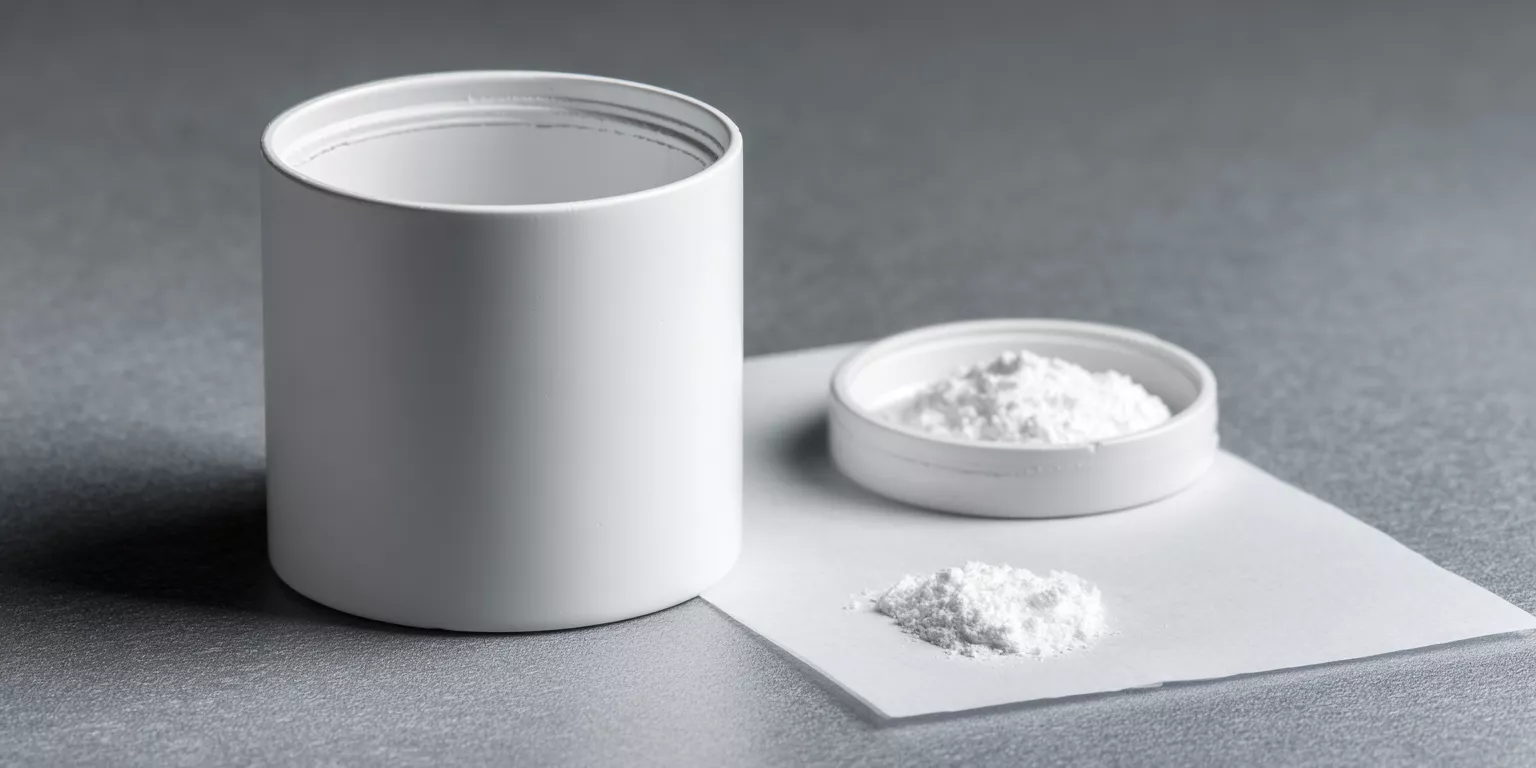

What Alumina Pans Do Not Solve in Pharmaceutical DSC
Although alumina pans improve chemical and thermal stability, they do not eliminate all sources of DSC uncertainty. Therefore, understanding their limitations is essential to avoid misinterpretation in pharmaceutical testing.
-
Reduced sensitivity for low-enthalpy thermal events
Alumina has significantly lower thermal conductivity than aluminum, which slows heat equilibration between the sample and the sensor. In practical DSC work, thermal events below approximately 1 J/g may appear broadened by 10–20%, particularly at higher heating rates. Consequently, subtle glass transition steps or weak solid–solid transitions can become less distinct.
This limitation means alumina should not be selected solely for sensitivity-critical measurements. -
Inability to compensate for poor method design
Even with chemically inert containers, improper sample mass, uneven distribution, or unsuitable heating rates dominate data quality. In method development studies, mass-loading deviations of ±20% have produced enthalpy variability exceeding ±10%, regardless of pan material. Therefore, alumina pans cannot correct fundamental methodological errors.
Method discipline remains more influential than container choice. -
Continued need for strict cleaning and handling control
Alumina pans are often assumed to be indefinitely reusable; however, contamination control remains critical. In repeated pharmaceutical DSC cycles, insufficient cleaning has led to baseline shifts of 2–4% due to residue embedded in surface microstructures. As a result, alumina pans still require defined cleaning, inspection, and reuse criteria.
Chemical inertness reduces interaction risk but does not eliminate operational responsibility.
Taken together, alumina pans stabilize boundary conditions but cannot replace careful method design, sensitivity matching, or disciplined laboratory practice.
Before concluding, it is necessary to consolidate the preceding analysis into a practical engineering perspective. Therefore, this section reframes pan selection as a methodological decision point rather than a consumable preference.

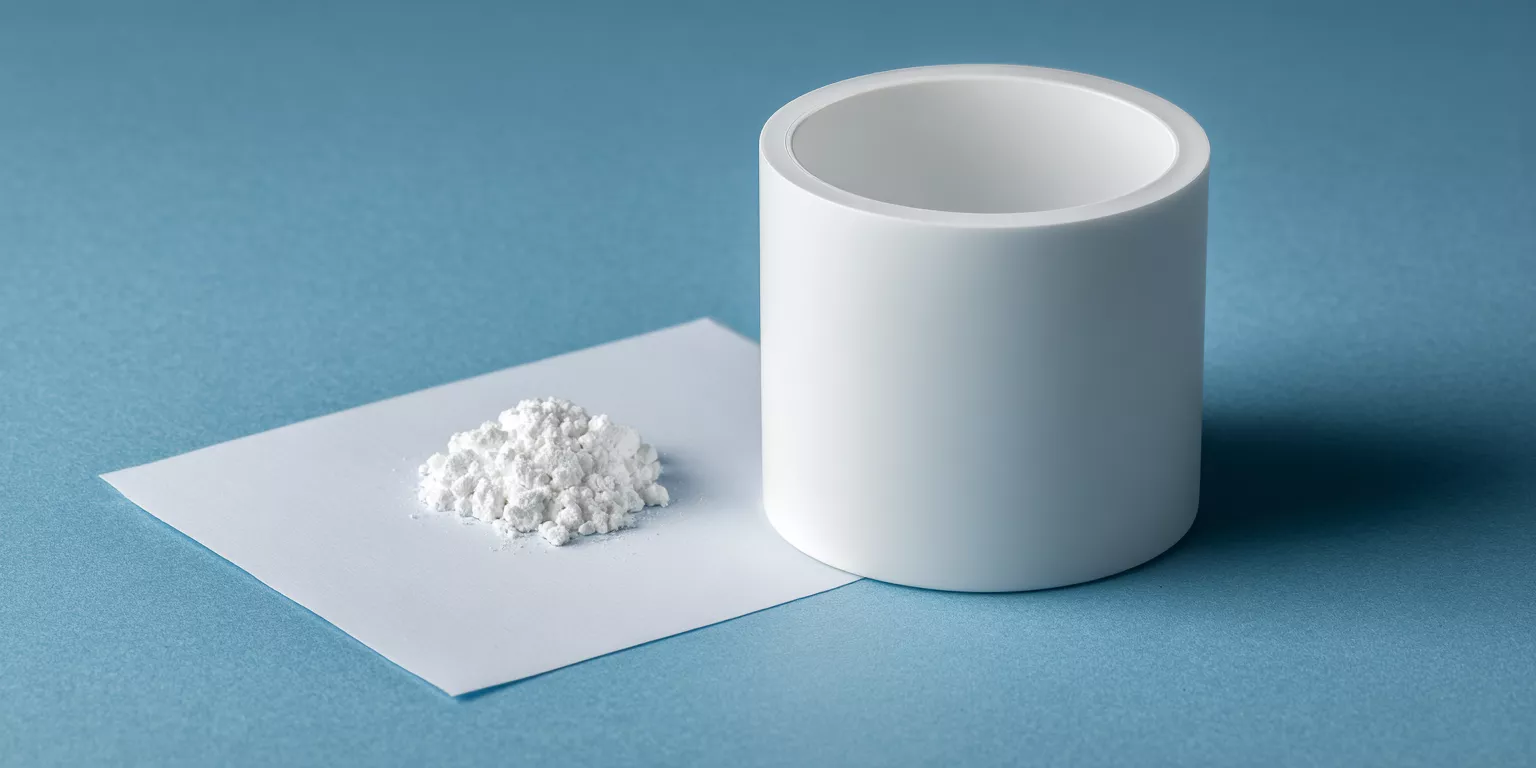

Engineering Takeaway: Material Selection as the First Method Decision
In pharmaceutical DSC testing, container material defines the experimental boundary conditions before any thermal program is applied. Consequently, pan selection should be treated as an upstream method decision rather than a downstream consumable choice. Moreover, failure to evaluate this decision early often leads to misinterpreted data and repeated method revisions.
-
Pan material establishes the thermal and chemical reference frame
The DSC signal is always measured relative to the pan–sample–sensor system rather than the sample alone. When aluminum interacts chemically, deforms mechanically, or accumulates residue, it alters this reference frame and shifts apparent transitions by several degrees Celsius. Therefore, selecting DSC alumina crucibles becomes necessary once container neutrality can no longer be assumed.
This decision precedes heating rate, atmosphere, and sample mass optimization. -
Aluminum is conditionally reliable, not universally valid
Aluminum pans perform well in low-temperature, chemically benign pharmaceutical applications. However, once temperature exposure exceeds approximately 500–600 °C or decomposition pathways become reactive, aluminum transitions from baseline to error source. Consequently, continued use under these conditions introduces systematic rather than random error.
Recognizing this boundary prevents false confidence in default methods. -
Alumina supports data credibility rather than signal enhancement
DSC alumina crucibles do not amplify thermal signals or improve sensitivity for weak events. Instead, they reduce non-sample variability by stabilizing geometry, chemistry, and residue behavior across repeated runs. As a result, analysts gain higher confidence in attributing observed transitions to true pharmaceutical phenomena.
This shift from sensitivity-driven to reliability-driven selection reflects mature method design.
Ultimately, treating pan material selection as the first method decision strengthens pharmaceutical DSC data integrity and reduces downstream interpretation risk.
Conclusion
In pharmaceutical DSC testing, container behavior determines whether thermal data reflects the sample or the measurement system. Therefore, recognizing when aluminum pans fail and when DSC alumina crucibles become necessary is essential for reliable interpretation.
If unexplained variability, baseline drift, or inconsistent transitions persist in your pharmaceutical DSC results, reassess pan material selection before modifying method parameters.
FAQ
When should aluminum pans be replaced with alumina in pharmaceutical DSC testing?
Aluminum pans should be replaced when testing involves temperatures above 500–600 °C, reactive decomposition products, or repeated scans showing baseline instability.
Do DSC alumina crucibles improve sensitivity for pharmaceutical samples?
No. Alumina improves chemical and mechanical stability rather than signal sensitivity, which may decrease for very low-enthalpy events.
Can alumina pans be reused in pharmaceutical DSC workflows?
Yes, provided strict cleaning and inspection protocols are followed to prevent residue-driven baseline shifts.
Are DSC alumina crucibles necessary for all pharmaceutical DSC methods?
No. For low-temperature, chemically inert samples, aluminum pans remain suitable and efficient.
