Customize Porous Alumina Tube for Filtration, Diffusion & Process Control

Porous Alumina Tube Applications

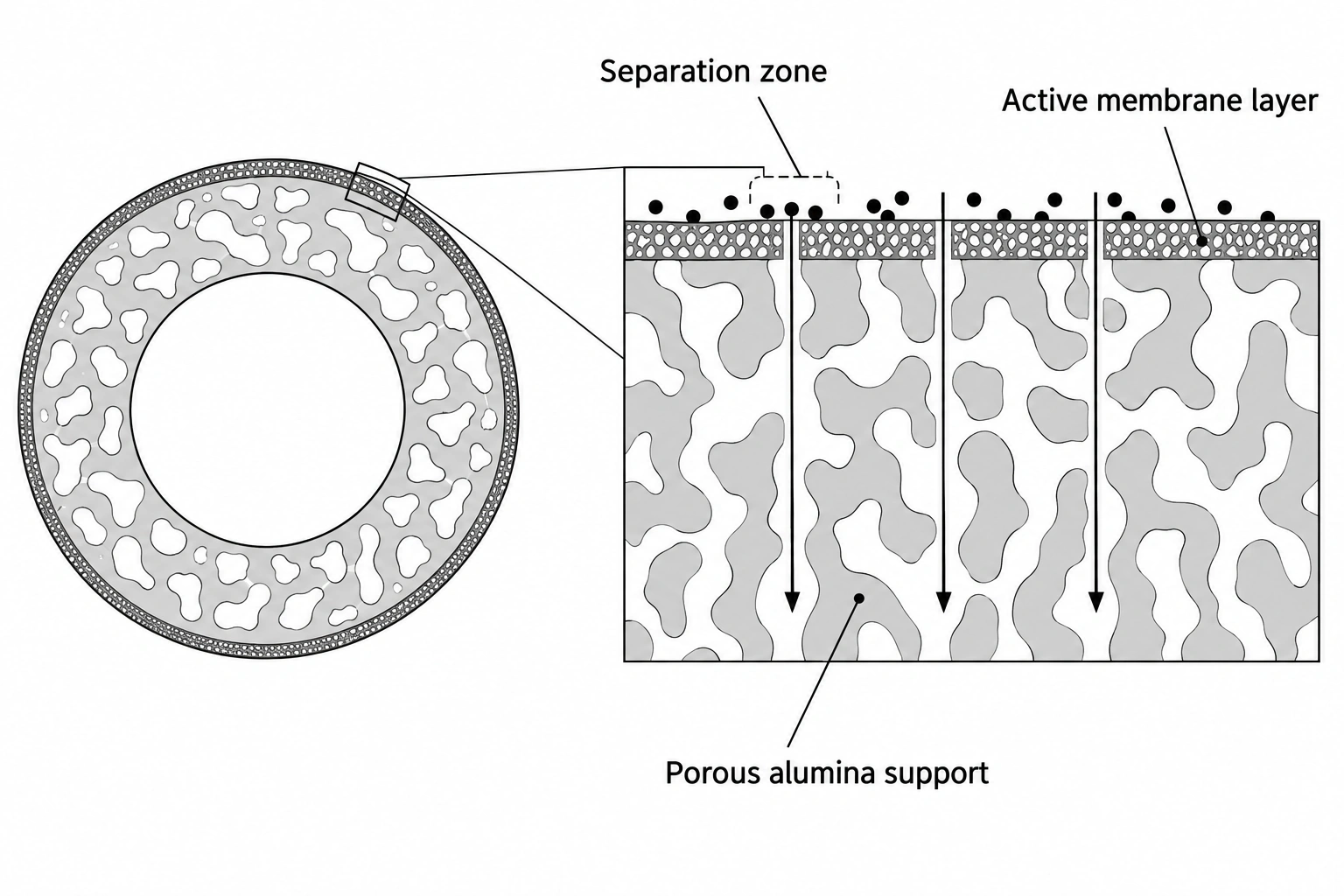

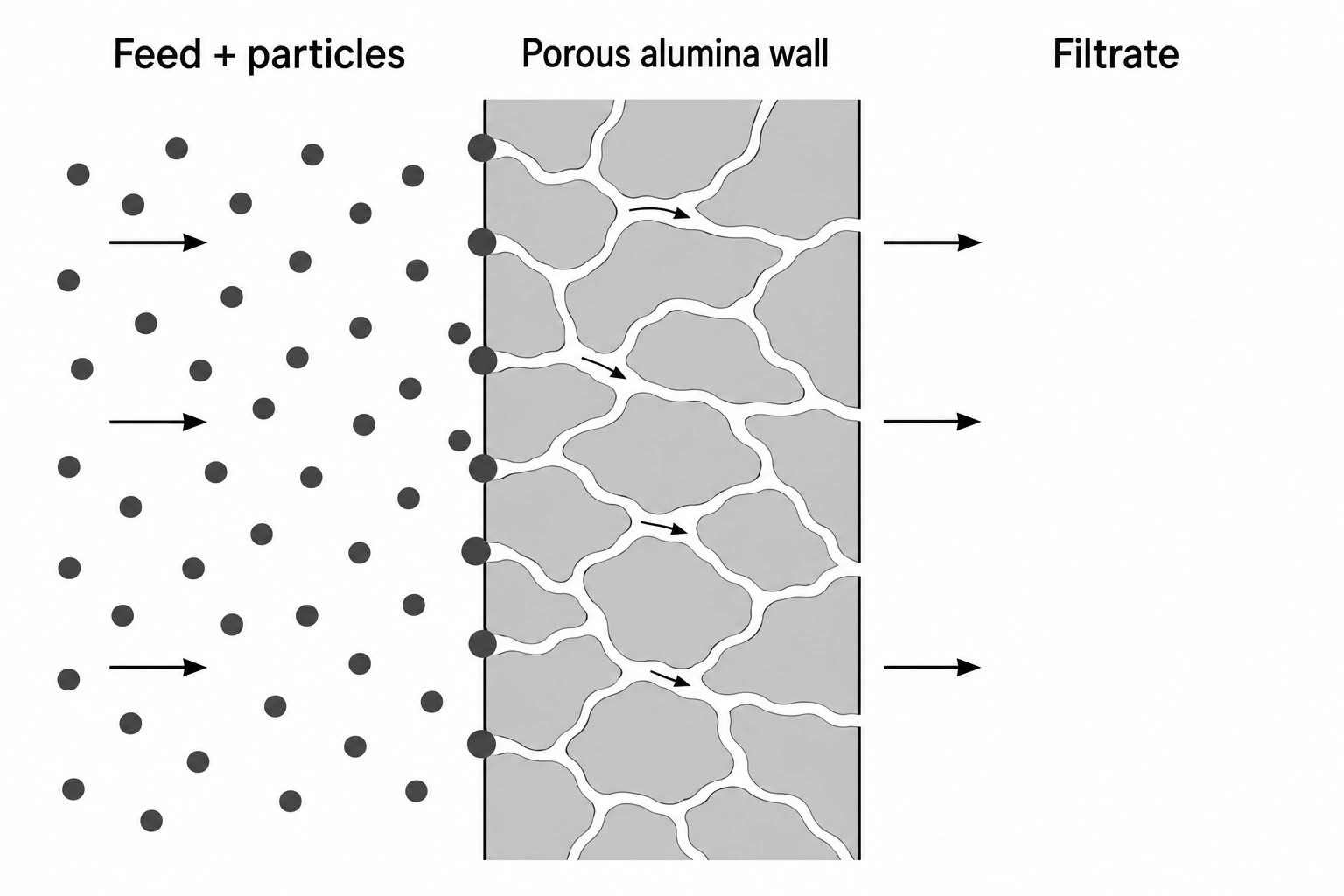

• Cross-Flow Microfiltration Support (Water & Wastewater)

  ✅ Key Advantages

  1. CIP-tolerant support — withstands frequent chemical cleaning and elevated temperatures with stable permeability.
  2. Dimensional consistency — controlled ID/OD enables uniform module potting and seal compression.
  3. Low particle shedding — ceramic matrix resists abrasion in cross-flow conditions.

  ✅ Problem Solved

  An OEM retrofitted polymeric support elements with porous alumina tubes to handle aggressive cleaning cycles. The change allowed higher cleaning frequency without deformation, kept trans-membrane pressure stable over extended runs, and reduced mid-campaign element swaps. System uptime improved, and consumable costs decreased due to longer service intervals.

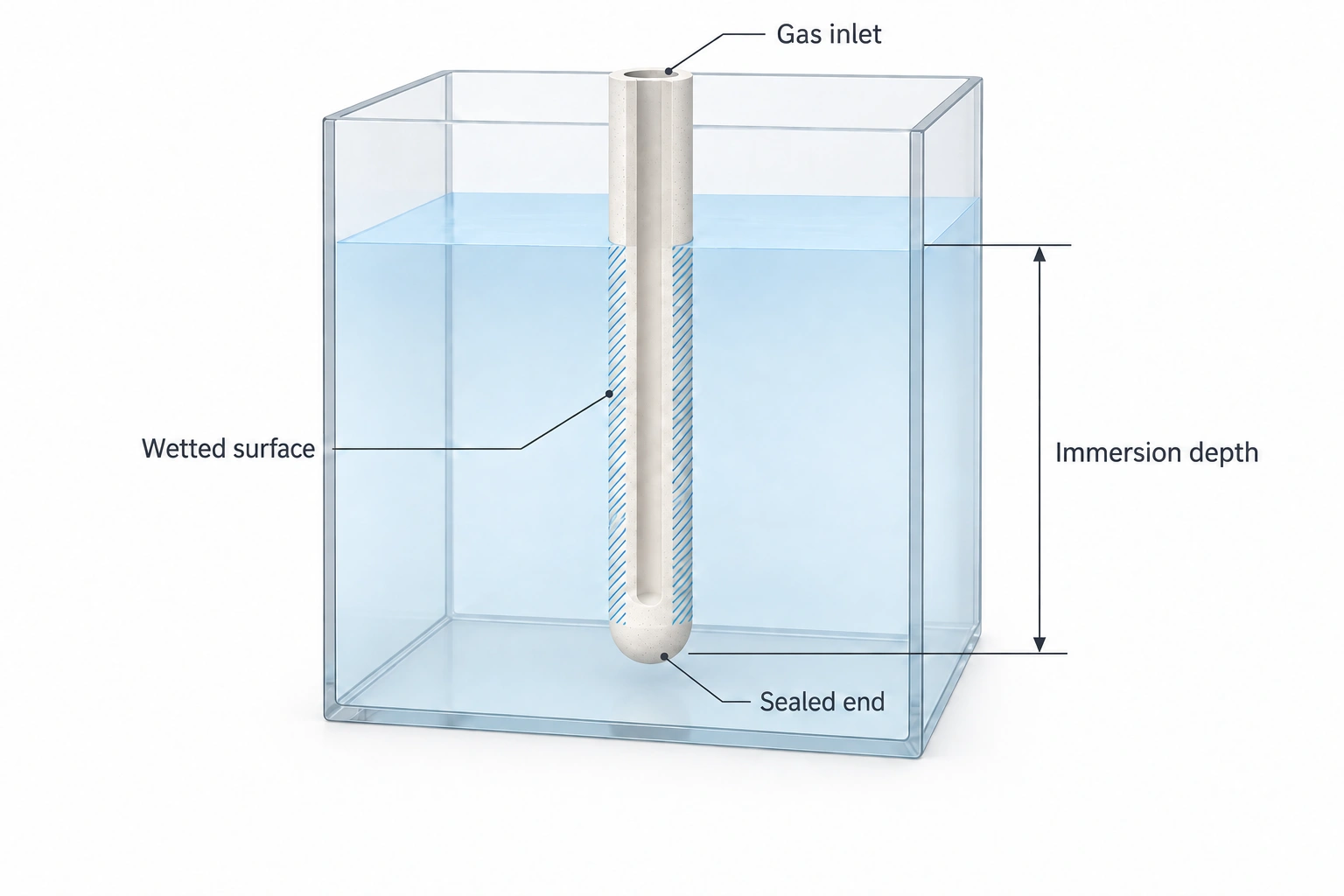

• Gas Sparging / Diffusion in Bioprocess & Chemical Vessels

  ✅ Key Advantages

  1. Uniform bubble distribution — fine interconnected pores create a consistent bubble size for efficient mass transfer.
  2. Oxidising-media stability — alumina remains stable where sintered metals risk oxidation or ion shedding.
  3. Electrical insulation — safer integration near probes or energized components.

  ✅ ️Problem Solved

  A fermentation line required uniform micro-bubbles and non-metallic contact surfaces. Porous alumina diffusers met the gas flow target at the specified pressure and maintained distribution uniformity after repeated sterilization and chemical exposure, eliminating variability seen with previous metal diffusers.

•  Thermal Process Isolation & Sensor Protection

  ✅ ️Key Advantages

  1. High-temperature integrity — matrix retains structure near furnace zones and cycling profiles used by OEMs.
  2. Selective permeability — allows purge gas flow while shielding sensitive probes from particulates.
  3. Non-conductive body — reduces risk of electrical interference around instrumentation.

  ✅ ️Problem Solved

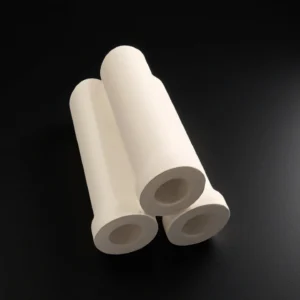

  An industrial furnace builder used one-end-closed porous alumina tubes to protect thermocouples from particulates while allowing purge gases to pass. Temperature readings stabilized, sensor drift decreased, and replacement intervals lengthened across multiple production lots.

Alumina Porous Ceramic Tube Usage Instructions

• Installation

  1. Support the tube evenly along its full length; avoid point loading.
  2. Use seal compression or potting adhesives designed for ceramics.

• Operation

  1. Ramp temperature gradually and avoid sudden quenching.
  2. For diffusion applications, set gas flow/ΔP within the specified permeability band.

• Storage & Maintenance

  1. Store in a dry environment, inside original protective sleeves.
  2. Place tubes on horizontal supports to prevent bowing or deformation.

• Cleaning

  1. Flush with filtered water to remove loose particulates.
  2. For fouling, use recommended alkaline or oxidizing solutions at controlled temperature, followed by thorough rinsing.

• Disposal

  1. Collect used porous alumina tubes separately; avoid mixing with general waste.
  2. Non-hazardous tubes can be disposed of as inert ceramic material according to local regulations.
  3. If tubes were exposed to chemicals or hazardous media, follow your facility’s hazardous waste protocol and provide material safety documentation.

• Common Mistakes & Fixes

  1. Over-tightening clamps → replace with saddle supports to distribute load.
  2. Thermal shock from cold liquid on hot tubes → allow cooling before cleaning.
  3. Chemical incompatibility → confirm solution pH and oxidizer concentration with the supplier.

Porous Alumina Tube FAQ

1. Q: Can I request a quote for the porous alumina tube price?
   A: Yes, you can send us the dimensions, pore size, and expected quantity, and we will provide a detailed price quote. We also include lead time options, cost comparison between standard and customized tubes, and packaging details.
2. Q: Do you offer wholesale supply for porous alumina tubes?
   A: We supply porous alumina tubes in bulk directly from China with reinforced export cartons and wholesale pricing tiers. Wholesalers and distributors can also request customized labeling and bundled shipments for regional distribution.
3. Q: Do you have a porous alumina tube factory?
   A: Yes, ADCERAX is a China-based porous alumina tube factory with in-house equipment for extrusion, sintering, and precision machining. This allows us to meet diverse requirements from research orders to bulk industrial supply.
4. Q: Can you customize porous alumina tubes for special projects?

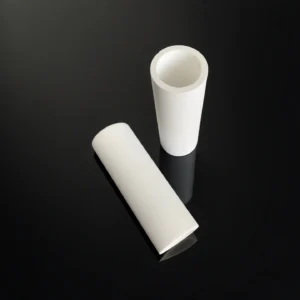

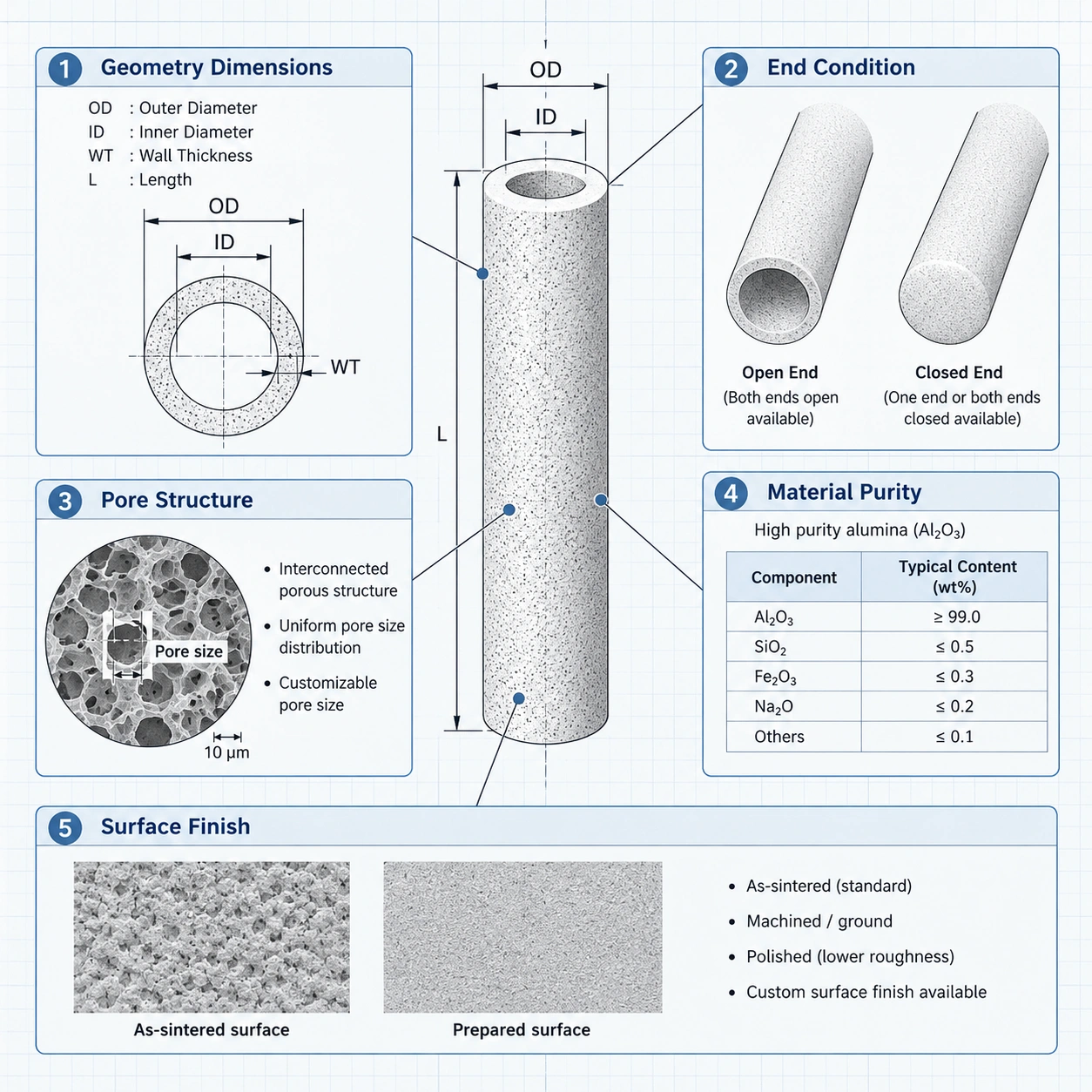

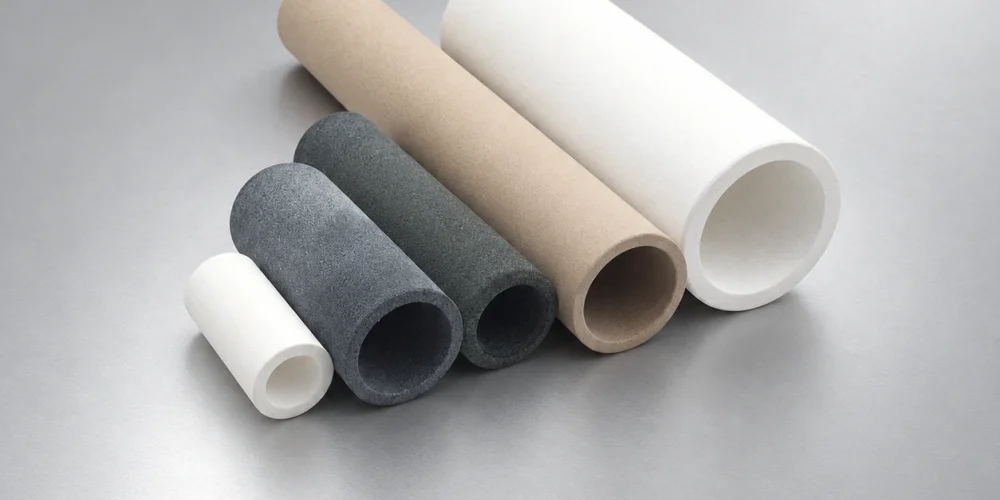

   A: We offer custom specifications for ID/OD, wall thickness, pore size, and end-face design based on customer drawings. Engineers can also request technical consultation and sample runs before scaling to wholesale manufacturing.
5. Q: What pore size is suitable for industrial gas-solid separation?
   A: Pore sizes of 1μm–2μm are typically used for hot gas filtration in exhaust or flue gas systems.
6. Q: What is the typical lifespan of these ceramic alumina porous tubes?
   A: Depending on conditions, tubes last from 3 months to 2 years. In low-sulfur streams, durability can exceed 12 months.
7. Q: Are these porous alumina tubes reusable?
   A: If not chemically degraded or physically broken, they can be air-cleaned and reused several times.
8. Q: Do you supply high quality porous alumina tubes for international markets?
   A: Yes, our high quality porous alumina tubes are exported to the USA, Germany, Japan, and Europe with full inspection. Global customers rely on our factory for consistent performance, stable price, and secure international shipping.
