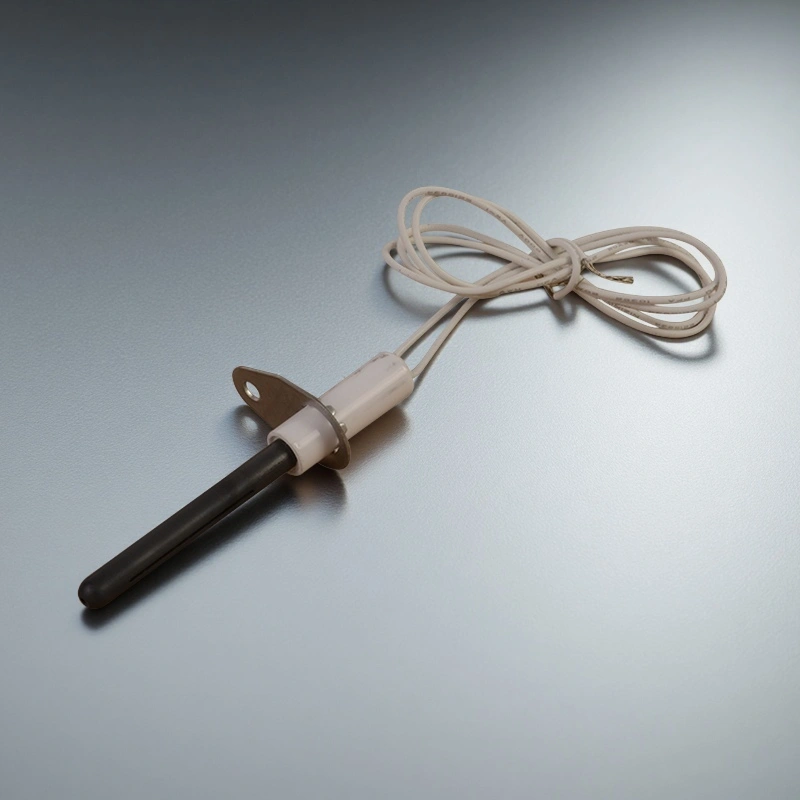

Silicon Nitride Ignitor for Gas Boilers, Biomass Burners and Pellet Stoves

Silicon Nitride Ignitor Applications

• Gas Boilers and Gas Furnaces

  ✅Key Advantages

  1. Controlled ignition time for boiler start-up
  Silicon nitride ignitors are sized to reach ignition temperature within the time window that gas boiler control boards allocate for burner light-off.
  2. Service life aligned with boiler maintenance cycles
  The ceramic design supports long cycle life, which helps many gas boilers keep the same ignitor through several heating seasons before planned replacement.
  3. Compact element for high-efficiency furnaces
  The narrow rod fits between burner plates and heat exchanger surfaces in compact condensing furnaces where space is constrained.

  ✅ Problem Solved

  A boiler OEM had service feedback that a proportion of units needed ignitor replacement within a few years of installation. After testing a silicon nitride ignitor with a higher cycle rating, the brand updated its burner platform to use the ceramic element across several models. Early ignition-related warranty claims dropped, and field technicians reported fewer emergency visits for no-heat calls linked to hot surface ignitors. The new ignitor kept the same voltage and mounting footprint so the company did not need to redesign the entire burner block.

• Biomass Boilers and Pellet Stoves

  ✅Key Advantages

  1. High cycle endurance for frequent pellet starts
  Silicon nitride ignitors are suited to daily start–stop operation in pellet stoves and biomass boilers where ignition can occur many times per week during the heating season.
  2. Fast ignition window for pellets and biomass fuel
  The ceramic hot zone reaches ignition temperature in roughly one to two minutes, which fits common control sequences for pellet feed and combustion airflow.
  3. Stable operation in moving air and dust
  The solid ceramic body supports use in combustion chambers where air and some dust or ash may pass over the ignitor during service life.

  ✅ Problem Solved

  A pellet boiler producer received repeated customer comments about frequent ignitor replacement in certain regions with long winters. The company ran a field trial using silicon nitride ignitors with a higher stated cycle life on the same boiler control boards. Service records over multiple seasons showed fewer failures related to ignition, and distributors reported more stable spare part planning. The OEM then introduced the silicon nitride ignitor as the standard ignition element and promoted the update as part of a long-term reliability improvement.

• Industrial Gas Furnaces and Heat Treatment Ovens

  ✅Key Advantages

  1. Hot surface ignition at industrial burner temperatures
  Silicon nitride ignitors provide a hot surface suitable for firing industrial gas burners used in heat treatment, brazing and process ovens.
  2. Support for uptime targets in continuous production
  Longer ignitor life reduces the number of unplanned stoppages related to ignition in continuous furnace lines.
  3. Adaptable geometry to match burner hardware
  The ceramic element and flange can be adapted to existing burner blocks and furnace casings without major changes to the shell.

  ✅ Problem Solved

  A heat treatment furnace builder serving automotive suppliers needed to reduce unplanned downtime caused by ignition components. The furnaces operated on multi-shift patterns, and even a short interruption could disrupt production schedules. By moving to a silicon nitride ignitor design combined with an agreed preventive replacement interval, the builder reduced ignition-related stoppages and aligned ignitor changes with other maintenance tasks. This supported customer targets for line availability without changing the general burner concept.

Si3N4 Ceramic Ignitor Usage Instructions

• Installation

  1. Confirm that the silicon nitride ignitor rating (voltage and power) matches the boiler, stove or furnace control specification before wiring.
  2. Insert the ignitor so that the hot zone sits in the designed ignition region of the gas or pellet stream, based on OEM drawings.
  3. Fix the flange or bracket without applying bending force to the ceramic rod; handle the part by the cold end or mounting point.
  4. Route lead wires away from direct flame, sharp edges and areas where insulation temperature limits might be exceeded.

• Operation

  1. Set the control sequence to allow the ignitor to reach its ignition temperature before fuel flow starts; use the recommended preheat time as a reference.
  2. Avoid unnecessary rapid cycling where the ignitor is switched on and off in quick succession beyond the intended design.
  3. Monitor a sample of units during commissioning to confirm that flame establishes consistently and within the allotted time window.

• Storage

  1. Store silicon nitride ignitors in their original packaging in a dry, stable indoor environment.
  2. Do not place heavy objects on top of boxes to avoid stress on the ceramic elements.
  3. Keep stored ignitors away from aggressive chemicals, vapors and excessive dust.

• Cleaning and routine care

  1. Allow the burner or stove to cool before touching the ignitor.
  2. If deposits appear on the hot zone, use a soft brush or clean compressed air to remove loose ash or dust; avoid scraping the ceramic with hard tools.
  3. Do not immerse the ignitor in liquids or clean it with strong solvents.

• Common user issues and suggestions

  1. Incorrect voltage selection
  Problem: A mismatched voltage can cause under-heating or overheating of the silicon nitride ignitor.
  Suggestion: Cross-check part number, rating and documentation before replacement and label wires clearly.
  Wrong insertion depth or mounting position

  2. Problem: If the hot zone is too far from the fuel or airflow, ignition may be slow or unstable.
  Suggestion: Follow the original equipment drawing for insertion depth and angle, and verify position during commissioning.
  Excessive cycling beyond the intended profile

  3. Problem: Controls that call for many unnecessary restarts per hour increase thermal stress and reduce ignitor life.
  Suggestion: Adjust control logic or user settings to avoid frequent on–off cycles that do not contribute to useful heat output.

Silicon Nitride Ignitor FAQ

1. Q: What is a silicon nitride ignitor in a heating system?
   A: A silicon nitride ignitor in a heating system is a Si₃N₄ ceramic hot surface element that heats up electrically to ignite gas or pellet fuel instead of using a standing pilot flame.
2. Q: How long can a silicon nitride ignitor last in normal boiler use?
   A: In many boiler and furnace applications, a silicon nitride ignitor is selected so that its ignition cycle life allows several heating seasons of use when the appliance is operated within its designed start–stop profile.
3. Q: What ignition time should I expect from a silicon nitride ignitor in a pellet stove?
   A: For typical pellet stoves and biomass boilers, silicon nitride ignitors are designed so that the hot zone reaches ignition temperature within roughly one to two minutes, depending on power and airflow.
4. Q: Which voltages are common for silicon nitride hot surface ignitors?
   A: Common versions include 24 V for control-level use and mains-related voltages such as 80 V, 120 V and 230 V for gas furnaces, boilers, pellet stoves and grills.
5. Q: Can a silicon nitride ignitor be used to replace a silicon carbide ignitor?
   A: A silicon nitride ignitor can often replace a silicon carbide ignitor when the voltage, power, mounting style, connector and ignition position are matched; many OEMs treat it as an upgrade in new designs.
6. Q: Can silicon nitride ignitors be used in industrial gas furnace burners?
   A: Silicon nitride ignitors are applied in industrial gas furnace burners when their temperature and mounting limits are respected and when the burner environment fits the specification of the ignitor.
7. Q: What information is needed to order a custom silicon nitride ignitor?

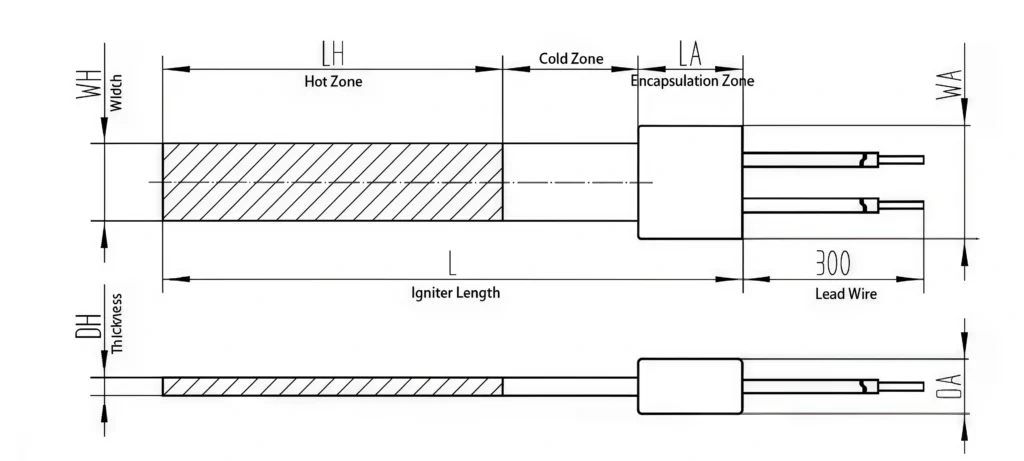

   A: OEMs typically provide rated voltage and power, overall and heated lengths, diameter or cross-section, flange or thread details, insertion depth and lead wire requirements so that the ignitor integrates into the burner.
