What is a zirconia ceramic comb used for?

A zirconia ceramic comb is used to separate, guide or position wafers, sheets or thin parts in automation equipment. In PV production, it is often reviewed for wafer inserters, transfer modules, sorting stations and buffer units where slot stability and smooth ceramic contact are important.

Why choose zirconia instead of metal or polymer combs?

Zirconia is selected when the comb needs higher wear resistance, stronger edge stability and better dimensional retention than many metal or polymer parts. It is especially useful where repeated sliding contact, cleaning exposure or thin-wafer handling may cause wear, burrs or unstable spacing.

What information is needed for a custom zirconia ceramic comb quote?

Please provide the drawing, overall dimensions, slot count, slot pitch, tooth height, mounting holes, surface finish, tolerance points, wafer size and operating condition. Failure photos or samples are helpful for replacement projects.

Can ADCERAX make zirconia ceramic combs from a sample?

Yes. ADCERAX can review samples together with drawings or application photos. For reverse-engineering projects, key dimensions, tooth profile, mounting structure and contact surfaces should be confirmed before production.

Which surface finish is suitable for wafer contact?

The suitable surface finish depends on contact direction, wafer thickness, cleaning method and friction requirement. Polished or finely ground surfaces are commonly reviewed for contact zones, while non-contact areas may use a different finish to control cost and machining feasibility.

How should zirconia ceramic combs be inspected before shipment?

Common inspection points include slot pitch, tooth condition, mounting hole position, overall dimensions, surface finish, visible chips and packaging stability. CMM or key-dimension inspection can be discussed when drawing tolerance requires it.

How are zirconia ceramic combs packed for international shipping?

The combs should be individually separated with foam or protective slots to avoid tooth-tooth contact. For thin or polished parts, additional edge protection and reinforced outer cartons or wooden cases are recommended.

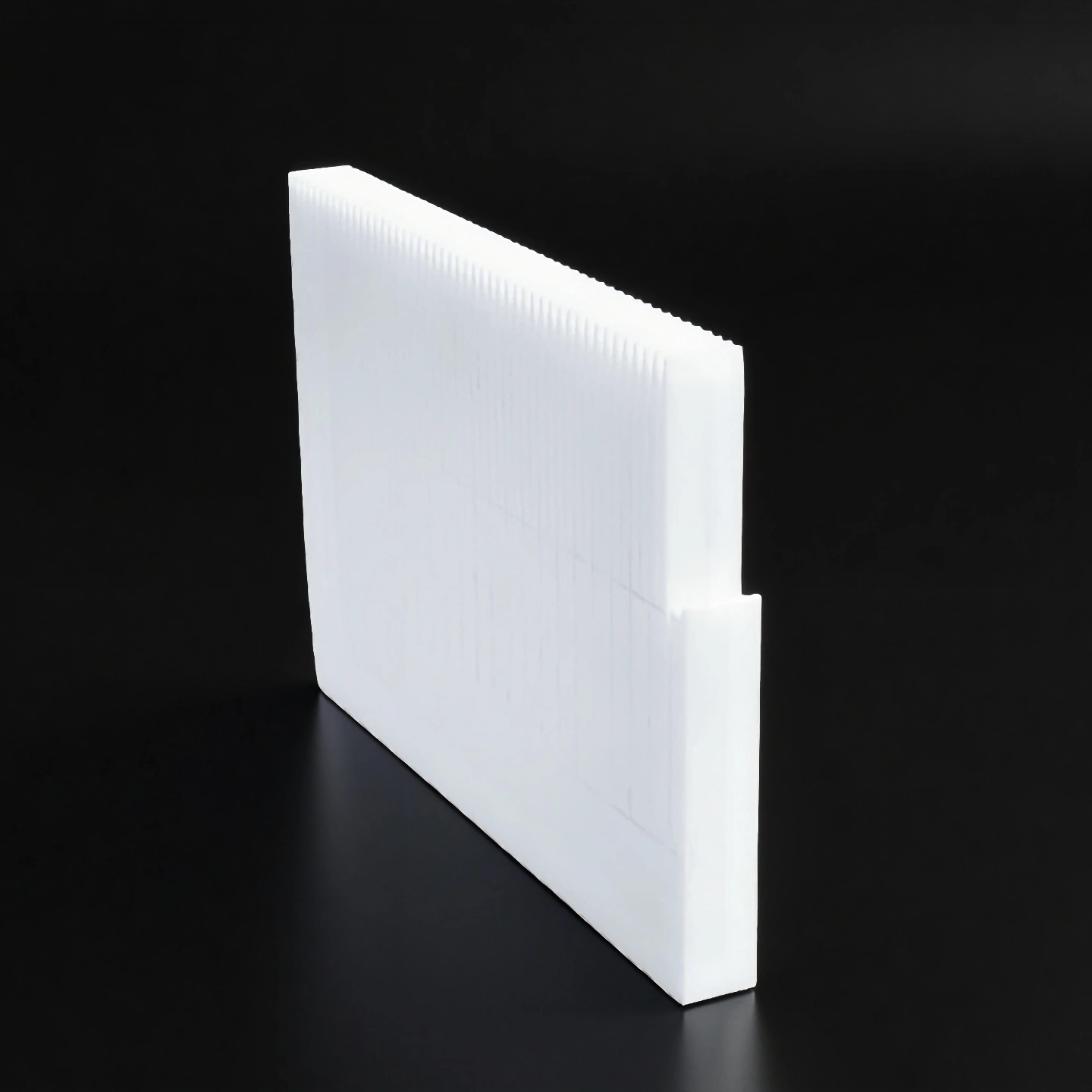

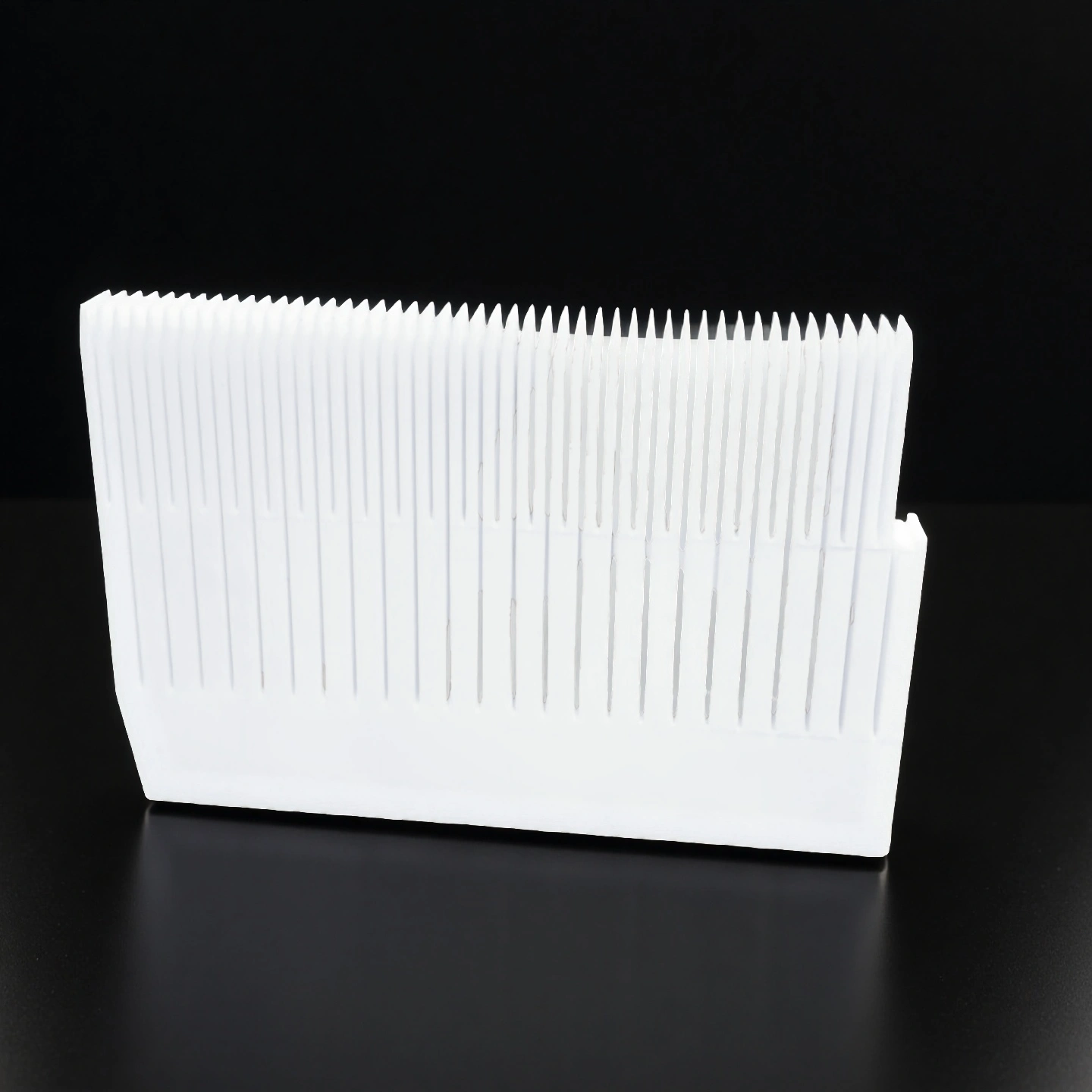

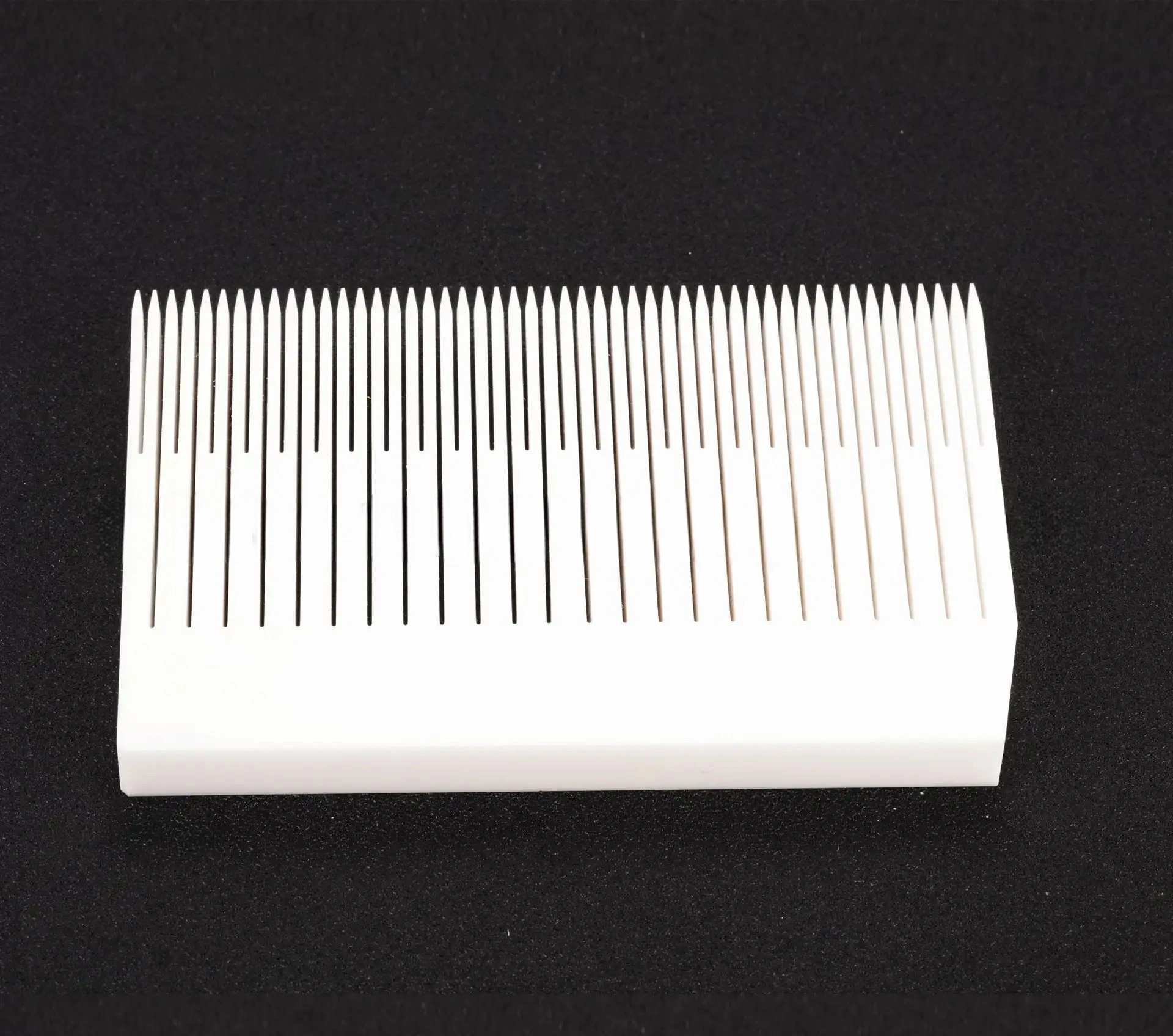

Zirconia Ceramic Comb for PV Wafer Handling

Name: Zirconia Ceramic Comb for PV Wafer Handling
Brand: ADCERAX

Zirconia ceramic combs are used in PV wafer inserters, buffer stations and transfer modules where wafer spacing, contact smoothness and tooth geometry need to remain stable during repeated automation cycles. ADCERAX reviews each drawing according to wafer size, slot pitch, tooth profile, mounting structure, surface finish and inspection requirements before quotation.

Where Zirconia Ceramic Combs Are Used

Zirconia ceramic combs are commonly used in PV automation equipment where wafers need to be separated, guided, transferred or temporarily positioned without unstable friction or frequent part wear. The final design should match the wafer format, equipment interface, contact direction and cleaning environment.

Wafer Inserter and Loading Units

In wafer inserter modules, the ceramic comb helps maintain consistent separation between wafers during loading and unloading. Slot pitch, tooth height and surface finish should be reviewed together because small geometry errors may lead to wafer edge stress, stacking faults or unstable transfer.

Buffer and Sorting Stations

In buffer or sorting stations, zirconia can be selected when the comb must resist repeated sliding contact, cleaning exposure and small alignment impacts. Dense zirconia helps reduce wear on working edges and supports stable geometry during repeated automation cycles.

Solar Cell Transfer and Fixture Positioning

For transfer fixtures or positioning modules, the comb geometry should match the robotic path, wafer thickness and mounting structure. ADCERAX can review drawings or samples to confirm whether zirconia, alumina or another ceramic material is more suitable for the actual contact condition.

Technical Properties of Zirconia Ceramic Comb

The Zirconia Ceramic Comb is built for high-load, high-precision, and chemically stable operation in photovoltaic wafer handling systems, delivering a reliable balance of strength, insulation, thermal resistance, and surface control for long-term industrial use.

Property	Specification	Description
Material Type	Yttria-Stabilized Zirconia (3Y-TZP)	This material provides high toughness, wear resistance and dimensional stability for precision ceramic comb structures.
Density	6.05 g/cm³	High density helps improve mechanical strength and surface integrity during repeated wafer handling cycles.
Flexural Strength	Up to 1200 MPa	Strong bending resistance helps reduce the risk of tooth fracture under controlled mechanical load.
Compressive Strength	Approx. 2000 MPa	High compressive strength supports stable contact in fixture, guide and positioning applications.
Fracture Toughness	6–10 MPa·m¹/²	Better toughness than many technical ceramics helps improve resistance to cracking and edge damage.
Vickers Hardness	1200–1300 HV	High hardness supports wear resistance when the comb contacts wafers or moving equipment parts.
Surface Roughness (Ra)	< 0.2 μm	A fine surface finish can help reduce friction, particle risk and unstable wafer contact.
Thermal Conductivity	2.5 W/m·K	Low thermal conductivity helps limit heat transfer in applications where thermal isolation is useful.
Maximum Operating Temperature	≤ 1000°C continuous use	Suitable for many industrial and automation environments, depending on load, atmosphere and geometry.
Thermal Expansion Coefficient	10.3 × 10⁻⁶ /K	This value helps engineers evaluate dimensional change under temperature variation.
Electrical Resistivity	≥ 10¹² Ω·cm	High resistivity makes zirconia suitable for applications requiring electrical insulation.
Wear Rate	< 1 × 10⁻⁶ mm³/N·m	Low wear behavior helps maintain slot geometry and contact stability over repeated operation.
Microstructure Grain Size	< 0.5 μm	Fine grain structure supports smoother machining, better edge quality and stable finished surfaces.
Cleanroom Suitability	Project-dependent	Cleanroom suitability should be confirmed according to cleaning method, packaging and inspection requirements.
Magnetic Property	Non-magnetic	Non-magnetic behavior is useful in equipment where magnetic interference or metal contamination should be avoided.

Specifications of Zirconia Ceramic Comb

Zirconia Ceramic Comb
Item No.	Diameter（mm)	Height (mm)
AT-YHG-DC1001	Customize

Key Design Factors for Zirconia Ceramic Comb

Slot Pitch

Slot pitch directly affects wafer spacing, alignment stability and transfer consistency. For PV wafer handling equipment, the pitch should be reviewed together with wafer size, wafer thickness, line speed and positioning tolerance to reduce unstable contact during repeated movement.

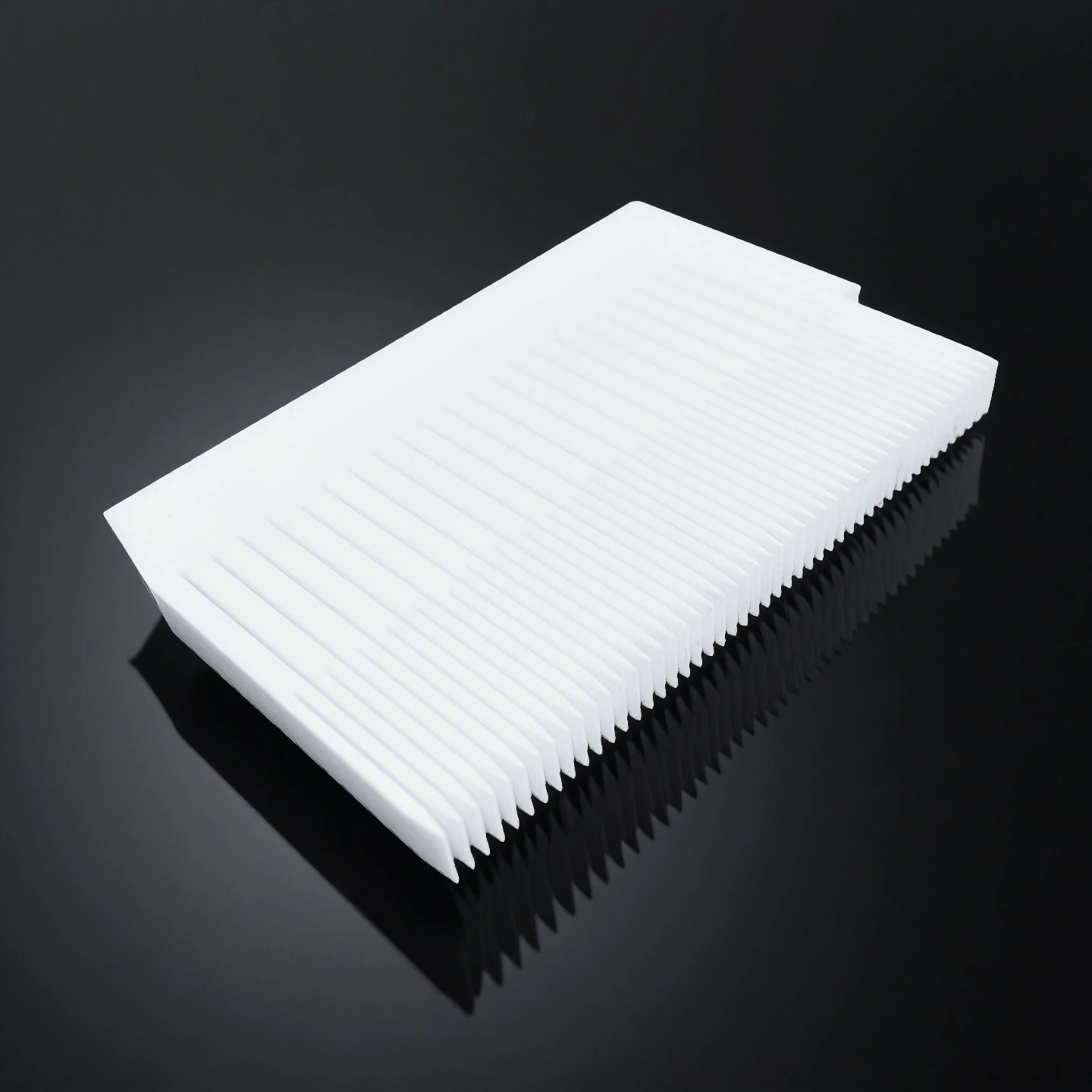

Tooth Geometry

Tooth geometry influences how the ceramic comb contacts the wafer edge or supporting area. Tooth height, tip radius, angle, chamfer and transition shape should be confirmed carefully to reduce local stress, edge interference and handling instability.

Surface Finish

Surface finish affects friction, particle risk and wafer contact behavior. Polished, finely ground or application-specific surfaces can be reviewed according to the wafer contact area, cleaning method and equipment operating condition.

Mounting Structure

The mounting structure determines whether the ceramic comb can fit the existing equipment interface. Hole position, base thickness, slot orientation, datum reference and installation direction should be checked before production.

Material Grade

Material grade affects toughness, wear resistance and machining feasibility. ADCERAX can review 3Y-TZP, YSZ zirconia or other zirconia grades according to the comb geometry, working condition and expected service environment.

Inspection Method

Inspection helps reduce mismatch before shipment. Key points may include slot pitch, tooth condition, mounting hole position, flatness, surface finish and visual condition. CMM, visual inspection or key-dimension reports can be discussed when required.

When to Choose Zirconia Ceramic Comb

Choose zirconia ceramic combs when the application requires stable slot geometry, wear-resistant teeth and smooth ceramic contact during repeated wafer handling cycles. If the part mainly needs low-cost static support, alumina or engineered polymer may also be reviewed. ADCERAX can compare the working condition, drawing geometry and contact requirement before confirming the suitable material.

Packaging of Zirconia Ceramic Comb

Each zirconia ceramic comb is individually separated and protected to prevent tooth impact during transport. Thin teeth, sharp slots and polished surfaces can be packed with foam positioning, edge protection and reinforced outer packaging.

PV Wafer Handling Applications for Zirconia Ceramic Comb

In photovoltaic production, wafer handling parts must support stable spacing, smooth contact and repeatable positioning during loading, buffering, sorting and transfer. Zirconia ceramic combs are selected when metal or polymer guide parts may wear, deform, generate burrs or lose dimensional stability after repeated automation cycles.

Wafer Inserter and Loading Units

Zirconia ceramic combs can be used in wafer inserter and loading modules where wafers need to remain separated and aligned during repeated loading and unloading cycles. The slot pitch, tooth height, tooth tip radius and surface finish should be reviewed together because small geometry errors may increase wafer edge stress or cause unstable transfer.

For replacement projects, ADCERAX can review the existing comb drawing, wafer thickness, contact direction and failure condition to confirm whether the original geometry should be kept or adjusted.

Buffer and Sorting Stations

In buffer and sorting stations, the ceramic comb helps support temporary wafer positioning and controlled spacing between process steps. Zirconia is suitable when the part needs better wear resistance, higher edge stability and cleaner contact than many metal or polymer guide components.

The final design should be confirmed according to wafer size, transfer speed, cleaning method, slot orientation and mounting interface.

Solar Cell Transfer and Positioning Fixtures

For solar cell transfer and positioning fixtures, zirconia ceramic combs can support repeated contact zones where dimensional stability and smooth guiding surfaces are important. The tooth geometry should match the robotic path, wafer movement direction and equipment datum to reduce the risk of interference during handling.

ADCERAX can review mounting holes, base thickness, slot direction, flatness and inspection points according to your drawing or sample.
Module Assembly and Pre-Stringing Support

In module assembly or pre-stringing areas, zirconia ceramic combs may be reviewed for spacing, alignment or temporary support tasks where polymer parts may deform under heat or repeated contact. Material selection should consider working temperature, contact pressure, cleaning exposure and whether the part is used as a guide, separator or positioning element.

Best Practices for Handling and Maintenance of ADCERAX® Zirconia Ceramic Comb

To ensure optimal longevity and performance of the Zirconia Ceramic Comb, ADCERAX® recommends a set of handling, cleaning, storage, and replacement practices tailored to the operational conditions of photovoltaic production lines.

Proper Handling Guidelines During Wafer Operations

1. Avoid direct impact or excessive pressure
Always handle the comb by its mounting base or non-contact surfaces to prevent stress on polished functional areas. Sudden impact or lateral force can result in microcracks or tooth deformation. Never use metal tools for alignment or adjustment.
2. Use with compatible robotic equipment only
Ensure end-effectors or robotic fingers used in insertion systems apply controlled and evenly distributed forces. Devices that grip combs from the sides may introduce unwanted torsion. Verify fixture compatibility before deployment.
3. Perform visual inspection before use
Before loading into equipment, inspect each unit for edge chipping, tooth wear, or visible contamination. This can help prevent wafer scratching or system jamming. Replace any unit that shows structural compromise.
Cleaning and Surface Maintenance Recommendations

1. Use non-abrasive cleaning tools
Wipe surfaces using a cleanroom-grade lint-free cloth and alcohol-based cleaner. Avoid hard brushes or ultrasonic tanks that may erode polished surfaces. Do not apply forceful scrubbing on active contact regions.
2. Clean periodically during batch transitions
Between production shifts or process module changes, perform a light cleaning to remove airborne particles or wafer residue. This ensures consistent Ra surface roughness and prevents cross-contamination. Schedule cleaning every 8–12 hours of operation.
3. Avoid corrosive agents incompatible with Y-TZP
Do not expose the comb to strong acids like HCl or oxidizers that exceed pH 10. Use neutral or mildly alkaline detergents only. Chemical exposure exceeding material limits will shorten product life.
Storage, Transportation, and Handling Precautions

1. Store in a dry and temperature-stable environment
Keep the combs in moisture-free, ventilated areas with temperatures below 35 °C. Prolonged exposure to high humidity may affect packaging foam and allow dust accumulation. Avoid storing near active processing chemicals.
2. Use original ADCERAX® foam-lined crates for transport
Combs must be individually wrapped and fixed in high-density foam slots to prevent movement during shipping. Improper stacking or vibration can lead to micro-damage. Never reuse compromised packaging.
3. Protect from direct sunlight and UV exposure
Extended UV or heat exposure can lead to surface degradation over time. Storage zones should be shielded from skylight or open-window sunlight. UV-induced surface change is not reversible.
Monitoring and Replacement Guidelines for Production Use

1. Track usage cycles and replacement intervals
Each comb should be assigned a usage log based on production cycles. Standard replacement is recommended after 1 million cycles, or earlier if surface defects are detected. Exceeding this threshold may affect yield.
2. Monitor wafer defect rates linked to contact wear
If downstream microcrack or misalignment rates increase, inspect comb teeth and spacing accuracy. Slight rounding or wear may indicate nearing end-of-life. Do not continue operation beyond performance tolerance.
3. Keep a backup inventory based on line count
Maintain at least 5–10% spare stock relative to total installed combs per facility. This reduces emergency lead times and avoids reactive procurement. Plan reorders with anticipated ramp-ups or preventive replacement schedules.

In-Depth Engineering FAQs for ADCERAX® Zirconia Ceramic Comb Applications

Q1: How does Zirconia Ceramic Comb prevent wafer breakage during high-speed insertion cycles?
The comb features high fracture toughness (6–10 MPa·m¹/²) and Ra < 0.2 µm surface roughness, which together reduce contact stress on fragile wafer edges. This minimizes the risk of microcracking during rapid mechanical engagement. In field testing, breakage rates were reduced by over 35%.
Q2: What material properties make Zirconia Ceramic Comb suitable for cleanroom environments?
ADCERAX® uses Y-TZP with non-magnetic, chemically inert, and electrically insulating properties, ensuring compatibility with Class 1000 cleanrooms. Low particulate shedding and resistance to ESD make it ideal for handling steps near inspection or lamination modules.
Q3: How does Zirconia Ceramic Comb maintain accuracy over long-term use?
The component maintains dimensional stability under >1 million insertion cycles, even with thermal fluctuations and chemical exposure. With a flexural strength of up to 1200 MPa, its geometry stays intact under repetitive robotic motion.
Q4: Can Zirconia Ceramic Comb withstand HF or alkaline chemical vapors?
Yes. The material shows excellent resistance to HF mist, IPA, and ammonia-based cleaners, making it suitable for buffering units between wet processes. No surface degradation was observed after 1000 chemical vapor cycles.
Q5: What is the advantage of using Zirconia over alumina or PEEK for comb components?
Zirconia offers 3× higher flexural strength and 2× better fracture resistance than alumina, and vastly superior thermal durability compared to PEEK. This translates into longer service life and better mechanical reliability in wafer automation.
