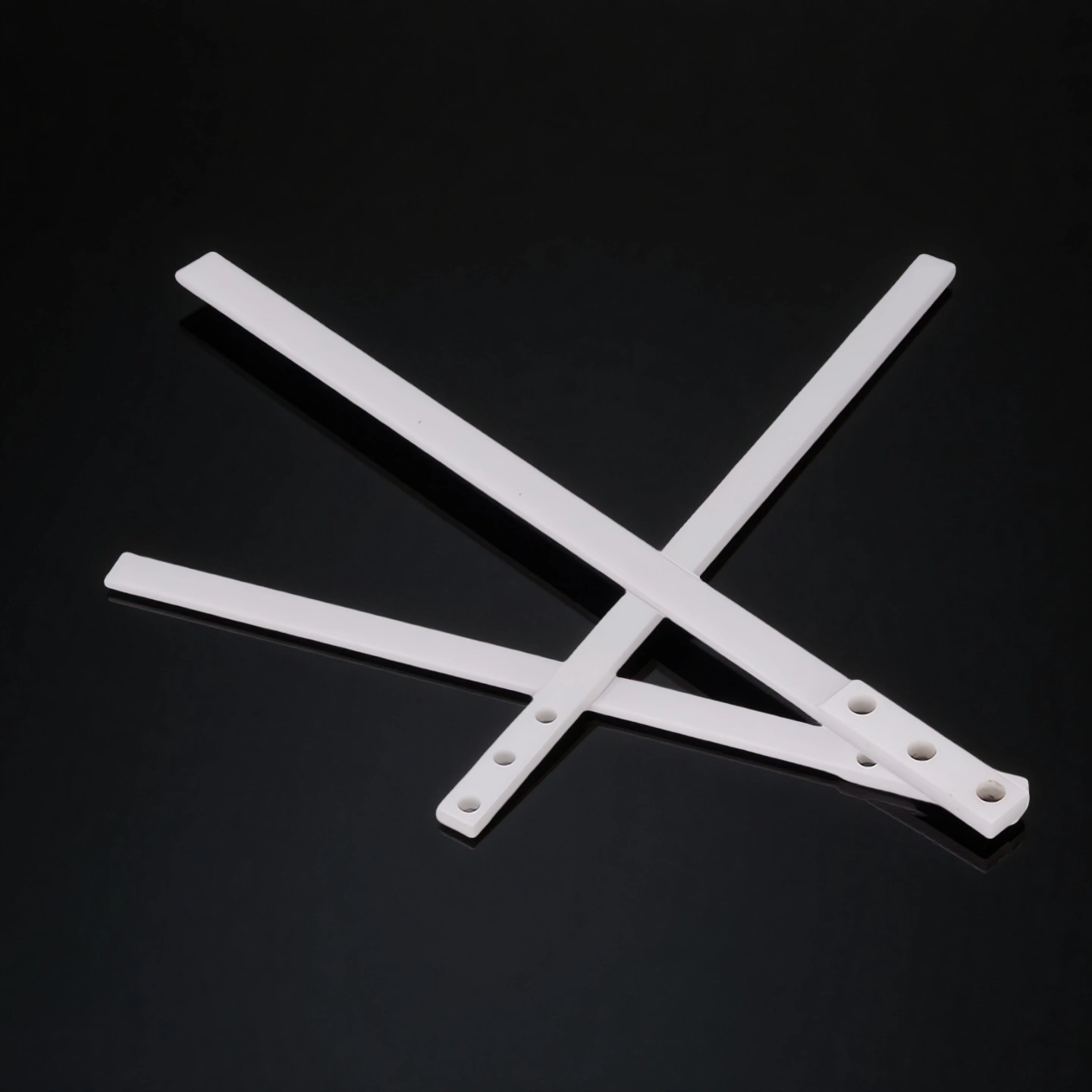

Monolithic Zirconia Ceramic Guide Rail for Precision Equipment

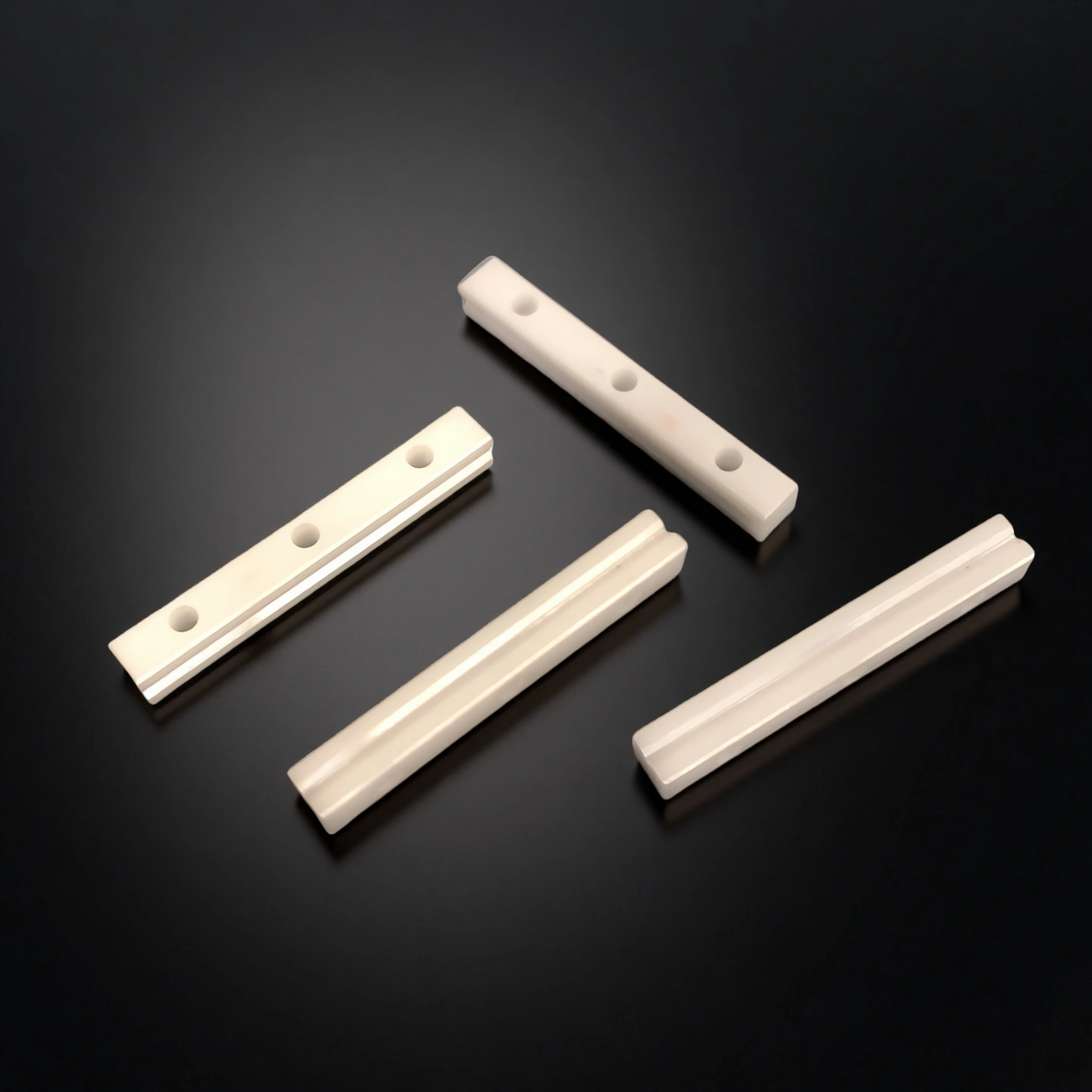

Addressing Precision Engineering Demands with ADCERAX® Zirconia Ceramic Guide Rail

ADCERAX® Zirconia Ceramic Guide Rail is engineered to meet stringent operational needs in high-precision industrial platforms. It supports linear stability and consistent motion under mechanical load, corrosive environments, or high-temperature conditions. Its application solves specific pain points where metal rails suffer dimensional loss, contamination, or rapid wear.

• High-Precision Grinding Equipment for Optical Molds

  ✅Key Advantages

  1. Thermal Stability Under Load
  With a thermal expansion coefficient of 10.5 × 10⁻⁶ /K, the Zirconia Ceramic Guide Rail preserves micron-level alignment during continuous grinding. Even at localized surface temperatures reaching 150 °C, deflection remains below 2 μm across 500 mm travel distance.
  2. Abrasion Resistance in Dry Operation
  A Vickers hardness of ≥ 1300 HV10 and a wear rate under 1 × 10⁻⁶ mm³/N·m maintain surface finish quality during abrasive contact. This enables consistent tool feed precision even after 10⁶ reciprocating cycles without dimensional loss.
  3. Rigidity for Optical Accuracy
  The elastic modulus of 210 GPa ensures negligible bending under tool load. Structural deflection remains less than 0.01 mm per 100 mm span, preserving optical form accuracy in long-duration grinding runs.

  ✅ ️Problem Solved

  A German optical mold manufacturer experienced micro-deformation on hardened steel rails after 6 months of continuous dry grinding, resulting in ±3 μm profile error on lens molds. After retrofitting with ADCERAX® Zirconia Ceramic Guide Rails, positional drift was eliminated for over 12 months of operation. Measurement data from in‑line sensors showed a 67 % improvement in surface form consistency and a 40 % reduction in re‑polishing cycles, confirming dimensional stability throughout extended abrasive contact.

• Hygienic Packaging Lines for Precision Food Dosing Systems

  ✅Key Advantages

  1. Corrosion Resistance in CIP Cycles
  The Zirconia Ceramic Guide Rail maintains mechanical integrity under repeated acidic and alkaline clean‑in‑place solutions (pH 2 – 12). After 500 CIP cycles, surface gloss and friction coefficients remained unchanged, proving full chemical inertness.
  2. Oil‑Free Functional Reliability
  Operating without lubrication, it avoids bacterial buildup and contamination. Coefficient of friction stays below 0.15 under stainless slider contact, ensuring smooth reciprocation through 10⁵ cleaning sequences.
  3. Humidity and Temperature Resilience
  Mechanical strength above 1000 MPa and zero corrosion pitting at 95 % RH allow constant line uptime during humid filling operations. No dimensional variation was detected after 72 h exposure at 60 °C/95 % RH.

  ✅ ️Problem Solved

  A European food packaging plant suffered from stainless steel rail seizure and contamination during weekly CIP washdowns, causing 12 hours of downtime per month. Upon switching to ADCERAX® Zirconia Ceramic Guide Rails, maintenance frequency dropped by 80 %, while equipment availability improved to 99.3 %. The non‑lubricated ceramic surfaces eliminated lubricant leakage and met HACCP hygiene audit criteria without any design modification.

• Linear Positioning in Coordinate Measurement Machines (CMM)

  ✅Key Advantages

  1. Micron‑Level Motion Repeatability
  Surface finish of Ra ≤ 0.2 μm and straightness deviation under 0.01 mm per 100 mm enable friction‑stable scanning paths, critical for sub‑micron resolution CMM sensors.
  2. Non‑Magnetic Dimensional Integrity
  With magnetic permeability = 0, the Zirconia Ceramic Guide Rail eliminates electromagnetic interference affecting laser or capacitive probes, ensuring data consistency in sensitive metrology environments.
  3. Long‑Term Structural Precision
  After 10⁶ operational cycles, no measurable change in flatness or parallelism was recorded. The material’s elastic modulus of 210 GPa and phase stability up to 1000 °C prevent long‑term creep deformation.

  ✅ ️Problem Solved

  A Japanese coordinate measurement system manufacturer reported probe drift of ±1.5 μm due to thermal fluctuation on conventional alloy rails. Integration of ADCERAX® Zirconia Ceramic Guide Rails eliminated magnetic noise and thermal deflection. After six months of continuous lab testing, repeatability improved by 45 %, and recalibration intervals extended from 3 months to 9 months, confirming long‑term geometric stability for precision measurement.

To ensure optimal performance and extended service life, users of Zirconia Ceramic Guide Rail should follow proper handling, installation, and maintenance protocols. This guide outlines essential recommendations to prevent breakage, maintain alignment accuracy, and avoid unnecessary wear during operational cycles or transit.

• Handling and Transport Precautions

  1. Avoid impact loading or vibration during handling and transport. Even though zirconia has high strength, its brittleness under sudden mechanical shock may cause cracks or chipping. Use padded fixtures and shock-absorbing inserts for internal logistics.
  2. Never drop, collide, or clamp the rail improperly. Side forces on unsupported surfaces may induce invisible fractures that compromise alignment later. Use dedicated lifting points or carriers.

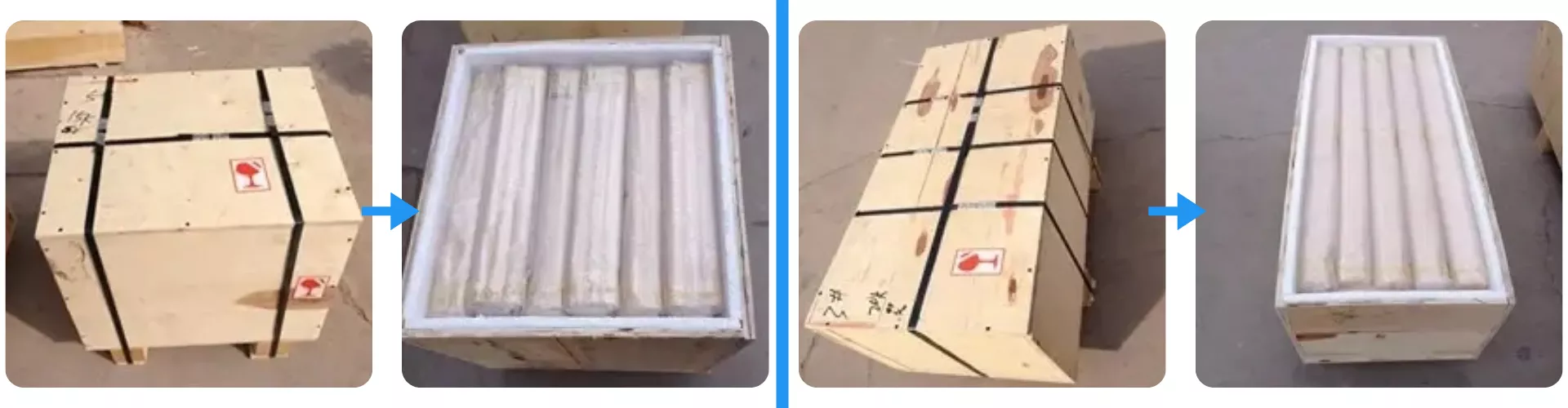

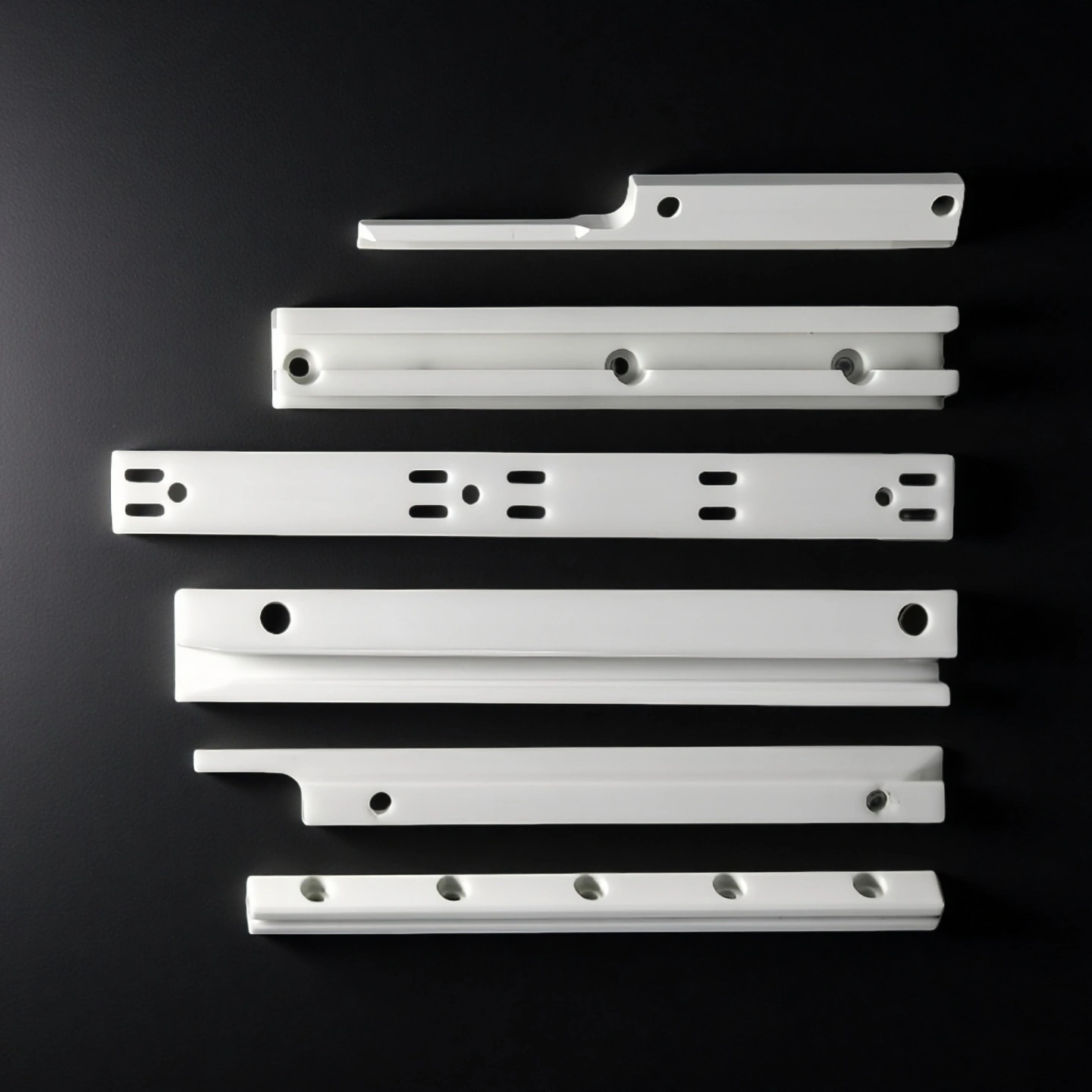

  3. Inspect the packaging for external damage before unpacking. If the wooden crate shows visible signs of impact, conduct a visual check of each rail before use.

• Installation Guidelines

  1. Ensure that mounting surfaces are flat and clean. Debris or misalignment can result in long-term straightness errors and structural tension buildup. Use calibrated fixtures to verify flatness.
  2. Do not over-tighten mounting fasteners. Excessive torque can induce micro-deformation or stress concentrations. Torque values should follow application-specific fastening load charts.
  3. Install with controlled environment procedures when used in cleanroom or contamination-sensitive applications. Wear gloves and avoid skin contact with the rail surface.

• Operational Recommendations

  1. Use within the specified mechanical and thermal load range. Operating beyond compressive or flexural limits may lead to fatigue microcracks, especially under dynamic stress. Respect max use temperature of 1000 °C.
  2. Avoid direct exposure to abrasive particles or aggressive cleaning jets. While chemically inert, localized jet forces or grinding dust may degrade surface smoothness. Install shields or guide rail covers where needed.
  3. Do not apply lubricant unless required by mating component material. Zirconia can operate dry; improper oil use may attract debris and increase wear on contact points.

• Inspection and Maintenance

  1. Perform dimensional inspection every 3–6 months depending on operating load and cycle time. Use precision gauges to verify straightness and surface integrity.
  2. Clean using pH-neutral solutions only. Avoid high-pressure washdowns unless rail is protected or installed in a sealed environment. Use lint-free cloths for manual wipe-downs.
  3. Replace guide rails that show surface cracks or measurable wear beyond system tolerance. Early replacement prevents damage to mating parts and preserves alignment accuracy.

FAQs about Zirconia Ceramic Guide Rail

1. Q1: What makes Zirconia Ceramic Guide Rail suitable for ultra-precision machining environments?
   A: The rail’s high elastic modulus of ~210 GPa ensures minimal deflection even under heavy load. This stability allows micron-level accuracy in CNC and grinding systems. Its tetragonal Y-TZP microstructure maintains dimensional precision during thermal cycling, preventing alignment drift.

2. Q2: How does Zirconia Ceramic Guide Rail perform under high temperature conditions?
   A: The material maintains structural integrity up to 1000 °C continuous operation and short-term exposure to 1200 °C. Unlike steel rails that soften, it preserves stiffness and surface flatness, ensuring reliable motion control in hot environments.
3. Q3: Why is Zirconia Ceramic Guide Rail preferred in cleanroom or vacuum environments?
   A: It is non-magnetic and electrically insulating, eliminating eddy currents or magnetic interference. The rail also generates no particulate contamination, making it ideal for optical, vacuum, and metrology applications requiring zero outgassing or debris.
4. Q4: How does Zirconia Ceramic Guide Rail resist corrosion compared to metal rails?
   A: Its fully dense 99.8 % zirconia composition is chemically inert across acids, alkalis, and organic solvents. The surface remains unchanged in humid or saline environments, which prevents oxidation and extends lifespan in corrosive atmospheres.
5. Q5: What are the wear resistance benefits of using Zirconia Ceramic Guide Rail?
   A: With Vickers hardness above 1300 HV10, the surface resists abrasive and contact wear even under dry friction. This durability allows for up to three times longer service life than hardened steel rails in continuous-duty operations.

• ⭐️⭐️⭐️⭐️⭐️

  “We installed these rails in our lens grinding system for aspheric molds, and the results exceeded expectations. The dimensional stability under thermal cycling was critical to maintaining 0.2 μm surface tolerance. After 9 months, there’s no visible wear despite continuous dry-run operation.”
  — Thomas R., Senior Process Engineer, OptiForm Technologies GmbH

• ⭐️⭐️⭐️⭐️⭐️
  “Our food dosing lines struggled with guide rail corrosion and jamming before switching to this ceramic version. The completely lubricant-free operation combined with resistance to acidic washdowns made compliance effortless. Downtime has dropped by over 40%.”
  — Lisa K., Operations Manager, NordicPack Systems AB
• ⭐️⭐️⭐️⭐️⭐️
  “In our coordinate metrology lab, we needed rails with no magnetic interference and zero thermal drift. These units delivered both. The non-magnetic inert structure eliminated probe noise, and calibration intervals were extended by 3×.”
  — Daniel H., CMM Lab Director, Mechatrol Instruments USA
• ⭐️⭐️⭐️⭐️⭐️
  “Zirconia rails were introduced to replace titanium guides in our micro-positioning tables. The exceptional wear resistance and stiffness helped eliminate the gradual drift we’d been fighting for years. Repeatability on linear motion is now within ±0.3 μm.”
  — Emily S., R&D Equipment Engineer, Precitech Motion Japan
