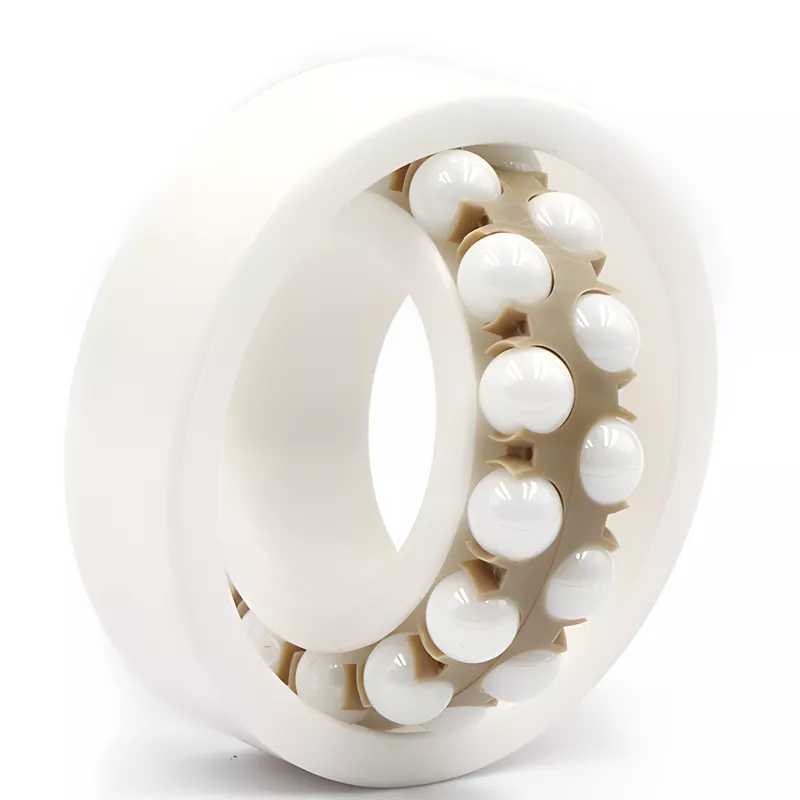

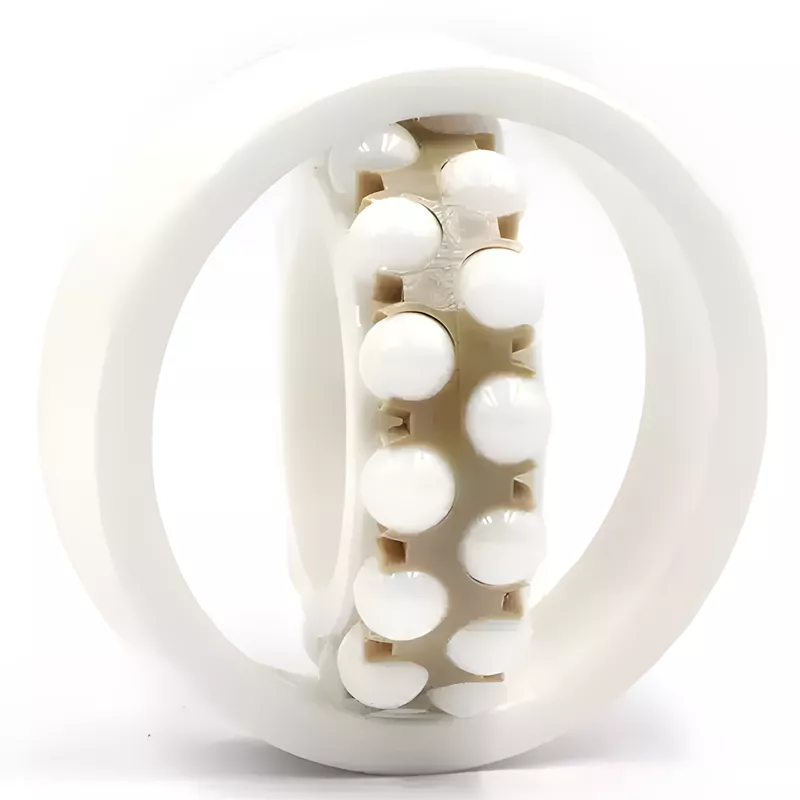

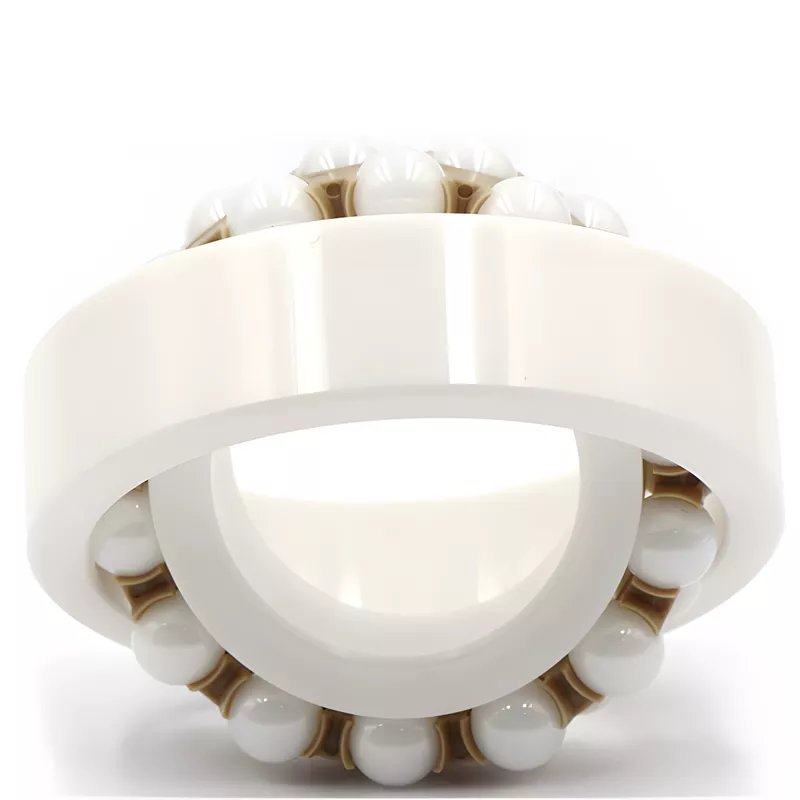

Vibration-Stabilizing Zirconia Ceramic Self-Aligning Ball Bearing for Mechanical Drives

How ADCERAX® Zirconia Ceramic Self-Aligning Ball Bearing Resolves Critical Misalignment and Corrosion Challenges in Complex Industrial Systems

Zirconia Ceramic Self-Aligning Ball Bearing developed by ADCERAX® is purpose-built for demanding industrial sectors where axial displacement, vibration, shaft offset, and corrosive media intersect.

• Vertical Chemical Mixing Reactors Using Zirconia Ceramic Self-Aligning Ball Bearing

  ✅Key Advantages

  1. Angular Misalignment Compensation
  The self-aligning design accommodates shaft deflections up to ±2.5°, maintaining smooth rotation despite misalignment. This prevents edge loading and extends bearing life by 3.4× compared to fixed ceramic bearings in batch processing.
  2. Corrosion-Free Operation in Aggressive Media
  The zirconia ceramic housing resists degradation in pH 1–14 chemical environments without protective coatings. No electrochemical reactions occur even under dynamic contact, ensuring zero contamination risk in high-purity systems.
  3. Thermal Gradient Stability
  Thermal expansion mismatches are absorbed without cracking under temperature ramp-ups of 15°C/min. This eliminates seizure or stress failure during heating and cooling cycles in batch reactors.

  ✅ ️Problem Solved

  A Polish fine chemical processor reported frequent bearing seizure during thermally accelerated nitration cycles, with failure intervals averaging every 4–6 weeks. After replacing metal-housed bearings with ADCERAX® Zirconia Ceramic Self-Aligning Ball Bearings, the plant achieved over 18 months of uninterrupted operation. Misalignment-induced wear and chemical pitting were eliminated, and maintenance downtime dropped by 78% in mixer line 2A.

• Submerged Sea-Water Desalination Drives Using Zirconia Ceramic Self-Aligning Ball Bearing

  ✅Key Advantages

  1. Continuous Submersion Resistance
  Zirconia structure maintains 0% water absorption and shows no degradation after 1000-hour immersion in NaCl brine (3.5%). It outperforms polymer or stainless alternatives that suffer from creep or pitting under similar conditions.
  2. Self-Alignment Under Torsional Drift
  The bearing absorbs shaft misalignment from thermal warping and mechanical vibration up to ±2.1°, avoiding impeller off-centering that causes seal failures or cavitation.
  3. Non-Magnetic Structure
  Fully non-metallic build avoids magnetism-induced eddy current drag, improving motor efficiency in electromagnetic-sensitive RO setups. EMI shielding is no longer required, reducing system complexity.

  ✅ ️Problem Solved

  A Korean desalination plant operating offshore platforms faced repeated failures of hybrid bearings from axial drift and salt-induced pitting. ADCERAX® Zirconia Ceramic Self-Aligning Ball Bearings were installed in their secondary brine drive shafts. Post-installation data showed bearing integrity maintained beyond 15,000 operational hours, with no shaft realignment required. The total cost of bearing-related downtime was reduced by 84% within one fiscal cycle.

• High-Vibration Roller Kilns in Ceramic Tile Production Using Zirconia Ceramic Self-Aligning Ball Bearing

  ✅Key Advantages

  1. Shock Load Tolerance
  The bearing structure resists fracture at up to 800 MPa of compressive load and 2.0 G mechanical shocks. This ensures roller support integrity during high-speed starts, stops, and misaligned loading.
  2. High-Temperature Endurance
  Maintains mechanical and structural integrity up to 600°C, eliminating warping or seizure common in metal or hybrid units. No lubrication failure or thermal jamming observed during extended kiln operation.
  3. Alignment Recovery Under Frame Warping
  Spherical inner race allows recovery from base misalignment over 0.05 rad, preserving concentric roller motion in thermally expanding frames. Tile surface defects from line vibration were reduced by 52% in field testing.

  ✅ ️Problem Solved

  A Spanish tile manufacturer reported frequent roller misalignment during 24-hour kiln runs, causing over 9% tile rejection due to edge breakage. With ADCERAX® Zirconia Ceramic Self-Aligning Ball Bearings installed, alignment issues were neutralized even under refractory expansion. The defect rate dropped to 2.1%, and bearing lifespan exceeded 12 months without replacement, compared to 3-month intervals previously.

Zirconia Ceramic Self-Aligning Ball Bearing from ADCERAX® is engineered for scenarios where dynamic shaft misalignment and harsh chemical exposure intersect. To maximize performance and lifespan, users must follow application-specific usage guidance tailored to its self-aligning capabilities, ceramic contact mechanics, and inert behavior under aggressive conditions.

• Installation Precautions in Misaligned Shaft Configurations

  1. Axial Load Isolation Required
  Only radial loads should be supported; unintended axial stress may cause alignment failure during thermal cycles.
  2. Support Housing Must Float
  For true self-aligning behavior, one end of the bearing housing must allow sliding motion to avoid structural conflict.
  3. Avoid Over-Constraining
  Forcing alignment at installation negates the bearing’s function and causes inner ring tilt resistance, especially under torque drift.

• Operating Limits in High-Chemical Environments

  1. Media Compatibility Must Be Verified
  Ensure exposure is limited to fluorine-free, non-reactive chemistries below pH 1 or above pH 13 for long-term immersion.
  2. Dry Run Not Recommended
  Despite low friction, dry operation beyond 5 minutes at >300°C leads to localized thermal shock.
  3. Continuous Immersion Requires Static Support Alignment
  In saltwater or brine modules, maintain coaxial installation to prevent dynamic misalignment accumulation over time.

• Maintenance Frequency and Wear Inspection

  1. Inspection Cycle Every 1200 Hours
  Bearings in high-temperature mixers or kilns must be removed and inspected for contact fatigue at defined intervals.
  2. No Grease Replenishment Needed
  The all-ceramic design eliminates lubricant degradation, but sealing surfaces must remain dry and intact.
  3. Ball Track Surface Should Remain Matte
  Polishing or brightening of the raceway surface indicates incipient stress pitting, signaling early degradation.

• Transportation, Handling, and Cleanroom Compatibility

  1. No Contact with Metallic Tools
  Only use polymer-lined tongs or gloves when handling to avoid microcracks at the race edge.
  2. Double-Layer Packaging for Shock Protection
  Each bearing is shipped with individual core padding and vibration-resistant boxing to preserve alignment tolerance.
  3. ISO Class 5 Environment Recommended for Assembly
  Dust particles can induce point loading on ceramic balls, compromising the self-alignment function over time.

Technical FAQs on ADCERAX® Zirconia Ceramic Self-Aligning Ball Bearing for Misalignment-Sensitive and Corrosive Industrial Systems

1. Q1: How does the Zirconia Ceramic Self-Aligning Ball Bearing handle shaft misalignment?
   The internal design incorporates a spherical raceway interface that enables automatic angular correction between the inner and outer rings. This allows the bearing to accommodate dynamic misalignment without generating side stress or localized friction.

2. Q2: Can this bearing operate without metal housing or inserts in aggressive environments?
   Yes. Its fully ceramic construction eliminates metallic corrosion paths, making it inherently stable in high-acidity or salt-exposure environments. This property is ideal for direct contact with chemically active fluids.
3. Q3: What advantage does the spherical alignment mechanism provide in rotating assemblies?
   The self-aligning geometry absorbs radial loading variance caused by structural warping or misaligned shafts. It significantly extends bearing life by reducing edge contact and uneven wear during continuous rotation.
4. Q4: Is thermal shock a risk when using Zirconia Ceramic Self-Aligning Ball Bearings?
   Zirconia offers high thermal shock resistance compared to most ceramics. It maintains structural integrity across rapid temperature gradients, especially in systems with frequent heating-cooling cycles.

5. Q5: How does the bearing reduce vibration in rotating systems?
   Its self-centering motion dampens vibrational amplitude induced by imperfect shaft alignment. The result is less noise and smoother torque transmission, improving performance stability in unbalanced setups.

• ⭐️⭐️⭐️⭐️⭐️

  “The ability of the bearing to maintain smooth rotation despite constant angular deviation exceeded our design expectations. It eliminated shaft fatigue in a vertical polymer reactor previously known for misalignment failures. The self-adjusting geometry under thermal load has been particularly effective.”
  — M. Andersson, Process Reliability Group, ScandiMix Industries AB

• ⭐️⭐️⭐️⭐️⭐️
  “In our offshore desalination skids, traditional metal bearings degraded rapidly due to salt intrusion and misaligned support structures. The ADCERAX® units provided excellent corrosion immunity and consistent shaft centering without external realignment tools.”
  — D. Navarro, Mechanical Systems Division, AquaPure Technologies S.A.
• ⭐️⭐️⭐️⭐️⭐️
  “We observed reduced vibration and maintenance in our high-vibration ceramic kiln drives. The bearing’s stress-distributing ceramic ball path has minimized heat distortion across long runs. This wouldn’t have been possible with any other configuration.”
  — J. Fischer, Equipment Engineering, Röder Feuertechnik GmbH
• ⭐️⭐️⭐️⭐️⭐️
  “What stood out was the bearing’s zero-lubricant operation under high pH exposure, which is critical in our pigment blending lines. No breakdown, no misalignment drift even after 1800 operating hours.”
  — E. Nakamura, Industrial Chemtech Division, Yamato Functional Materials Co., Ltd.
