Consistent-Milling Zirconium Silicate Beads for Industrial Slurry

Solving Application Challenges with ADCERAX® Zirconium Silicate Beads

Zirconium Silicate Beads are widely applied in sectors where medium density, low wear rate, and high sphericity are essential. By addressing industry-specific challenges, they ensure reliable milling, stable dispersions, and extended media lifespan.

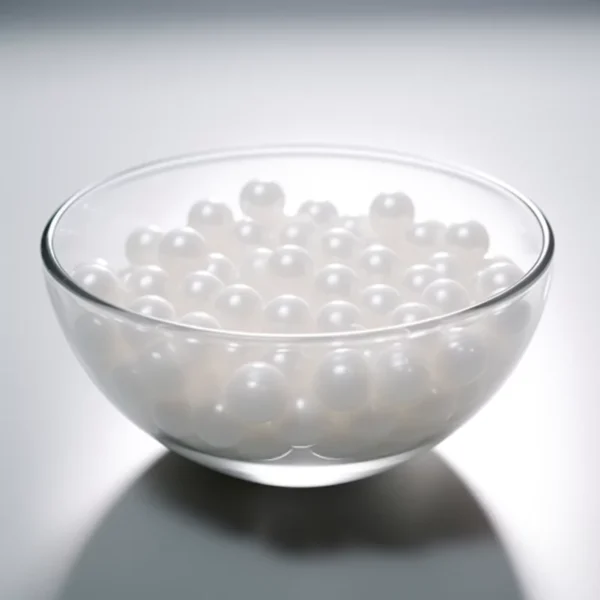

• Water-Based Architectural Coatings

  ✅Key Advantages

  1. Low-wear, clean dispersion — Wear rate <0.05 kg/T cuts bead-derived debris vs common ceramic media by about half. Stable color and gloss are maintained over long runs.
  2. High-sphericity flow — Sphericity ≥96% keeps slurry circulation uniform in large tanks. It supports consistent film build at production line speeds.
  3. Balanced milling energy — Density ≈4.0 g/cm³ delivers effective grinding without torque spikes. Bulk density >2.5 kg/L enables efficient charge loading.

  ✅ ️Problem Solved

  A high-volume paint line struggled with shade drift and frequent tank cleanups triggered by media wear. After switching to ADCERAX® Zirconium Silicate Beads (wear rate <0.05 kg/T, sphericity ≥96%), media-origin contamination events dropped in proportion to the ~2× lower wear. Coating batches held target color across extended runs while power stayed within spec thanks to the ≈4.0 g/cm³ density. The result was steadier output and fewer unplanned stoppages during color changeovers.

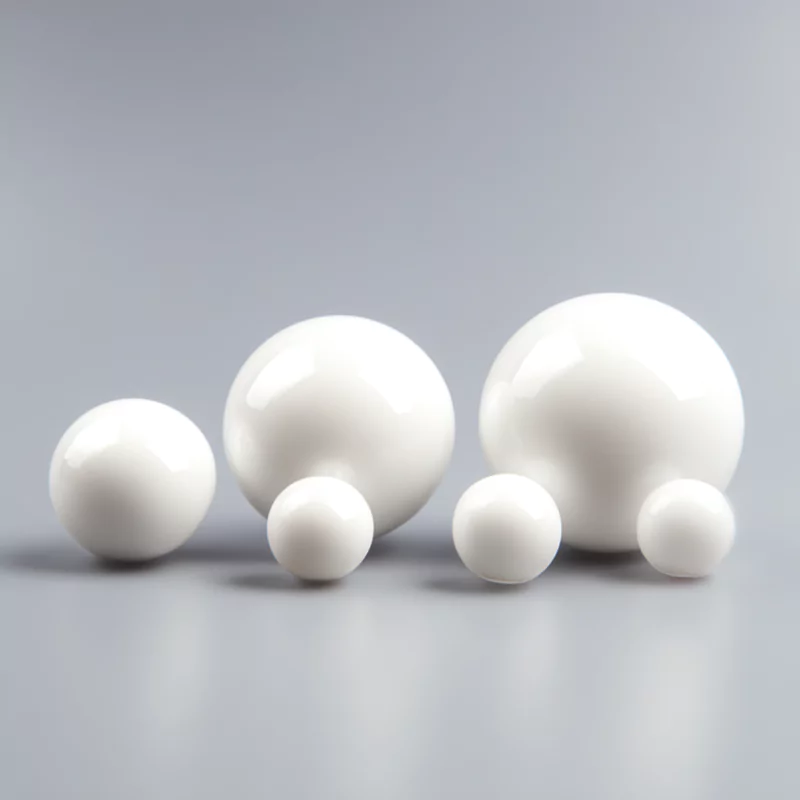

• High-Opacity Titanium Dioxide Pigments

  ✅Key Advantages

  1. Fracture-safe operation — Crush strength >1000 N (2 mm) prevents bead breakage under high TiO₂ loading. Milling stability improves in continuous duty.
  2. Hard surface for narrow PSD — Hardness >900 HV resists micro-chipping that broadens particle tails. Supports tight opacity targets at standard disk-mill energy.
  3. Geometry-driven uniformity — Sphericity ≥96% promotes even stress transfer to pigment agglomerates. Helps maintain narrow distribution windows batch to batch.

  ✅ ️Problem Solved

  A pigment mill saw wide PSD spread and variable hiding power when irregular media chipped during long cycles. With ADCERAX® Zirconium Silicate Beads (hardness >900 HV, crush >1000 N, sphericity ≥96%), bead integrity held and stress input stayed consistent. TiO₂ agglomerates broke predictably, keeping distribution tight without raising power or residence time. Opacity targets were reached with stable throughput.

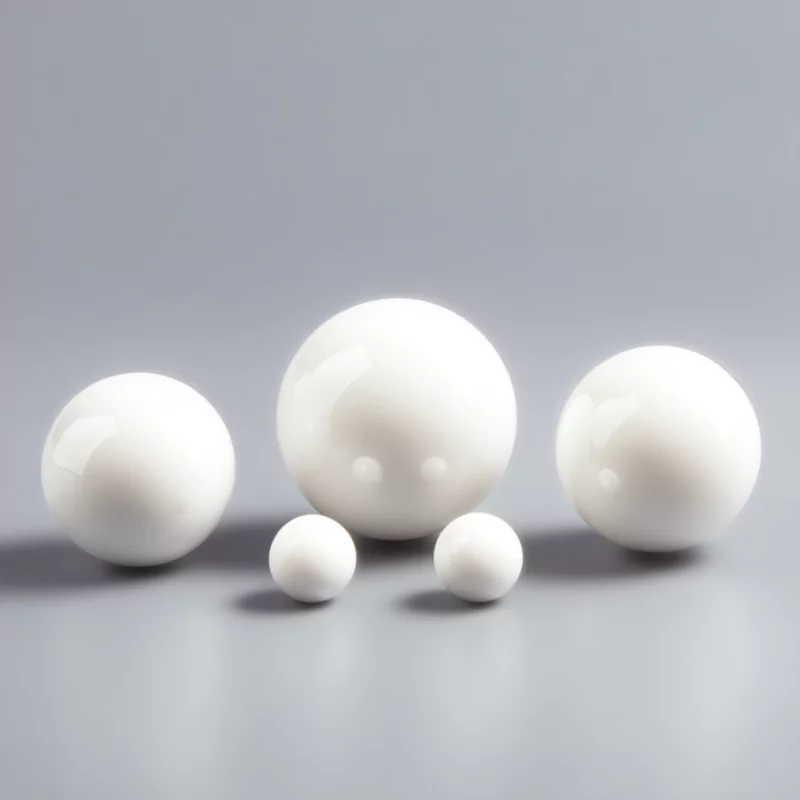

• Pesticide Suspension Concentrates

  ✅Key Advantages

  1. Corrosion-resistant media — Chemically stable in acidic, alkaline, and saline systems; bead structure remains intact through aggressive SC recipes.
  2. Efficient packing and circulation — Bulk density >2.5 kg/L supports optimal bed loading. Uniform motion improves deagglomeration of actives and carriers.
  3. Low-wear reliability — Wear rate <0.05 kg/T limits foreign solids that destabilize SCs. Runs remain consistent over extended cycles.

  ✅ ️Problem Solved

  Formulators reported premature media breakdown and filter blockages in salt-rich SCs. Replacing legacy media with ADCERAX® Zirconium Silicate Beads (chemical-resistant matrix, wear <0.05 kg/T, bulk >2.5 kg/L) removed bead-origin fines from the system and stabilized dispersion quality. Mills held target viscosity without frequent screen changes, and corrosive batches no longer degraded the media during long campaigns.

User Guide for Zirconium Silicate Beads

Proper use of Zirconium Silicate Beads ensures stable milling efficiency, reduced wear, and longer service life. This section provides practical instructions on bead loading, operating conditions, cleaning routines, and replenishment practices to help customers achieve consistent results in coatings, pigments, agrochemicals, and other slurry applications.

• Bead Loading Recommendations

  1. Calculate optimal filling volume based on slurry viscosity and mill size. Overloading can increase wear, while underloading reduces grinding efficiency. Follow equipment guidelines for balanced results.
  2. Match bead size distribution with target particle size. Smaller beads improve fine dispersion, while larger beads accelerate coarse milling. A mixed charge often balances energy transfer.
  3. Ensure even distribution during loading. Uneven charging may cause vibration, reduce throughput, and increase stress on the mill components.

• Operating Conditions and Speed

  1. Maintain recommended rotor speed to avoid excessive bead collisions. Over-speeding raises wear rates, while under-speeding lowers dispersion quality. Balance is essential.
  2. Control slurry temperature during milling. Excessive heat accelerates bead surface damage and may destabilize sensitive formulations. Use cooling systems where required.
  3. Avoid dry running the mill. Proper slurry volume ensures bead cushioning, prevents fracture, and supports smooth particle size reduction.

• Cleaning and Maintenance Practices

  1. Perform regular cleaning cycles with water or compatible solvents. This prevents residue buildup that can contaminate future batches. Use filtered solutions for best results.
  2. Inspect beads periodically for cracks, chipping, or discoloration. Damaged beads increase contamination risk and reduce efficiency. Replace when abnormalities are detected.
  3. Use screening methods to separate broken beads from intact ones. Routine inspection extends service life and keeps slurry free from unwanted debris.

• Replenishment and Storage Guidelines

  1. Replenish bead volume regularly to maintain grinding efficiency. Long-term use naturally reduces total charge weight, affecting performance stability.
  2. Screen before replenishment to remove fractured particles. Adding fresh beads without screening increases the risk of contamination and uneven wear.
  3. Store Zirconium Silicate Beads in dry, sealed containers such as barrels or bags. Proper storage prevents moisture absorption and preserves material integrity.

FAQs about Zirconium Silicate Beads

1. Q: How do Zirconium Silicate Beads reduce contamination in coatings and inks?
   A: Zirconium Silicate Beads have a pore-free and cavity-free structure, which prevents trapped residues from leaching into slurries. Their smooth surface reduces contamination during long milling runs. This ensures cleaner coatings and inks with consistent color shades.
2. Q: What is the wear resistance advantage of Zirconium Silicate Beads compared with conventional beads?
   A: Zirconium Silicate Beads show a wear rate of <0.05 kg/T, nearly half that of standard ceramic beads. This lower wear reduces bead consumption and maintenance intervals. As a result, operating costs are minimized over time.
3. Q: Can Zirconium Silicate Beads handle acidic or saline agrochemical formulations?
   A: Yes, Zirconium Silicate Beads are chemically stable against acids, alkalis, and salts. This makes them suitable for pesticide suspension concentrates and fertilizer slurries. Their resistance ensures consistent milling without bead degradation.
4. Q: Why are Zirconium Silicate Beads suitable for titanium dioxide pigment milling?
   A: The high hardness (>900 HV) of Zirconium Silicate Beads prevents micro-chipping during TiO₂ dispersion. This keeps particle distribution narrow and opacity levels stable. Manufacturers achieve uniform brightness across batches with reduced waste.
5. Q: How do Zirconium Silicate Beads improve slurry flow in industrial mills?
   A: With sphericity of ≥96%, Zirconium Silicate Beads allow smooth circulation inside bead mills. This uniform motion prevents hotspots and ensures even energy transfer. The result is more efficient grinding with predictable outcomes.
