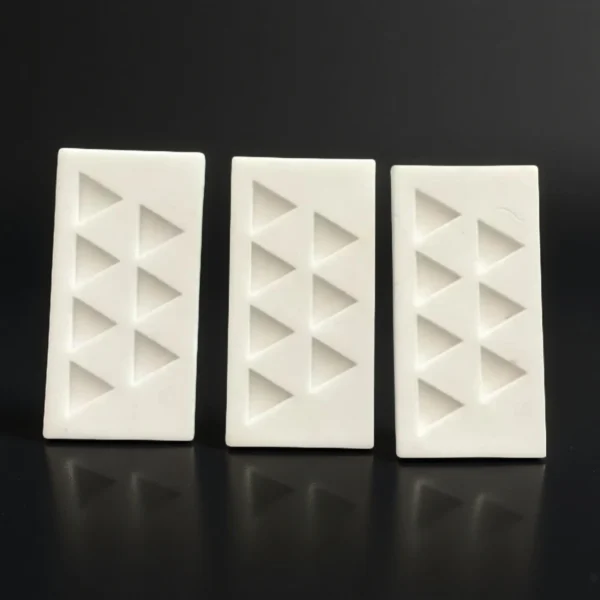

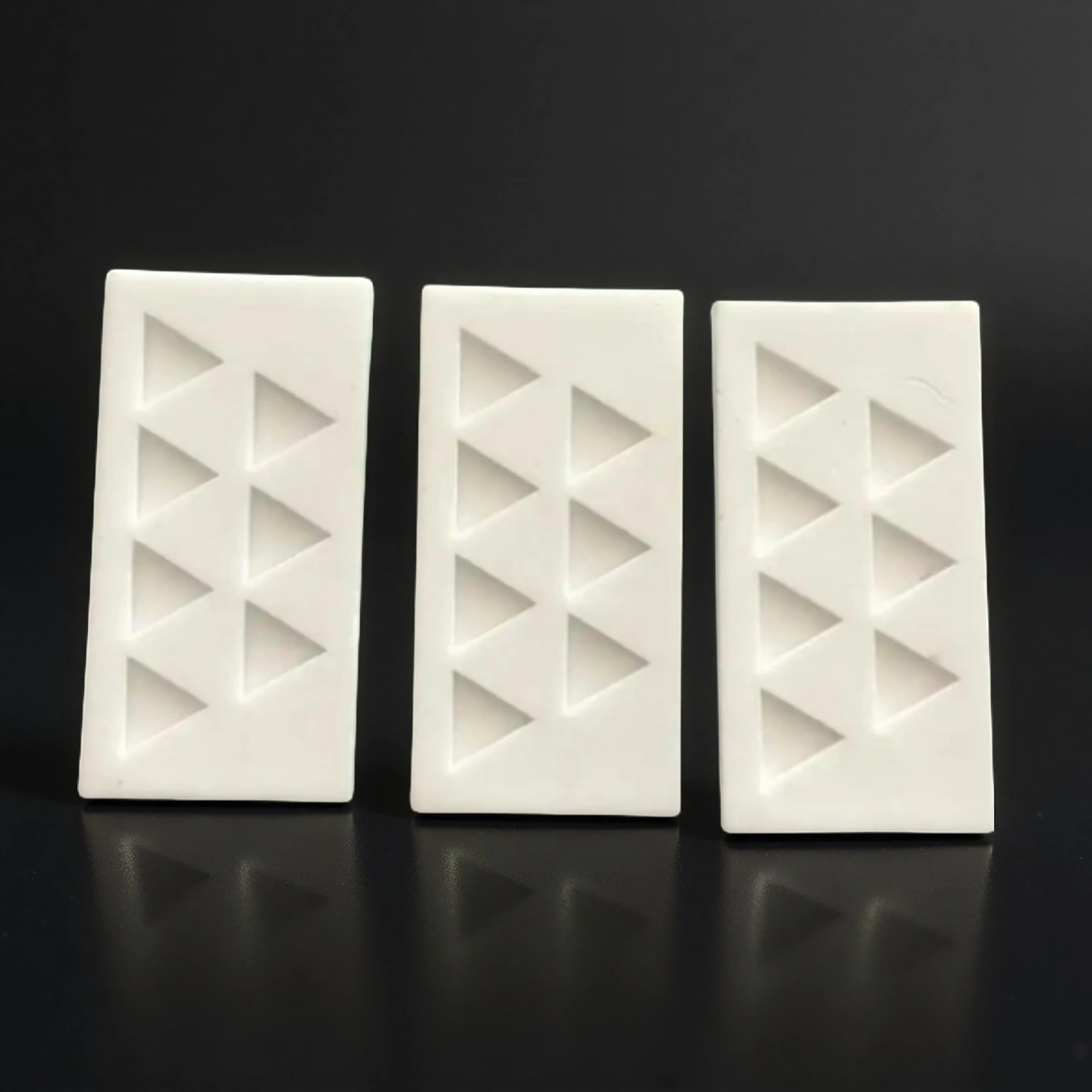

Alumina Ceramic Ash Boats for Coal Analysis

Alumina Ceramic Ash Boats Applications

• Laboratory Ashing & Analysis

  ✅ Key Advantages

  1. Maintains accuracy through repeated ash cycles at 800–1200 °C
  2. Prevents contamination in gravimetric and thermal analysis
  3. Ensures uniform heating for consistent data

  ✅ Problem Solved

  A testing facility running over 200 ash analyses per week reduced retests by 80% after switching from porcelain to Alumina Ceramic Ash Boats, thanks to the improved thermal stability and dimensional consistency.

• Metallurgical & Alloy Processing

  ✅ Key Advantages
  1. Handles molten metals and alloys above 1600 °C
  2. Supports large sample volumes for batch smelting
  3. Reduces oxidation and material loss during melting

  ✅ Problem Solved

  A metal powder manufacturer decreased sample loss by 15% after adopting Alumina Ceramic Ash Boats, ensuring smoother furnace operation and reduced downtime in production lines.

• Advanced Ceramics & Glass R&D

  ✅ Key Advantages

  1. Stable carriers for high-temperature firing of ceramic and glass samples
  2. Reinforced walls prevent cracking in rapid heating cycles

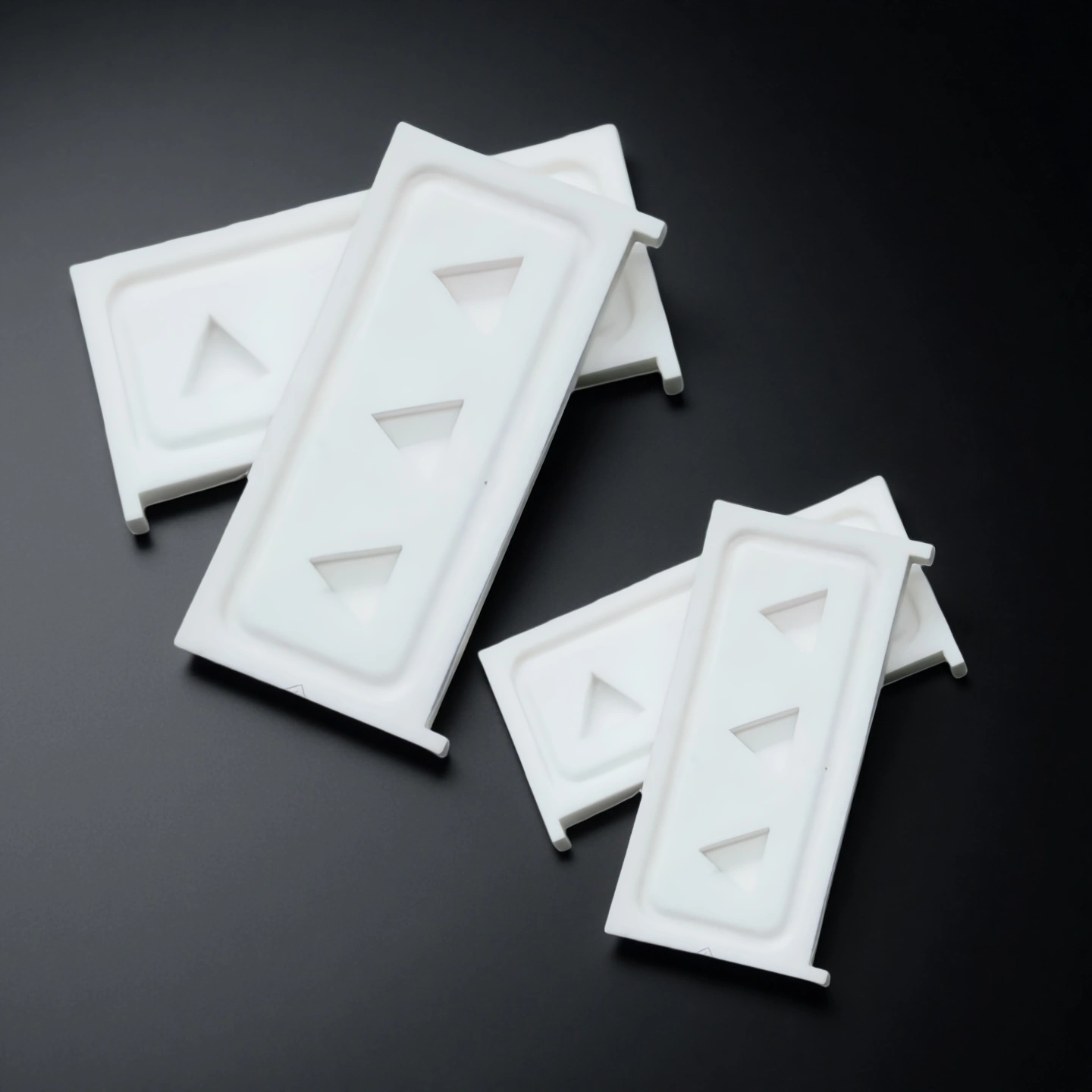

  3. Custom shapes allow accurate testing of non-standard specimens

  ✅ Problem Solved

  A ceramics lab improved yield rates by 20% in pilot sintering trials after using customized Alumina Ceramic Ash Boats with thicker walls, reducing failure from thermal shock.

Alumina Ceramic Ash Boats Usage Instructions

• Installation

  1. Place ash boats carefully on furnace trays, analyser holders, or supporting racks to avoid mechanical stress.
  2. Ensure boats sit evenly on flat surfaces; uneven placement may lead to cracking during heating.
  3. When using with analysers (e.g., LECO/ELTRA systems), align boats with holders or carriers to prevent tilting during sample loading.

• Operation

  1. Apply gradual heating and cooling to prevent thermal shock; keep ramp rates conservative above 1200 °C.
  2. For repeated cycles above 1500 °C, allow intermediate soaking periods to stabilize the alumina structure.
  3. Avoid sudden changes in furnace atmosphere (e.g., switching from inert to oxidizing gas) while at peak temperature.

• Storage

  1. Keep in a clean, dry environment to prevent moisture absorption, which can cause microcracking when reheated.
  2. Store in original protective sleeves or boxes to prevent contamination with dust, oils, or handling residues.
  3. Avoid stacking without spacers—this maintains flatness and prevents chipping at corners.

• Cleaning

  1. Allow the boat to cool to room temperature before handling.
  2. Remove ash or residues with a soft brush or non-metallic scraper to avoid surface scratching.
  3. For heavy build-up, use deionized water or mild ultrasonic cleaning, then dry thoroughly at 100–120 °C before reuse.
  4. Avoid strong alkaline cleaners that may react with alumina surfaces.

• Common Mistakes & Fixes

  1. Overheating porcelain instead of alumina: Porcelain boats deform above 1100 °C; choose alumina boats for cycles exceeding 1200 °C.
  2. Rapid quenching from high temperatures: Allow controlled, gradual cooling to extend service life and prevent thermal fractures.
  3. Stacking boats directly: Always use spacers or trays to prevent edge stress and cracking.
  4. Overloading boats: Keep within recommended sample mass; excess load creates thermal gradients and increases breakage risk.
  5. Using contaminated boats: Residual flux or metal particles can alter test results; clean thoroughly before each run.

Alumina Ceramic Ash Boats FAQ

1. Q: What is the maximum working temperature of Alumina Ceramic Ash Boats?
   A: They can operate continuously in air up to about 1730 °C(99.7% purity), suitable for high-temperature ashing and melting.
2. Q: Can Alumina Ceramic Ash Boats be reused?
   A: Yes, when handled carefully and cleaned properly, they withstand multiple heating cycles without losing dimensional accuracy.
3. Q: Are these boats compatible with LECO and ELTRA analysers?
   A: Yes, standard sizes are available to match common analyser holders, and custom sizes can be manufactured.
4. Q: What shapes and sizes are available?
   A: Rectangular, oval, multi-cavity, and custom shapes are offered, ranging from 5 mL to 5000 mL capacity.
5. Q: How do they compare with porcelain boats?
   A: Porcelain boats are limited to about 1100 °C, while alumina ceramic ash boats remain stable up to 1750 °C, offering longer service life.
6. Q: Do they resist chemical corrosion?
   A: High-purity alumina resists strong acids, alkalis, and oxidizing atmospheres, minimizing contamination.
7. Q: What tolerances can be achieved in custom orders?
   A: Critical dimensions can be produced with ±0.1 mm tolerance based on drawings or a sample reference.
8. Q: Do you provide matching accessories?
   A: Yes, trays, lids, combustion tubes, and handling tools can be supplied together for a complete solution.
