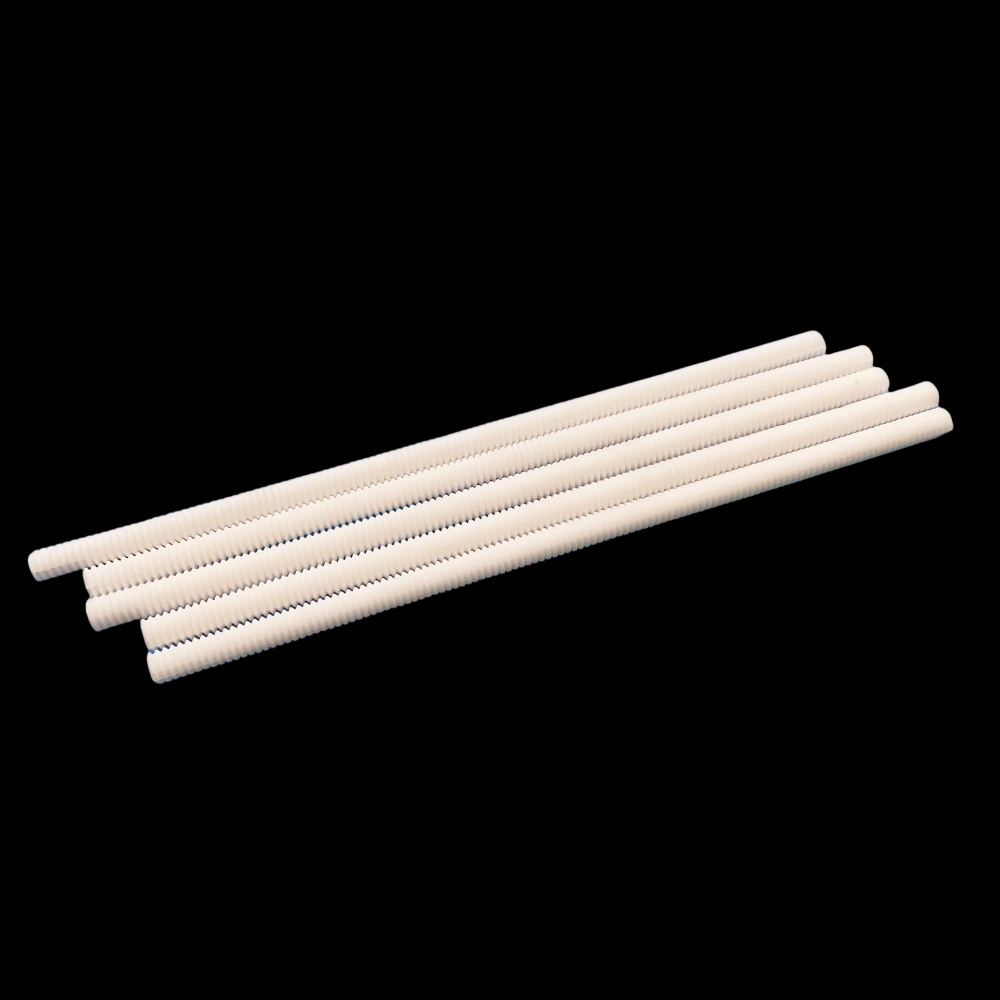

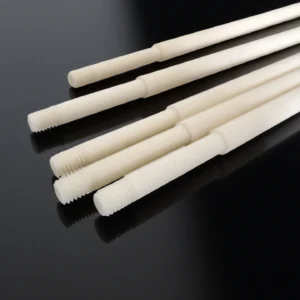

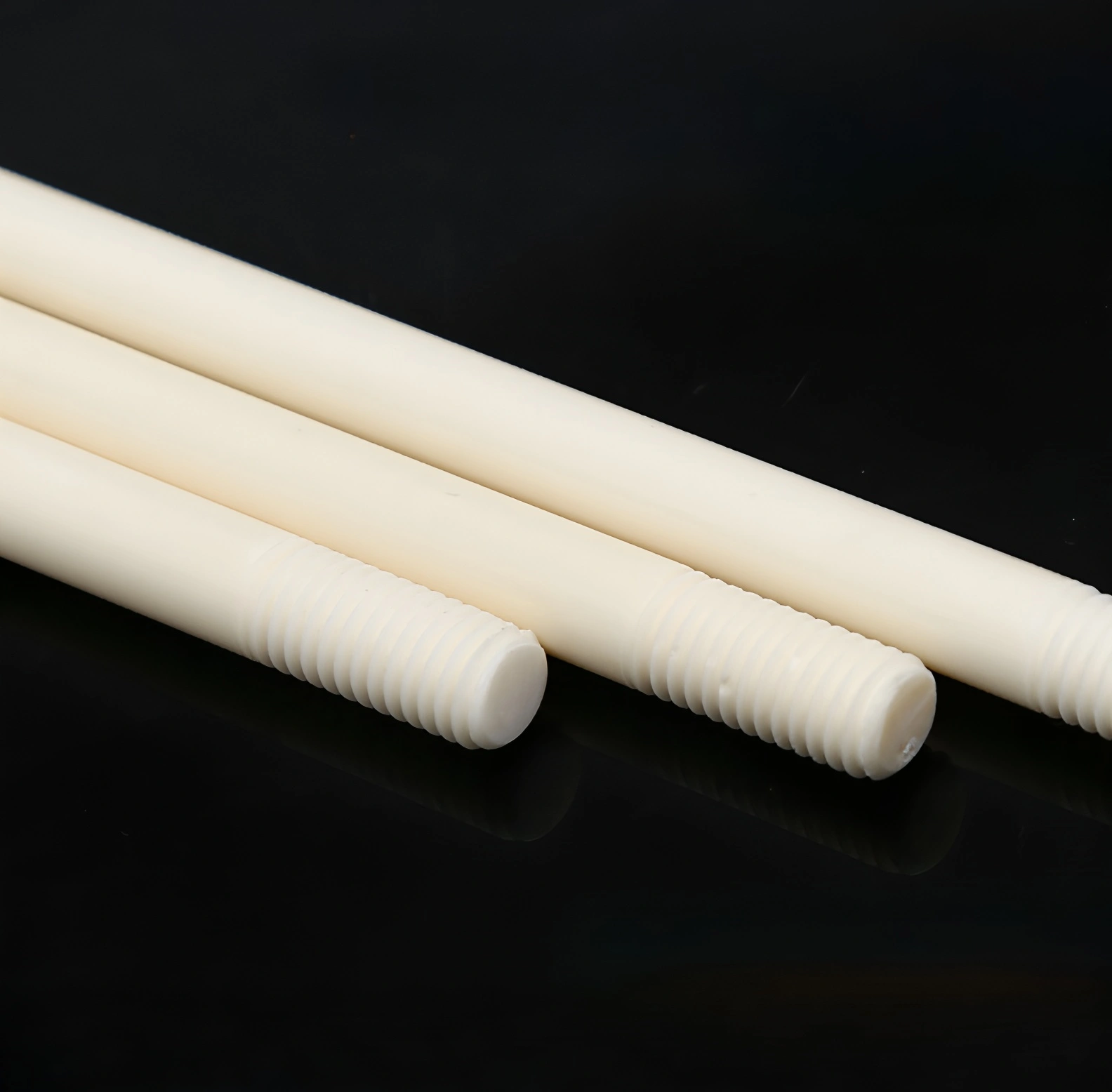

Precision Alumina Threaded Rod for High-Temperature Insulated Fastening (M2–M18, 99% Purity)

Applications of  Alumina Threaded Rod

• Laboratory Equipment

  ✅ Key Advantages

  1. Micrometre-Level Height Control — Fine threads enable predictable adjustment (e.g., M6×0.5 = 0.50 mm/turn; ¼-turn = 0.125 mm), allowing precise pan/stage positioning in TGA/DSC fixtures.

  2. Thermal-Drift Reduction in the Fixture — All-ceramic threaded stack (rod + nut) avoids metal hardware; CTE match of alumina ~8.0–8.6×10⁻⁶ /K vs stainless ~16–17×10⁻⁶ /K reduces position shift during 25–1000 °C ramps.

  3. Locked, Insulated Fastening Path — Positive thread engagement with alumina nuts holds preload through repeated heat cycles while keeping the entire joint electrically insulated (volume resistivity ≥10¹² Ω·cm).

  ✅ Problem Solved

  European analytical-instrument OEM replaced clamp-held metal hardware with M6×0.5 alumina threaded rods in TGA/DSC fixtures. Pan-height repeatability improved from ±0.45 mm to ±0.10 mm using quarter-turn adjustments (0.125 mm). Setup time per instrument dropped from 18 min to 6 min due to thread-based micro-positioning. Across 200 thermal cycles up to 1000 °C, no loosening events were recorded, and metal-origin contamination alerts fell from 3/100 runs to 0/100 runs.

• Industrial Furnaces

  ✅ Key Advantages

  1. Thread-Lock Stability Under Thermal Cycling — Rod-and-nut joints retain clamp load with torque loss <5% after 300 cycles at 1,100 °C, preventing heater sag/shorts.

  2. Micrometric Element Standoff Control — Fine threads (e.g., M6×1 = 1.00 mm/turn; ¼-turn = 0.25 mm) keep heater-to-charge spacing within ±0.25 mm, improving zone uniformity by 10–15 °C.

  3. CTE-Matched Ceramic Joint — Alumina/alumina interface (8.0–8.6×10⁻⁶ /K) vs. metal fixtures (16–17×10⁻⁶ /K) lowers thermal stress, cutting support fractures >60% over 200-cycle tests.

  ✅ Problem Solved

  Automotive heat-treat line converted a 1,200 °C box furnace from metal clamps to threaded alumina rods with ceramic nuts on MoSi₂ elements. Element-sag failures dropped from 4.1 to 0.6 per 1,000 operating hours; zone ΔT improved from ±18 °C to ±7 °C at 1,000 °C soak through 0.25 mm standoff adjustment. Re-torque intervals extended from weekly to quarterly with ≥95% torque retention after 300 cycles. Unplanned downtime reduced by 22 hours/month, yielding ~US$9.8k/month savings in labour and scrap.

• Chemical Processing

  ✅ Key Advantages

  1. Precision Seal Preload — Fine-pitch threads (e.g., M6×1 = 1.00 mm/turn; 1/8-turn = 0.125 mm) set gasket compression within ±5%, keeping leak rate < 1×10⁻⁶ mbar·L/s after 100 thermal/chemical cycles.

  2. No Galling or Chloride Attack — Ceramic thread pairs avoid seizure and retain ≥95% applied torque after 500 h in 30% NaOH at 80 °C and 240 h salt-spray equivalent.

  3. Ultra-Low Metal-Ion Carryover — ICP-MS leachables < 10 ppb (Fe/Ni/Cr) after 72 h in 10% HCl at 60 °C, protecting purity-critical pharma and analytical streams.

  ✅ Problem Solved

  Speciality-chemicals pilot plant replaced 316L M8 studs on a PTFE-lined reactor manway (20% HCl at 50 °C; CIP 30% NaOH at 80 °C) with M8 threaded alumina rods and alumina nuts. Leak rate fell from 4.2×10⁻⁶ to ≤8×10⁻⁷ mbar·L/s thanks to 0.125-mm step preload control. After 180 alternating acid/caustic cycles per quarter, torque retention held at 96% with zero galling or frozen fasteners. Maintenance per opening dropped from 45 min to 12 min, and stud replacement interval extended from 2 months to ≥6 months, reducing downtime by ~18 h/quarter.

Threaded Alumina Rods  Usage Instructions

•  Preparation Before Use

  1. Inspect each rod for visible cracks or defects before installation.
  2. Handle with clean gloves to avoid contamination from skin oils.
  3. Verify thread compatibility with alumina or ceramic nuts and washers.

•  Installation

  1. Tighten gradually by hand before applying torque; avoid sudden force.
  2. Use matching alumina nuts to prevent uneven stress on the threads.
  3. Do not over-tighten—apply only moderate torque to reduce fracture risk.

• Cleaning

  1. Clean with ethanol or isopropanol to remove surface residues.
  2. Avoid abrasive cleaning tools that may scratch or weaken the ceramic surface.
  3. Rinse gently with deionized water if used in chemical environments.

•  Storage

  1. Store in a dry, dust-free environment to prevent moisture absorption.
  2. Keep rods separated in foam-lined trays or boxes to avoid contact damage.
  3. Maintain stable room temperature and avoid sudden thermal fluctuations.

•  Disposal

  1. Dispose of broken or worn alumina threaded rods as inert ceramic waste.
  2. Follow local industrial or laboratory waste regulations for ceramic materials.
  3. Do not mix with metal or hazardous chemical waste.

•  Precautions

  1. Avoid sudden mechanical shocks, bending, or dropping during handling.
  2. Do not expose rods to rapid heating or cooling beyond rated thermal shock resistance.
  3. Always use protective equipment (gloves, goggles) when handling or installing.

Alumina Threaded Rods FAQ

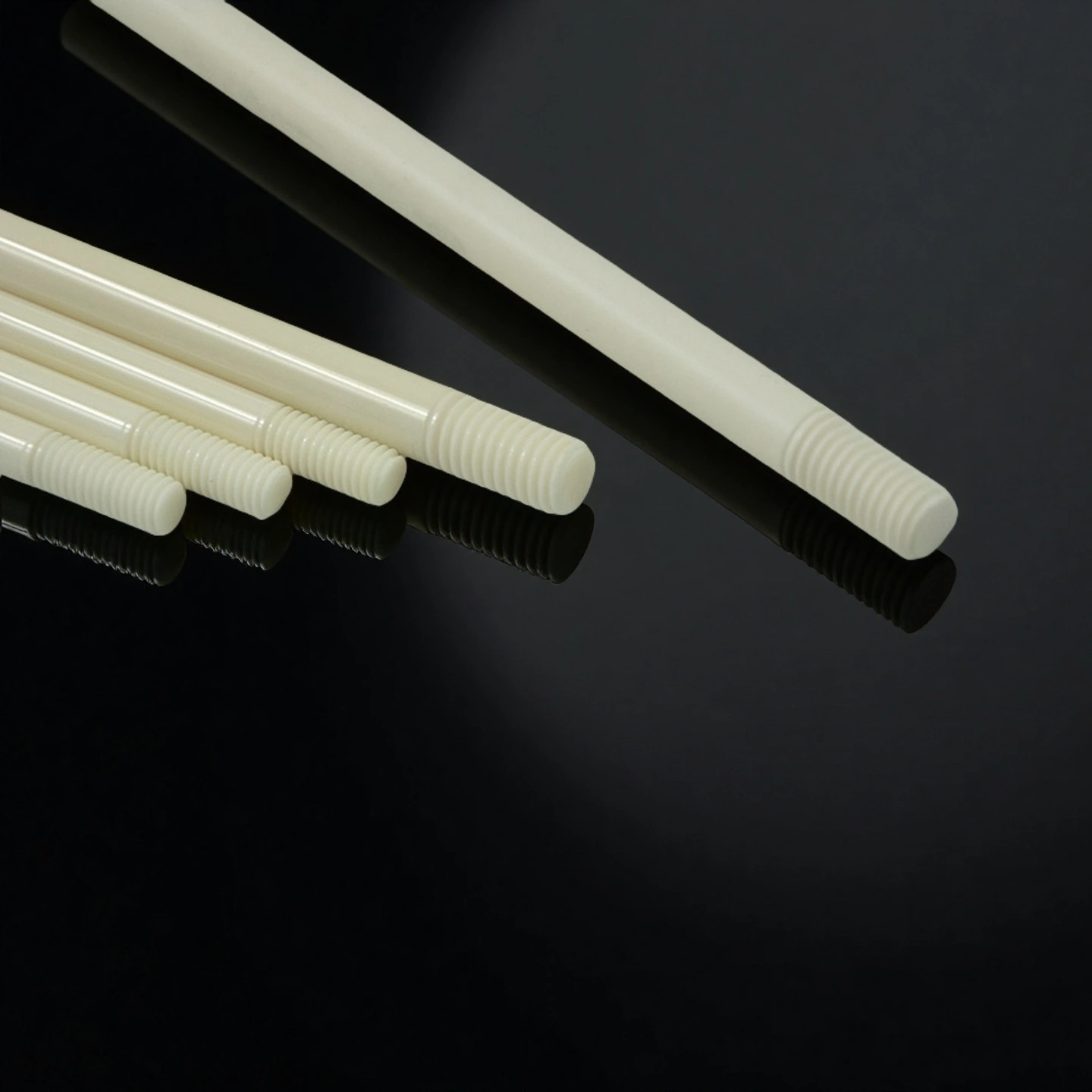

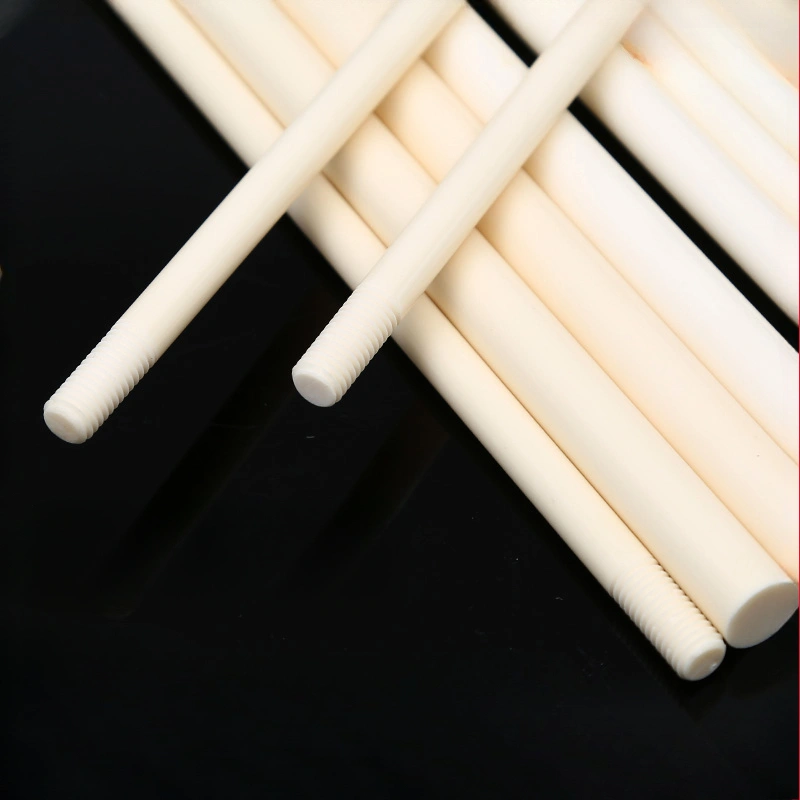

1. Q: Can I request customized lengths or double-threaded rods?
   A: Yes, we offer made-to-spec rods up to 1000mm with thread on one or both ends.
2. Q: Are your ceramic threads compatible with standard metric nuts?
   A: Yes, M2–M18 thread profiles match standard dimensioned alumina or compatible nuts.
3. Q: Are these rods suitable for high-voltage insulator mounting?
   A: Yes, alumina rods offer high dielectric strength and low loss factor, suitable for insulating structures under high voltage.
4. Q: How do these rods perform in acidic or corrosive atmospheres?
   A: 99.5% alumina is chemically stable against most acids and alkalis, even at elevated temperatures.
5. Q: Are customized alumina threaded rods available?
   A: We produce customized alumina threaded rods according to drawings, including thread pitch, tolerance, and length up to 500 mm.
6. Q: What is the advantage of buying wholesale alumina threaded rods from your factory?
   A: As a wholesale alumina threaded rod supplier, we provide consistent quality control, competitive pricing, and fast international logistics.
7. Q: Can alumina threaded rods replace stainless steel rods?
   A: Yes, especially in extreme conditions. Stainless steel weakens above ~600 °C and conducts electricity, while alumina threaded rods remain stable up to 1700 °C(99.5%), provide full electrical insulation, and resist chemical corrosion—making them the better choice for furnaces, lab instruments, and chemical systems.
