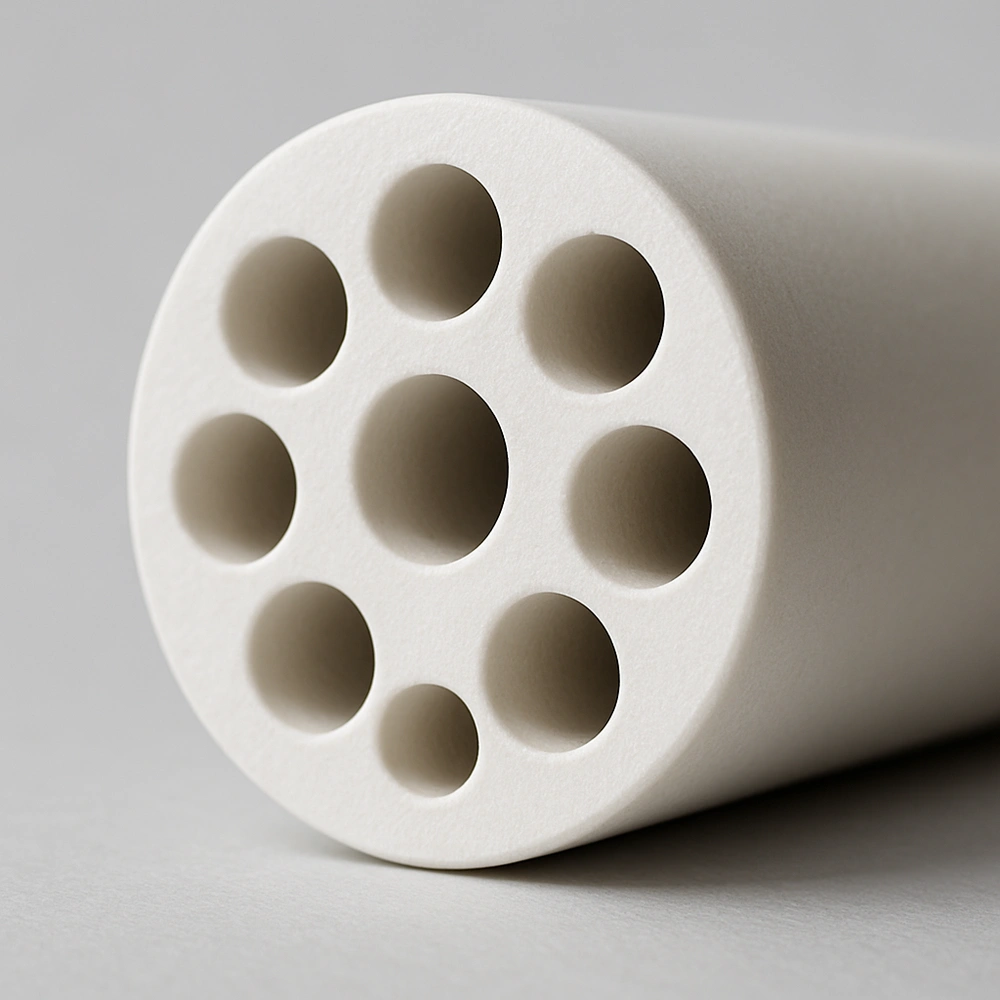

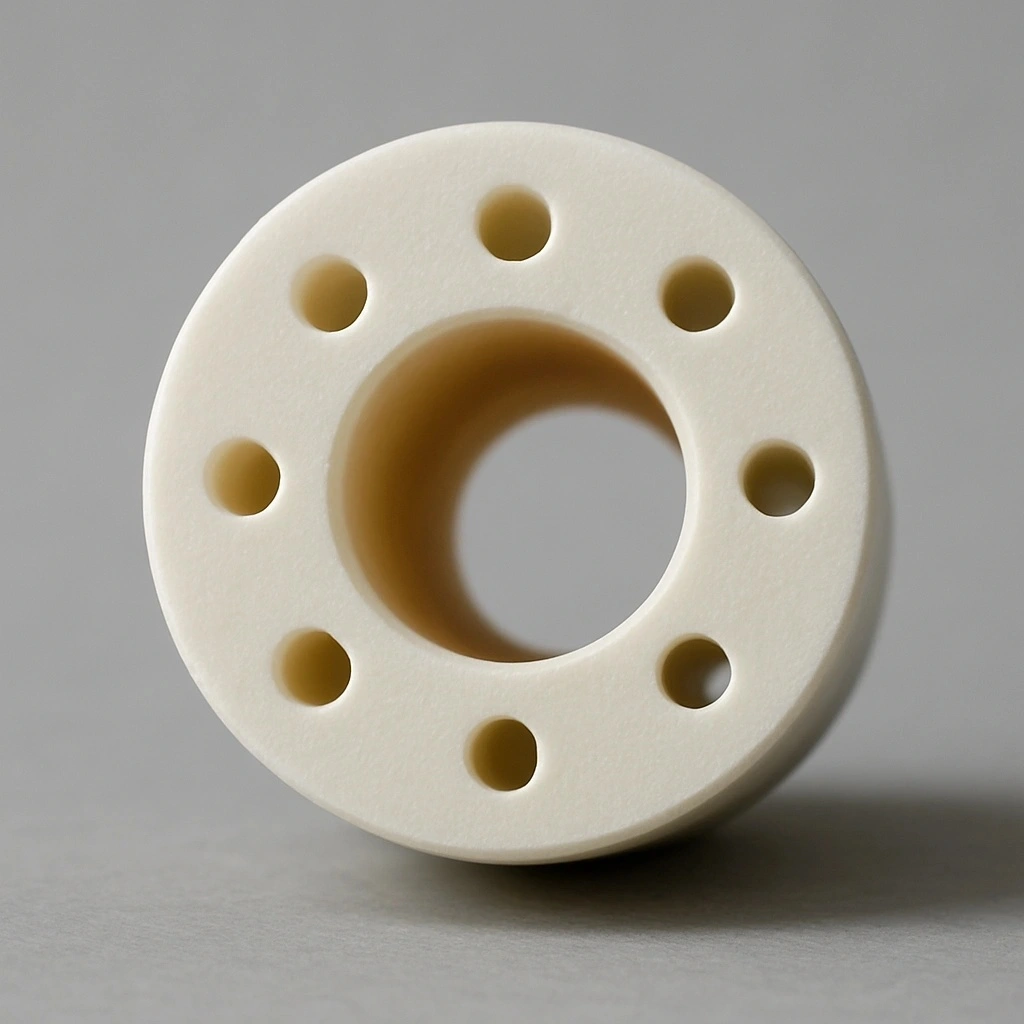

Industrial Alumina Ceramic 9-Hole Tube for Gas Distribution and Thermal Insulation Applications

Industrial Alumina Ceramic 9-hole Tube Applications

• PSA Gas Separation Systems

  ✅ Key Advantages

  1. Uniform Multi-Channel Flow Distribution
  9-hole structure enables consistent gas flow deviation of less than ±3% across all channels in PSA manifolds.

  2. Contamination-Free Hydrogen Purification
  99.5% Al₂O₃ purity ensures zero catalytic interference or particle shedding during H₂/O₂ separation cycles.

  3. Compact Integration in Modular PSA Units
  Multi-bore design reduces manifold footprint by 40% compared to using nine single-bore tubes in parallel.

  ✅ Problem Solved

  Gastech Systems GmbH replaced nine single alumina tubes with one 9-hole alumina manifold, reduced system volume by 38% and improved gas flow uniformity by 22%, verified through inline mass flow sensors. The client reported a 12% increase in hydrogen recovery efficiency and eliminated cross-channel contamination issues previously caused by inconsistent bore alignment.

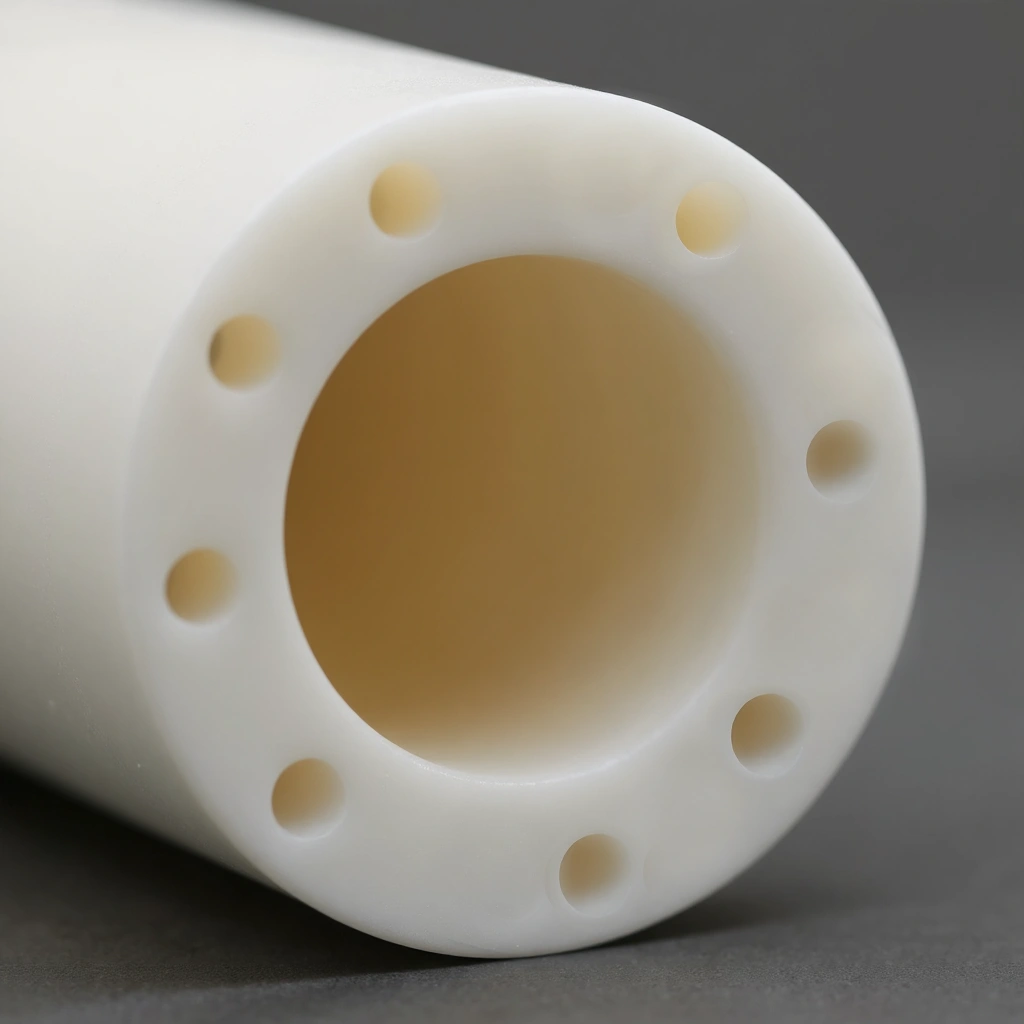

• Electric Heating Equipment

  ✅ Key Advantages

  1. Multi-Element Integration in One Tube
  9-hole configuration supports up to 9 heating wires or thermocouples in a single 20 mm OD tube, reducing component count.

  2. Space-Saving for Compact Heating Modules
  Tube design enables 35% reduction in heating chamber cross-sectional area compared to separate single-bore insulators.

  3. Improved Thermal Efficiency in Dense Assemblies
  Centralized heat source layout within a multi-bore tube improves thermal uniformity by up to 18% in closed-loop systems.

  ✅ Problem Solved

  In a 2022 upgrade project by  ThermoHeat Solutions Ltd., replacing traditional single-core ceramic tubes with 9-hole alumina tubes in a compact electric furnace reduced internal wiring space by 42% and improved thermal response time by 17%. The redesign allowed integration of 6 thermocouples and 3 heating wires in one tube, cutting assembly time by 30% and eliminating misalignment issues during maintenance.

• High-Voltage Insulation

  ✅ Key Advantages


  1. High Dielectric Strength Across All Channels
  Each bore withstands >10 kV/mm, enabling safe multi-line insulation in compact high-voltage assemblies.

  2. Reduced Creepage Risk in Dense Conductor Layouts
  9-hole configuration maintains ≥3 mm wall spacing between channels, minimizing arc-over in confined modules.

  3. Integrated Multi-Line Isolation in Vacuum Systems
  Single-tube design replaces 9 separate insulators, reducing vacuum feedthrough complexity by 45%.

  ✅ Problem Solved

  A retrofit project by VoltEdge Power Systems, replacing individual ceramic sleeves with a 9-hole alumina tube in a 25 kV vacuum relay module, reduced internal creepage paths by 38% and improved dielectric test pass rate from 91% to 100%. The client reported simplified assembly, fewer sealing points, and enhanced long-term insulation stability under thermal cycling and partial discharge conditions.

Industrial 9-Hole Alumina Tube Usage Instructions

• ✅Installation Guidelines

  1. Handle with care: Always wear clean gloves when handling the tube to avoid contamination from skin oils or particles.
  2. Alignment: Ensure the tube is properly aligned with fixtures or mounting brackets. Misalignment can cause stress points and lead to cracking during thermal cycling.
  3. Support: Use soft, non-metallic clamps or ceramic-compatible holders to secure the tube. Avoid over-tightening, which may cause microfractures.

• ✅Operating Instructions

  1. Temperature ramping: Gradually increase temperature at a rate not exceeding 5°C/min to prevent thermal shock. Avoid sudden exposure to high temperatures.
  2. Gas flow: When used for gas distribution, ensure flow rates are balanced across all channels. Uneven pressure may cause turbulence or backflow.
  3. Electrical insulation: In high-voltage applications, verify that the tube is not in contact with conductive surfaces. Maintain proper spacing between conductors inside the bores.

• ✅Cleaning Procedures

  Routine cleaning: Use deionized water or isopropyl alcohol with a lint-free cloth to remove surface dust or residues.
  Deep cleaning: For internal bore cleaning, use ultrasonic baths or compressed air with ceramic-safe nozzles. Avoid metal brushes or abrasive tools.
  Chemical compatibility: Do not expose the tube to hydrofluoric acid or strong alkali solutions unless verified for compatibility.

• ✅Store

  1. Environment: Store in a dry, dust-free, and vibration-free environment. Ideal storage temperature: 10–30°C with <60% relative humidity.

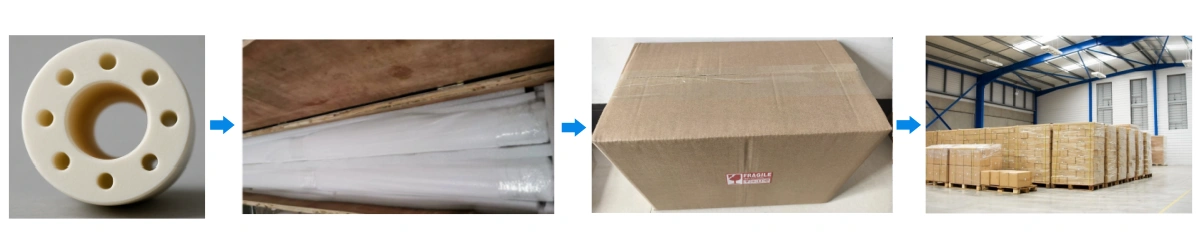

  2. Packaging: Keep the tube in its original foam-lined packaging or use padded trays to prevent contact with hard surfaces.
  3. Stacking: Avoid stacking multiple tubes directly on top of each other. Use separators or individual compartments.

• ✅Maintain

  1. Inspection: After each use, inspect the tube for signs of microcracks, discolouration, or bore blockage. Replace if any structural damage is found.
  2. Documentation: Keep a usage log for each tube, especially in laboratory or high-voltage applications, to track thermal cycles and exposure conditions.
  3. Replacement cycle: For high-temperature or high-voltage systems, consider replacing the tube after 1000–1500 hours of operation, depending on the environment.

• ✅Common Mistakes to Avoid

  1. Thermal shock: Do not insert a cold tube into a hot furnace or vice versa. Always allow gradual temperature equalization.
  2. Mechanical stress: Avoid tapping, bending, or applying uneven force to the tube during installation or removal.
  3. Improper cleaning: Do not use metal rods or wires to clean the bores, as this may scratch the inner surface and compromise insulation performance.

Alumina 9-Hole Tube Frequently Asked Questions

1. Q: Where can I buy industrial alumina ceramic 9-hole tubes in bulk?
   A1: You can purchase industrial alumina ceramic 9-hole tubes directly from ADCERAX, a China-based manufacturer offering both standard and customized options. We support wholesale orders and provide technical support for OEM applications.
2. Q: Do you offer customized industrial alumina ceramic 9-hole tubes?

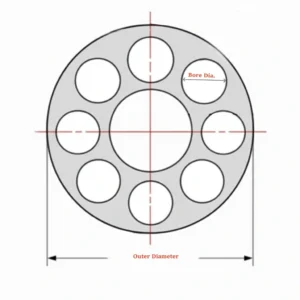

   A: Yes, we provide customized solutions based on your drawings or specifications. You can define outer diameter, hole size, length, and end shape. Our engineering team ensures precision and consistency for every custom order.
3. Q: Can I get a quote for industrial alumina ceramic 9-hole tubes?
   A: Yes, we offer quick quotations based on your required quantity, dimensions, and delivery location. Contact us via email or our website form to receive a detailed quote within 24 hours.
4. Q: Do you offer promotions or discounts for bulk orders?
   A:  We provide seasonal promotions and volume-based discounts for wholesale customers. Contact our sales team to learn about current offers.
5. Q: What is your production capacity and lead time?
   A: We maintain stock for standard sizes and can produce up to 10,000 units per month for custom orders. Lead time for standard items is 3–5 days; custom orders take 10–15 days.
6. Q:  Are you a factory or a trading company?
   A: ADCERAX is a direct factory located in China, specializing in the manufacture and supply of advanced ceramic components, including tubes, rods, balls, crucibles and substrates, etc.

What Our Clients Say: Industrial Alumina Ceramic 9-Hole Tube

• ⭐️⭐️⭐️⭐️⭐️
  “We ordered customized alumina ceramic 9-hole tubes for our PSA gas separation units. The dimensional accuracy was excellent, and the material quality met our internal standards. ADCERAX’s engineering team was responsive and helpful throughout the process.”
  --  Dr. Markus Klein, Gastech Systems GmbH, Germany(R&D Manager)

• ⭐️⭐️⭐️⭐️⭐️
  “As a wholesale buyer, I’ve worked with several ceramic suppliers, but ADCERAX stands out for their fast quoting and consistent quality. Their industrial alumina ceramic 9-hole tubes are now a standard part in our heating system assemblies.”
  -- Emily Chen,  ThermoHeat Solutions Ltd., USA (Procurement Director)

• ⭐️⭐️⭐️⭐️⭐️
  “We’ve been sourcing 9-hole alumina tubes from ADCERAX for over 18 months. Their pricing is competitive, and the supply is stable. The tubes are used in our lab-scale reactors and perform reliably under high temperatures.”
  -- Kenji Sato, Nippon Materials Research Inc., Japan ( Senior Process Engineer)
• ⭐️⭐️⭐️⭐️⭐️
  “Our company buy high-quality industrial alumina ceramic 9-hole tubes from ADCERAX, a trusted manufacturer based in China. They delivered both samples and bulk orders with a fast turnaround time. The precision 9-hole design significantly reduced our component count and optimized gas flow control in our applications.”
  --  Laura Martinez, Analytica Instruments S.A., Spain (Product Development Lead)
