High-Cycle Pneumatic Zirconia Ceramic Double Disc Gate Valve for Industrial Flow Control

Solving Application Challenges with ADCERAX® Pneumatic Zirconia Ceramic Double Disc Gate Valve

The Pneumatic ZrO2 Double Disc Gate Valve is specifically engineered to overcome persistent failures in industries where abrasive, corrosive, and high-cycle media handling is unavoidable. By integrating zirconia ceramic sealing surfaces and pneumatic actuation, this valve addresses performance gaps in critical environments where downtime or leakage leads to significant operational losses.

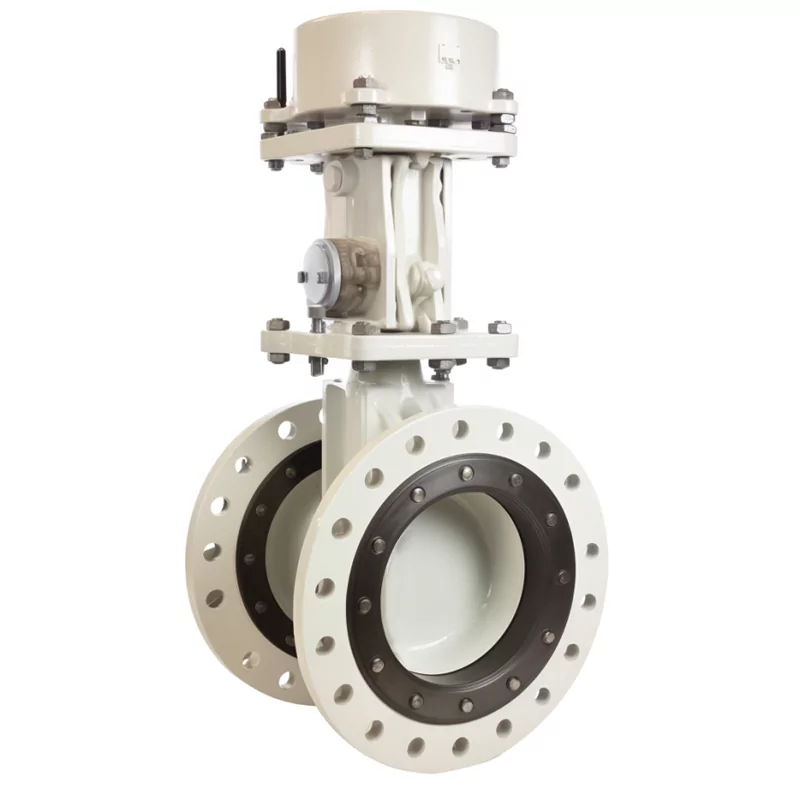

• Coal-Fired Power Plant Ash Handling

  ✅Key Advantages

  1. HRA88 Ceramic Discs — HRA88 zirconia sealing faces cut abrasive wear by >70% versus metal seats. Service life extends 3–5× under dry ash cycling at elevated temperatures.
  2. Class V Shutoff Stability — Achieves Class V per FCI 70-2 through 100,000+ cycles with plant air at 0.6–0.8 MPa. Leakage is reduced by ≥95% during high ΔP isolations.
  3. Self-Cleaning Twin Discs — Auto-rotation limits torque rise by >50% during dust loading. Prevents sticking and lengthens preventive-maintenance intervals by ≈40%.

  ✅ ️Problem Solved

  In dry ash discharge lines cycling thousands of times monthly, metal seats leaked and triggered 3–4 unplanned cleans per month. After replacing with the Pneumatic Zirconia Ceramic Double Disc Gate Valve, mean time between leaks increased from weeks to 4–6 months. Unplanned outage hours dropped by ≈30–40%, and cleaning labor fell by ≈35%. Plants reported stable ΔP isolations with Class V performance sustained over 100,000+ cycles.

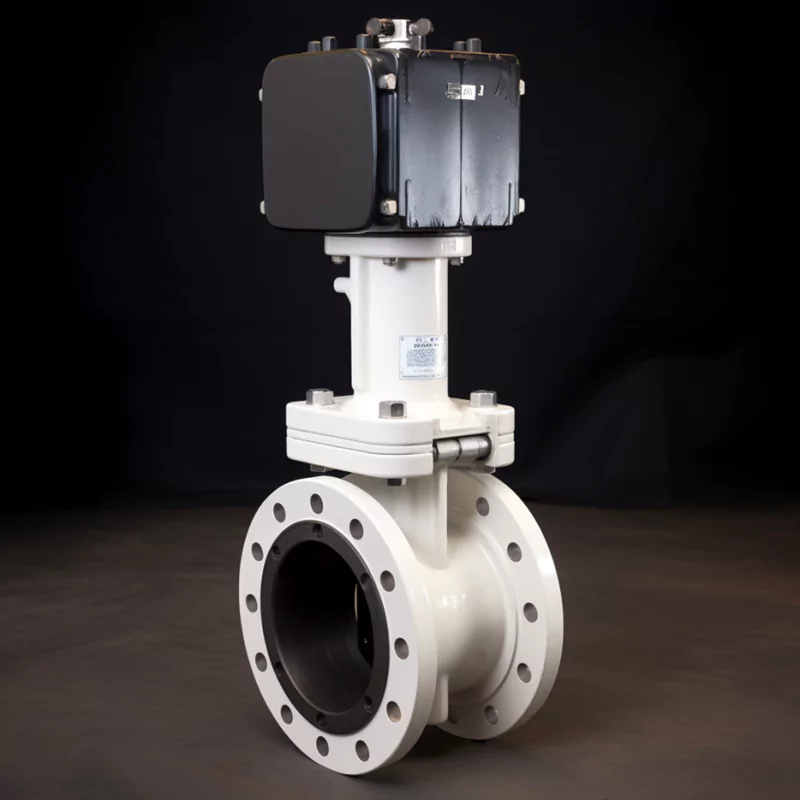

• Mining Slurry Transport

  ✅Key Advantages

  1. Abrasion Control in High-Solids Slurry — Zirconia liners cut erosive loss by 60–80% in slurries with 30–50% solids. Valve lifetime extends from 4–6 months to ≥18 months in continuous duty.
  2. Pressure-Cycle Reliability — Maintains 99.9% isolation under 1.0–1.6 MPa operation and up to 200 °C. Sealing performance remains stable over 100,000+ cycles in slurry lines.
  3. Rapid Service Modules — Cartridge-style sealing sets swap in <30 min versus multi-hour rebuilds. Maintenance windows shrink by 50–70%, improving line availability.

  ✅ ️Problem Solved

  A concentrator transporting quartz-rich tailings faced monthly leaks and quarterly valve changeouts. With the Pneumatic Zirconia Ceramic Double Disc Gate Valve, leak incidents fell by ≥75% and replacement cadence stretched to ≥18 months. Planned maintenance fit standard shutdowns, restoring throughput by ≈2–3%. Operators recorded safer corridors with fewer slurry escapes at flanges and drains.

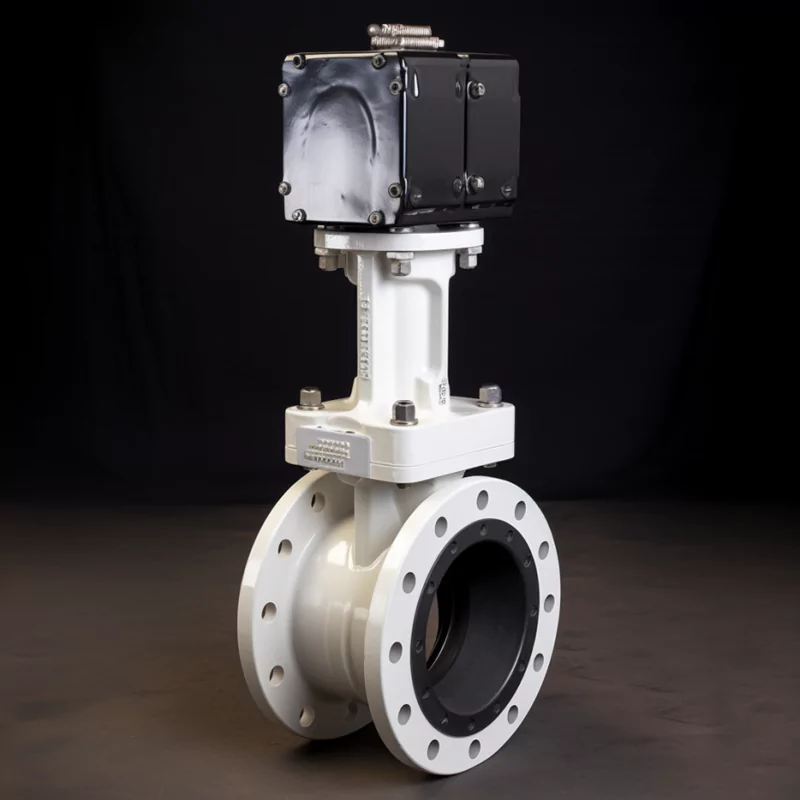

• Flue Gas Desulfurization (FGD) Systems

  ✅Key Advantages

  1. Corrosion + Erosion Resistance — Zirconia/ceramic seats withstand alkaline lime and gypsum slurries across pH 2–12, cutting leak-related loss by >90%. Surface integrity holds under continuous solids recirculation.
  2. High-Temperature Duty Window — Standard operation to 200 °C, high-temperature design to 400 °C keeps sealing integrity during hot recirculation and upset events.
  3. Compliance-Focused Sealing — Class V shutoff limits bypass that dilutes reagent efficiency, supporting >99% scrubber uptime and fewer environmental exceedance risks.

  ✅ ️Problem Solved

  An FGD loop experienced frequent valve corrosion, slurry bypass, and compliance alarms. After installing the Pneumatic Zirconia Ceramic Double Disc Gate Valve, leakage decreased by >90% and emergency repairs halved. Scrubber liquid ratios stabilized, sustaining >99% uptime through peak loads. Plants avoided penalty exposure while reducing replacement spend over the annual cycle.

User Guide for Pneumatic Zirconia Ceramic Double Disc Gate Valve

The Pneumatic ZrO2 Double Disc Gate Valve requires proper installation, operation, and maintenance to achieve its designed service life in demanding applications. This section provides essential guidance from multiple perspectives, helping users minimize downtime, reduce costs, and ensure safe and efficient performance throughout the valve’s lifecycle.

• Installation Guidelines

  1. Ensure the valve is positioned in the correct flow direction before tightening flange bolts. Incorrect orientation can cause leakage or uneven wear during operation. Always align the actuator with pipeline requirements for stable cycling.
  2. Use shock-absorbing supports to prevent vibration or mechanical stress. Continuous vibration reduces sealing efficiency and accelerates wear on ceramic discs. Check alignment with pipeline couplings during installation.
  3. Confirm that the actuator air supply meets 0.4–0.6 MPa specifications. Low pressure may prevent full valve closure, while overpressure increases torque demand and risks actuator damage.

• Operation Practices

  1. Always operate the valve within its rated pressure range of 1.0–1.6 MPa. Exceeding limits may compromise ceramic disc integrity and shorten service life. Regularly monitor gauges to ensure stable conditions.
  2. Avoid frequent cycling beyond design capacity, even though the valve is tested for 100,000+ cycles. Excessive operation without inspection can cause premature seal degradation. Maintain a balanced duty cycle.
  3. When switching between open and closed positions, allow full actuator stroke completion. Partial strokes reduce sealing reliability and may leave abrasive material trapped between discs.

• Maintenance Recommendations

  1. Perform scheduled inspections every 3–6 months depending on service severity. Routine checks detect minor leaks early and prevent costly shutdowns. Document each inspection for maintenance records.
  2. Replace sealing discs once wear depth exceeds 0.5 mm. Worn surfaces reduce sealing grade from Class V to lower levels, risking fluid bypass. Always use original spare parts to ensure compatibility.
  3. Keep actuator and valve stem components free of dust and slurry deposits. Accumulated debris increases torque requirements and may hinder pneumatic cycling. Clean external surfaces with appropriate solvents.

• Storage and Handling

  1. Store valves in a dry, ventilated area with protective covering. Prolonged humidity may affect actuator components and corrode external hardware, even though ceramic surfaces remain stable.
  2. During transport, use reinforced wooden crates with foam lining as protection. Improper packaging may result in ceramic disc breakage from shocks or vibration. Always secure valves on pallets for stability.
  3. Avoid lifting the valve by the actuator housing. Always use lifting lugs or flange supports to prevent misalignment. Incorrect handling can lead to stem damage and reduced sealing performance.

FAQs about Pneumatic Zirconia Ceramic Double Disc Gate Valve

1. Q: Is the Pneumatic Zirconia Ceramic Double Disc Gate Valve compatible with automation systems?
   A: Yes, the pneumatic actuator supports remote control integration with DCS and PLC systems. This allows centralized monitoring and faster response times. Plants improve safety and process efficiency.
2. Q: How does the valve improve safety in slurry transport systems?
   A: The robust sealing and abrasion resistance prevent sudden leaks and line ruptures. This reduces operator exposure to hazardous slurries. It provides a safer working environment and ensures uninterrupted production.
3. Q: What sealing grade does the Pneumatic Zirconia Ceramic Double Disc Gate Valve achieve?
   A: The valve is designed to meet Class V leakage standards under FCI 70-2. This provides high shutoff reliability even under pressure differentials. It minimizes fluid loss, ensuring compliance with operational and environmental standards.
4. Q: Can the Pneumatic Zirconia Ceramic Double Disc Gate Valve handle high temperatures?
   A: Yes, it can operate reliably at 200 °C, with high-temperature versions rated up to 400 °C. The ceramic materials maintain mechanical strength and sealing stability under thermal stress. This ensures safe performance in power and chemical plants.
5. Q: How does the Pneumatic Zirconia Ceramic Double Disc Gate Valve perform under corrosive media?
   A: The valve uses ceramic-lined flow paths and sealing surfaces, which are inert to most acids, alkalis, and chlorides. This prevents corrosion-induced leaks common in metal valves. Plants avoid costly downtime and environmental compliance risks.

Client Experiences with ADCERAX® Pneumatic Zirconia Ceramic Double Disc Gate Valve

• ⭐️⭐️⭐️⭐️⭐️
  “The Pneumatic Zirconia Ceramic Double Disc Gate Valve solved our persistent ash leakage issue in the power plant. We noticed a >90% reduction in unplanned downtime within the first six months of operation. The sealing stability under heavy cycling has been a major improvement compared to the old metal valves.”
  – Michael R., Plant Engineer, Northern Energy Solutions
• ⭐️⭐️⭐️⭐️⭐️
  “In our mining slurry system, conventional valves lasted less than half a year. After switching to the Pneumatic Zirconia Ceramic Double Disc Gate Valve, service life extended to 18 months with no leakage incidents. This has cut maintenance labor and improved overall line safety significantly.”
  – Laura K., Operations Manager, Alpine Minerals Group
• ⭐️⭐️⭐️⭐️⭐️
  “Our flue gas desulfurization process demanded valves that could resist both abrasion and chemical corrosion. The Pneumatic Zirconia Ceramic Double Disc Gate Valve consistently delivers Class V shutoff and has prevented costly compliance failures. We now trust ADCERAX® valves across multiple FGD units.”
  – David S., Environmental Compliance Director, WestRiver Power Station
• ⭐️⭐️⭐️⭐️⭐️
  “The installation of the Pneumatic Zirconia Ceramic Double Disc Gate Valve in our pulp mill reduced slurry bypass by over 80%. The easy maintenance design and robust sealing surfaces have simplified our routine checks. It has given us the confidence to standardize on ceramic solutions for critical lines.”
  – Anna L., Maintenance Supervisor, GreenFiber Pulp Corporation
