Custom Ceramic Arms and End Effectors for Precision Handling
ADCERAX is a China-based advanced ceramics manufacturer specializing in custom ceramic arms, handling forks, gripper fingers and vacuum end effectors for industrial automation. Their heat resistance, electrical insulation and wear resistance help protect workpieces, maintain stable positioning and extend service life.
Our engineers work directly with production, giving equipment builders a simpler path from initial design to repeat orders.
Choose a complete arm or replaceable ceramic contact tips.
Alumina, ZTA, Si3N4 and SiC considered by actual duty.
Small-batch validation before repeat purchasing.
Critical datums and acceptance points defined before production.
What Is a Ceramic Arm?
A ceramic arm is the precision contact or support component installed at the end of a robot, transfer mechanism or custom handling system. Depending on its geometry, it may also be called a ceramic end effector, robot blade, handling fork, paddle or gripper finger.
It is not the complete programmable robot. Ceramic construction is considered when metal or polymer tooling cannot provide the required combination of heat resistance, electrical insulation, wear resistance, chemical stability and controlled contact with a sensitive surface.
Solution families
Find the Ceramic Handling Solution That Matches Your Task
Each option below solves a different mechanical problem. Select by how the workpiece is held and where the current design fails.
A balanced option for electrical insulation, hardness, dimensional stability and precision-ground contact surfaces

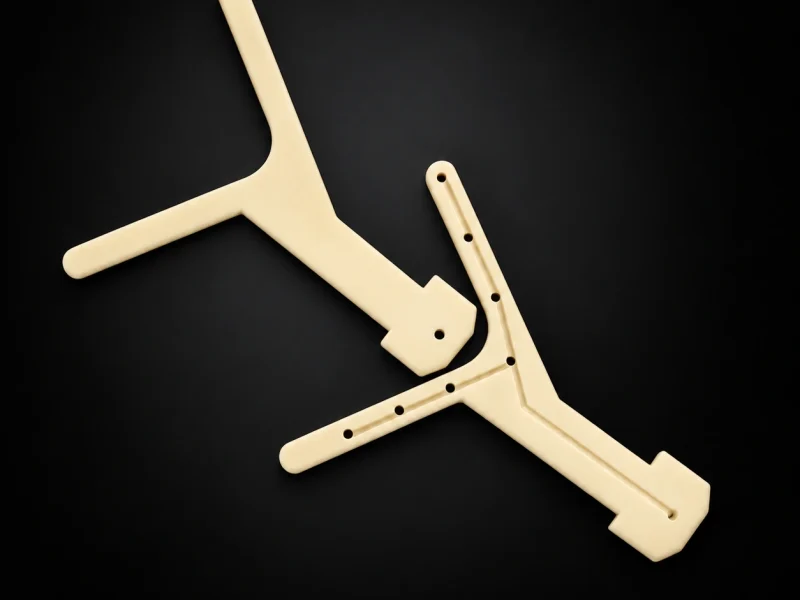

Single blades, parallel forks and paddle structures for controlled support of thin or fragile workpieces.
Custom suction holes, grooves, ports and internal channels reviewed against the workpiece and vacuum source.
Gripper Fingers & Jaws

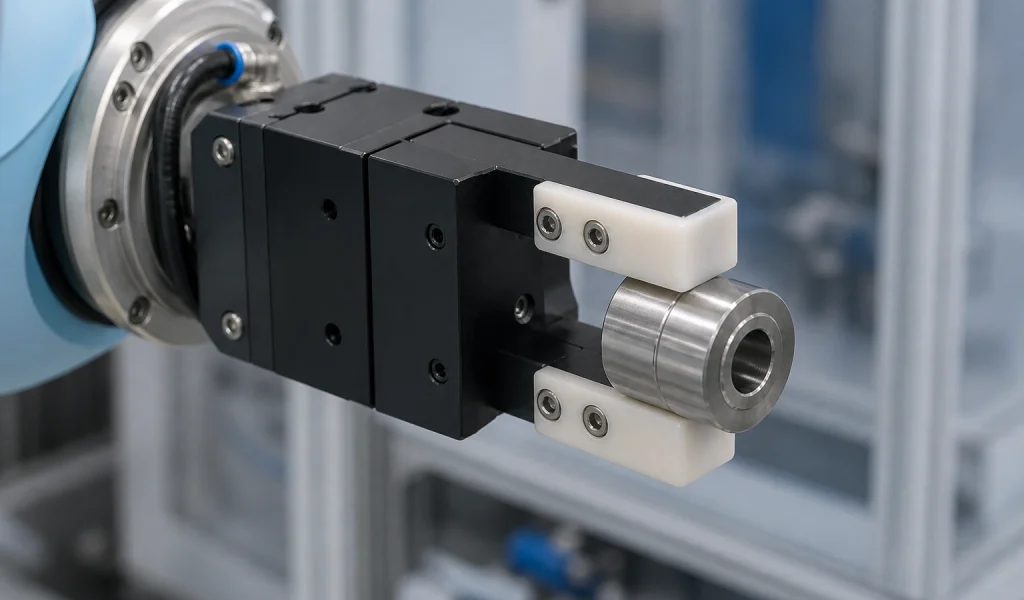

Insulating, wear-resistant contact fingers for pneumatic, electric and custom robotic grippers.
Replaceable ceramic contact pieces integrated with metal holders for better fastening and serviceability.

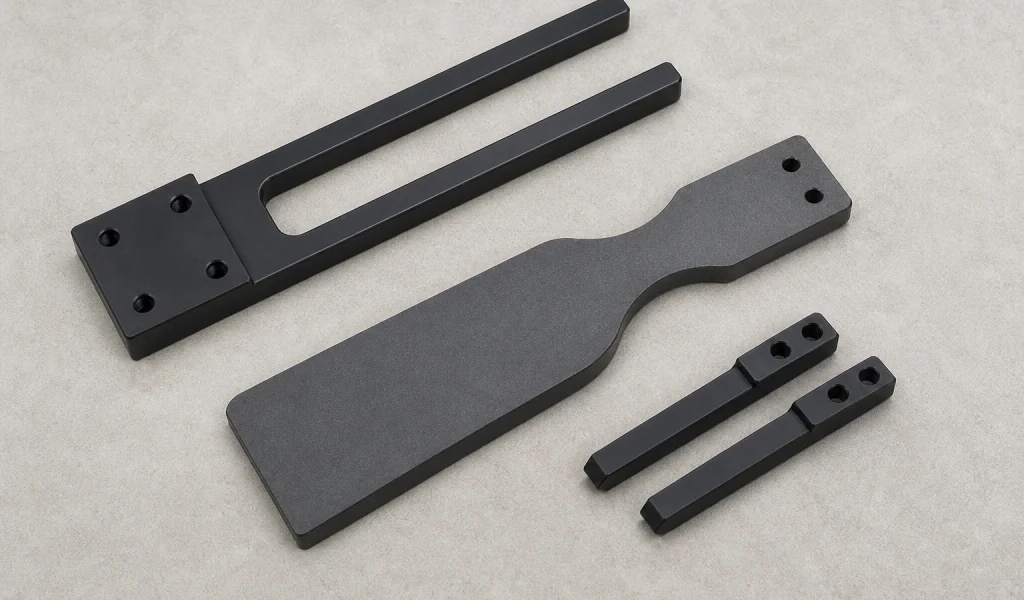

Si₃N₄ & SiC Components
Material-specific solutions when alumina cannot provide the required thermal-shock behavior or stiffness.
Failure-to-solution guide
Start With the Problem You Need to Remove
A useful RFQ explains the failure mode, not only the required material. These are the design questions our engineers use to narrow the solution.
| The ceramic chips or breaks | Common contributors include sharp internal corners, point loading, over-tightened fasteners, impact and unsupported long sections. | Design response: review radii, chamfers, support span, mounting torque and whether a shorter replaceable ceramic tip is safer. |
| Vacuum holding is unstable | Hole distribution, leakage paths, port size, surface sealing and workpiece flatness may be working against the vacuum source. | Design response: evaluate the full pressure path and define a practical holding or leakage test before production. |
| The workpiece is marked or scratched | Contact pressure, sliding motion, edge quality, trapped particles and inconsistent surface finish can all create damage. | Design response: identify the true contact zone, specify finish only where needed and remove high local stresses. |
| Metal fingers deform, conduct or contaminate | The existing tool may lose stiffness near heat, create an electrical path or transfer wear debris to a sensitive surface. | Design response: compare a full ceramic part with a metal holder plus ceramic contact pieces. |
| A replacement part does not fit | Hole position, datum choice, flange thickness and unseen channels are often more important than the outside profile. | Design response: use the latest drawing revision, both-side photos and measured mounting interfaces before quoting. |
Structure before material
Choose the Architecture That Reduces Risk and Maintenance
Material selection matters, but the overall structure usually determines whether the part survives installation, collision and repeated service.
Low-impact support
One-Piece Ceramic Arm
Best when insulation, stable geometry and continuous ceramic contact are required across the full tool.
- Clean, simple interface
- No bonded contact tip to replace
- Needs controlled mounting and collision protection
Often the practical choice
Metal Holder + Ceramic Fingers
The holder bears fastening and impact loads, while ceramic inserts protect critical contact zones.
- Easier field replacement
- Lower spare-part cost
- Useful for furnace and general automation projects
Vacuum or thin substrates
Vacuum Arm or Support Plate
Designed around the workpiece, pressure source and suction path rather than a generic hole pattern.
- Full or zoned suction areas
- Ports, grooves and internal channels
- Requires leakage and support review
Material selector
Select the Appropriate Ceramic
Each material solves a different balance of insulation, toughness, thermal response, stiffness and cost.
Alumina
Often the first material to evaluate for insulating fingers, support arms, forks, paddles and ground contact surfaces.
Review: impact risk, long thin geometry, loaded temperature and edge exposure.
Zirconia & ZTA
Useful for compact fingers, wear-resistant tips and contact zones requiring greater resistance to local damage.
Review: component weight, thermal environment, stiffness and cost.
Silicon Nitride
Combines relatively low density, high strength, low thermal expansion and good thermal-shock performance.
Review: machining complexity, availability, edge design and prototype cost.
Silicon Carbide
Evaluated for high stiffness, thermal conductivity, wear resistance and stability at elevated material temperatures.
Review: grade, surface finish, thin-wall feasibility and mounting loads.
Need a Ceramic Arm That Fits Your Equipment?
Send your drawing or old-part photos with the workpiece, temperature, handling method and mounting interface. We’ll review the material, geometry and critical contact surfaces before quoting.
Application fit
Where ADCERAX Ceramic Handling Components Add the Most Value
The best-fit projects are specialized equipment where component failure affects uptime, workpiece quality or electrical and thermal isolation.

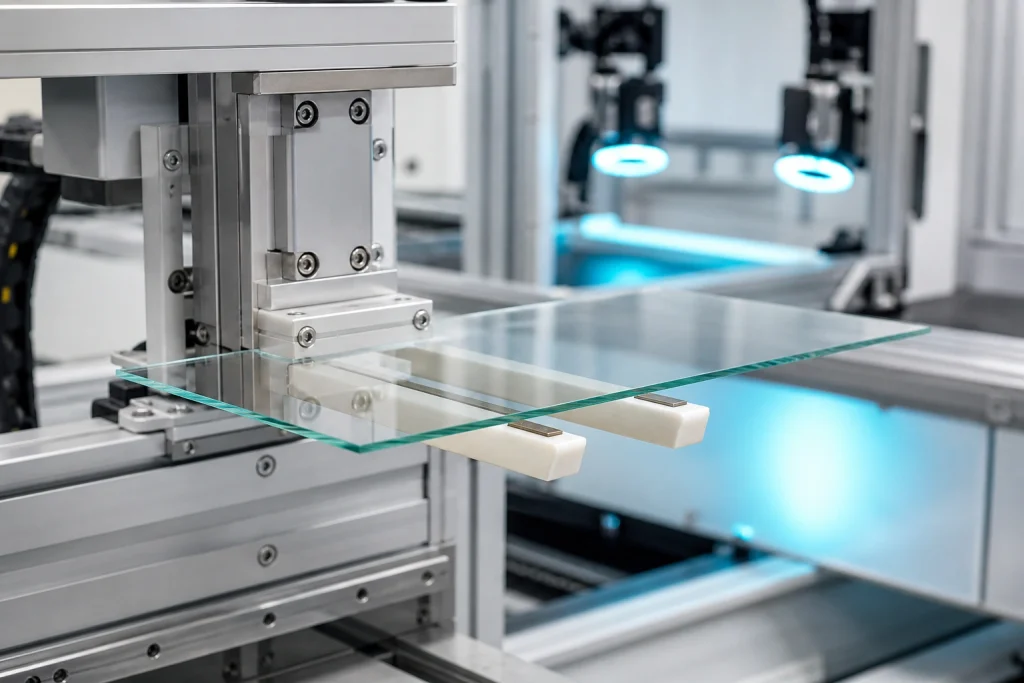

Precision Glass & Thin Substrates
Typical need: support fragile sheets while limiting surface marks, edge stress and positional drift.
Useful solution: ground support forks, polished contact pads or carefully distributed vacuum holding.

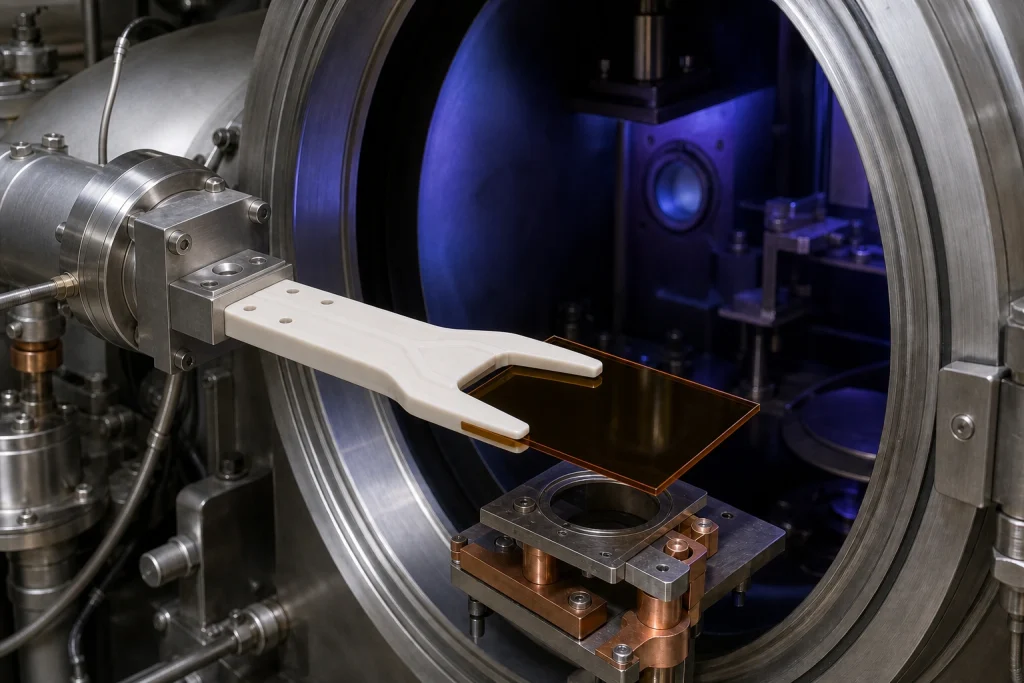

Industrial Vacuum & Optical Coating

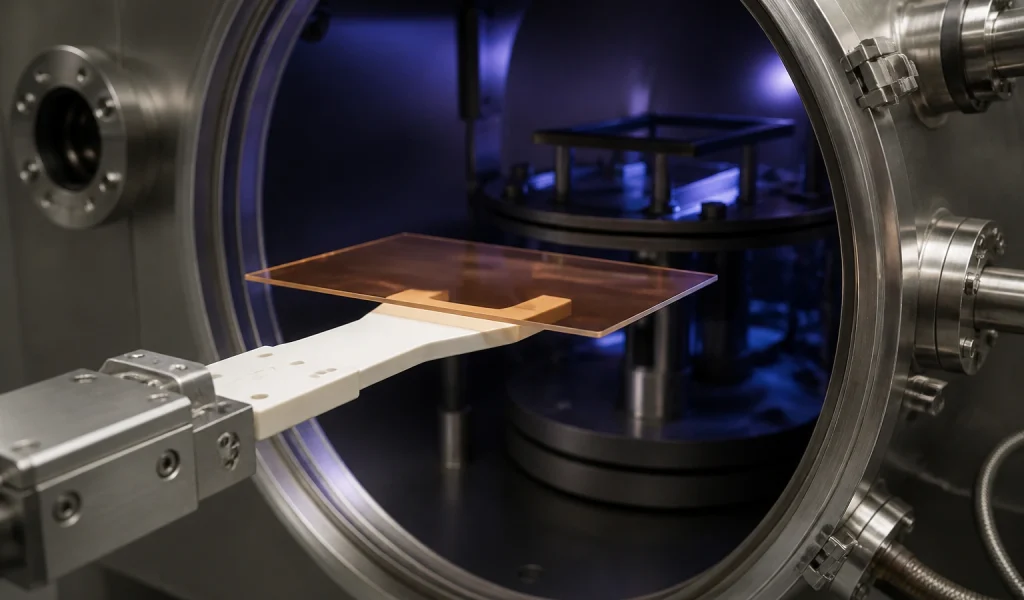

Typical need: move, isolate or position parts inside vacuum furnace and non-semiconductor coating equipment.
Useful solution: insulating handling parts with defined interfaces, cleanable surfaces and reviewed vacuum paths.
Custom EOAT & Replacement Programs
Typical need: qualify a new machine design, replace a discontinued part or establish a second source.
Useful solution: drawing-based DFM, old-part review, prototypes and inspection points carried into repeat orders.

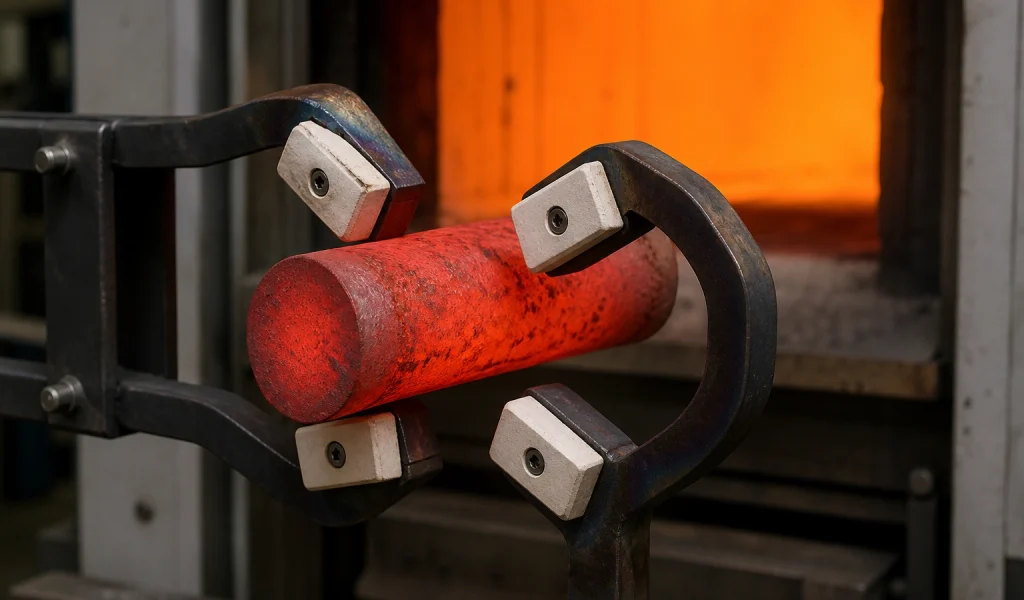

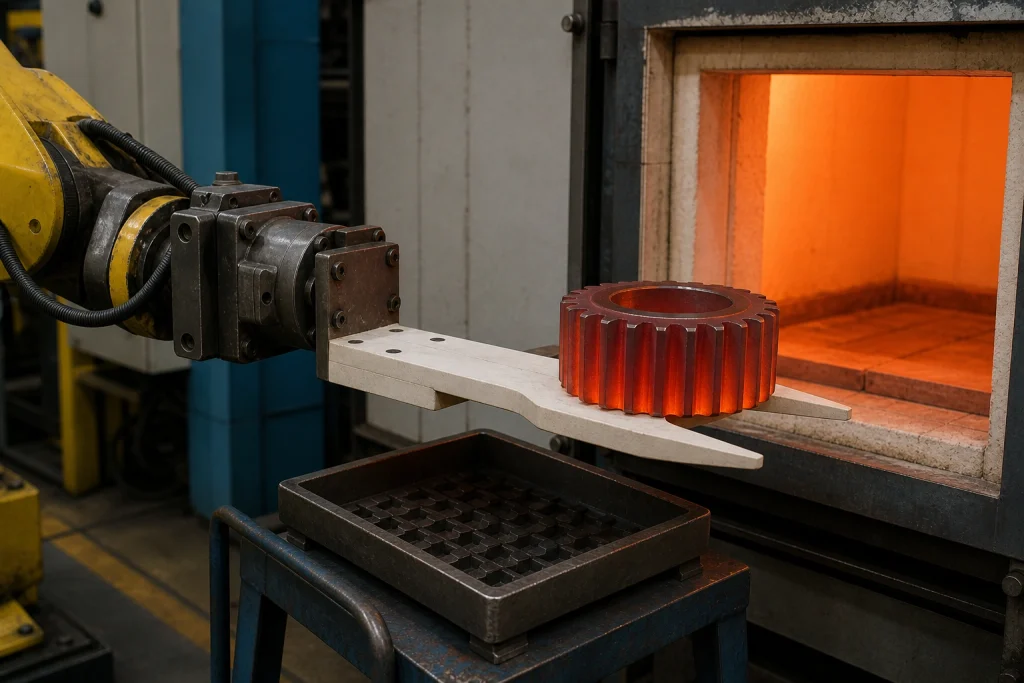

Furnace Loading & Heat Treatment
Typical need: hold or transfer hot components without softening, shorting or contaminating the contact area.
Useful solution: replaceable ceramic fingers on a metal holder, or a short ceramic fork where impact is controlled.
Custom Ceramic Arms Built Around Your Handling Task

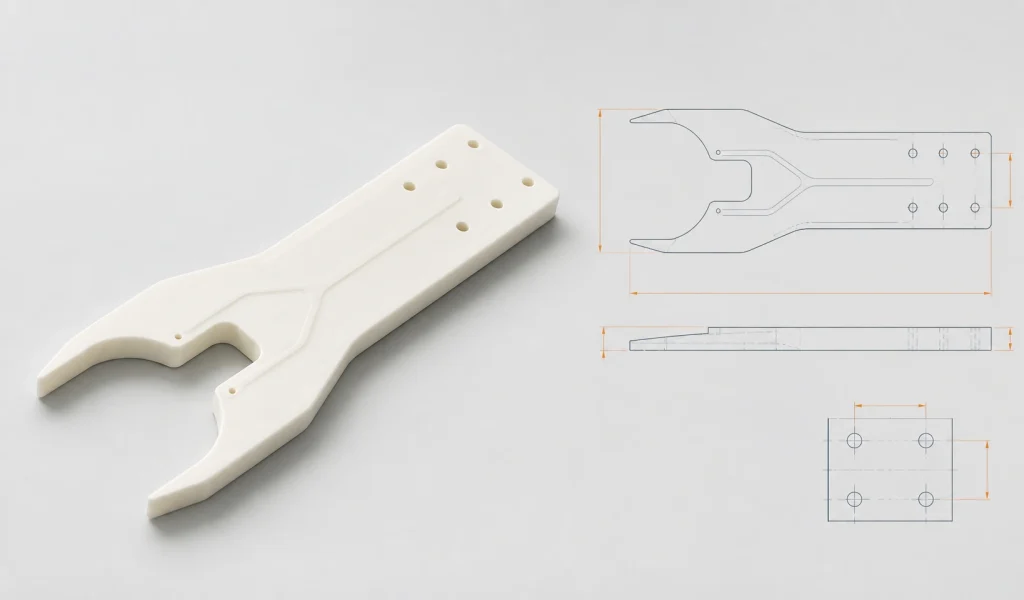

A ceramic arm must fit both the equipment and the workpiece it handles. We can customize its shape, mounting pattern, contact areas and vacuum layout to suit the application.
- Arm style: Forks, blades, paddles, gripper fingers, vacuum end effectors and replaceable tips.
- Material: Alumina, ZTA, zirconia, silicon nitride and silicon carbide.

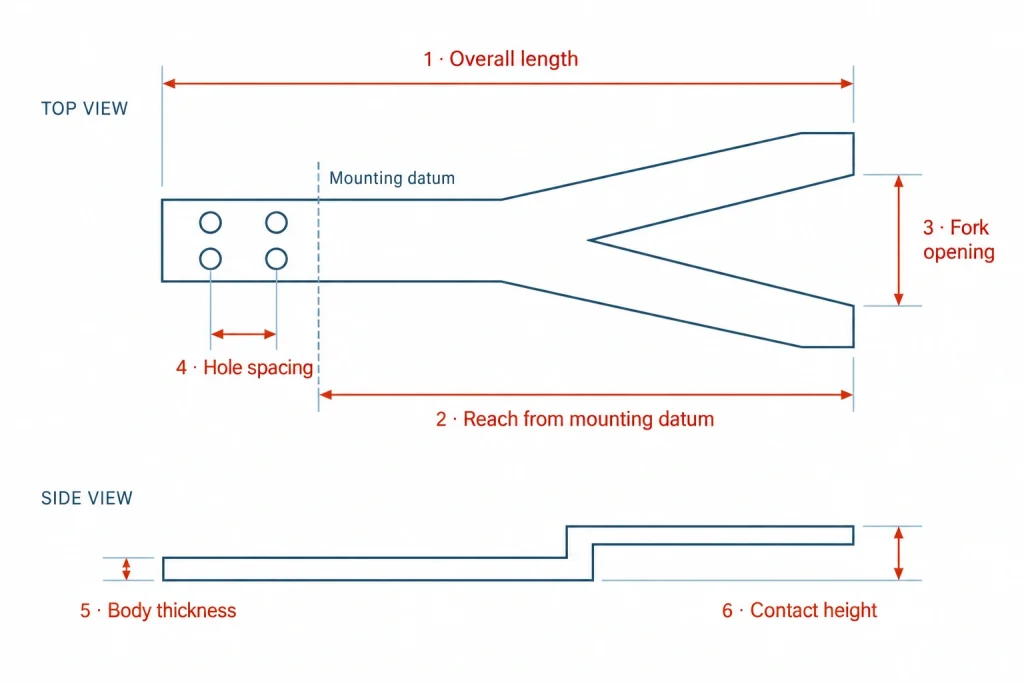

- Arm geometry: Length, width, thickness, fork opening, tine profile, chamfers and edge radii.
- Mounting features: Hole patterns, slots, counterbores, locating features and metal-holder interfaces.
- Contact areas: Support pads, contact profiles, flatness, roughness, and ground or polished finishes.
- Vacuum features: Suction holes, grooves, internal channels, ports and sealing surfaces.
From Concept to Repeat Order
The process is organized around the decisions your project requires, from application screening to repeat production.
Confirm the handling task, workpiece, failure mode and operating environment.
Align the material, structure, interfaces, critical surfaces, inspection plan and lead time.
Build a small batch for fit, handling, thermal or vacuum trials in your equipment.
Carry the approved drawing, inspection points and packaging into repeat production.
Why ADCERAX
Factory-Direct Manufacturing for Custom Ceramic Arms
- Engineering Support: Drawings, samples, materials and key interfaces reviewed before production.
- Flexible Production: From prototypes and small batches to repeat orders.
- Multi-Material Supply: Alumina, ZTA, zirconia, silicon nitride and silicon carbide.

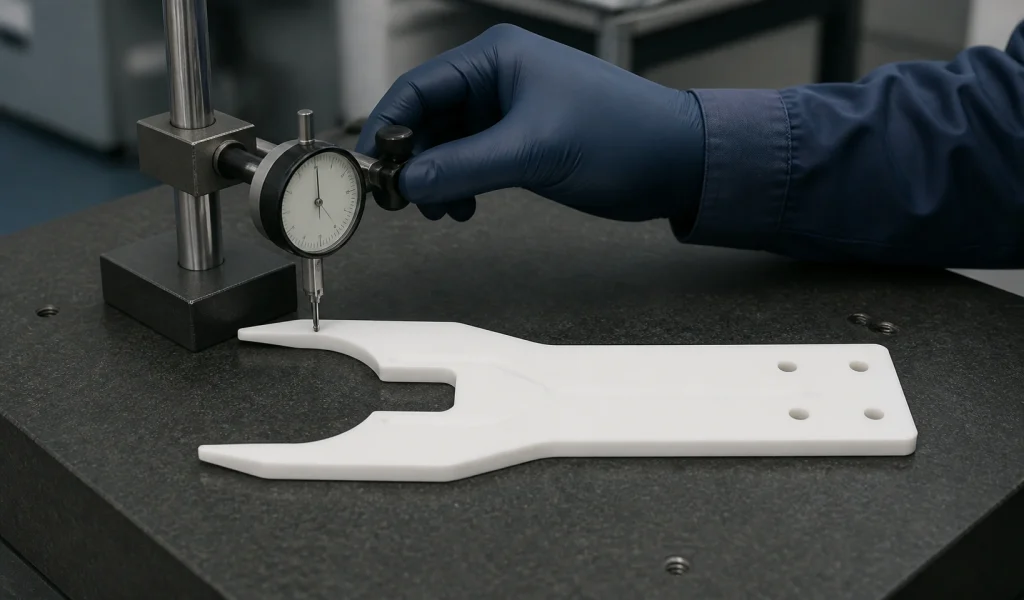

- Precision Inspection: Key dimensions, datums, mounting features and contact surfaces checked before shipment.
- Repeat-Order Control: Approved drawings and inspection points retained for future batches.
- Export Support: Protective packaging, documents and international shipping.
ADCERAX coordinates engineering review, ceramic processing, precision finishing, inspection and export delivery through one supply chain—reducing handoffs from prototype to repeat production.
Frequently Asked Questions About Ceramic Arms
Should I use a full ceramic arm or ceramic tips on a metal holder?
Use a full ceramic arm when continuous insulation, clean contact and stable geometry are needed and impact is controlled. A hybrid holder is often better when the tool sees collision risk, high fastening loads or frequent maintenance because the ceramic contact pieces can be replaced separately.
Which ceramic material is the best starting point?
Alumina is commonly the first material reviewed for cost-effective insulation and wear resistance. ZTA or zirconia may suit compact, damage-prone fingers; silicon nitride may suit thermal cycling and lower expansion; SiC may suit high stiffness and hot-zone duty. Final selection depends on geometry and service conditions.
Can internal vacuum channels and custom suction holes be produced?
They can be reviewed from the drawing. Feasibility depends on wall thickness, channel path, port design, sealing method, machining access and the required holding or leakage test. The vacuum source and workpiece surface should be provided with the RFQ.
Can ADCERAX make a replacement from an old part?

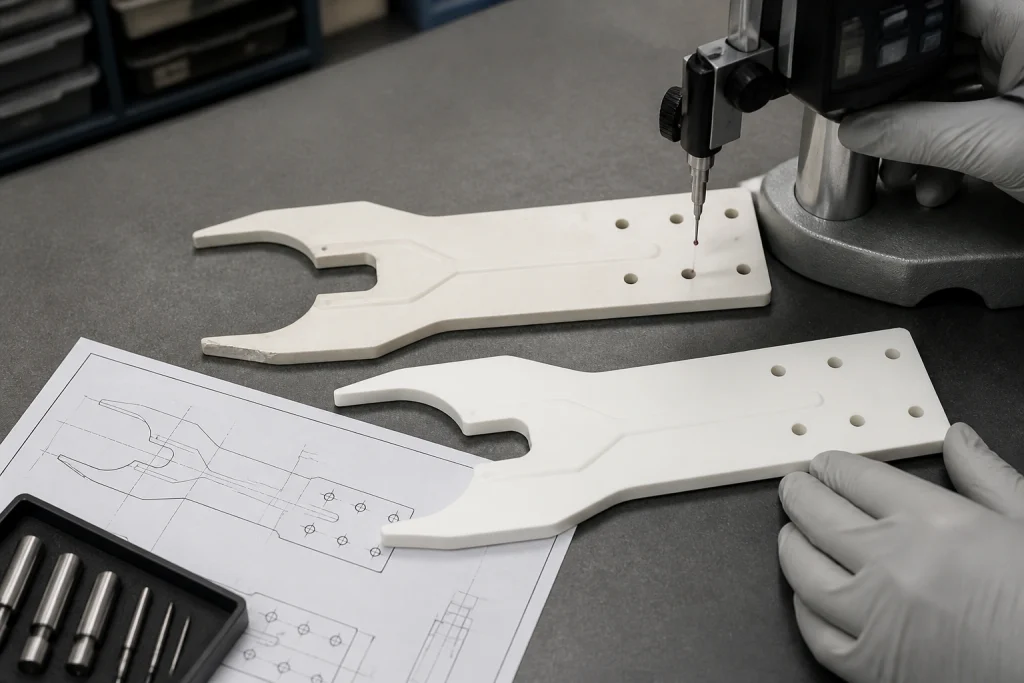

Yes, an old part can be used as an engineering reference. For a dependable replacement, we still need mounting datums, key dimensions, functional surfaces, material information and operating conditions. A fit test is recommended before repeat purchasing.
What tolerances and surface finish should I specify?
Specify only the dimensions and surfaces that affect installation or function. Identify mounting datums, hole position, flatness or parallelism over a stated length, and roughness on the true contact area. Achievable values are confirmed after material, size and machining access are reviewed.
Request a Ceramic Arm Engineering Review
Send the project information you have. A drawing is preferred, but old-part photos or a physical sample can also support an initial replacement or second-source review.
- Project Goal: New design, replacement part, backup source or repeat supply.
- Reference: PDF, STEP or DWG file, old-part photos or a physical sample.
- Workpiece: Size, weight, material and critical contact areas.
- Handling Method: Support fork, gripping, vacuum pickup or replaceable ceramic tips.
- Mounting Interface: Overall dimensions, hole positions, datums and fastening features.
- Operating Conditions: Temperature, atmosphere, chemicals and handling cycles.
- Current Issue: Breakage, wear, marking, vacuum loss, poor fit, obsolescence or long lead time.
- Required Volume: Prototype quantity, annual usage and spare-part needs.
ADCERAX will review the material, structure, critical dimensions, inspection requirements and prototype route before providing a quotation and expected lead time. Replacement projects may require a sample or fit check before the design is approved.
