Alumina Ceramic Rings – Sealing, Insulation and Wear Solutions
6ADCERAX makes custom alumina ceramic rings for sealing faces, electrical insulation, spacers, and wear/guide positions. Send a drawing or a photo of your old ring and our engineers review the material grade (96 / 99 / 99.5 / 99.7 Al₂O₃), OD / ID / height, surface and mating conditions before quoting.
Standard and drawing-based rings, ID 1–700 mm and OD up to 800 mm, tolerance down to ±0.05 mm with low-to-mid volume and repeat replacement parts supported. Explore ring types, specifications and application fit below, or send your requirement for an engineering review.
~1650–1750 °C
High-Temp Stable
Achievable tolerance, by drawing
What are Alumina Rings?
An alumina ring (also called an alumina ceramic ring) is a circular advanced-ceramic component used as an insulator, spacer, guide, or seal in harsh environments. Built from dense Al₂O₃, it pairs high thermal stability with strong dielectric strength and abrasion resistance.
They are typically manufactured in different purities—such as 96%, 99%, or 99.7% alumina—to balance cost, mechanical strength, and high-temperature performance. The most stable form, alpha alumina, is often chosen for critical applications requiring hardness and chemical inertness.
| Available Purity Grades | ||
|---|---|---|
| 96% Alumina (Al₂O₃) | Cost-effective option for general high-temperature and wear applications | Standard Grade |
| 99% Alumina (Al₂O₃) | Enhanced mechanical strength and thermal properties for demanding environments.Balanced performance and price | General Grade |
| 99.5%-99.7% Alumina (Al₂O₃) | Highest temperature resistance (1730°C), superior electrical insulation, excellent chemical inertness.Ideal for vacuum, high-voltage and high-temperature use | High Purity |
Alumina Ceramic Ring Properties & Benefits
Alumina ceramic rings combine thermal stability, electrical insulation, and wear resistance, making them ideal for furnaces, pumps, and automation systems. Reliable performance ensures long service life in demanding industrial environments.
Tight, repeatable dimensional control for reliable fit in pumps, valves and automation systems.
Strong electrical insulation for high-voltage, vacuum and electronic applications.
Stable in furnace insulation, coil supports and heating-element assemblies.
Withstands mechanical friction and chemical exposure, extending service life in fluid and sealing systems.
Alumina Ceramic Ring Benefits
| Property | 96% Al₂O₃ | 99% Al₂O₃ | 99.5% Al₂O₃ | 99.7% Al₂O₃ |
| Density (g/cm³) | 3.65–3.8 | 3.8–3.9 | 3.9 | ≥3.93 |
| Hardness (Mohs) | 8.8 | 9 | 9 | 9.1 |
| Max Operating Temp (°C) | 1450 | 1680 | 1700 | 1730 |
| Flexural Strength (MPa) | 260 | 300 | 320 | 330 |
| Thermal Conductivity (W/m·K) | 22 | 24 | 27 | 29 |
| Volume Resistivity (Ω·cm) | 10¹³–10¹⁵ | 10¹⁴–10¹⁵ | >10¹⁴ | >10¹⁵ |
| Dielectric Strength(kV/mm) | 15 | 19 | 21 | 22 |
Alumina Ceramic Ring Properties
Alumina Ring Types & Products
Alumina rings cover seal faces, insulator/spacer rings, wear/guide rings and Raschig tower rings — select the type that matches your position.

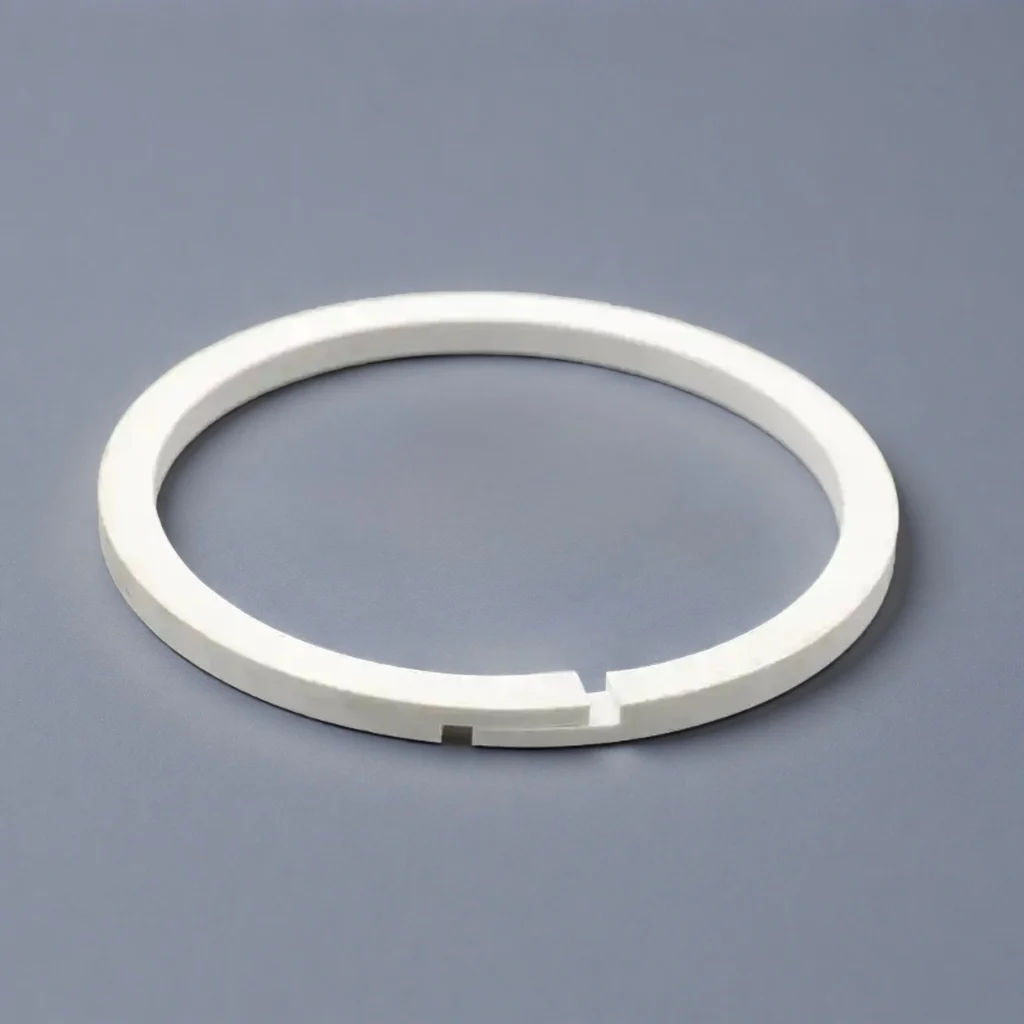

Alumina seal ring provides reliable insulation, sealing, and wear protection in precision equipment and industrial systems.

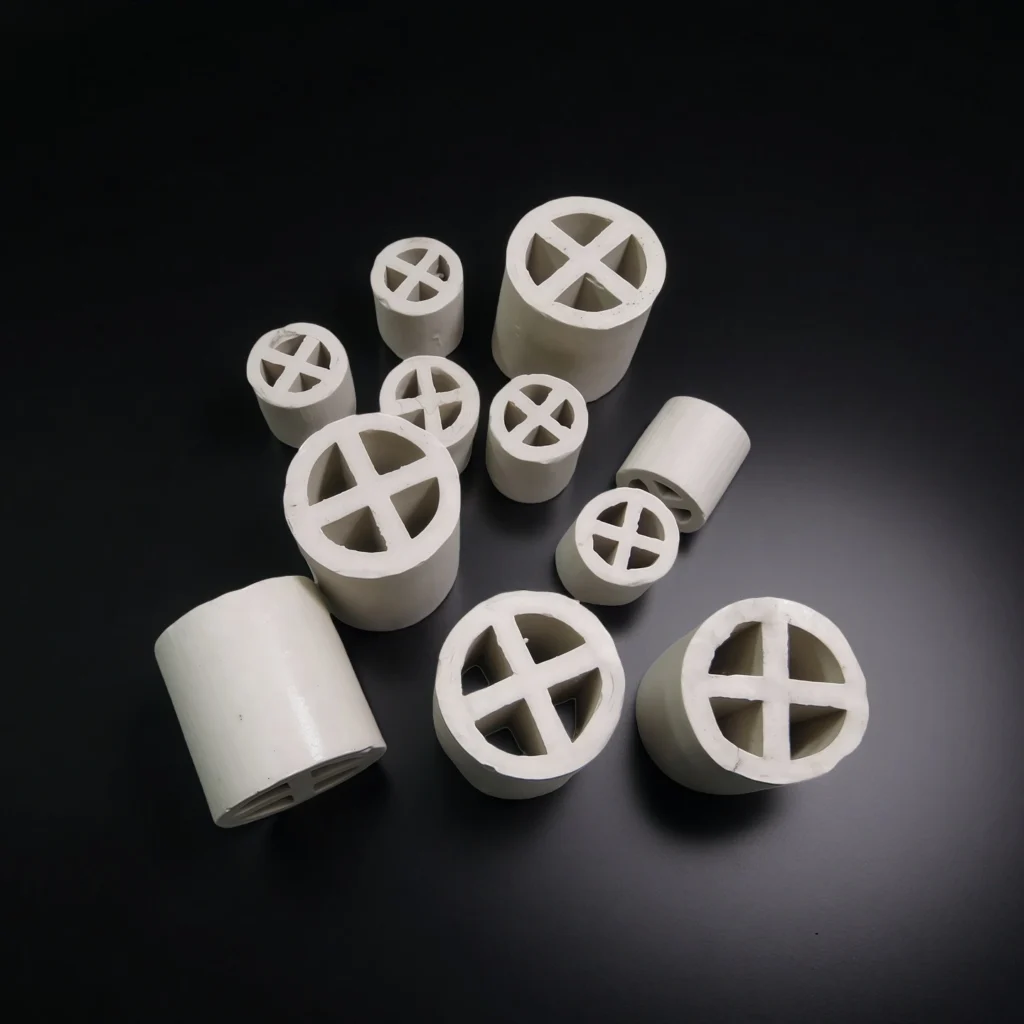

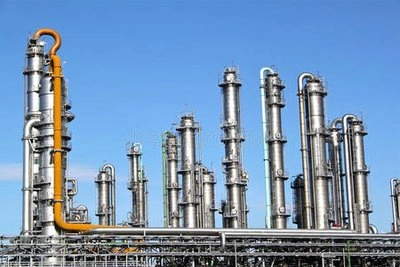

Alumina Raschig Rings provide strong chemical resistance and a large surface area for efficient mass transfer.
Alumina ceramic ring slices offer utstanding reliability and consistent performance under demanding conditions
Alumina ceramic washers offer high insulation, wear resistance, and stability for reliable use in demanding assemblies.
Alumina Ceramic Ring Applications

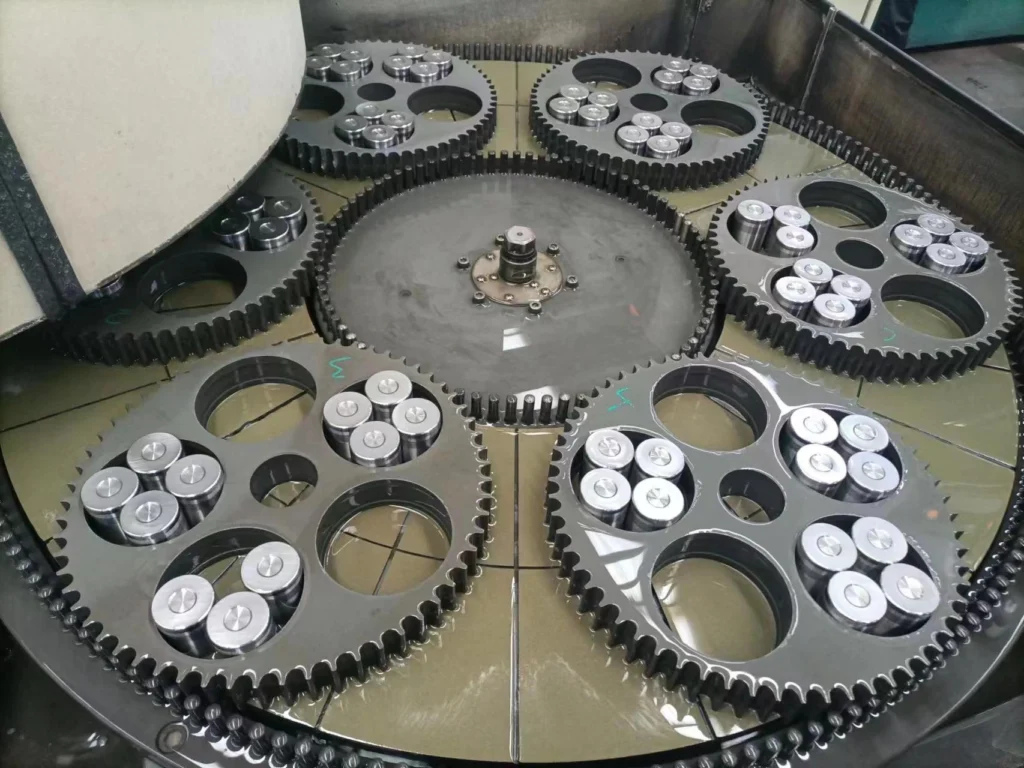

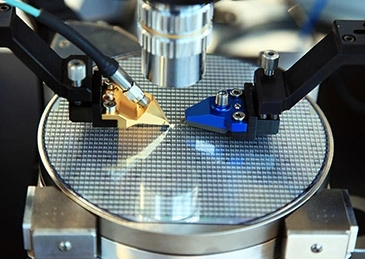

Alumina ceramic rings are used in wafer polishing, precision grinding and sealing where stable, contamination-free performance matters.
Semiconductor & Electronics

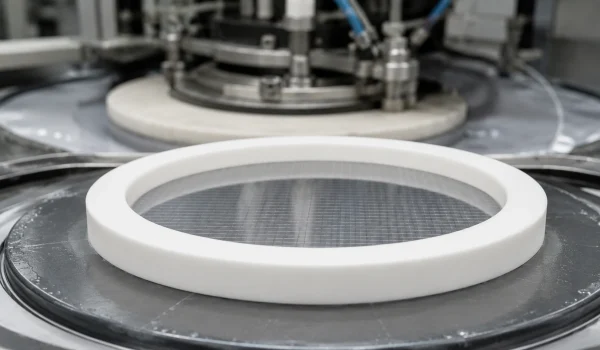

- Application: Wafer retaining, CMP and double-side lapping; also insulator rings.
- Why ADCERAX: High-purity, low-contamination bodies with tight, drawing-confirmed tolerance.
- Result: Supports wafer yield, reduces edge chipping and keeps processes repeatable.
Machinery & Automation

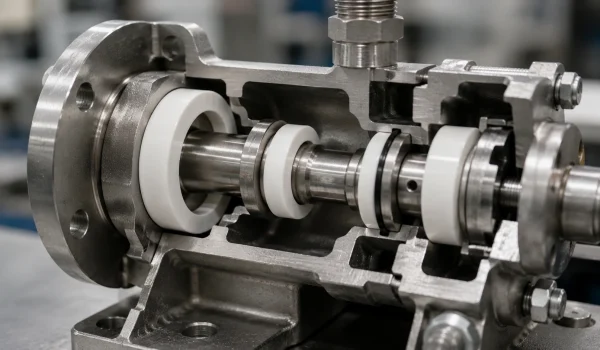

- Application: Seal rings, wear rings, bearing and guide rings in pumps, valves and automation systems.
- Why ADCERAX: Hard, wear-resistant alumina with stable dimensions for reliable fit and long service under friction and load.
- Result: Longer service life and steadier running clearances in moving assemblies.
Energy & Thermal Systems

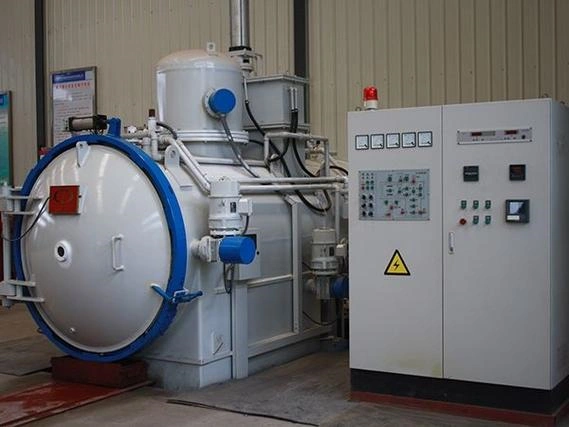

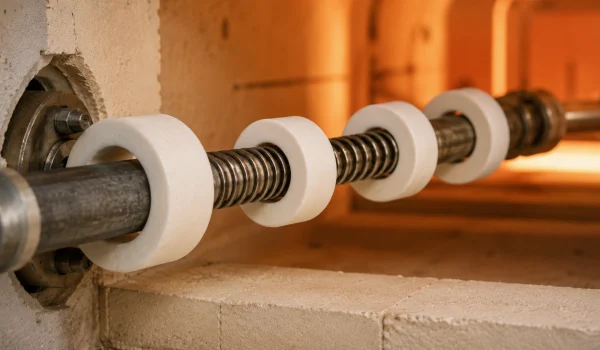

- Application: Insulating and support rings in furnaces, heaters, thermocouples and heating-element assemblies.
- Why ADCERAX: High-temperature stability and strong electrical insulation that hold up through repeated thermal cycles.
- Result: Reliable insulation and dimensional stability in hot, electrically demanding environments.
Chemical & Environmental

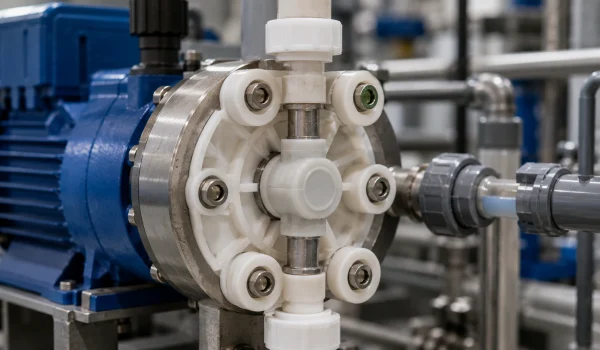

- Application: Sealing and wear rings in pumps, valves and dosing systems handling aggressive or abrasive media.
- Why ADCERAX: Chemically inert, corrosion-resistant alumina that resists attack where metals and plastics fail.
- Result: Extended service life and cleaner operation in corrosive fluid and sealing systems.
We make drawing-based alumina rings in 96–99.7% Al₂O₃, reviewed by engineers before quoting.
China Alumina Ring Custom Supplier
ADCERAX supplies alumina ceramic rings directly from our China factory, combining bulk availability with full customization support. Beyond standard stock, we provide engineered solutions tailored to sealing, insulation, wear/guide and high-temperature positions
Customization Options
Extra-large / Extra-small diameters, non-standard thicknesses, and ultra-long / ultra-short lengths.
Provide higher - level dimensional accuracy and concentricity control than the standard.
Flanges, steps, threads, drilling holes, grooves, etc.
Adjust the material according to the application requirements.
Polish and grind the surface to achieve a specific surface roughness.
Customization Process
Send us your drawing, CAD file, or physical sample with material grade, dimensions, tolerances, and quantity. Our engineers will evaluate the design and provide a detailed quotation with lead time and pricing.
Once the quote is approved, we proceed with sample prototyping (1–50 pcs) if needed, for testing and validation.
After sample approval or direct confirmation, we begin batch manufacturing using CNC machining, sintering, and polishing. All parts undergo dimensional checks, material purity testing, and surface finish inspection.
Finished products are securely packed and shipped via DHL/FedEx/UPS or your preferred method. We support global delivery with full documentation.
ADCERAX — Custom Alumina Ceramic Ring Manufacturer
ADCERAX is a China-based manufacturer of custom alumina ceramic rings for engineering teams worldwide. We review your drawing, sample or old ring before quoting — so you get the right grade, size and surface, not just a price.
We check material grade, OD/ID, surface and mating conditions before quoting, so the ring fits your position.
Our engineers confirm the right alumina grade for seal, insulation or wear positions and flag risks early.
From a drawing, a size list or a photo of a worn ring — including low-to-mid volume and repeat replacement parts.
Fast reply; standard items ship in days, custom rings in weeks, confirmed to your schedule.
Alumina Ceramic Ring Factory-ADCERAX
ADCERAX is a China-based alumina ceramic ring manufacturer, offering insulating rings, sealing rings, spacers and precision rings. Backed by a manufacturing base operating since 2010, we serve overseas engineering teams across North America, Europe and Asia, meeting strict QC requirements. Using advanced forming, sintering and precision machining, we deliver rings with tight dimensional accuracy, high dielectric strength and long-term reliability.
- 96%–99.7% high-purity alumina for heat resistance and insulation stability
- Custom ID/OD/height rings made from drawings or samples
- Prototype and sample support with flexible MOQ
- QC on tolerance, dielectric strength and surface finish
- Engineering support for OEM and application-specific designs
Alumina Ring Processing
ADCERAX produces custom alumina ceramic rings from material selection through high-temperature firing, precision machining and finishing — for sealing faces, electrical insulation, wear/guide and support positions.
| Technical Capabilities Overview | |
|---|---|
| Material Grades | 96%, 99%, 99.5%, 99.7% Al₂O₃ — for high-temperature, electrical and wear-resistant uses |
| Diameter Range | ID 1–700 mm, OD up to 800 mm; height by drawing. Tolerance down to ±0.05 mm, confirmed by drawing. |
| Forming Methods | Dry pressing, isostatic pressing, and CNC machining for precise geometry |
| Processing | High-temperature sintering, surface grinding, polishing, and edge chamfering |
| Surface Finish | Smooth / Ground / Polished, depending on requirements |
| Customization | OEM solutions supported with drawings or samples |
FAQs About Alumina Ceramic Ring
For high-temperature insulation and standoffs, alumina in the high-purity(99.5%–99.7% Al₂O₃) range is commonly selected. If you require maximum hardness and phase stability, specify an alpha alumina ring.
When evaluating ceramic rings, buyers often compare alumina, zirconia, and silicon carbide to balance thermal performance, mechanical properties, and cost.
| Property / Material | Alumina (Al₂O₃) | Zirconia (ZrO₂) | Silicon Carbide (SiC) |
|---|---|---|---|
| Max. Service Temp. | 1650–1750 °C | 1000–1200 °C | ~1800 °C |
| Dielectric Strength | Excellent (≥10 kV/mm) | Good | Poor (semiconductive) |
| Toughness | Moderate | Very High | Moderate |
| Thermal Shock Resistance | Fair | Moderate | Excellent |
| Wear Resistance | High | High | Very High |
| Typical Applications | Furnace insulation, pump seals, electrical insulators | Bearings, cutting tools, high-load components | Kiln parts, wear parts, thermal shock environments |
| Relative Cost | ★ (Low) | ★★★★ (High) | ★★★ (Medium–High) |
Choose Alumina if you need cost-effective, electrically insulating rings with strong heat resistance.
Choose Zirconia for high-toughness, high-load applications, despite higher cost.
Choose Silicon Carbide where extreme thermal shock and wear resistance are critical, but insulation is not required.
We make alumina rings with ID from 1 mm up to 700 mm and OD up to 800 mm, with tolerance down to ±0.05 mm where the drawing requires it. Height and surface are confirmed per drawing.
Yes. OEM customization is supported, including ID/OD/height adjustments, grooves, chamfers, slots, and drilled holes.
With dielectric strength typically ≥10 kV/mm, alumina rings provide stable insulation in high-voltage, vacuum, and electronic systems.
Lead time depends on ring type, size, grade and quantity. Standard forms are usually faster than fully drawing-based custom rings; we confirm the realistic lead time for your item at RFQ.
Pricing depends on grade (95-99.7%), dimensions and tolerances, surface finish and quantity. Send a drawing or size list with quantity and we reply with what we can make and the applicable price after a short engineering review.
What to Send for an Alumina Ring Quote
To quote a custom alumina ring, send what you have:
- Ring type / position: seal ring · seal face · insulator / spacer · wear / guide · Raschig
- Dimensions: OD, ID, height / thickness
- Alumina grade: 96% / 99% / 99.5% / 99.7%
- Application & working conditions: medium, temperature, pressure or voltage
- Seal faces: flatness, Ra, parallelism, mating material — Insulators: working voltage, creepage path — Wear rings: abrasive medium, load, speed
- Quantity and target lead time
- Drawing, photo or old-ring sample
Alumina rings serve sealing, insulation, wear/guide and support positions. Send your details and our engineers review the fit — and the right grade — before quoting.
