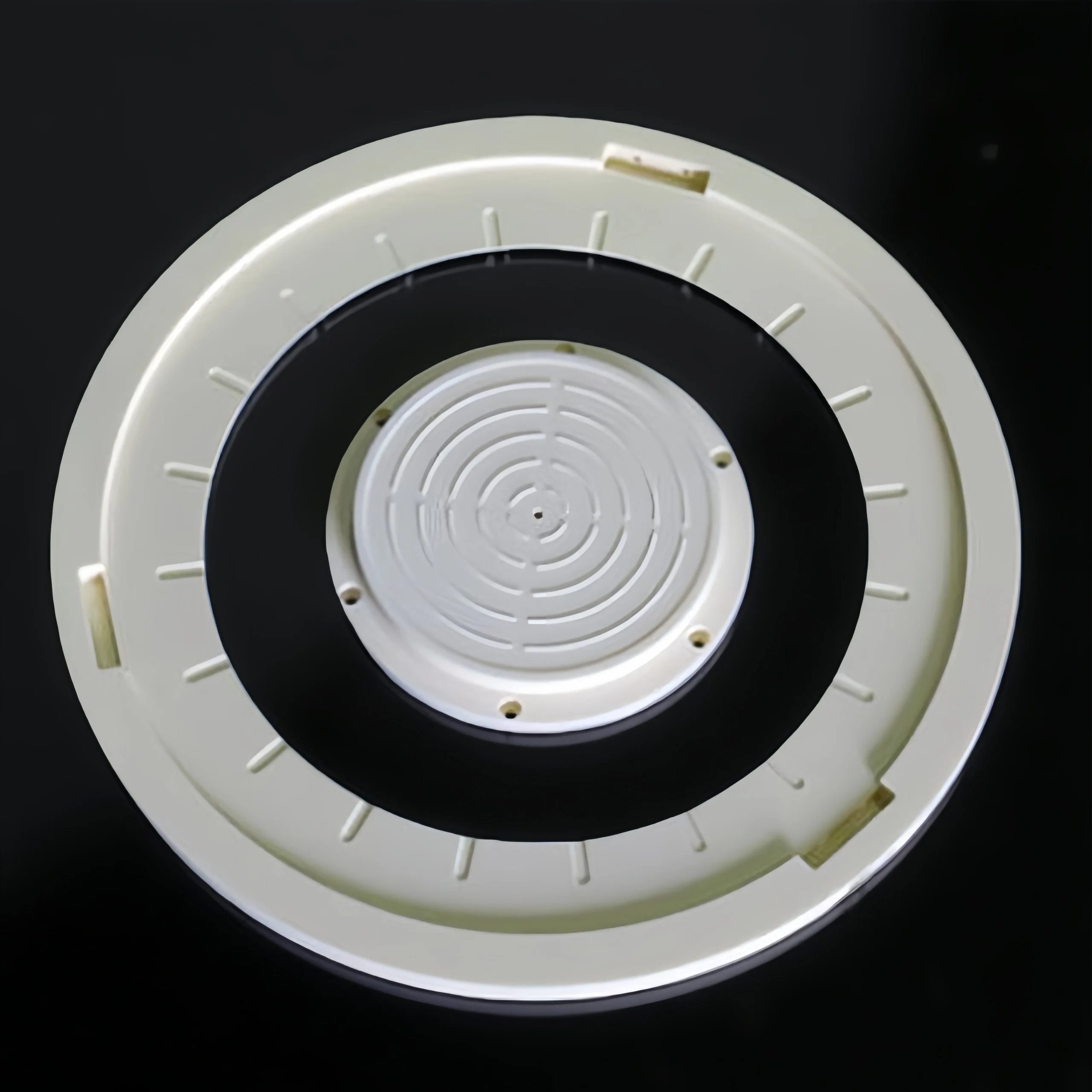

High Purity Alumina Guard Ring for Vacuum Systems

Applications of High Purity Alumina Guard Rings

• Industrial PVD and Vacuum Coating Equipment

  High purity alumina guard rings can be used around chamber fixtures, shield assemblies and heater-adjacent areas where ceramic protection and repeatable maintenance replacement are required.

  They help solve three practical problems:

  1. The ring must return to the same seated position after cleaning.
  2. Ceramic edges must survive repeated removal and installation.
  3. The replacement part must match the original chamber clearance without rework.
  For this application, ADCERAX recommends confirming OD, ID, step height, seating face, edge chamfer and orientation mark before production.

• Plasma Surface Treatment and Industrial Process Fixtures

  In plasma-related surface treatment equipment, guard rings may be exposed to repeated cleaning, edge contact, deposits and fixture changes. Dense alumina ceramic can be selected when electrical insulation, wear resistance and stable ceramic geometry are important.

  The design should focus on:

  1. Functional faces that control seating and clearance.
  2. Edge breaks that reduce handling damage.
  3. Inspection datum that helps maintenance teams verify replacement consistency.

• Vacuum Thermal and Heater-Adjacent Assemblies

  Guard rings used near heater-adjacent structures need stable geometry and careful material selection. High purity alumina is suitable for many high-temperature insulating and protective ring applications, but the final grade should be reviewed according to temperature, atmosphere, thermal cycling and mounting method.

  For this application, ADCERAX should review:

  1. Whether the ring is load-bearing or only protective.
  2. Whether thermal expansion clearance is required.
  3. Whether the ring has sharp steps, thin walls or unsupported sections.

• R&D Vacuum Systems and Pilot-Line Fixtures

  Research systems often require small quantities, revised drawings and non-standard profiles. ADCERAX can support sample-based or drawing-based alumina guard rings when engineers need to test a modified chamber fixture, improve seating, or replace a difficult-to-source ceramic ring.

  This scenario is suitable when:

  1. The original part is available as a sample.
  2. The drawing needs adjustment after testing.
  3. The ring requires notches, steps or special dimensions.

Use Guide — High Purity Alumina Guard Ring

• Installation

  1. Confirm datums: identify seating face(s), locating features, and the direction of installation.
  2. Dry-fit check: verify OD/ID clearance and step engagement before final assembly.
  3. Use clean handling: avoid metal tools contacting edges; use soft pads for positioning.
  4. Torque/fixture contact: ensure the ring is not forced into a stressed condition by clamps or misaligned fixtures.

• During use

  1. Keep the ring in its intended position; avoid shifting after thermal cycling.
  2. If deposits build up, plan cleaning at consistent intervals to avoid thick "flake layers."
  3. Record replacement cycle and observed wear pattern to refine the next drawing revision.

• Storage

  1. Store flat on padded surfaces; avoid ring-to-ring contact.
  2. Keep sealed bag + desiccant for longer storage.
  3. Label orientation and matching chamber location if multiple variants exist.

• Cleaning

  1. Use approved cleaning compatible with your process residues; avoid aggressive mechanical scraping on edges.
  2. Rinse and dry fully; confirm no trapped moisture if returning to vacuum service.
  3. Re-check critical faces for chips before reinstall.

• Common handling/operation mistakes

  1. Mistake: Installing the ring upside down (step face reversed).
  Fix: Add an orientation mark and define “Side A / Side B” on the drawing and packing label.

  2. Mistake: Forcing the ring into a tight pocket after deposit build-up.
  Fix: Remove residue and confirm clearance; do not use prying tools on ceramic edges.

  3. Mistake: Stacking rings directly during storage, causing edge bruising.
  Fix: Use foam separators and store each guard ring in an individual cavity.

High Purity Alumina Guard Ring FAQ

1. What is a high purity alumina guard ring used for?
   A high purity alumina guard ring is used as a ceramic protection ring inside vacuum chambers, PVD systems, plasma surface treatment equipment and heater-adjacent assemblies. It helps shield nearby components from wear, deposits, plasma exposure and repeated maintenance contact.
2. Why choose high purity alumina instead of metal for a guard ring?
   High purity alumina provides electrical insulation, high hardness, temperature stability and good chemical resistance in selected process environments. It is often selected when metal rings may conduct electricity, contaminate the process area, wear quickly or react with the working environment.
3. Which dimensions are most important for a custom alumina guard ring?
   The most important dimensions are OD, ID, thickness, step height, seating face, chamfer, notch location and inspection datum. For replacement parts, the worn sample should also be checked because the damaged edge may not represent the original design.
4. Can ADCERAX make an alumina guard ring from a sample?
   Yes. ADCERAX can review a sample and help convert it into a controlled drawing. The review should confirm original dimensions, functional surfaces, step direction, edge condition, locating features and any wear that may have changed the sample geometry.
5. How can chipping risk be reduced during installation?
   Chipping risk can be reduced by adding proper chamfers or radii, avoiding sharp unsupported corners, defining safe handling areas and using protective packaging. During installation, do not use metal tools directly on ceramic edges and do not force the ring into a contaminated pocket.
6. What information should be provided for quotation?
   Please provide a drawing or sample photos, OD, ID, thickness, step profile, material purity, quantity, operating condition, chamber position, key inspection points and packaging requirement. If the part is used near heat, plasma or vacuum service, include temperature, atmosphere and cleaning method for review.
