Custom & Machined Alumina Ceramic Parts for Industrial, Electrical & Semiconductor Systems
ADCERAX is a China-based manufacturer of custom alumina ceramic parts — precision-made insulating, wear-resistant and structural components for industrial, semiconductor and electrical equipment. Parts are made to your drawing, sample or old-part photos in 95–99.7% Al2O3, with an engineering review of geometry, tolerance and working conditions before quotation.
✅ Small-Batch Customization & Rapid Samples
✅ Precision Machining Capability
✅ Expert Engineering Support
✅ On-Time Production Delivery
What Are Alumina Ceramic Parts?
Alumina parts are precision-engineered mechanical and structural support components made from alumina ceramic (Al₂O₃). These alumina ceramic components are used across a wide range of demanding applications — including industrial machinery, semiconductor processing, electrical insulation systems, vacuum and analytical instruments, chemical processing equipment, and thermal control assemblies.
Typical products include spacers, housings, fixtures, wear pads, insulating sleeves, and precision holders, all designed to maintain performance under extreme temperature, voltage, or chemical exposure.
Alumina Ceramic Parts Properties
Manufactured through high-temperature sintering and precision machining, alumina ceramic components offer exceptional dimensional stability, thermal resistance, and chemical inertness.
Mechanical Strength of Alumina Parts
- Flexural strength typically 260–380 MPa and compressive strength up to ~2600 MPa, rising with Al2O3 grade
- Vickers hardness typically HV ~1450–1800 by grade for strong wear resistance
- Stable dimensions after repeated thermal and mechanical cycles
Chemical Properties of Alumina Parts
- Resists most acids, alkalis and solvents (pH 5.7–14; excludes HF, hot phosphoric acid)
- Low ion release keeps process fluids and cleanroom environments uncontaminated
- Dense, non-porous fired body (0% water absorption, typical)
Thermal Performance of Alumina Parts
- Maximum use temperature typically up to ~1750–1760 °C for 99.5–99.7% grades (no load); ~1450 °C for 95–96%
- Low thermal expansion (~7.6–8.4 × 10⁻⁶/K) helps assemblies stay tight through heating cycles
- Thermal-shock behavior is grade- and geometry-dependent — reviewed against your heating profile
Electrical Properties of Alumina Parts
- Dielectric strength typically ~15–23 kV/mm by grade (typical values, not certified ratings)
- Volume resistivity >10¹⁴ Ω·cm (typical) with stable insulation at elevated temperature
- Low dielectric loss and no conductive ion migration in high-voltage assemblies
Alumina Grades & Typical Material Properties
Choose the grade by temperature, insulation, wear and contamination sensitivity — 95–96% for cost-effective general parts, 99% for higher insulation and corrosion duty, 99.5–99.7% (C799-class) for high-purity, high-temperature and semiconductor-adjacent work.
| Property | Unit | 95–96% Al₂O₃ | 99% Al₂O₃ | 99.5% Al₂O₃ | 99.7% Al₂O₃ |
|---|---|---|---|---|---|
| Standard grade reference | – | IEC C-786 / ASTM D2442 Type II (similar) | IEC C-795 / Type III (similar) | High-purity commercial grade | IEC C-799 / Type IV (similar) |
| Alumina content | % | 95–96 | 99 | 99.5 | 99.7 |
| Density | g/cm³ | 3.6–3.75 | 3.83 | 3.89 | 3.92 |
| Water absorption | % | 0 | 0 | 0 | 0 |
| Young’s modulus | GPa | ~300 | ~360 | ~370 | ~375 |
| Flexural strength | MPa | ~260 | ~300 | ~379 | ~380 |
| Compressive strength | MPa | ~1910 | ~2210 | ~2600 | ~2600 |
| Fracture toughness | MPa·m¹ᐟ² | ~3.5 | ~4 | ~4 | ~4 |
| Hardness HV | GPa | ~14.5 | ~17 | ~17 | ~18 |
| Thermal conductivity | W/m·K | ~22 | ~24 | ~35 | 33–38 |
| Thermal shock resistance ΔT | °C | ~200 | ~200 | ~200 | ~223 |
| Max use temperature (no load) | °C | ~1450 | ~1680 | Up to 1750 | ~1760 |
| CTE | 10⁻⁶/°C | ~7.6 | ~7.6 | ~8.4 | ~8.4 |
| Volume resistivity | Ω·cm | >1×10¹⁴ | >1×10¹⁴ | >1×10¹⁴ | >1×10¹⁴ |
| Dielectric constant | – | ~9.2 | ~9.5 | ~9.8 | ~9.84 |
| Dielectric strength | kV/mm | ~15 | ~19 | ~16.9 | ~23.4 |
| Dissipation factor @1 kHz | – | ~0.0005 | ~0.0003 | ~0.0002 | ~0.0001 |
Typical values for material selection only. Not certified specifications. For certified values on a specific part, request an Engineering Review.

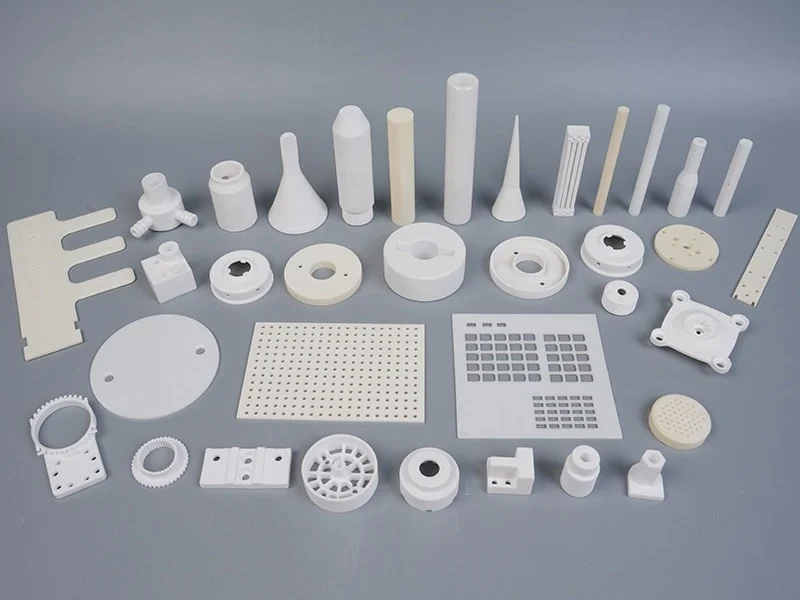

Common Alumina Part Families We Make
ADCERAX alumina parts cover a broad range of precision-engineered components, including screws, bearings, heaters, igniters, nozzles, and gauges, etc. Each part is produced from high-purity alumina ceramic (95–99.7%) to ensure precise fit, stable performance, and long lifespan.
Alumina ceramic bearings deliver smooth rotation and excellent wear resistance under heat or chemical exposure.
Alumina ceramic heaters provide uniform heat distribution and excellent insulation for precision thermal control.
Alumina ceramic igniters ensure stable ignition and long working life for furnaces and gas systems.
Alumina ceramic nozzles deliver accurate flow and exceptional wear resistance for abrasive or chemical media.
Alumina gauges ensure precise dimensional stability and insulation for accurate calibration work.
Alumina oxide ceramic fiber provides excellent insulation and strength for high-temperature sealing and lining.
Alumina laser reflectors are structural reflector bodies with high dielectric strength and precision-ground datum faces.
Alumina ceramic screws provide high strength, insulation, and corrosion resistance for industrial use.
Alumina ceramic robot arms combine rigidity, cleanliness, and electrical insulation for automation systems.
Precision You Can Specify — Custom Alumina Parts by ADCERAX
From design and sample development to volume production, our alumina precision parts are made to your drawing and verified against it. Every project gets tailored engineering support and a quotation prepared after a manufacturability review of geometry, tolerance and grade.
Alumina Oxide Parts Applications
Alumina parts are used in industrial, semiconductor, and electrical systems requiring high strength and insulation. They function as insulators, spacers, bearings, and protective sleeves in chemical equipment, vacuum assemblies, and precision instruments, ensuring high performance under heat, wear, and corrosion.

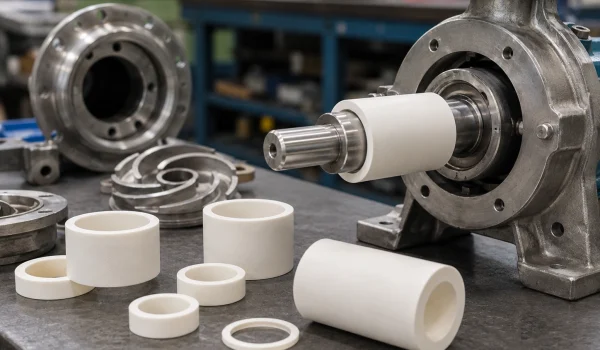

Industrial Equipment
Wear-resistant spacers, rings and sleeves for pumps, valves and precision machinery.
Metal parts corrode, seize or deform under abrasion, chemicals and thermal cycling.
High-purity alumina machined to ±0.05 mm resists wear and corrosion in continuous operation — longer service life, less downtime.

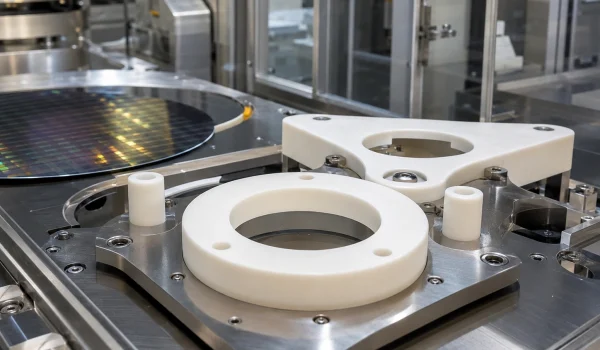

Semiconductor & Electronics
Wafer handling fixtures, isolation parts, vacuum chucks and supports.
Metallic parts shed contaminants and drift dimensionally under heat and plasma.
99.7% alumina stays dimensionally stable and non-contaminating in vacuum and plasma environments, with minimal particle generation.

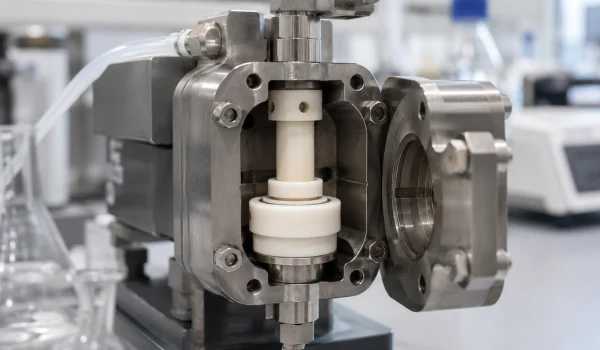

Chemical & Laboratory
Corrosion-proof housings, gauges, guides and supports for analytical and thermal equipment.
Glass and metal components degrade in acids, alkalis and solvents.
Chemically inert across pH 5.7–14 (excludes HF, hot phosphoric acid), stable to ~1730 °C, with polished contamination-free surfaces.

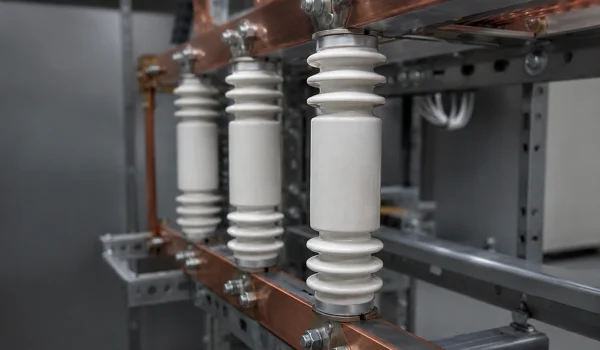

Electrical & Power
High-voltage insulators, standoffs and protective sleeves for sensors and power systems.
Polymer and metal parts lose insulation strength under heat and voltage cycling.
Stable dielectric insulation of ~15–23 kV/mm (typical) with no ion migration, machined to tight tolerances for reliable assembly.
Customize Alumina Ceramic Components Factory
ADCERAX is a professional alumina ceramic parts manufacturer, specializing in customized components with complex geometries, tight tolerances, and Al2O3 purity grades from 95% to 99.7%. Each part is made to your drawings or samples after an engineering review; lead time is confirmed together with the quotation once geometry, grade and quantity are reviewed.
Customization Options
Rings, plates, bushings, sleeves, insulators and wear parts made from your drawing or sample.
Bore size, sealing face, flatness, concentricity and surface finish reviewed by part use.
Chipping, abrasion, leakage, insulation loss or cracking checked before material choice.
95–99.7% alumina matched to temperature, voltage, wear and media.
Lead time, inspection items and documents confirmed after drawing and quantity review.
Customization Process
For faster review, send the part drawing or old-part photo, current failure mode, working temperature, media or voltage, tolerance, surface finish, quantity, and any inspection or document needs.
Drawing, sample or old-part photo, part type, dimensions, tolerance, quantity, working conditions and failure mode.
ADCERAX confirms which alumina grade — 95%, 99%, 99.5% or 99.7% — fits the temperature, insulation, wear and media.
Prototype, sample or small-batch trial confirmed by geometry, tolerance, quantity and application risk.
Isostatic pressing, sintering, CNC machining, surface finishing, dimensional inspection and document review.
Secure packing and shipment by express, air, sea or your forwarder, with required documents.

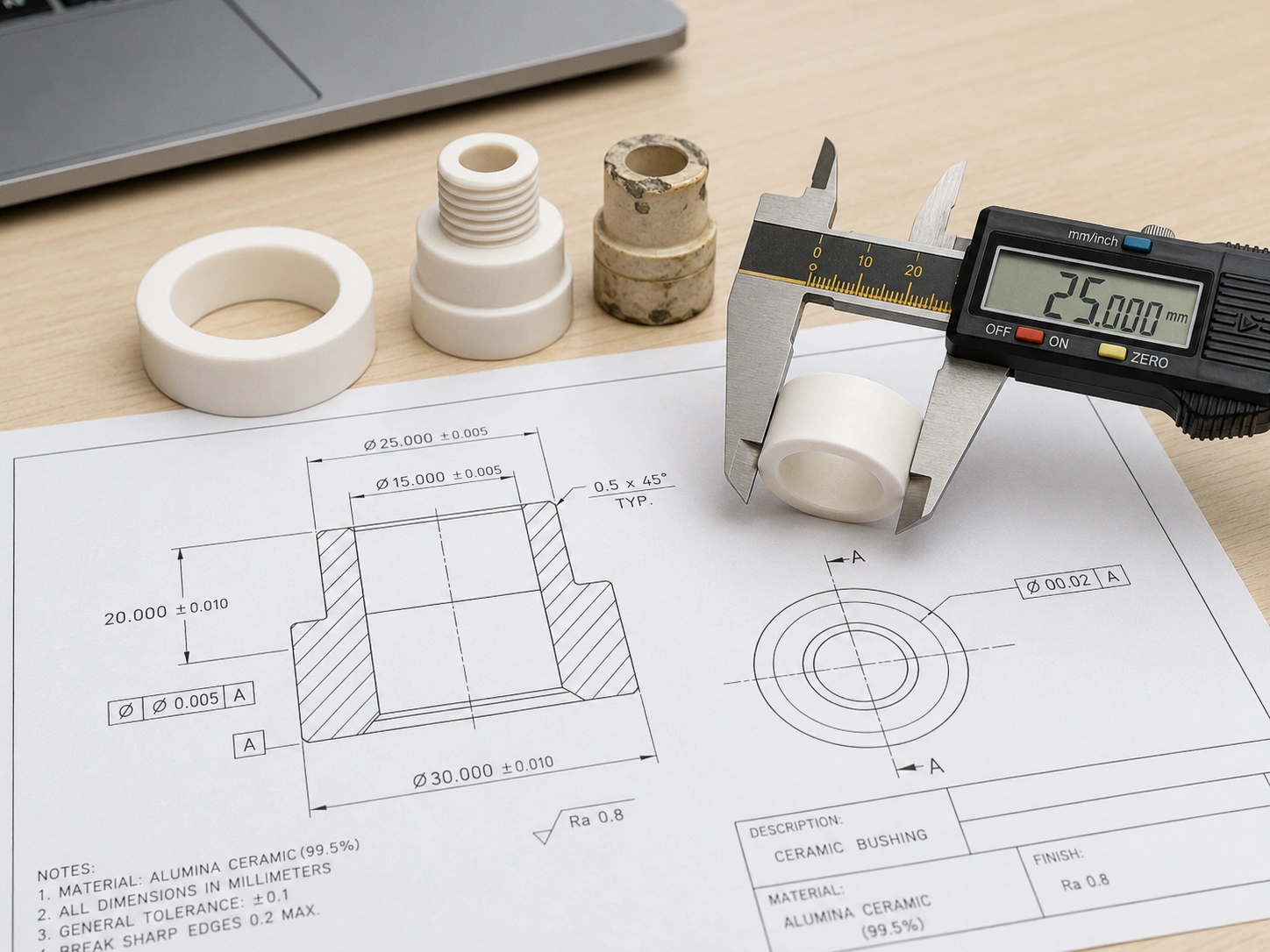

What to include in your RFQ
- Part form and its usual English name (washer, bushing, insulator, nozzle…)
- Drawing, CAD file, or clear photos of the old part / sample
- Material or purity grade requirement, if known (95–99.7% Al2O3)
- Key dimensions and tolerances; surface roughness, flatness or concentricity where they matter
- Working temperature, atmosphere and media
- Voltage / insulation, vacuum, wear or corrosion conditions
- Quantity, annual demand and whether orders repeat
- Why the current part fails or why you are switching suppliers
Send whatever you have — our engineers review manufacturability and application fit before quoting.
ADCERAX – Custom Alumina Ceramic Parts Manufacturer
ADCERAX is a China-based custom alumina ceramic parts manufacturer, providing factory-direct supply, consistent quality, and full technical support for global OEM customers. From standard alumina components to custom-machined ceramic assemblies, we deliver precision manufacturing, dependable lead times, and engineering service worldwide.
Competitive pricing with strict quality control from raw material sourcing to final delivery
Professional team providing comprehensive technical support and collaborative design
Small batch orders to large-scale production with complex geometries and tight tolerances
Every inquiry is reviewed by an ADCERAX engineer; lead time is confirmed along with your quotation.
DCERAX integrates design, machining, QC and logistics into one process; tolerances are confirmed per drawing in the engineering review.
-
Precision Machining Assurance:
Each alumina part is validated from drawing to production, with critical dimensions inspected to your tolerance callouts for precise fit and stable assembly. -
Batch Quality Consistency:
Every production batch of custom alumina components undergoes strict QC on density, surface finish, and mechanical strength to maintain reliable performance across applications. -
Technical Engineering Support:
Our engineers assist OEM clients with material selection, tolerance optimization, and structural design, helping improve part lifespan and reduce maintenance costs in operation.
ADCERAX focuses on the manufacturing of alumina parts, combining precision CNC machining with strict quality control to ensure consistency in every batch. The result is high-density ceramic components with excellent dimensional accuracy and long service life.
| Manufacturing Capabilities Overview | |||
|---|---|---|---|
| Capability Item | Typical Value / Description | ||
| Material Grades | 95%–99.7% Al₂O₃ high-purity alumina for machined alumina parts offering superior hardness, insulation, and corrosion resistance. | ||
| Dimension Range | Custom components available from micro-size insulators to large structural parts, with tolerances of ±0.005–2 mm depending on geometry. | ||
| Forming Methods | Isostatic pressing, precision CNC machining, and fine grinding ensure high density, dimensional stability, and repeatable accuracy. | ||
| Processing | Controlled sintering up to 1,730 °C; secondary polishing and lapping improve precision fits. | ||
| Surface Finish | Ground or polished finishes achieve Ra < 0.4 µm for smooth contact surfaces and consistent assembly performance. | ||
Frequently Asked Questions about Alumina Parts
Technical answers to help you specify, source, and use alumina ceramic parts effectively.
The manufacturing of alumina parts combines isostatic pressing, high-temperature sintering up to 1,730 °C, and precision CNC machining to achieve dense and stable ceramics.
Final grinding, polishing, or lapping ensures tight tolerances and smooth surfaces ready for assembly.
Please provide your drawing or sample photos, key dimensions (ID, OD, length, thickness) and tolerance requirements, the alumina grade (95–99.7% Al2O3) if known, quantity, and any surface finish or machining details. Our engineers confirm technical feasibility and prepare a detailed quotation after a manufacturability review.
As a rule of thumb: 95–96% suits cost-effective general insulation, wear and structural parts; 99% adds insulation and corrosion margin; 99.5–99.7% (C799-class) is used for high-purity, high-temperature or semiconductor-adjacent positions. The grades differ in strength, maximum temperature and dielectric behavior (see the typical property table above). The final grade is confirmed in the engineering review against your temperature, media and electrical conditions.
Yes. ADCERAX specializes in manufacturing alumina custom parts and alumina irregular parts through precision CNC machining and custom tooling.
We can achieve complex geometries such as cavities, threads, and step structures while maintaining tight tolerances and excellent surface finish.
Usually yes, as a review case: send clear photos of the old part, its main dimensions, the working temperature and media, and how it failed (cracking, wear, insulation loss, contamination). We assess material grade, geometry and manufacturability, then confirm what we can make. We do not promise drop-in replacement without this review.
Yes. ADCERAX supplies alumina components for laboratory and analytical systems, including furnace supports, igniters and insulation parts, precision-machined for stability, durability and electrical insulation under repeated thermal cycles. Custom designs are available — send your drawing or sample and our engineers will review it.
Because most parts are custom-made, pricing depends on the drawing, dimensions, tolerance, alumina grade (95–99.7%) and quantity. ADCERAX quotes each part individually after an engineering review, so the price reflects the actual geometry and requirements rather than a generic list.
ADCERAX is a China-based custom alumina ceramic parts manufacturer offering drawing-based engineering review before quotation, precision machining with strict quality control, and stable batch consistency for global OEM projects — from single prototypes and small batches to repeat production.
