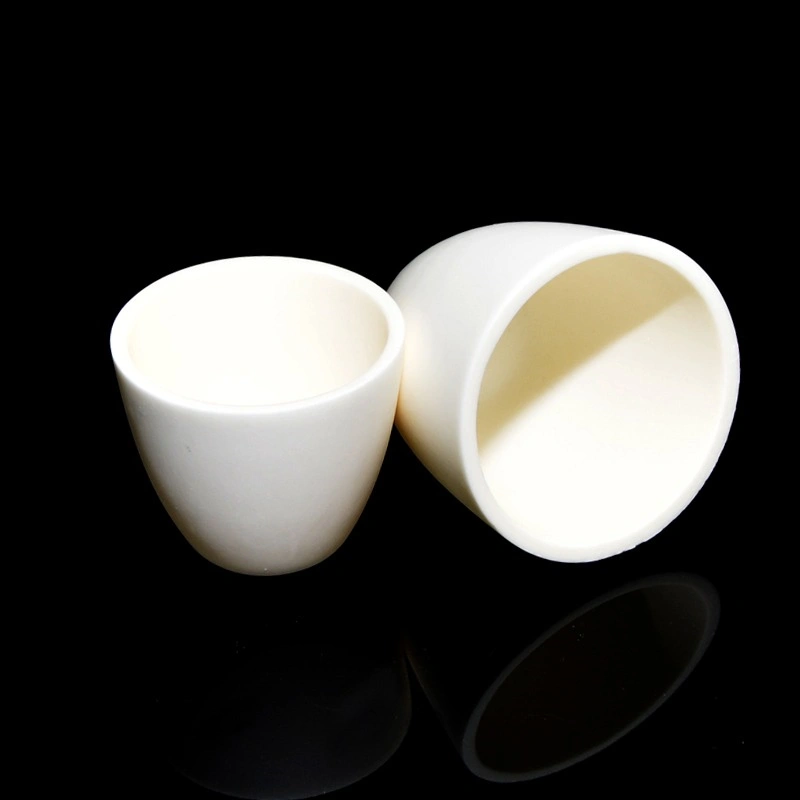

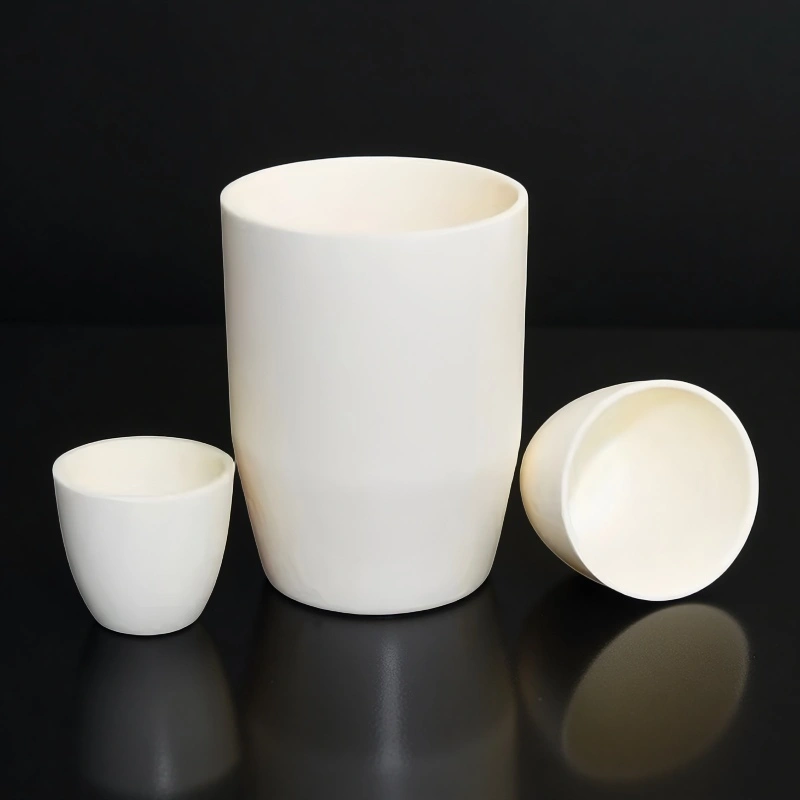

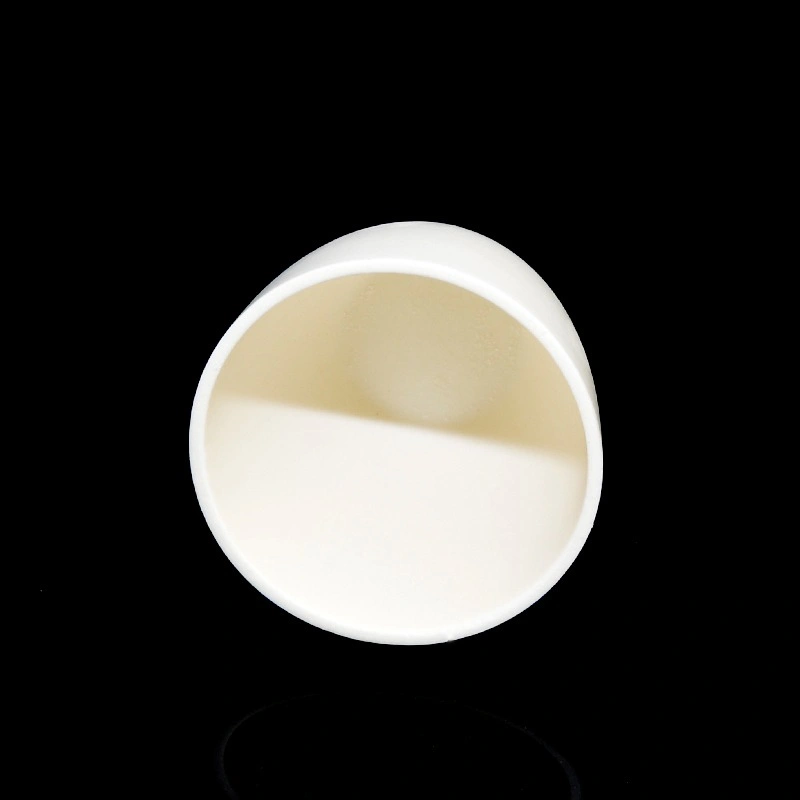

Arc-Shaped Alumina Crucibles for Ashing, Calcination & Small-Batch Heating

Applications of Arc-Shaped Alumina Crucibles

• Lab Ashing and Gravimetric Analysis

  Arc-shaped alumina crucibles are used in ash testing and gravimetric workflows where residue recovery and clean transfer are important. The tapered body helps collect ash at the lower section, making it easier to remove residue and reduce material loss during post-heating handling.

• Powder Calcination and Drying

  For ceramic powders, catalyst materials, mineral samples and inorganic compounds, the conical form supports controlled loading and easier decanting after heating. Buyers should match the crucible volume, wall thickness and lid style to the powder bed depth and furnace cycle.

• Small-Batch Melting and Material Screening

  High-purity alumina crucibles can be used for selected small-batch melts, alloy trials or high-temperature material screening when alumina is chemically compatible with the material being processed. For reactive melts, fluxes or aggressive chemistries, material compatibility should be reviewed before ordering.

• Ceramic and Inorganic Material R&D

  Research labs use conical alumina crucibles for sample preparation, thermal treatment, formulation testing and repeat heating cycles. The shape is useful when operators need easier sample access, cleaner residue collection and better visual inspection after firing.

• Muffle Furnace and Tube Furnace Workflows

  Arc-shaped alumina crucibles can be placed in muffle furnaces or suitable furnace fixtures for ashing, calcination and heat treatment. The recommended size depends on furnace chamber space, tongs access, heating profile and whether a lid is required.

How to Use Arc-Shaped Alumina Crucibles Safely

• Before Heating

  Inspect the crucible for visible cracks, chips or edge damage before each cycle. Select a crucible size that leaves enough headspace for powder expansion, gas release or residue movement. When using a lid, confirm whether a flat, recessed or vented lid is more suitable for the sample and furnace process.

• During Furnace Operation

  Use a controlled heating and cooling profile, especially for thick-wall crucibles, larger sizes or moisture-containing samples. Avoid sudden insertion into a hot furnace unless the process has already been validated. Uneven sample loading, localized overheating and rapid cooling can increase thermal stress.

• After Heating

  Allow the crucible to cool gradually on a suitable refractory surface before weighing, cleaning or transferring residue. Do not quench hot alumina crucibles in water or place them on cold metal surfaces. For analytical workflows, use clean tongs and avoid cross-contamination between samples.

• Cleaning and Storage

  Remove loose residue after the crucible has cooled. If aqueous cleaning is used, dry the crucible completely before reuse. Avoid hydrofluoric acid, strong hot alkalis and reactive fluxes unless material compatibility has been confirmed. Store crucibles separately to prevent edge chipping.

Arc-Shaped Alumina Crucible FAQ

1. Q: Why choose a conical alumina crucible instead of a cylindrical crucible?
   A: A conical alumina crucible helps concentrate ash, powder or residue at the bottom, which can make pour-out, weigh-back and sample recovery easier. A cylindrical crucible is often preferred when users need a larger flat bottom or more uniform vertical loading space.
2. Q: Which alumina purity should I choose?
   A: The right purity depends on temperature, sample chemistry and contamination sensitivity. 96% alumina is often selected for cost-effective thermal processing, while 99%, 99.6% and 99.7% alumina are preferred when cleaner material contact, higher temperature capability or lower impurity risk is required.
3. Q: Can arc-shaped alumina crucibles be supplied with lids?
   A: Yes. ADCERAX can supply arc-shaped alumina crucibles with flat, recessed or vented lids. Lid selection depends on whether the process requires contamination control, gas release, easier handling or reduced sample exposure during heating.
4. Q: How can I reduce cracking during furnace use?
   A: Use gradual heating and cooling, avoid sudden thermal shock, keep sample loading balanced and do not place a hot crucible on a cold metal surface. Larger crucibles, thick-wall designs and moisture-containing samples usually require more careful furnace ramp control.
5. Q: What chemicals or materials should be avoided?
   A: Alumina is compatible with many high-temperature and laboratory processes, but it should not be used with hydrofluoric acid, strong hot alkalis or reactive fluxes unless compatibility has been confirmed. For molten metals, salts or aggressive chemistries, material suitability should be reviewed before ordering.
6. Q: What information should I provide for a custom arc-shaped alumina crucible?

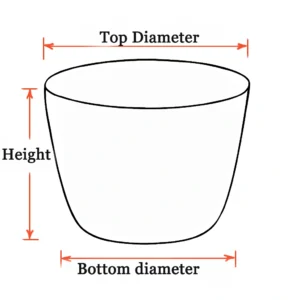

   A: Please provide the required capacity, top diameter, bottom diameter, height, wall thickness, cone angle, lid type, alumina purity, quantity and application conditions. A drawing, sample photo or furnace fixture requirement will help us review manufacturability more accurately.
