Custom High Purity Boron Nitride Plates and Sheets

High Purity Boron Nitride (BN) Plates Applications

High Purity Boron Nitride Plates serve as structural and functional components across high-temperature, vacuum, and non-wetting environments where electrical isolation, dimensional precision, and chemical inertness are essential. Their combination of machinability, dielectric strength, and low thermal expansion makes them suitable for both custom-engineered assemblies and standard replacement parts in industrial systems.

• Vacuum Brazing & Heat Treatment Equipment

  High purity BN plates can be used as insulation spacers, heater separation plates, fixture backers and alignment components in vacuum brazing and heat-treatment systems. They are useful when the design requires electrical insulation, machinable geometry and stable positioning during repeated heating cycles.

  Design note: Plate thickness, hole position, fastening clearance and contact pressure should be reviewed before machining. For thin or large plates, supported installation and softened edges can help reduce chipping and thermal stress.

• PVD/CVD Coating Systems & Thin-Film Equipment

  In PVD/CVD equipment, BN plates are used as isolation plates, fixture interfaces, shield components and clean support parts inside heated or vacuum chambers. The material is suitable when the part needs electrical insulation, low metal adhesion and custom-machined holes or recesses.

  Design note: Buyers should confirm whether the plate will contact coating buildup, plasma exposure, clamp pressure, cleaning solvents or thermocouple hardware. Surface finish and flatness should be specified when the plate works as a contact or positioning surface.

• Molten Metal, Glass and Composite Processing

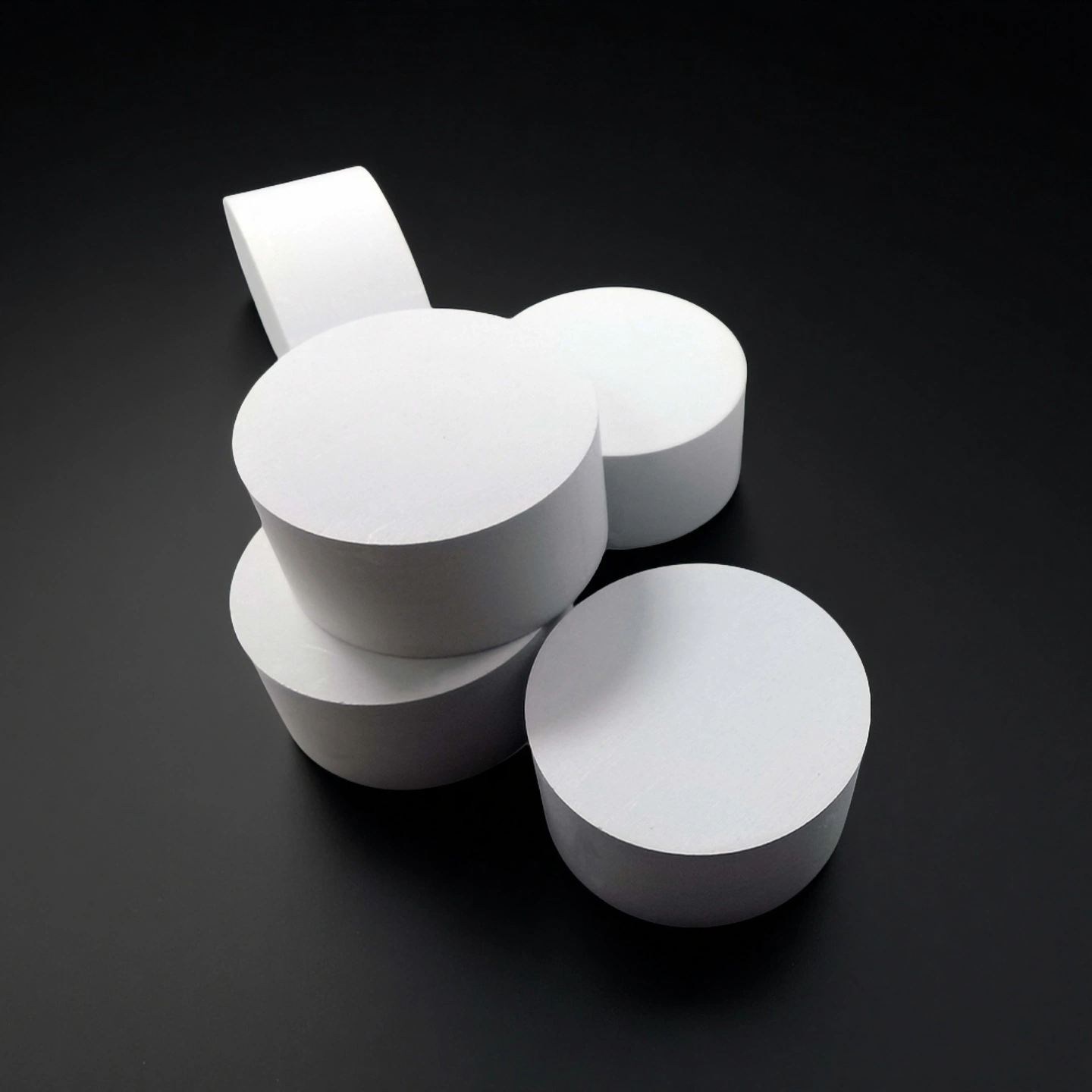

  BN plates are often selected for molten aluminum, zinc, glass and composite processing areas because their non-wetting behavior helps reduce sticking and residue buildup. They can be used as liners, release plates, contact pads, trough inserts and fixture surfaces.

  Design note: Final suitability should be reviewed according to metal composition, working atmosphere, mechanical loading and cleaning method. Chamfered edges and protected corners are recommended for repeated handling or removal cycles.

High Purity BN Plates Usage Instructions

Proper handling helps protect the dimensional stability, insulation performance and surface cleanliness of high purity BN plates during installation, operation and storage.

• Installation

  Before installation, keep the mounting surface clean, flat and free from hard particles. Avoid point loading, over-tightening or direct metal-to-ceramic stress concentration. When BN plates are assembled with metal parts, leave suitable clearance and use intermediate pads if needed to reduce stress from thermal expansion mismatch.

• Operation

  High purity BN plates should be used according to the working atmosphere, contact material, plate thickness and mechanical load. Avoid direct flame impact, uneven heating, excessive clamping force and unsupported thin sections. For oxidizing, reactive gas, molten salt or chemically aggressive environments, material compatibility should be reviewed before use.

• Cleaning

  Handle BN plates with clean gloves when surface cleanliness is important. Use lint-free wiping or clean air blow-off to remove particles. Avoid impact cleaning, aggressive scraping or abrasive methods, especially on thin plates, precision-ground surfaces and machined edges.

• Storage

  Store BN plates in dry, clean packaging with surface separation and edge protection. Thin or precision-machined plates should not be stacked directly without soft separators. Keep plates away from edge impact, moisture and heavy objects before installation.

• Common Misuse to Avoid

  Most damage comes from over-tightening, point contact, uneven support, sharp thermal gradients or rough handling during cleaning and transport. If surface discoloration, edge chipping, bowing or cracks appear, review the installation method, contact material, heating condition and support design before reuse.

High Purity Boron Nitride Plate FAQ

1. Q: What is a high purity boron nitride plate used for?
   A: A high purity boron nitride plate is used as an electrical insulation plate, thermal isolation plate, non-wetting contact surface, furnace fixture, spacer, liner or heat shield in high-temperature systems. Common applications include vacuum furnaces, PVD/CVD equipment, molten aluminum handling, glass processing, precision heating assemblies and custom ceramic fixtures.
2. Q: What is the difference between hot-pressed boron nitride plate and PBN sheet?
   A: Hot-pressed boron nitride plate is made by pressing and sintering hexagonal BN powder into machinable solid blanks. It is commonly used for custom plates, fixtures, liners, spacers and non-wetting contact parts. PBN sheet is produced by chemical vapor deposition and is usually selected for highly specialized vacuum or semiconductor-related environments. ADCERAX mainly focuses on hot-pressed BN plates and custom-machined BN parts unless PBN is separately confirmed.
3. Q: Can boron nitride plate be machined with holes, slots and tight thickness control?

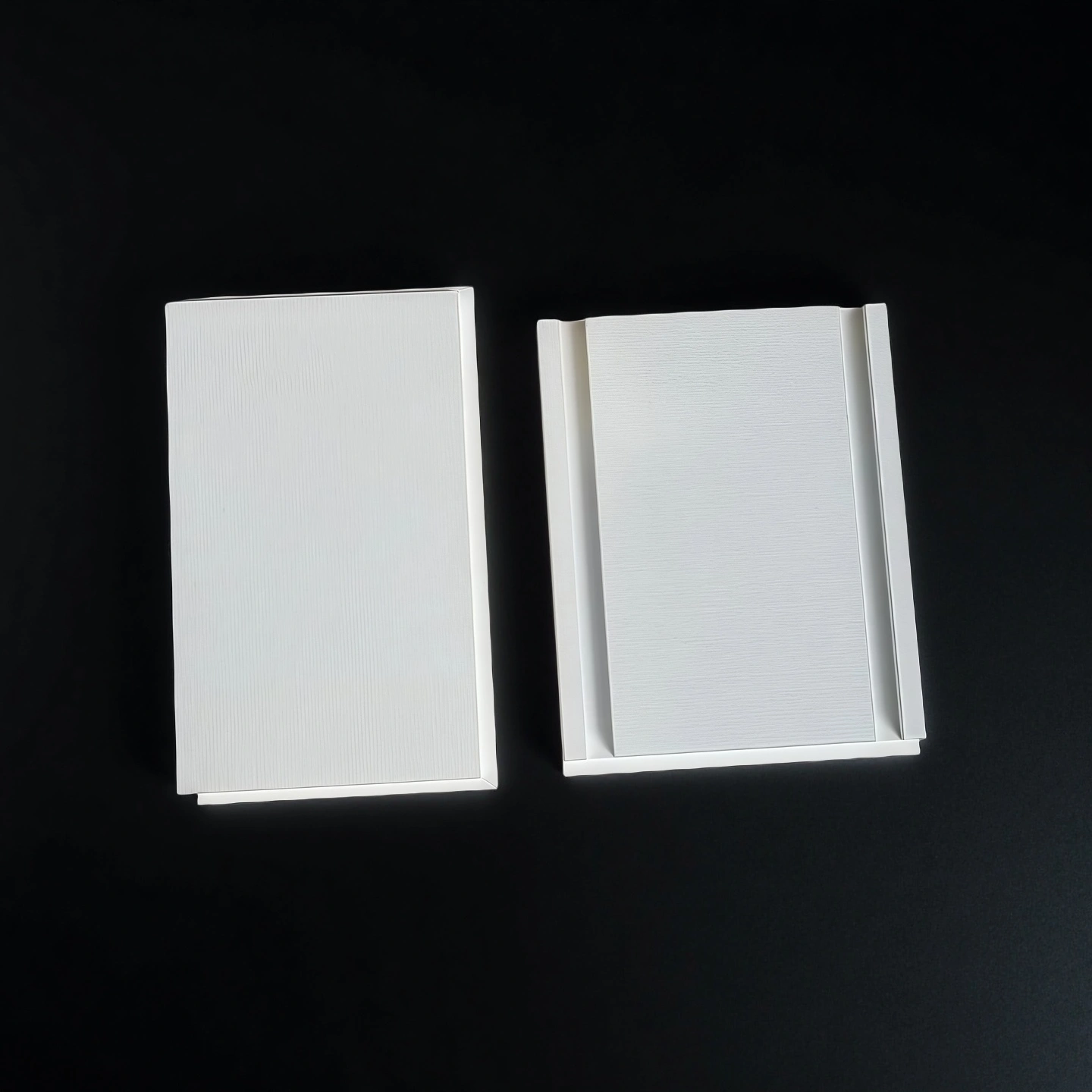

   A: Yes. Hot-pressed BN plate is easier to machine than many dense ceramics and can be processed into holes, slots, countersinks, pockets, chamfers and custom profiles. The achievable tolerance depends on plate size, thickness, geometry and surface requirement, so drawings should be reviewed before quotation.
4. Q: Is boron nitride plate suitable for molten aluminum contact?
   A: Boron nitride plate is often selected for molten aluminum and non-ferrous metal contact because it has non-wetting behavior and can help reduce sticking and residue buildup. Final suitability should be checked according to alloy composition, working atmosphere, contact pressure, cleaning method and operating cycle.
5. Q: How does boron nitride plate compare with alumina, silicon carbide or graphite plates?
   A: Boron nitride plate is more machinable than alumina and silicon carbide, electrically insulating unlike graphite, and non-wetting to many molten metals. Alumina is often selected for lower-cost insulation, silicon carbide for high strength and wear resistance, and graphite for thermal conductivity. BN is preferred when machinability, insulation, non-wetting behavior and clean high-temperature contact are more important.
6. Q: What information should I provide for a custom BN plate quotation?
   A: Please provide the plate length, width, thickness, quantity, drawing file, hole or slot details, surface finish, tolerance requirements and application environment. It is also helpful to share the working atmosphere, contact material, temperature range, cleaning method and whether the part is used as a fixture, liner, spacer or insulation plate.
