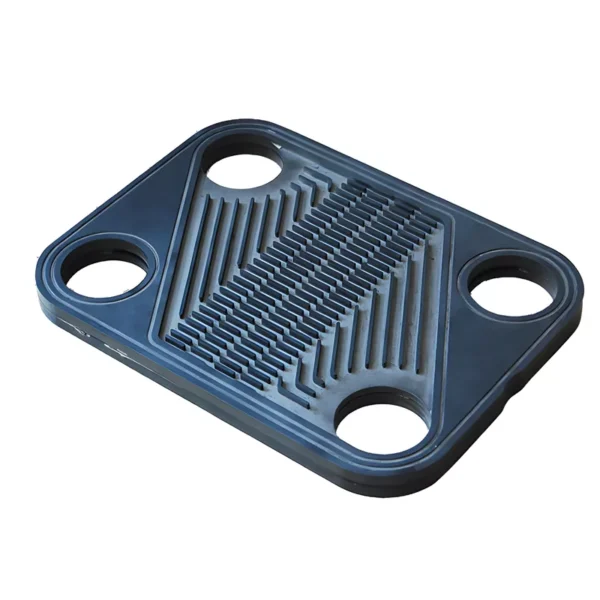

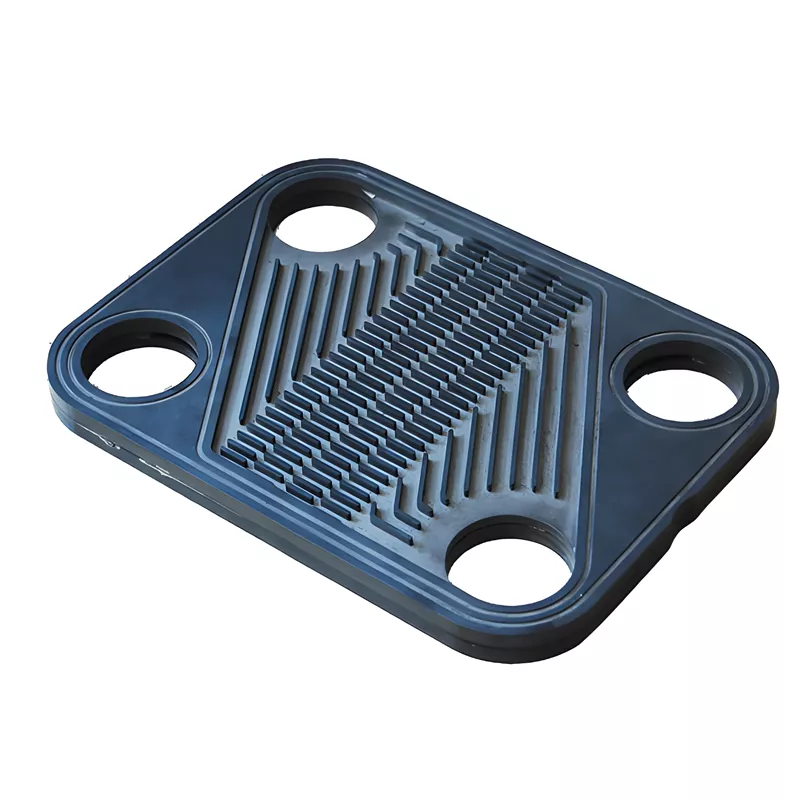

Silicon Carbide Heat Exchanger Plate for Corrosive Thermal Systems
ADCERAX silicon carbide heat exchanger plates are engineered for corrosive heat-transfer systems where metal or graphite components may face chemical attack, erosion, contamination or thermal-stability limits. Custom plate geometry, channel layout, sealing interface and surface finish can be reviewed according to drawings, process media, temperature range and equipment assembly requirements.
Catalogue No.
AT-THG-HRB1001
Material
Silicon Carbide (SiC)
Thermal Conductivity
Typically 120–150 W/m·K, depending on SiC grade and process route.
Corrosion Resistance
Stable performance in strong acids, alkalis, and halides with material loss below 0.01 mm/year.
Mechanical Strength
Flexural strength typically 350–400 MPa, ensuring durability under high temperature and velocity.
A silicon carbide heat exchanger plate is a SiC ceramic plate component used in heat-transfer equipment that handles corrosive, high-temperature or contamination-sensitive process media. Compared with many metal plates, silicon carbide offers higher chemical stability and strong thermal conductivity, making it suitable for acid recovery, solvent condensation, evaporation, waste-heat recovery and other harsh-service thermal systems. ADCERAX supports custom SiC heat exchanger plates based on flow-channel design, plate thickness, sealing interface, port layout and assembly requirements.
Engineering Performance Features of Silicon Carbide Heat Exchanger Plates
High Heat Transfer Efficiency Silicon carbide has high thermal conductivity compared with many corrosion-resistant ceramic materials. This helps heat exchanger plates transfer heat quickly and supports more compact thermal-system design when space, response speed and energy efficiency are important.
Stable Performance in Corrosive Media SiC heat exchanger plates are suitable for many acid, solvent and corrosive condensate environments. This makes them useful in chemical concentration, solvent recovery, evaporation and condensation systems where metal plates may face corrosion, pitting or process contamination.
Resistance to Halide and Solvent-Rich Environments
Silicon carbide maintains strong chemical stability in many chloride-containing, halogenated and solvent-processing conditions. This helps reduce material degradation risk in harsh thermal systems and supports longer inspection planning compared with less corrosion-resistant materials.
High Mechanical Strength for Plate Assemblies
Dense SiC ceramic offers high hardness and strong mechanical strength, which helps the plate maintain dimensional stability under clamping, fluid flow and thermal stress. Proper design of thickness, sealing area, edge profile and support structure is still important for safe installation.
Thermal Shock Resistance
Silicon carbide has low thermal expansion and good thermal-shock resistance. This helps reduce stress during heating, cooling and temperature fluctuation, especially in systems where process loads change frequently.
Surface Stability for Cleaner Heat Transfer A dense and stable SiC surface can help reduce corrosion-related contamination and surface degradation. For applications involving high-purity chemicals, solvents or aggressive condensates, surface finish and cleaning method should be reviewed together before final selection.
Technical Specifications of Silicon Carbide Heat Exchanger Plate
The Silicon Carbide Heat Exchanger Plate is defined by its thermal conduction capability, chemical durability and structural stability. These properties support use in high-temperature and corrosive industrial heat-transfer systems where material selection, sealing design and operating conditions must be reviewed together.
Engineering Parameter
Typical Reference Value
Why It Matters for Heat Exchanger Design
Material System
Silicon Carbide Ceramic, SiC
SiC is selected when corrosion resistance, thermal conductivity and dimensional stability are required in aggressive heat-transfer systems.
Thermal Conductivity
Typically 120–150 W/m·K, depending on grade
Higher thermal conductivity helps improve heat-transfer response and may reduce the required heat-exchange area in compact equipment.
Service Temperature
Application-dependent, commonly used in high-temperature thermal systems
Temperature suitability should be confirmed with media, pressure, sealing material and thermal cycling conditions.
Chemical Resistance
Suitable for many acids, solvents and corrosive media
This is important for acid concentration, solvent recovery and chemical processing where metallic plates may corrode or contaminate the process stream.
Flexural Strength
Typically 350–400 MPa, depending on material grade
Mechanical strength supports plate stability under clamping, flow pressure and thermal stress.
Thermal Expansion
Around 4.0 × 10⁻⁶/K
Low thermal expansion helps reduce dimensional stress during heating and cooling cycles.
Porosity
Low-porosity or dense SiC options available
Dense structure helps reduce contamination risk and improves resistance to fluid penetration.
Surface Finish
Ground or machined surface available by requirement
Surface condition affects sealing contact, fouling tendency and cleaning behavior.
Custom Geometry
Channels, ports, edge profiles and sealing zones can be reviewed
Custom geometry helps match existing heat exchanger frames, flow paths and gasket interfaces.
Inspection Focus
Dimensions, surface condition and assembly interface
Inspection helps reduce installation risk before shipment and supports repeat purchasing.
Dimensions of Silicon Carbide Heat Exchanger Plate
Silicon Carbide Heat Exchanger Plate
Item No.
Diameter（mm)
Height (mm)
AT-THG-HRB1001
Customize
Silicon Carbide Heat Exchanger Plate vs Graphite, Metal and Other Ceramic Options
Material Option
Main Advantage
Common Limitation
When SiC Plate Is a Better Fit
Graphite Heat Exchanger Plate
Good chemical resistance and mature heat-exchanger use
Lower mechanical strength and possible permeability concerns in some conditions
When higher mechanical stability, lower contamination risk or stronger erosion resistance is required.
Stainless Steel or Alloy Plate
Easy fabrication and common equipment compatibility
May suffer pitting, corrosion or metallic contamination in strong acids and halides
When corrosive media or purity requirements make metal unsuitable.
Titanium or Nickel Alloy Plate
Stronger corrosion resistance than common steels
Higher cost and still limited in some chemical environments
When SiC offers better chemical stability for the target media.
Alumina Ceramic Plate
Good insulation and wear resistance
Lower thermal conductivity than SiC
When heat-transfer efficiency is a primary requirement.
Silicon Carbide Heat Exchanger Plate
Strong thermal conductivity, corrosion resistance and hardness
Requires careful design and handling due to ceramic brittleness
When the system needs corrosion resistance, heat-transfer efficiency and custom ceramic plate geometry.
Packaging of Silicon Carbide Heat Exchanger Plate
Each silicon carbide heat exchanger plate is packed with surface separation, cushioning protection and reinforced outer packaging to reduce impact, edge damage and vibration during transport. For precision-machined or polished sealing surfaces, individual separation and edge protection are recommended. Wooden cases can be used for long-distance or heavy shipments according to plate size, quantity and shipping route.
Application Scenarios for Custom SiC Heat Exchanger Plates
The Silicon Carbide Heat Exchanger Plate supports continuous thermal processing in corrosive, high-temperature, and particle-laden industrial environments where stability, material integrity, and predictable heat-transfer performance determine production efficiency and plant uptime.
Chemical Acid Recovery and Concentration
Silicon carbide heat exchanger plates are used in acid recovery and concentration systems where metallic plates may suffer from corrosion, pitting, stress-corrosion cracking or process contamination. In sulfuric acid, hydrochloric acid, mixed acid and corrosive condensate environments, SiC provides strong chemical stability and high thermal conductivity, helping the heat exchanger maintain stable heat-transfer performance under aggressive operating conditions.
For these applications, the plate design should be reviewed together with acid type, concentration, temperature, pressure, flow velocity, sealing material and cleaning method. ADCERAX® can support custom SiC heat exchanger plates with reviewed flow channels, port layout, sealing zones and surface finish according to the equipment drawing and process requirements.
Solvent Recovery and Pharmaceutical Processing
In solvent recovery and pharmaceutical thermal processing, heat exchanger plates must support efficient condensation, evaporation and heat recovery while reducing the risk of corrosion-related contamination. Dense silicon carbide ceramic is suitable for many solvent-rich and chemically aggressive environments where process cleanliness, thermal response and material stability are important.
SiC heat exchanger plates can be reviewed for systems handling organic solvents, halogenated media, process vapors and corrosive condensates. For pharmaceutical or fine chemical use, buyers should confirm the solvent type, cleaning procedure, surface finish requirement, sealing interface and allowable pressure drop before finalizing the plate design.
High-Temperature Waste Heat Recovery
Silicon carbide heat exchanger plates can be used in industrial waste-heat recovery systems where hot gas, corrosive vapor, abrasive particles or rapid temperature changes challenge conventional metal components. SiC offers high thermal conductivity, low thermal expansion and strong resistance to oxidation and chemical attack, making it suitable for harsh thermal environments that require stable heat transfer.
In these systems, the main design concerns are thermal shock, particle erosion, plate thickness, flow-channel geometry and installation stress. ADCERAX® can review custom plate structures for chemical plants, metallurgical processes, environmental systems and thermal recovery equipment where both heat-transfer efficiency and corrosion resistance are required.
Corrosive Condensation and Evaporation Systems
For condensation and evaporation systems, the heat exchanger plate must maintain uniform heat transfer while resisting corrosion, scaling and thermal stress. Silicon carbide is often selected when graphite is too fragile, metal corrosion is unacceptable, or the process requires a cleaner and more stable ceramic surface.
SiC heat exchanger plates are suitable for corrosive vapor condensation, acid evaporation, solvent evaporation and chemical concentration processes. Plate size, channel depth, sealing area, port position and surface finish should be reviewed together to reduce leakage risk, improve flow distribution and support easier maintenance during repeated operation.
For each application, ADCERAX® does not recommend selecting the SiC plate only by material name. The actual performance depends on the process media, temperature range, pressure condition, flow velocity, gasket material, cleaning method and equipment assembly design. By reviewing these factors before production, ADCERAX® helps buyers match the silicon carbide heat exchanger plate to the real operating environment instead of relying on a general ceramic plate specification.
Safe Handling and Installation Notes for SiC Heat Exchanger Plates
Silicon carbide heat exchanger plates should be handled as precision ceramic components. Although SiC offers high hardness, corrosion resistance and thermal stability, improper handling, uneven clamping or sudden thermal stress may still create edge damage, sealing problems or installation risk. Proper inspection, alignment and cleaning procedures help protect the plate surface and support stable operation in corrosive heat-transfer systems.
Before Installation
Before installation, check the plate surface, edge condition, port alignment and sealing area. The gasket contact surface should be clean and free from visible chips, particles or uneven contact marks.
Confirm that the plate size, port layout, flow-channel direction and sealing interface match the equipment drawing. If the plate is used as a replacement part, compare it with the original component before assembly to avoid misalignment during installation.
During Installation
During installation, support the SiC heat exchanger plate evenly and avoid point loading on the corners, edges or machined grooves. The plate should not be struck, twisted or forced into position.
Clamping force should be applied gradually and evenly according to the equipment design. Uneven tightening may create local stress on the sealing area or plate body. Non-metallic protection pads or suitable handling tools are recommended when positioning precision-machined ceramic surfaces.
During Operation
During operation, avoid sudden flow surges, dry running, severe vibration and rapid temperature changes beyond the equipment design condition. These factors may increase thermal stress or mechanical load on the ceramic plate.
For media containing abrasive particles, flow velocity and particle concentration should be reviewed carefully. Excessive particle impact may affect channel surfaces, sealing areas or long-term heat-transfer performance. Pressure drop, leakage points and temperature response should be monitored during commissioning and routine operation.
Cleaning and Maintenance
Cleaning methods should be selected according to the process media, scaling condition and gasket material. Compatible chemical cleaning agents, soft tools and controlled flushing are preferred. Hard metal scraping or direct impact on the ceramic surface should be avoided.
After cleaning, inspect the flow channels, ports, sealing surface and plate edges before reinstalling the component. If deposits, cracks, edge chips or abnormal leakage marks are found, the plate should be reviewed before continued use. For critical systems, keeping a maintenance record can help evaluate cleaning frequency, scaling behavior and replacement planning.
Silicon Carbide Heat Exchanger Plate FAQs
Q1: Can silicon carbide heat exchanger plates be used with strong acids?
Yes. Silicon carbide heat exchanger plates are often selected for corrosive acid-processing systems because SiC has strong chemical stability against many acids, chlorides and aggressive condensates. Final suitability should still be reviewed according to acid type, concentration, temperature, pressure and cleaning method.
Q2: How is a SiC heat exchanger plate different from a graphite heat exchanger plate?
Graphite is widely used in corrosive heat exchangers, but silicon carbide offers higher hardness, stronger mechanical stability and dense ceramic structure. SiC plates are often preferred when the system requires better erosion resistance, lower contamination risk or improved dimensional stability under thermal cycling.
Q3: Can ADCERAX customize the flow channels and port layout?
Yes. ADCERAX can review custom flow-channel geometry, port position, sealing surface, edge profile and plate thickness according to drawings or equipment requirements. For faster evaluation, buyers should provide CAD drawings, process media, temperature range, pressure condition and assembly interface details.
Q4: What information is needed before quoting a custom SiC heat exchanger plate?
A clear RFQ should include plate dimensions, material grade if specified, channel design, port layout, surface finish, sealing area, operating media, working temperature, pressure condition, quantity and any inspection requirements. If no drawing is available, an existing sample or application description can be reviewed first.
Q5: Are silicon carbide heat exchanger plates suitable for solvent recovery systems?
Yes. Dense SiC ceramic plates can be suitable for solvent recovery, condensation and evaporation systems where corrosion resistance, process cleanliness and stable heat transfer are important. Compatibility should be checked against the solvent type, cleaning method, gasket material and operating temperature.
Q6: How should SiC heat exchanger plates be handled during installation?
SiC plates should be handled with even support and protected from point impact. During installation, the sealing surface, gasket position and clamping force should be checked carefully. Uneven tightening, misalignment or sudden thermal shock may create stress concentration and reduce long-term reliability.
ADCERAX reviews custom silicon carbide heat exchanger plate requirements according to drawings, samples or equipment assembly conditions. The review can include plate size, channel layout, port position, sealing zone, edge profile, surface finish and installation interface.
Structural Geometry Review
Flow-channel layout, groove depth, rib pattern and edge profile can be reviewed to match heat-transfer requirements, pressure drop targets and assembly space.
Assembly Interface Review
Port layout, gasket-contact area, mounting interface and alignment features can be adjusted according to the existing exchanger frame or custom equipment design.
Surface and Sealing Review
Ground or machined surfaces can be discussed according to sealing method, cleaning procedure and process media. For corrosive fluids or solvent systems, surface finish and gasket compatibility should be confirmed before production.
