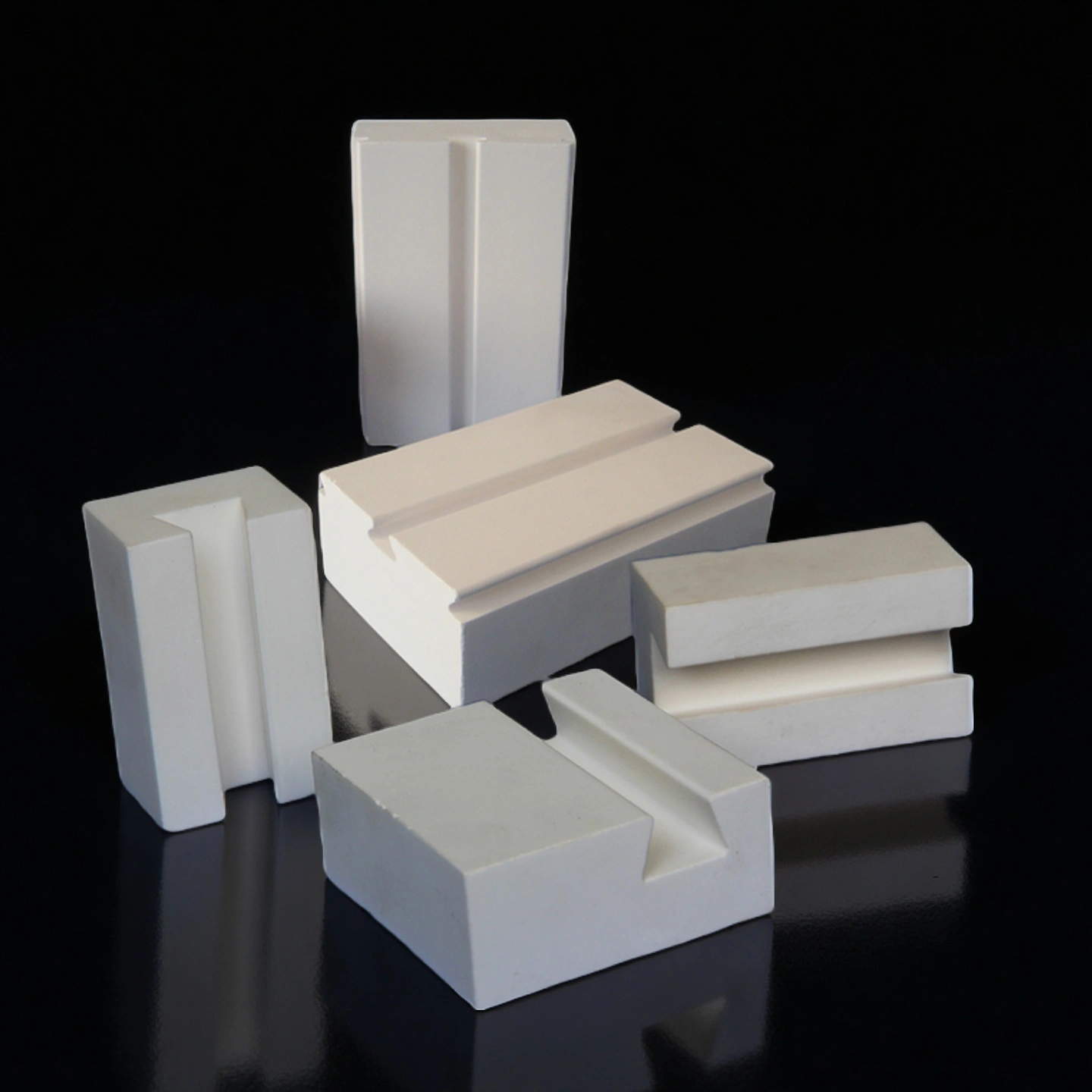

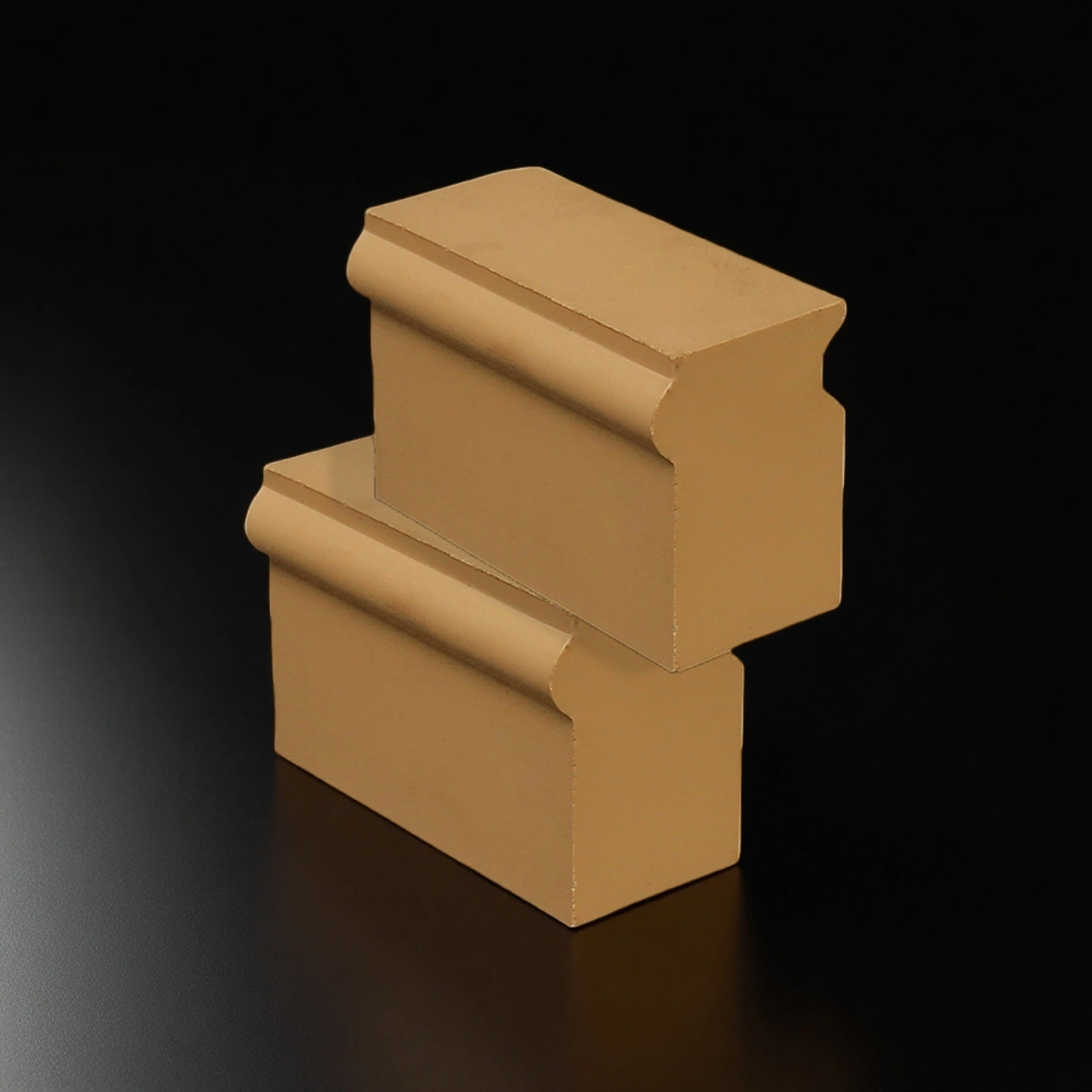

Zirconia Liner Brick — Wear-Resistant Y-TZP Lining for Ball Mills, Grinding Mills & Chutes

Zirconia Liner Brick Applications in High-Wear Grinding Systems

ADCERAX zirconia liner bricks are designed for the high-wear internal surfaces of ball mills, bead mills, attritors, and vibration mills. Their high density, hardness, and fracture toughness help control liner wear and reduce liner-derived contamination in demanding wet or dry grinding processes.

• Ball-mill discharge zones (high-purity powder)

  Key advantages: iron-free, low-contamination surface for high-purity ceramic and battery powders; high toughness resists chipping from media rebound near the discharge port; dense body holds shape under abrasive powder flow.
  How it helps: in dry, high-purity milling, a zirconia liner keeps the ground powder clean and resists erosion at the discharge zone, which helps extend service intervals versus alumina. Actual life and cleanliness depend on media, powder, load and duty — confirmed per case.

• Vertical drop chutes (fine powder conveying)

  Key advantages: high compressive strength and toughness resist edge chipping where powders free-fall; smooth surface reduces adhesion/caking of fine powders; low porosity limits powder embedment for easier cleaning.
  How it helps: at high-fall transfer points, zirconia bricks resist impact chipping and reduce build-up, which supports cleaner transfer and less frequent cleaning. Drop height, angle and flow are set per installation.

• Classifier/slurry pipe elbows (abrasive slurry)

  Key advantages: high hardness resists erosion from abrasive coal-water or mineral slurry at elbows and junctions; high flexural strength resists cracking under dynamic fluid loading; smooth surface lowers drag.
  How it helps: at high-erosion elbows, a zirconia liner resists abrasive scouring and helps extend replacement intervals versus softer liners. Slurry velocity, density and pressure are reviewed per line.

Zirconia Liner Brick Installation and Maintenance Guide

Correct installation and routine inspection help protect zirconia liner bricks from premature damage. Final procedures must match the mill design, lining layout, bonding system and site operating conditions.

Installation

• Clean and inspect the mill shell, end faces and openings before installation.
• Follow the approved brick layout, joint pattern, bonding method and curing procedure.

Operation

• Confirm the grinding-media load, material flow and start-up procedure before operation.
• Keep metal tools, bolts and foreign debris out of the lined chamber.

Inspection and Cleaning

• Inspect bricks, joints and high-wear zones for looseness, cracks or edge damage.
• Use cleaning methods compatible with the ceramic surface and processed material.

Replacement Planning

• Record wear patterns and operating changes by mill section.
• Replace damaged, loose or excessively worn bricks according to the approved maintenance limit.

FAQs About Zirconia Liner Bricks

1. Q1: Is Zirconia Liner Brick suitable for high-impact zones in ball mills?
   Yes. Y-TZP’s high fracture toughness helps resist chipping and crack initiation caused by grinding-media rebound at discharge zones. Its dense structure distributes impact loads and supports stable operation. The exact application must be confirmed for each mill.
2. Q2: How does Zirconia Liner Brick help control contamination in fine-powder processing?
   Its dense, low-porosity and iron-free ceramic surface releases few wear particles and helps limit iron contamination. This makes it suitable for processing ceramics, battery materials, pigments and other purity-sensitive powders. Final cleanliness requirements must be confirmed for the application.
3. Q3: How does Zirconia Liner Brick perform in vertical chutes under abrasive loads?
   Its high hardness, typically around HV 1100–1300, helps resist scouring from abrasive powders and maintain its shape in silo and chute discharge zones. Material flow, impact angle and drop conditions must be reviewed before selection.
4. Q4: Can Zirconia Liner Brick be used in slurry transport systems?
   Yes, subject to engineering review. Its hardness, toughness and low porosity make it a potential lining material for abrasive slurry pipes and elbows. Slurry velocity, density, pressure, chemistry and pipe geometry must be confirmed for each system.
5. Q5: How does Zirconia Liner Brick compare with alumina brick in service life?
   Zirconia may provide longer service in demanding wear conditions because of its higher density and fracture toughness. The actual difference depends on the grinding media, processed material, impact load, installation and operating conditions, so no fixed service-life multiple should be assumed.
6. Q6: Is Zirconia Liner Brick a refractory or fire brick?
   No. It is a dense Y-TZP wear-resistant lining brick for grinding mills and selected wear systems. It is not a refractory furnace brick, fused-cast zirconia-corundum brick or building brick.
7. Q7: Should I choose zirconia, alumina or ZTA liner bricks?
   Zirconia suits demanding wear and contamination-sensitive grinding. Alumina is often more economical for general wear applications, while ZTA provides an intermediate material option. Selection should be based on the media, processed material, impact conditions, cleanliness requirements and budget.
8. Q8: Can Zirconia Liner Brick replace my existing mill liner?
   Replacement is possible after an engineering review. Send the mill internal diameter and length, lining layout or old-brick dimensions, fixing method, grinding media, processed material and operating conditions so ADCERAX can review the required shape, grade and fit before quotation.

What to send for a fast quote

For the fastest, most accurate quote, send:

•  Mill type and inner diameter × length (ball/bead/attritor / vibration mill), and shell vs end-face position
• Brick shape, thickness/height, width, length, openings/manways, and your layout drawing or old bricks
• Grinding media and material, wet or dry grinding, pH and temperature, mill speed and ball load
• Whether this replaces an existing liner (and its material/life), fixing method (adhesive/mortar/bolted), and quantity or whether it's a full relining

The more you share, the faster our engineers can confirm the brick shape, grade (zirconia vs alumina/ZTA) and typical lead time.
