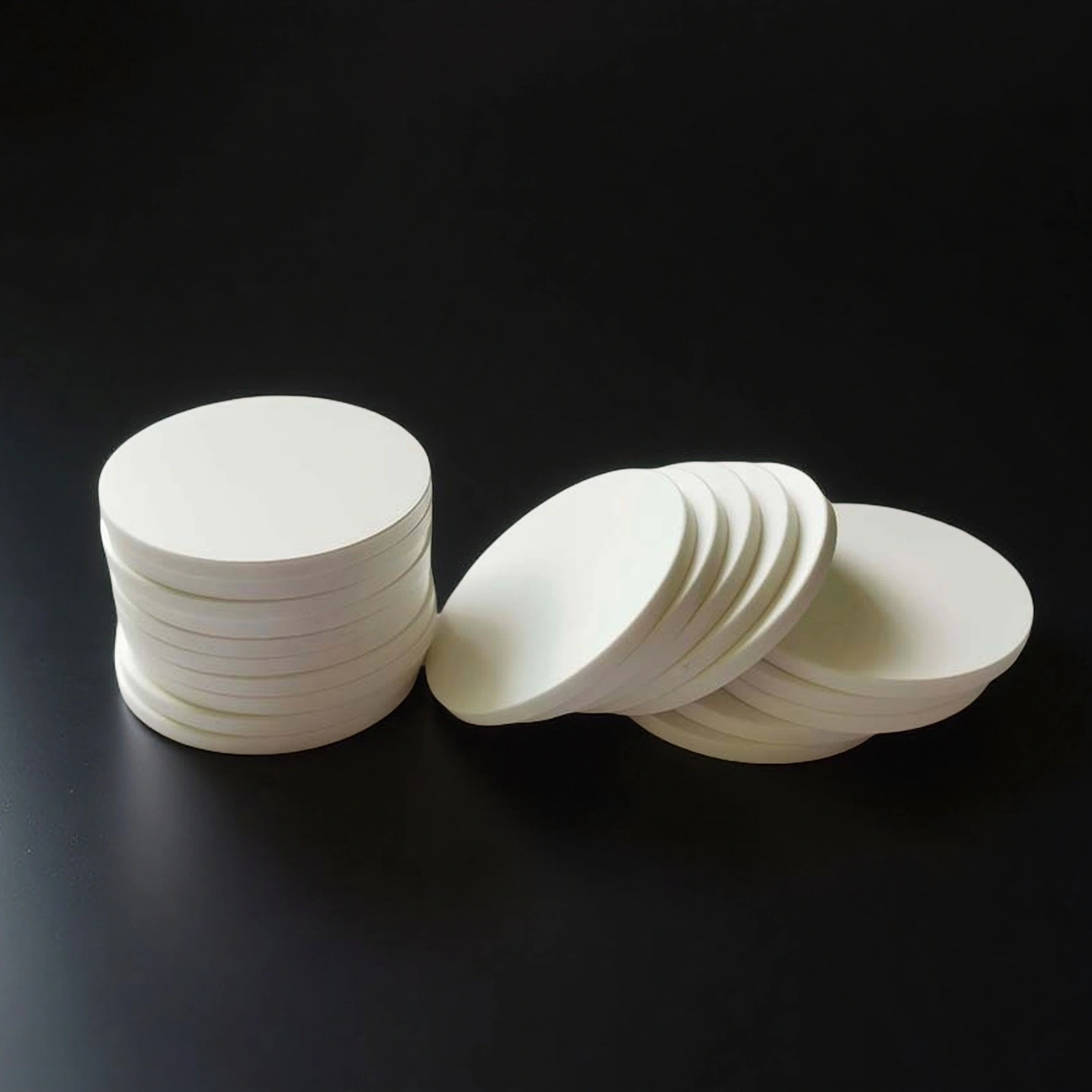

Zirconia Toughened Alumina Disc for Seals and Wear Parts

Applications of ZTA Ceramic Discs

ZTA ceramic discs are used in industrial assemblies where flat ceramic contact surfaces must resist wear, corrosion, chipping and dimensional loss. The most suitable application should be reviewed according to load direction, medium, counterface material, surface finish and installation method.

• Mechanical Seal Faces for Pumps and Mixers

  ZTA discs can be used as stationary or rotating seal faces in pumps, mixers, agitators and selected compressor seal assemblies. They are suitable when standard alumina faces may chip during start-stop operation or when metallic faces suffer from corrosion, galling or abrasive wear.

  Key review points include seal type, shaft speed, pressure, medium, solids content, lubrication condition, face flatness, surface roughness and counterface material.

• Valve Seats and Flow-Control Discs

  In industrial valves, ZTA ceramic discs can be used as valve seats, throttling plates or wear-resistant sealing inserts. Their hardness and toughness help maintain the sealing line when the valve handles abrasive slurry, particle-loaded liquid or corrosive process media.

  Key review points include valve type, pressure rating, opening frequency, flow velocity, cavitation risk, sealing diameter, mounting groove and thermal cycling condition.

• Wear Pads and Sliding Contact Discs

  ZTA discs can serve as wear pads, guide discs and support plates in process equipment, textile machinery, dosing systems and motion-control assemblies. They are useful when repeated sliding contact, vibration or misalignment may damage standard ceramic or metallic parts.

  Key review points include contact speed, load direction, mating material, lubrication, impact risk, surface finish and allowable wear tolerance.

• Custom Ceramic Inserts for Drawing-Based Assemblies

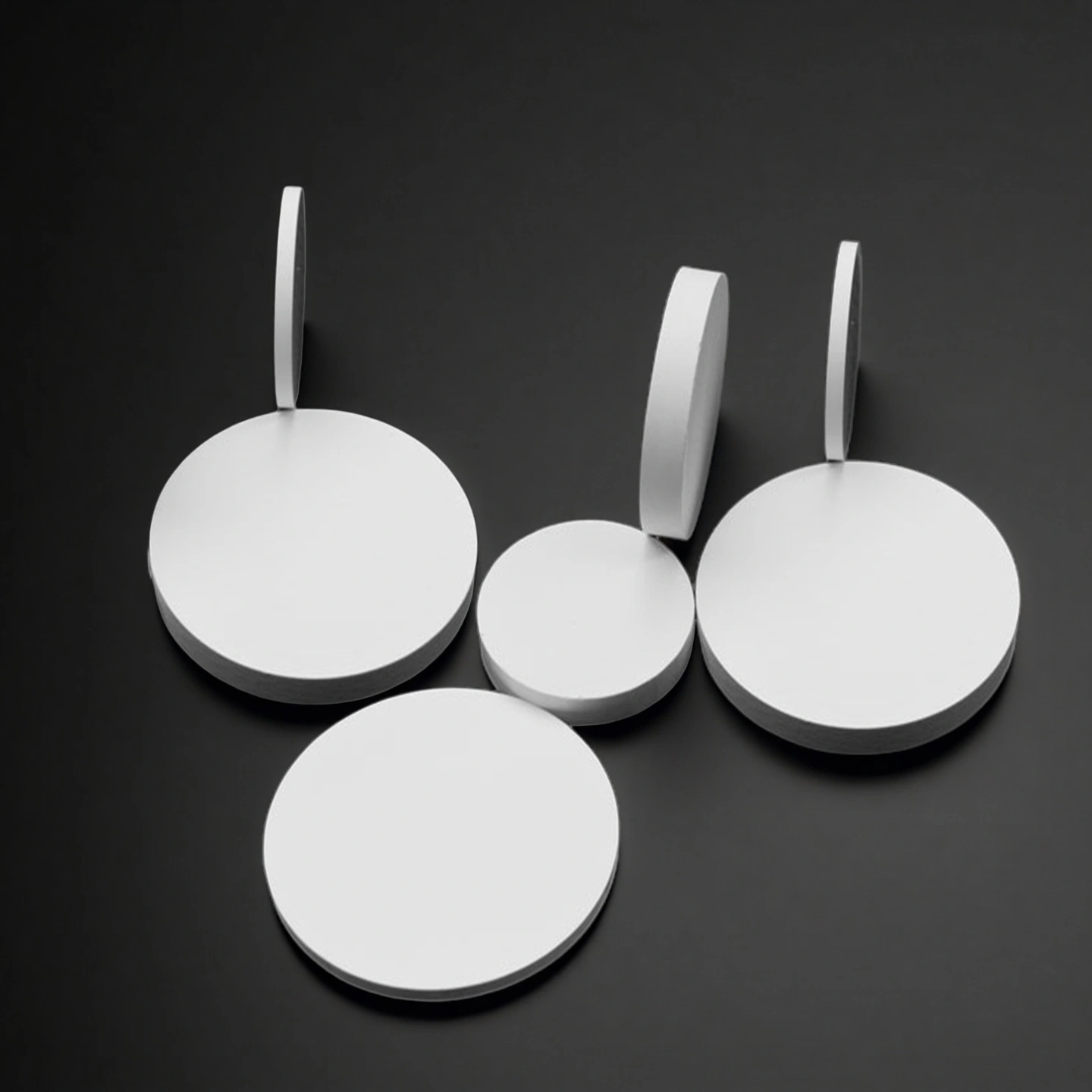

  For OEM equipment, ZTA ceramic discs can be machined with holes, slots, grooves, recesses, chamfers or stepped profiles according to the drawing. This allows the disc to fit existing housings, replacement assemblies or new mechanical designs without changing the complete equipment structure.

  Key review points include drawing geometry, tolerance stack-up, datum faces, mounting method, inspection method and packaging protection for lapped surfaces.

ZTA Ceramic Disc Usage Instructions

Correct installation, handling and cleaning help ZTA ceramic discs maintain stable sealing or wear performance. Because ceramic discs are hard and brittle compared with metals, the assembly should avoid point loading, edge impact and uncontrolled tightening.

• Installation

  1. Check the ceramic disc for chips, cracks, surface scratches or edge damage before assembly.
  2. Confirm that the mating housing, gasket, O-ring or backing ring is clean and free from burrs.
  3. Apply mounting force evenly and avoid direct point contact between the ceramic edge and metal seat.

• Operation

  1. Avoid dry running unless the seal or valve design has been reviewed for that condition.
  2. Monitor leakage, vibration, torque or temperature during the first operating cycle after installation.
  3. For abrasive slurry or particle-loaded media, confirm flushing and filtration conditions to reduce face scratching.

• Cleaning

  1. Use soft lint-free cloth, neutral detergent or a compatible solvent based on the working medium.
  2. Do not clean lapped faces with steel brushes, hard abrasives or uncontrolled blasting.
  3. If deposits remain, soak the disc in a suitable cleaning solution before wiping the surface.

• Storage

  1. Store ZTA discs in cavity trays, foam partitions or individual bags to prevent ceramic-to-ceramic contact.
  2. Keep lapped faces separated and protected from dust, moisture and hard particles.
  3. Maintain drawing number, batch number and material grade labels for repeat orders and replacement control.

• Common Misuse Points and Practical Fixes

  1. Over-tightening against a rigid seat
  Issue: Excessive preload on a flat ZTA disc against a rigid metallic seat can cause micro-cracks at the edge.
  Fix: Use specified torque values, introduce compliant gaskets or backing rings, and check surface flatness before assembly.

  2. Thermal shock from rapid quenching
  Issue: Moving a hot ZTA disc assembly directly into cold liquid can induce thermal stress and lead to cracking.
  Fix: Follow controlled cooldown procedures; avoid sudden temperature changes beyond recommended rates stated in equipment instructions.

  3. Contamination trapped between sealing faces
  Issue: Hard particles trapped on the ZTA disc face can scratch the surface and accelerate wear.
  Fix: Flush systems thoroughly during start-up and after maintenance; keep assemblies covered and clean before installation.

ZTA Ceramic Disc FAQ

1. What is a ZTA ceramic disc?
   A ZTA ceramic disc is a zirconia toughened alumina ceramic component used as a flat sealing, wear or support surface in industrial equipment. It combines alumina hardness with improved toughness from zirconia reinforcement, making it suitable for seals, valves and wear-contact assemblies.
2. Is ZTA better than alumina for seal faces?
   ZTA is often better than standard alumina when the seal face is exposed to vibration, pressure cycling, impact during assembly or abrasive media. Standard alumina is still suitable for many stable-duty applications, but ZTA can reduce edge chipping risk when toughness is more important.
3. Can a ZTA ceramic disc replace a silicon carbide disc?
   A ZTA ceramic disc may replace silicon carbide in selected applications, but it should not be treated as a direct drop-in replacement without review. Pressure, temperature, counterface material, chemical medium, thermal expansion and surface finish should be checked before substitution.
4. What surface finish is needed for a ZTA seal disc?
   The required surface finish depends on the seal design and leakage requirement. General contact surfaces may use ground finishes, while mechanical seal faces often require lapped surfaces with controlled flatness, parallelism and roughness.
5. Can ZTA ceramic discs be made with holes, grooves or slots?
   Yes. ZTA ceramic discs can be machined with through holes, countersinks, slots, shallow grooves, recesses, chamfers or stepped profiles according to the drawing. The final design should consider ceramic machining limits, edge strength and mounting stress.
6. What information is needed to quote a custom ZTA ceramic disc?
   A useful quotation request should include OD, ID, thickness, drawing, tolerance, surface finish, flatness, hole or groove design, edge chamfer, material grade, operating medium, temperature, pressure, counterface material and expected quantity.
