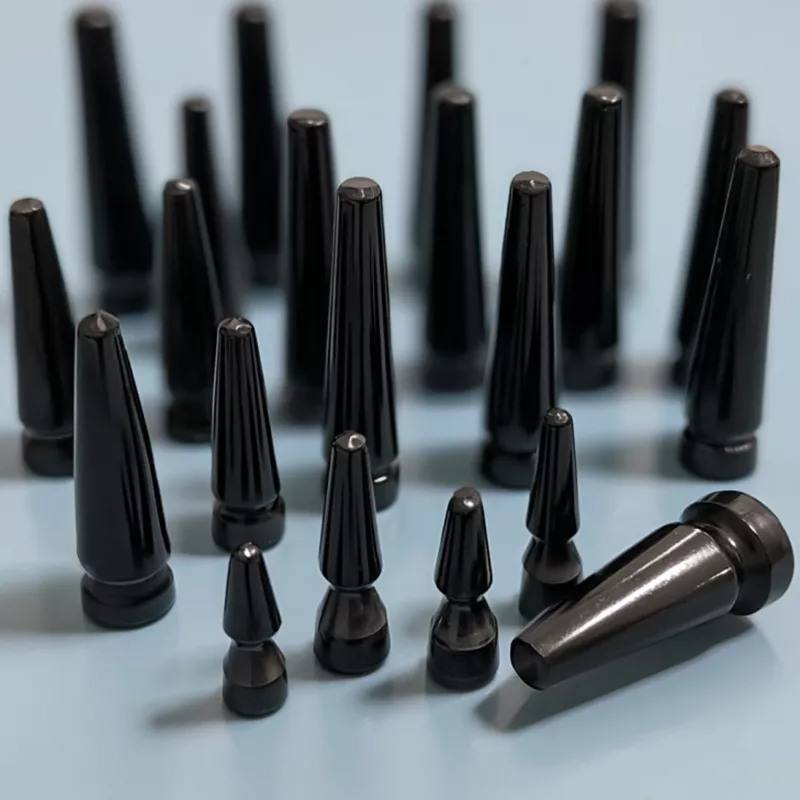

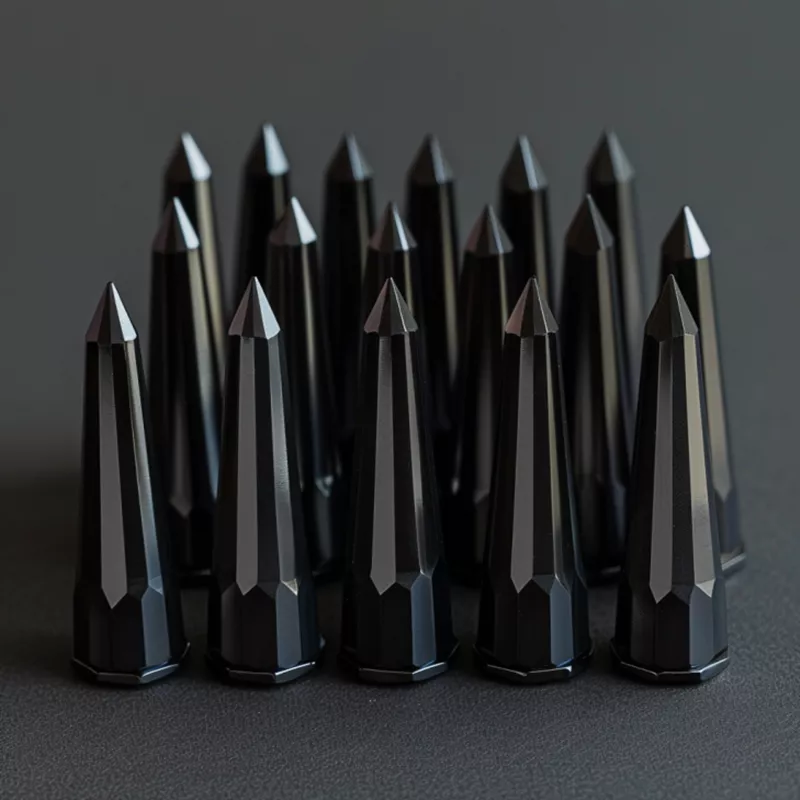

Black Zirconia Ceramic Pins for Custom Fixtures

Black zirconia ceramic pin applications

Black zirconia ceramic pins are specified in fixtures that need a hard, dimensionally stable contact to locate, guide or support a component. The application sets the pin geometry, the mating fit and the acceptance criteria; a single catalogue dimension does not define the part.

• Black zirconia ceramic pins in CNC tool preset fixtures

  In presetters and spindle setup stations, the pin provides the contact point that positions the toolholder against a datum. The working end profile and the shoulder position decide where the contact lands, while the shank fixes radial location. Because the fixture repeats the same motion, the decision turns on the datum scheme, the insertion direction and the number of clamping cycles the fixture runs. Specifying the contact length, the shoulder datum and the surface condition on the drawing keeps the pin and the toolholder interface consistent between builds.

• Black zirconia ceramic pins in metallurgical alignment systems

  Furnace lines and mould seating fixtures use pins to align and support components exposed to radiant heat and oxide scale. The decision here is driven by the ambient temperature at the pin, the thermal gradient across the fixture and the condition of the seat material. Zirconia conducts heat slowly, so heat passes along the pin gradually — but the zirconia grades do not share one maximum working temperature, and the published expansion data covers a limited measured interval. Confirm the service temperature, the cycle and the seat material for the selected grade before fixing the fit. Oxide and scale build-up at the bore is controlled through the inspection interval, not through a material claim.

• Black zirconia ceramic pins in chemical pump and process mounting fixtures

  Chemical transfer and dosing equipment uses pins to locate impeller housings, seal carriers and mounting plates. The medium, its concentration and the operating temperature decide the grade; washdown and wet service decide the surface and edge criteria. Where the fixture also carries a sensor or a signal path, zirconia's electrical resistivity lets the pin act as an isolating element, provided the housing and seat are assessed with it. Welding and other process fixtures follow the same review and are evaluated on their actual heat and electrical path.

• What changes the pin specification

  Project task	What the pin does	What changes the specification
  CNC tool preset and spindle setup	Sets the contact point for toolholder location against a datum	Datum scheme, insertion direction, clamping cycle count, contact length and shoulder position
  Furnace line and mould seating alignment	Locates and supports a component exposed to radiant heat and scale	Ambient temperature at the pin, thermal gradient, seat material, inspection interval
  Chemical pump and dosing equipment	Locates impeller housings, seal carriers and mounting plates	Medium and concentration, operating temperature, washdown, electrical isolation needs
  Inspection and vision fixtures	Provides a dark, low-reflectance contact surface in the imaging zone	Light source and wavelength, viewing angle, surface state, acceptance target

Send the drawing, the mating bore or seat details and the service conditions with the enquiry. ADCERAX reviews the application, the pin geometry and the acceptance scope together before quotation.

Guidelines for installing and using black zirconia ceramic pins

• Installation

  Use press-fit procedures within validated interference limits. Do not hammer or apply uncontrolled deformation force to the ceramic surface, which can introduce microcracks. Ensure the mounting block or seat material is dimensionally compatible and clean. Remove debris and oil residue from the bore and pin shank before insertion.

• Operating environment

  Stabilise thermal gradients in applications above 600 °C and avoid localised flame contact. Confirm the intended medium and electrical environment before installation in corrosive or high-voltage duty.

• Maintenance and inspection

  After extended use, verify pin position and diameter against the drawing. Inspect the contact surface and shoulder for loss of surface condition. Replace any pin showing visible cracking; do not attempt to repair or re-grind ceramic in the field. Record checks and findings against the drawing revision and lot.

• Handling and storage

  Store pins separated from metal components to prevent contact and edge damage. Use padded or compartmented packaging for transit. Handle by the shank, away from the functional tip and contact surfaces.

Frequently asked questions about black zirconia ceramic pins

1. What is a black zirconia ceramic pin used for?
   It provides a hard, dimensionally stable contact for locating, guiding or supporting a component in fixtures — welding fixtures, inspection jigs, tool preset stations and process equipment alignment. The black finish suits working zones that need a dark, low-reflectance surface.
2. How is the black colour produced, and does it help machine vision?
   The colour comes from a carbon-based additive in the zirconia formulation, not a coating, so it runs through the body. Staying dark and low-reflectance gives vision systems clear contrast against bright tooling and aluminium fixtures; confirm the colour acceptance range on the drawing.
3. How does the pin perform under continuous thermal cycling?
   Zirconia conducts heat slowly, so heat moves along the pin gradually rather than spreading through it at once. The grades do not share one maximum working temperature and the published expansion data covers a limited interval, so state the service temperature, gradient and cycle count for review with the seat material.
4. How does it resist wear in abrasive environments?
   Zirconia is hard — the family sits around HV 1200–1300 — which holds tolerances at a repeated contact in grit-rich or dust zones. Ceramics chip at edges and shoulders rather than wearing undersize, so control dust at the contact, protect edges and set an inspection interval.
5. Is it suitable for acid and chemical service?
   It resists most acids, alkalis and organic solvents. Hydrofluoric acid and hot concentrated sulfuric acid need separate assessment, and the housing, seat and seal often limit the assembly before the pin does — state the medium, concentration and temperature.
6. How does it handle shock and high compressive loads?
   Compressive strength falls in the 2000–3500 MPa range and flexural strength in 800–1000 MPa. The limit is failure mode, not strength: ceramics fracture rather than deform, so design out impact and point loads and keep installation force aligned.

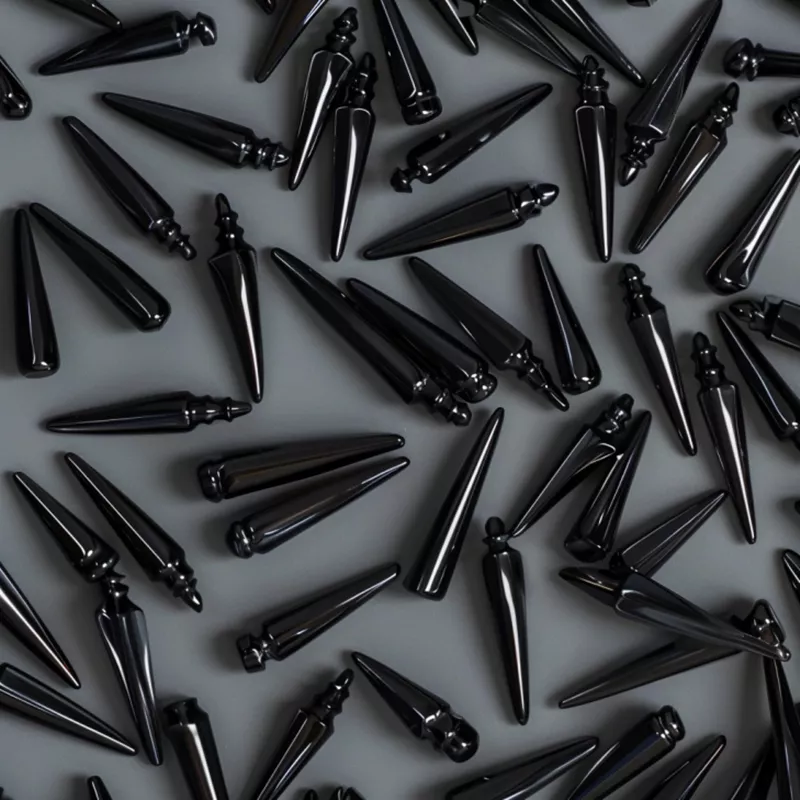

7. Can I order a custom pin, and what is needed for a quotation?
   Yes — AT-HG-X1001 is a drawing-based supply model. Send tip profile, shank diameter and length, shoulder position, holes, surface condition, mating bore details and quantity, plus any load, thermal or chemical conditions; lead time is given with the quotation.
