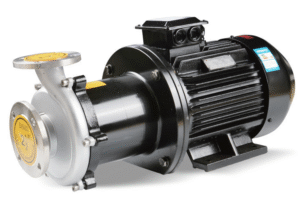

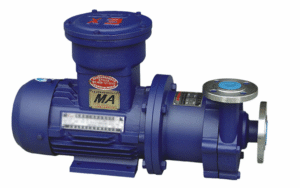

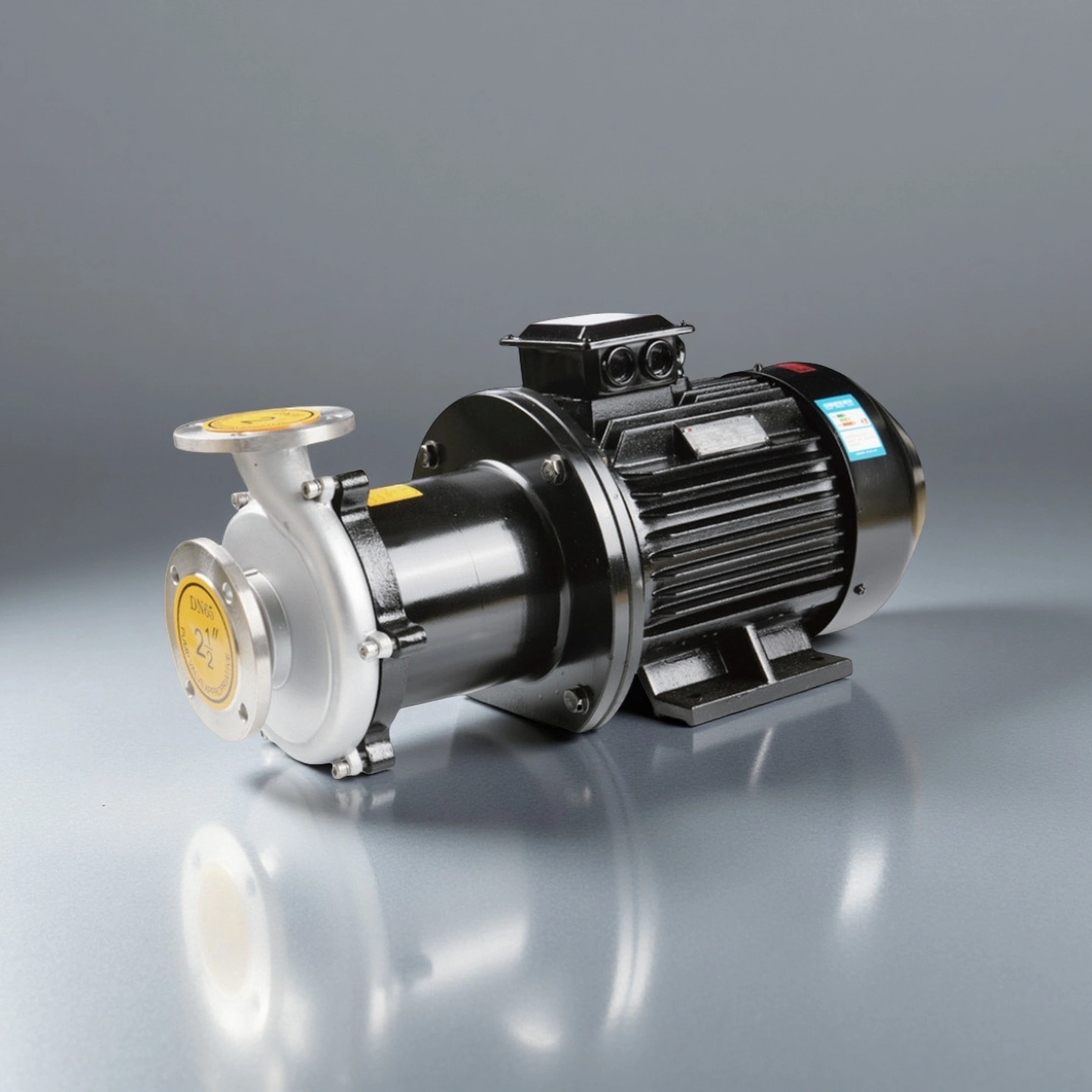

SiC Lined CQ Stainless Steel Magnetic Drive Pump

Application Fit for SiC Lined CQ Stainless Steel Magnetic Drive Chemical Pumps

The SiC Lined CQ Series Stainless Steel Magnetic Drive Chemical Pump is engineered to address the demanding fluid-handling conditions found in corrosive chemical transfer, high-frequency dosing cycles, and vapor-rich circulation systems, enabling the ADCERAX® CQ Stainless Steel Magnetic Drive Pump to maintain long-term reliability where conventional sealed pumps often fail.

• Fine Chemical and Solvent Transfer

  SiC lined CQ stainless steel magnetic drive pumps can be reviewed for solvent-rich chemical transfer lines where leakage control, media compatibility and long-cycle circulation stability are important. In fine chemical production, the pumped liquid may include organic solvents, acidic intermediates, alkaline cleaning fluids or mixed chemical streams. These fluids can place higher requirements on wetted material selection, bearing lubrication and seal-free pump structure.

  The magnetic drive design removes the mechanical shaft seal from the leakage path, which helps reduce seal-related leakage concerns in enclosed chemical transfer systems. SiC or SSiC bearing components support the rotating assembly when the pump is selected for clean or lightly contaminated chemical media. Before final selection, ADCERAX should review the chemical name, concentration, temperature, viscosity, vapor pressure, flow rate, head and suction condition to match the pump configuration to the actual process.

• Electroplating and Surface Treatment Circulation

  Electroplating and surface treatment lines often involve acidic or alkaline baths, metal-ion solutions, cleaning chemicals and rinsing circulation. In these systems, pump selection is not only about flow rate. The buyer also needs to consider corrosion resistance, particle contamination, crystallization risk, bath temperature and continuous circulation requirements.

  A SiC lined magnetic drive pump can be considered when softer bearing materials may wear faster under abrasive particles, suspended solids or crystallizing salts. The stainless steel wetted structure should be reviewed according to bath chemistry and chloride exposure, while the SiC bearing system should be reviewed according to particle size, filtration level and start-stop frequency. For plating equipment builders, ADCERAX can also review installation space, motor standard, inlet and outlet direction, and replacement dimensions before quotation.

• Industrial Wastewater Dosing and Neutralization

  Industrial wastewater treatment systems often use chemical pumps for acid dosing, alkali dosing, neutralization, circulation and pretreatment processes. These applications may involve variable pH, fluctuating liquid levels, intermittent operation, gas-forming reactions and changing chemical concentration. Because the operating condition is not always stable, pump selection should focus on material compatibility, suction stability and dry-run protection.

  A CQ stainless steel magnetic drive pump with SiC bearing components can be reviewed for dosing and circulation systems where leakage control and corrosion-resistant wetted materials are required. The sealless magnetic drive structure is useful when the customer wants to reduce shaft-seal maintenance points, but the pump still needs correct liquid lubrication and cooling for the bearing system. For this reason, ADCERAX should confirm tank level, NPSH condition, vapor formation, solids content, chemical concentration and operating cycle before recommending a model.

• Chemical Equipment OEM Integration

  Chemical equipment manufacturers may integrate SiC lined CQ magnetic drive pumps into packaged chemical systems, plating equipment, laboratory process modules, wastewater dosing units and small chemical circulation skids. In OEM projects, the buyer is usually not only selecting a pump model. They also need a pump that fits the machine layout, motor standard, piping direction, maintenance space and operating logic of the whole system.

  ADCERAX can review the required flow rate, head, wetted material, SiC bearing configuration, motor voltage, frequency, installation dimensions and existing pump replacement information before quotation. For replacement projects, photos, drawings, nameplate information and working media details can help confirm whether a standard CQ configuration is suitable or whether the pump needs adjustment. This review process helps the customer reduce mismatch risk before placing an order.

Operation and Maintenance Guidelines for CQ Stainless Steel Magnetic Drive Pumps

The CQ stainless steel magnetic drive pump should be installed and operated according to the actual media, flow condition and system layout. Proper installation, regular monitoring and correct chemical compatibility review help reduce leakage risk, bearing wear and unstable flow during chemical transfer.

• Installation and System Preparation

  Before commissioning, the pump should be aligned correctly and securely connected to the pipeline. The inlet line should remain fully flooded to avoid dry running, because SiC and SSiC bearing surfaces require liquid lubrication during operation.

  Chemical compatibility should be confirmed before startup. Media concentration, temperature, viscosity, particle content and vapor formation may affect wetted materials, bearing condition and pump stability.

• Operation and Flow Monitoring

  During operation, flow rate, temperature, pressure, noise and vibration should be checked regularly. Sudden changes may indicate cavitation, blocked piping, vapor intrusion, bearing wear or abnormal system load.

  For corrosive or vapor-forming media, the pump should be monitored more carefully during startup, shutdown and extended circulation. Stable suction condition and correct operating point are important for magnetic drive pump performance.

• Maintenance and Inspection

  Routine inspection should focus on wetted surfaces, SiC bearing components, shaft sleeve condition and magnetic coupling behavior. Surface marks, abnormal wear, increased vibration or unstable flow should be reviewed before they develop into pump failure.

  Maintenance intervals should be planned according to media type, duty cycle, particle load, temperature and operating hours. For crystallizing or abrasive liquids, inspection frequency should be increased.

• Safety and Chemical Handling

  Protective measures should be used when handling corrosive or hazardous chemicals. System pressure should remain within the confirmed design range, and emergency shutdown procedures should be understood by operators before operation.

  If foaming, vapor formation, dry-running risk or unexpected reaction occurs, the pump should be stopped and the system condition should be reviewed before restarting.

FAQs About SiC Lined CQ Stainless Steel Magnetic Drive Pumps

1. What is a SiC lined magnetic drive pump used for?

   A SiC lined magnetic drive pump is used for corrosive chemical transfer, plating bath circulation, solvent handling and wastewater dosing systems where leakage control and bearing wear resistance are important. The magnetic drive structure removes the mechanical shaft seal, while SiC or SSiC bearing components support the rotating assembly in chemically demanding environments.

2. Why are silicon carbide bearings used in magnetic drive pumps?

   Silicon carbide bearings are used because they offer high hardness, wear resistance and chemical stability. In magnetic drive pumps, bearings and sleeves support the rotating assembly and are exposed to the pumped liquid, so material selection is important when the media contains corrosive chemicals, fine particles or crystallizing compounds.

3. Can a SiC magnetic drive pump run dry?

   A magnetic drive pump should not be selected or operated as a normal dry-running pump unless the design is specifically reviewed for that condition. SiC bearing surfaces usually require liquid cooling and lubrication during operation. The quotation review should include tank level, startup method, suction condition and dry-run protection requirements.

4. How do I choose between SS304, SS316, CF8 and CF8M wetted materials?

   The choice depends on chemical composition, chloride content, operating temperature, cleaning method and corrosion risk. SS316 or CF8M is often reviewed when stronger corrosion resistance is required, while SS304 or CF8 may be suitable for milder chemical conditions. Final selection should be confirmed with media details before quotation.

5. Can this pump handle abrasive particles or crystallizing chemicals?

   A SiC bearing system can improve wear resistance compared with softer bearing materials, but abrasive particles and crystallization still need careful review. ADCERAX should confirm particle size, particle concentration, crystallization behavior, filtration condition and duty cycle before recommending a pump configuration.

6. What information is needed to quote a SiC lined magnetic drive pump?

   Please provide the chemical media, concentration, temperature, flow rate, head, viscosity, particle content, suction condition, voltage, frequency, installation layout and any existing pump model or drawing. These details help ADCERAX review wetted materials, SiC bearing configuration, motor selection and pump size.

7. Is this product a full silicon carbide pump or a stainless steel pump with SiC components?
   This product is a stainless steel magnetic drive chemical pump with SiC or SSiC bearing components, depending on configuration. It should be described as a SiC lined or SiC bearing magnetic drive pump, not as a fully silicon carbide pump, unless the complete wetted structure is confirmed as silicon carbide.
