Process Safe Zirconia Ceramic Plunger Pump for Industrial Fluid Systems
The Zirconia Ceramic Plunger Pump combines advanced ceramic material science with precise engineering to achieve reliable dosing and filling in industrial environments. Its performance is defined by measurable data, covering hardness, toughness, and long-term accuracy, ensuring confidence for pharmaceutical, food, cosmetic, and chemical applications.
ADCERAX® Zirconia Ceramic Plunger Pump is designed for precise liquid dosing and filling in demanding industrial processes. Built from high-strength zirconia ceramic, it delivers long service life, resistance to corrosion, and stable performance with aggressive media. The pump is widely adopted in pharmaceutical, food, cosmetic, and chemical industries where purity and accuracy are essential.
Features of Zirconia Ceramic Plunger Pump
The Zirconia Ceramic Plunger Pump achieves filling accuracy as low as ±0.3%, maintaining consistency in small- and mid-volume dosing tasks. This performance minimizes variation in pharmaceutical and cosmetic filling lines.
It delivers metering accuracy of up to ±0.1%, making it a dependable choice where precise dosage is critical. This accuracy reduces the risk of costly production errors.
The material offers fracture toughness of 6–8 MPa·m½, providing resistance against sudden mechanical shocks. This toughness ensures reliability even during high-speed operations.
A density of 5.65–6.05 g/cm³ ensures structural integrity while reducing porosity. This dense structure enhances resistance against chemical penetration.
It maintains stability at temperatures up to 1000 °C, enabling safe use in processes involving heated or corrosive liquids. This makes it suitable for both food sterilization and chemical dosing.
The Zirconia Ceramic Plunger Pump resists aggressive media with a thermal conductivity of 3 W/m·K. This low conductivity minimizes thermal stress during rapid temperature shifts.
Its hardness of 1200–1450 HV1 ensures exceptional resistance to abrasion. This hardness directly lowers maintenance frequency in production environments.
With a compressive strength of 1600–2300 MPa, the pump resists deformation in demanding operations. This property extends service life by reducing wear under high loads.
Technical Properties for Zirconia Ceramic Plunger Pump
The ZrO2 Plunger Pump is defined by its physical, mechanical, and thermal properties, which determine performance across pharmaceutical, food, cosmetic, and chemical applications.
Property
Specification
Material Composition
Zirconia (ZrO₂) + Stabilizing agent
Density
5.65–6.05 g/cm³
Thermal Resistance
up to 1000 °C
Bending Strength
480–1000 MPa
Compressive Strength
1600–2300 MPa
Hardness
1200–1450 HV1
Fracture Toughness
6–8 MPa·m½
Thermal Conductivity
3 W/m·K
Electrical Resistivity
1×10¹⁴ Ω·cm

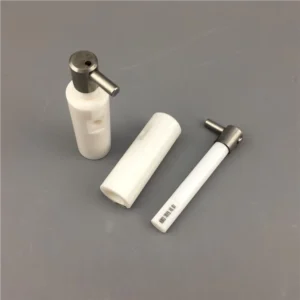

Specifications of Zirconia Ceramic Plunger Pump
Zirconia Plunger Pump
Model
Filling Range (ml)
Metering Accuracy
Purity
Customizable Range (ml)
AT-ZP-6001
0.45
>0.5%, <1%
95%
0.4–1.7
AT-ZP-6002
4.5
>0.3%, <0.5%
95%
1.3–5.5
AT-ZP-6003
6.5
>0.3%, <0.5%
95%
2.5–10
AT-ZP-6004
8
>0.3%, <0.5%
95%
7.0–22
AT-ZP-6005
35
>0.3%, <0.5%
95%
12–55
AT-ZP-6006
82
>0.3%, <0.5%
95%
52–100
AT-ZP-6007
176
>0.3%, <0.5%
95%
105–200
Packaging of Zirconia Ceramic Plunger Pump
Each ZrO2 Plunger Pump is first secured in reinforced cartons and then placed inside wooden crates for extra protection. The multi-layered packaging prevents vibration and impact during long-distance shipping. This ensures every one of them arrives safely and ready for industrial use.
Solving Application Challenges with ADCERAX® Zirconia Ceramic Plunger Pump
ADCERAX® ZrO2 Plunger Pump is engineered to address specific industrial challenges where precision, durability, and chemical stability are essential. Its application spans demanding environments where conventional metal pumps fail to maintain dosing accuracy, resist corrosion, or meet purity requirements.
Pharmaceutical Filling Lines
✅Key Advantages
1. Accuracy Locked at ±0.3% — Maintains ±0.3% filling accuracy on small-volume fills. Stable metering at ±0.1% prevents cumulative drift across long batches.
2. Biocompatible, Metal-Free Wetted Path — Y-TZP contact surfaces avoid metal ion leaching. Compliance aided by inert ceramics and EU RoHS conformity.
3. Wear-Resistant Under Continuous Cycles — Surface hardness 1200–1450 HV1 resists abrasion in 24/7 runs. Fracture toughness 6–8 MPa·m½ protects against shock loads.
✅ ️Problem Solved
A sterile vial line experienced under/over-fill alarms after prolonged shifts with metal plungers. Switching to ADCERAX® Zirconia Ceramic Plunger Pump held fills within ±0.3% through extended production windows, with metering stability at ±0.1%. Abrasion issues dropped due to 1200–1450 HV1 hardness and inert wet surfaces. The result was consistent release testing and fewer stoppages for corrective recalibration.
Chemical Additive Systems
✅Key Advantages
1. Corrosion Immunity to Harsh Media — Inert to acids, alkalis, chlorides, and solvents; thermal resistance up to 1000 °C supports hot dosing. Low thermal conductivity ≈3 W/m·K limits thermal shock.
2. High Load Capacity in Pressurized Loops — Compressive strength 1600–2300 MPa prevents deformation under back-pressure. Density 5.65–6.05 g/cm³ ensures a dense, non-porous wetted path.
3. Stable Performance Over Time — Bending strength 480–1000 MPa resists fatigue. Electrical resistivity ~1×10¹⁴ Ω·cm provides insulation in electrochemical environments.
✅ ️Problem Solved
A catalyst dosing skid handling chloride-rich solvents faced corrosion-driven seal wear and frequent changeouts. After deploying ADCERAX® Zirconia Ceramic Plunger Pump, wetted components showed no chemical attack while maintaining ±0.3% dosing accuracy under elevated temperature service up to 1000 °C. The combination of 1600–2300 MPa compressive strength and inert surfaces reduced unplanned maintenance and stabilized additive ratios across campaigns.
Dairy and Beverage Production
✅Key Advantages
1. Hygienic, Non-Porous Wetted Surfaces — Dense zirconia 5.65–6.05 g/cm³ minimizes absorption and residue. Supports CIP/SIP with stable properties at process temperatures.
2. Flavor/Additive Precision — Repeatable fills at ±0.3% protect taste profiles and label claims. Metering precision ±0.1% maintains recipe consistency across shifts.
3. Service Life in Abrasive Cleaning Regimes — Hardness 1200–1450 HV1 tolerates frequent CIP cycles. Fracture toughness 6–8 MPa·m½ reduces chipping risk during handling.
✅ ️Problem Solved
A high-throughput beverage line reported flavor variance and long sanitation downtimes with oxidizing metal pumps. ADCERAX® Zirconia Ceramic Plunger Pump delivered ±0.3% fill control for enzymes and flavors while enabling rapid CIP/SIP turnaround. Non-porous zirconia at 5.65–6.05 g/cm³ prevented residue retention, and 1200–1450 HV1 hardness sustained performance across repeated cleaning cycles, improving line stability and sensory consistency.
User Guide for Zirconia Ceramic Plunger Pump
The Zirconia Ceramic Plunger Pump requires proper handling and maintenance to ensure stable operation, long service life, and reliable performance in demanding environments. This guide provides key recommendations for installation, operation, cleaning, and storage, helping users reduce downtime and achieve consistent results across different applications.
Installation Guidelines
1. Always mount the pump on a stable and vibration-free base to avoid axial misalignment and radial runout. Proper alignment reduces wear and enhances long-term performance.
2. Ensure the liquid inlet and outlet connections are secure and leak-free before operation. Improper connections can lead to pressure loss and reduced dosing accuracy.
3. Verify that the operating environment remains dry and dust-free to protect moving components and prevent contamination of sensitive process fluids.
Operating Conditions
1. Keep the liquid temperature and pressure within the specified operating range to maintain safe and efficient pump performance. Deviations can shorten the lifespan of core components.
2. Avoid using the pump with fluids containing solid particles unless pre-filtration is applied. Particulates can cause abrasion and compromise metering consistency.
3. Monitor the pump during continuous use to detect unusual noise or vibration early. Immediate inspection can prevent costly downtime and production loss.
Cleaning and Maintenance
1. The ceramic surface is non-porous and easy to clean, allowing quick removal of residual liquids. Rinse with compatible cleaning agents after each operation.
2. Perform scheduled inspections of plunger and sealing components to detect wear before it affects accuracy or flow stability. Replacement should follow maintenance cycles.
3. Support CIP and SIP systems for on-site sterilization and cleaning, ensuring hygienic compliance in pharmaceutical and food applications.
Storage Recommendations
1. When not in use, clean the pump thoroughly and store it in a dry, temperature-stable environment. This prevents material degradation over time.
2. Seal inlet and outlet ports with protective covers to avoid dust accumulation and blockages during long-term storage.
3. For extended storage periods, perform functional checks before reinstallation to confirm the pump operates at optimal accuracy and reliability.
FAQs about Zirconia Ceramic Plunger Pump
Q: Why is the Zirconia Ceramic Plunger Pump suitable for aggressive chemical media?
A: Zirconia exhibits high chemical inertness against acids, alkalis, and solvents, preventing degradation under harsh conditions. This ensures long-term reliability and stable performance in chemical plants. It also reduces replacement costs caused by corrosion damage.
Q: How does the Zirconia Ceramic Plunger Pump minimize downtime in continuous production?
A: With wear resistance measured at 1200–1450 HV1, the ceramic plunger sustains prolonged operation without surface damage. Fewer replacements and lower maintenance needs reduce unplanned stoppages. This translates to higher overall equipment availability.
Q: How does the Zirconia Ceramic Plunger Pump handle thermal stress?
A: Zirconia offers thermal resistance up to 1000 °C with a very low expansion coefficient. This ensures stable operation when fluid temperature fluctuates. It prevents cracking or dimensional shifts that compromise pump performance.
Q: Can the Zirconia Ceramic Plunger Pump maintain dosing stability at micro-volume levels?
A: Yes, the pump achieves filling accuracy as low as ±0.3% for small liquid volumes. This ensures reliable dosing for micro-liter applications in cosmetics and diagnostics. It minimizes waste of high-value liquids during production.
Q: Why do industries choose the Zirconia Ceramic Plunger Pump for high-value applications?
A: The pump combines corrosion resistance, high strength, and precise metering, which protect expensive materials from loss or contamination. Its reliability reduces risks in pharmaceutical, chemical, and cosmetic production. This ensures high return on investment for industrial clients.
Client Experiences with ADCERAX® Zirconia Ceramic Plunger Pump
⭐️⭐️⭐️⭐️⭐️
“The pump has exceeded expectations in our pharmaceutical filling lines. We immediately noticed consistent dosing accuracy that reduced our batch rejection rate. The easy-to-clean ceramic surfaces also support our stringent GMP requirements.”
– Dr. M. Fischer, Meditech Pharma Solutions (DE)
⭐️⭐️⭐️⭐️⭐️
“In our chemical additive systems, the pump demonstrated exceptional corrosion resistance against aggressive solvents. Maintenance downtime has dropped significantly since switching to this equipment. It continues to perform with stable output under continuous operation.”
– A. Johnson, GlobalChem Industries (US)
⭐️⭐️⭐️⭐️⭐️
“We integrated the pump into our dairy production lines, and its hygienic flow performance has helped us meet food safety audits without issue. The CIP compatibility makes cleaning simple and efficient. It is a strong asset for high-volume beverage applications.”
– S. Müller, Alpine Dairy Group (CH)
⭐️⭐️⭐️⭐️⭐️
“Our cosmetics facility relies on precise micro-dosing, and the pump consistently delivers stable and repeatable filling for sensitive formulations. The durability of zirconia components gives us confidence in long-term production stability. This purchase has improved our line efficiency.”
– E. Thompson, PureForm Cosmetics (UK)
ADCERAX® Zirconia Ceramic Plunger Pump can be adapted to meet unique requirements across pharmaceutical, chemical, food, and cosmetic industries. Clients often request custom solutions to ensure compatibility with their process conditions, equipment configurations, and material handling needs.
Flow and Capacity Adjustments
Specific liquid volumes and dosing requirements can be requested.
Flow Range: Designed to match precision dosing targets
Capacity Stability: Ensures consistent output in high-cycle systems
Performance Match: Adapted to application-specific liquid properties
Connection and Interface Design
Pump connections can be customized to align with different system setups and standards.
Inlet/Outlet Design: Flexible interface for equipment compatibility
Mounting Options: Stable structure suited to production layouts
Seal Integration: Optimized sealing for leakage-free operation
Operational Environment Adaptation
Custom builds ensure reliable function under diverse operating conditions and compliance needs.
Temperature Endurance: Configured for thermal stress in processes
Pressure Handling: Built to withstand demanding industrial loads
Regulatory Compliance: Meets food and pharma-grade safety standards
