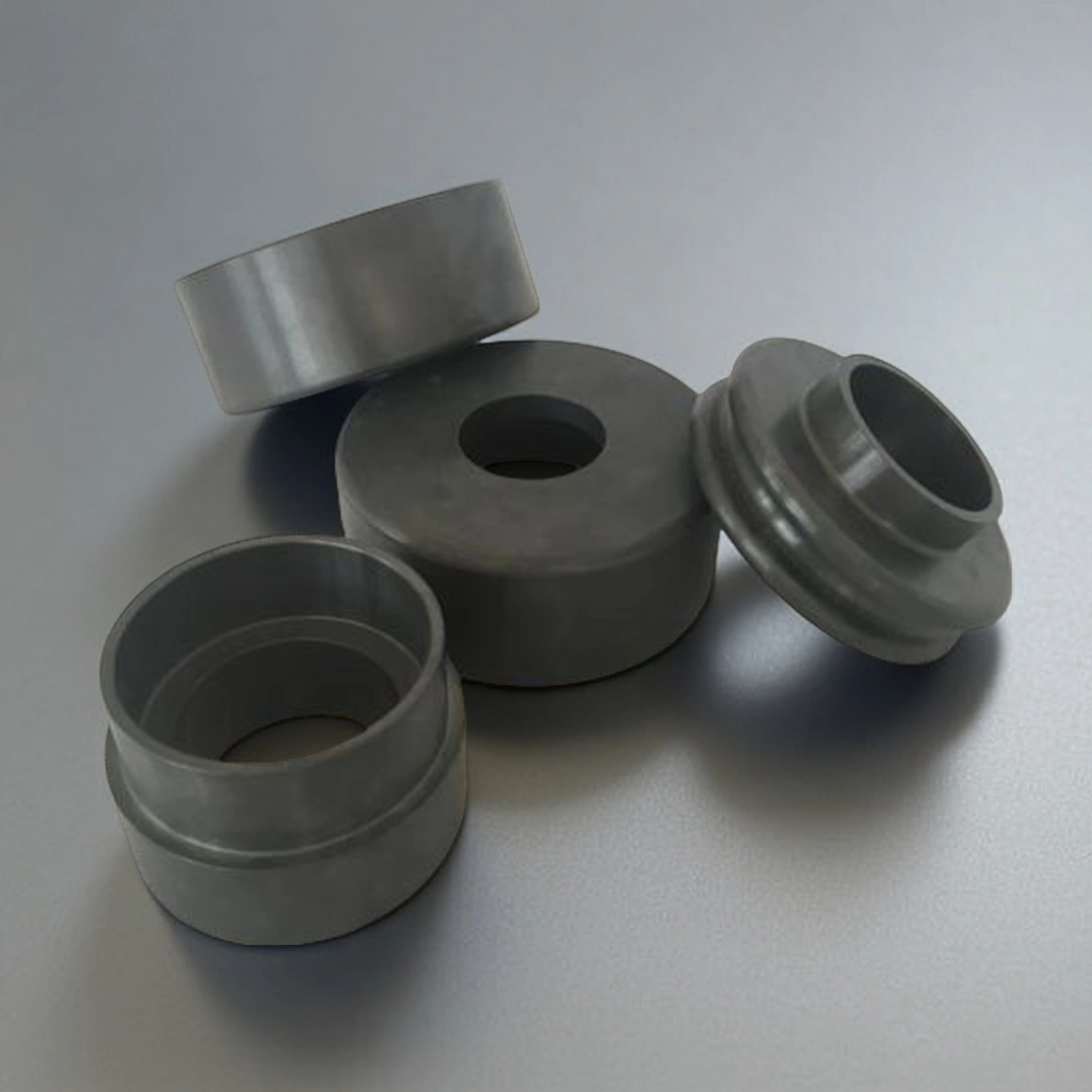

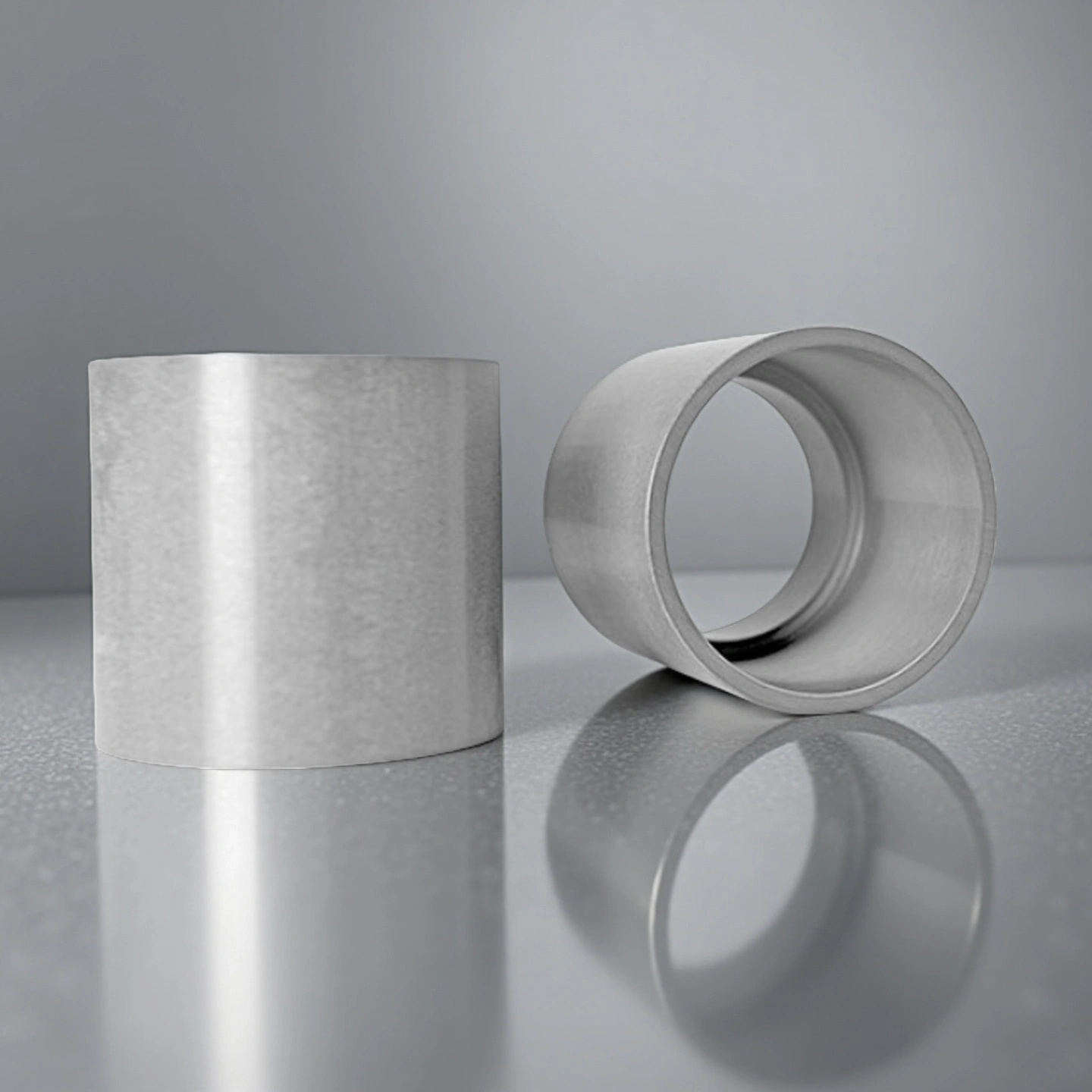

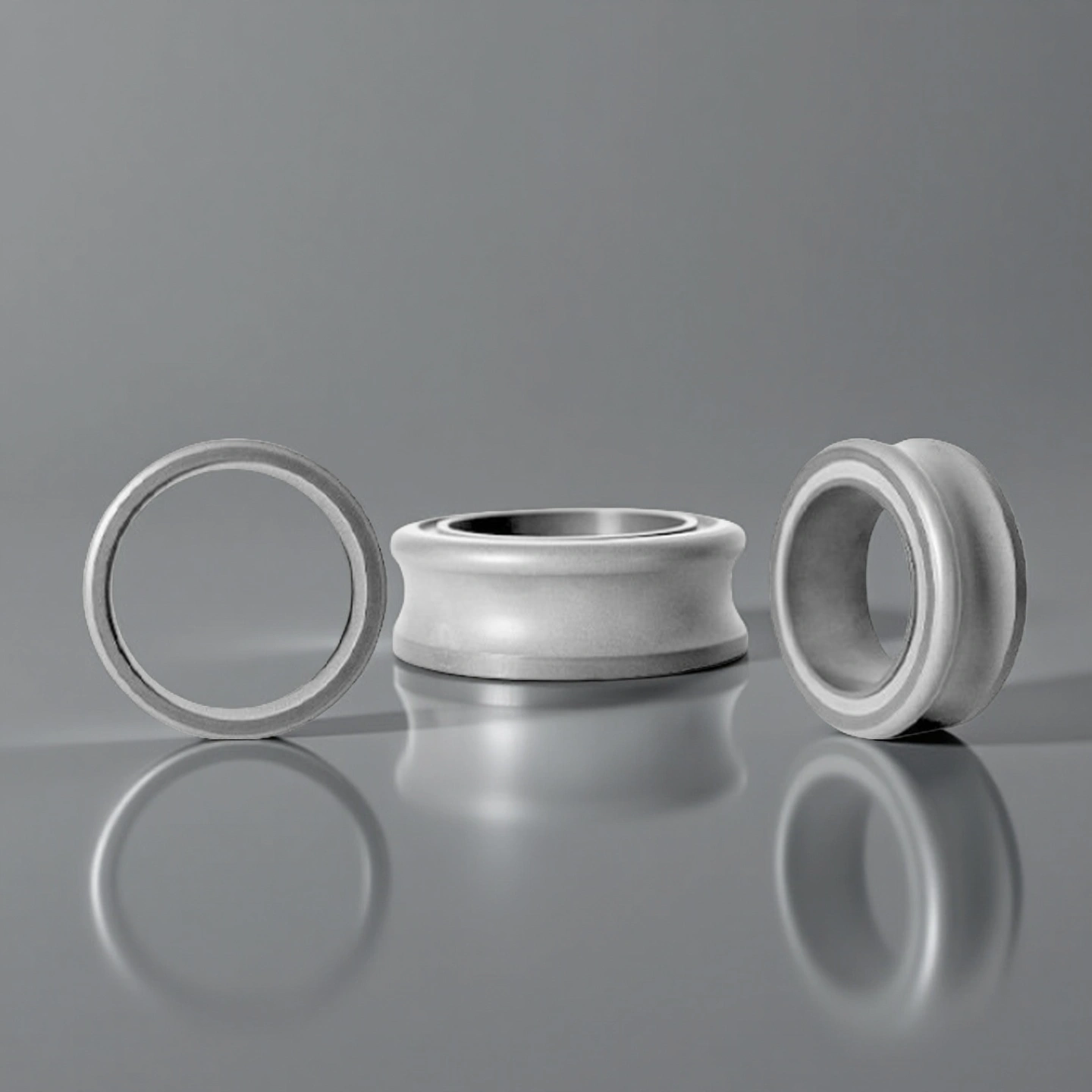

Silicon nitride insulation ring is a precision Si₃N₄ ceramic spacer used to electrically isolate mating parts while keeping tight dimensional control under temperature, load, and media exposure. It is commonly installed in mechanical seal chambers, pump/valve assemblies, vacuum flanges and feedthroughs, and motor or spindle end covers to block stray currents, stabilize sealing gaps, and reduce leak-related rework.
Silicon Nitride Insulation Ring Benefits
1. Electrical isolation under load
High dielectric strength (15–20 kV/mm typical per ASTM D149/IEC 60243) and stable volume resistivity (≥10¹² Ω·cm) maintain insulation in humid or chemically active environments. The silicon nitride insulation ring effectively prevents leakage currents and bearing pitting caused by stray voltages, ensuring long-term reliability for pumps and vacuum assemblies.
2. Dimensional stability
With a coefficient of thermal expansion of only 2.8–3.2 × 10⁻⁶/K (ASTM E228), the ring keeps alignment accuracy across wide temperature ranges. Excellent thermal shock resistance allows repeated heating and cooling cycles without warping or cracking, protecting fit tolerances in high-speed rotating systems.
3. Wear and corrosion resistance in seal chambers
The dense Si₃N₄ microstructure resists abrasion from slurry, vapour, and metallic contact surfaces. In field tests, wear loss is less than 0.05 mm after 1,000 hours of pump operation, reducing maintenance intervals and leakage incidents in chemical and water-treatment lines.
4. Machinable features for assembly
Precision grinding and CNC finishing enable IDs/ODs, grooves, and keyways to meet ±0.02–0.10 mm tolerance and flatness ≤0.05 mm. These controlled geometries improve first-time assembly rates by over 20% compared with conventionally cast spacers, supporting consistent sealing performance in OEM production.
5. Surface options
Functional faces can be lapped or polished to Ra 0.4–0.8 µm, achieving uniform compression and stable sealing gaps. Optional selective polishing or raw-ground surfaces allow engineers to balance friction control and adhesive bonding needs depending on the sealing media and torque environment.
Si₃N₄ Insulation Ring Properties
| Si3N4 Type | Gas pressure sintering Si3N4 | Hot pressing sintering Si3N4 | High thermal conductivity Si3N4 |
| Density (g/cm3) | 3.2 | 3.3 | 3.25 |
| Flexural Strength (MPa) | 700 | 900 | 600~800 |
| Young Modulus (GPa) | 300 | 300 | 300~320 |
| Poisson's ratio | 0.25 | 0.28 | 0.25 |
| Compressive strength (MPa) | 2500 | 3000 | 2500 |
| Hardness (GPa) | 15 | 16 | 15 |
| Fracture toughness (MPa*m1/2) | 5~7 | 6~8 | 6~7 |
| Maximum working temperature (℃) | 1100 | 1300 | 1100 |
| Thermal conductivity (W/m*K) | 20 | 25 | 80~100 |
| Thermal expansion coefficient (/℃) | 3*10-6 | 3.1*10-6 | 3*10-6 |
| Thermal shock resistance (ΔT ℃) | 550 | 800 | / |
These are typical material references for initial selection, not guaranteed values for every finished ring. Actual results depend on material grade, part geometry, surface condition, temperature, atmosphere, and test method.
Silicon Nitride Insulating Ring Specifications
| Si3N4 Insulation Ring | ||
| Item No. | Diameter（mm) | Height (mm) |
| AT-SIN-JY1001 | Customize | |
Is Silicon Nitride the Right Material for Your Insulation Ring?
Select the material around what the ring must do—not the material name alone. Electrical isolation, thermal cycling, mechanical load, wear conditions, and assembly fit should be reviewed together before the drawing is finalized.
Choose Silicon Nitride When
The ring must combine electrical isolation with thermal-shock resistance,
mechanical strength, and precise dimensional control.
- High-temperature electrical interfaces
- Repeated heating and cooling cycles
- Load-bearing or wear-exposed positions
Compare Alumina When
Electrical insulation, established dielectric data, and material cost are
more important than the combined thermal-shock and mechanical-strength
requirements addressed by silicon nitride.
Compare Zirconia When
Fracture resistance and lower-temperature mechanical contact dominate the
application. Temperature range and electrical requirements should still be
evaluated separately.
Compare Silicon Carbide When
Wear, heat transfer, or seal-face duty is the primary requirement. Confirm
whether electrical isolation is still required, because silicon carbide is
not a like-for-like electrical-insulator replacement.
Review the Material Route If You See These Problems
These symptoms may indicate a mismatch between the material, ring geometry, operating conditions, or assembly interface.
- Edge damage
Chipping, cracking, or damage during assembly. - Insulation concerns
Flashover, leakage current, or unstable electrical isolation. - Loss of fit
Distortion or contact changes after thermal cycling. - Interface wear
Scoring, abnormal wear, or leakage near a sliding or sealing surface. - Unknown part function
The role of the ring is unclear in an older or replacement assembly.
For material review: Include the assembly drawing, operating temperature, electrical requirement, load, atmosphere or medium, mating materials, and observed failure symptoms in your RFQ.
Silicon Nitride Isolation Ring Packaging
- Each silicon nitride ring is individually packed in anti-static foam trays and sealed in PE bags to prevent contamination. Bulk orders are shipped in reinforced wooden crates with shock-absorbing materials.
