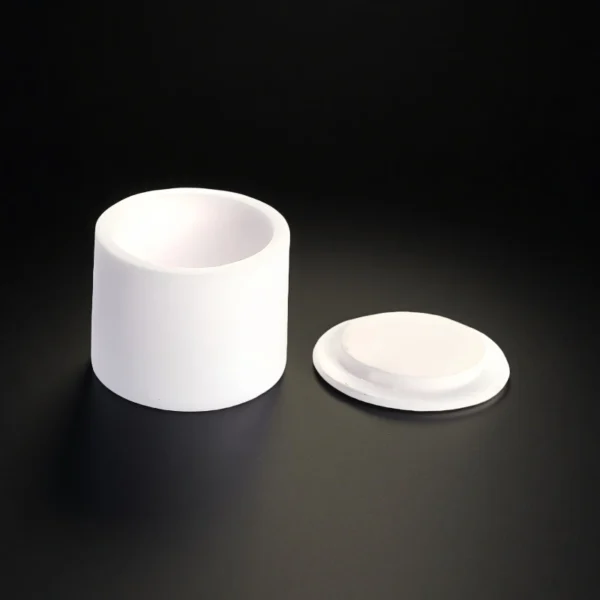

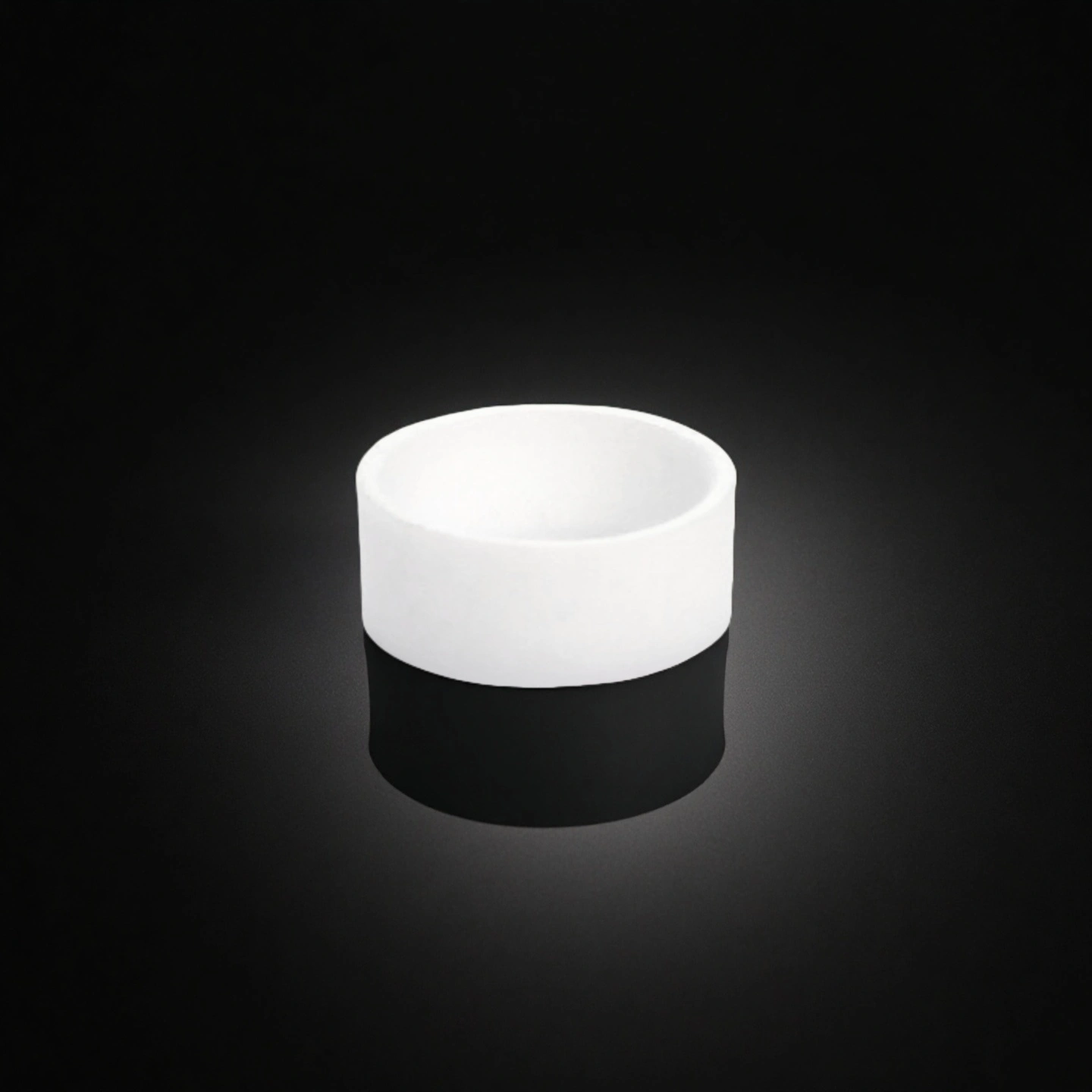

DSC Alumina Crucible with Lid for High-Temperature Thermal Analysis

DSC Alumina Crucible Applications in Thermal Analysis

• Polymer Characterization

  DSC alumina crucibles are widely used for measuring glass transition temperature (Tg), melting point (Tm), crystallization temperature (Tc), and heat of fusion in polymers and plastics. The chemical inertness of alumina ensures no interaction with polymer samples, while the high thermal conductivity provides sharp transitions.

  Typical samples: Polyethene, polypropylene, PET, nylon, PEEK, engineering thermoplastics, elastomers, polymer blends

• Pharmaceutical Development and QC

  Pharmaceutical labs rely on DSC alumina pans for drug melting point determination, polymorphism screening, purity assessment, and excipient compatibility studies. The clean baseline of alumina crucibles enables detection of subtle thermal events in small API samples.

  Typical samples: Active pharmaceutical ingredients (APIs), excipients, formulation blends, drug-polymer dispersions

• Material Comparison and Quality Control

  Manufacturers use DSC with alumina crucibles to verify incoming raw material quality, detect batch-to-batch variation, and confirm product specifications. The reproducibility of alumina pans ensures consistent results across multiple operators and instruments.

  Typical samples: Resins, adhesives, coatings, composites, additives, fine chemicals

• High-Temperature Materials Research

  Alumina's exceptional temperature stability (up to 1600°C) makes it suitable for studying ceramics, metals, glasses, and other high-temperature materials that exceed the range of aluminum pans.

  Typical samples: Ceramic precursors, metal alloys, glass compositions, refractory materials

Using and Maintaining DSC Alumina Crucibles

• Sample Preparation and Loading

  1. Clean handling: Use powder-free gloves or clean tweezers. Oils from skin contact affect thermal conductivity
  2. Sample mass: Weigh sample precisely (typically 5-20 mg). Record exact mass for heat capacity calculations
  3. Sample placement: Center sample in crucible bottom for uniform thermal contact
  4. Lid placement: Seat lid flat and level. Misaligned lids cause poor reproducibility
  5. Crimping (if applicable): Use appropriate crimping tool for your lid style. Don't over-crimp or you'll deform the pan

• Storage

  1. Store unused DSC alumina crucibles in original packaging or sealed container
  2. Keep in clean, dry location away from dust and contaminants
  3. Don't stack loose crucibles—they chip easily

• Cleaning and Reuse

  Unlike disposable aluminum pans, DSC alumina crucibles can be cleaned and reused:
  1. Physical cleaning: Remove residual sample with soft brush or gentle scraping
  2. Solvent cleaning: Rinse with appropriate solvent (acetone, ethanol, etc.). Ultrasonic bath helps
  3. Thermal cleaning: Heat empty crucible to 500-600°C to burn off organic residues
  4. Inspection: Examine for cracks or chips before reuse. Discard damaged crucibles
  5. Mass verification: Weigh cleaned crucible. Significant mass change indicates incomplete cleaning or damage

• When to Replace a DSC Alumina Crucible

  Replace crucibles if you observe:
  1. Visible cracks or chips in the pan or rim
  2. Deformation or warping (crucible doesn't sit flat)
  3. Discoloration or staining that won't clean off
  4. Baseline shift or poor reproducibility compared to new crucibles
  5. Persistent contamination from previous samples

Frequently Asked Questions About DSC Alumina Crucibles

1. Can these alumina crucibles replace original parts in NETZSCH DSC instruments?
   A matching OEM number helps identify the original consumable, but does not establish direct interchangeability. Confirm the exact instrument model, sensor or sample carrier, complete part number, material and cup/lid geometry. Validate the proposed replacement in the intended instrument and method before routine use.
2. What temperature range can DSC alumina crucibles handle?
   Alumina crucibles are stable from -170°C (liquid nitrogen temperature) up to 1600°C. This covers the full range of standard DSC instruments. For comparison, aluminum pans are limited to about 600°C before melting, making alumina the choice for high-temperature applications.
3. Can I reuse DSC alumina crucibles?
   Yes, unlike aluminum pans which are typically single-use, alumina crucibles can be cleaned and reused multiple times. After a run, remove residual sample mechanically or with solvent, or burn off organics by heating to 500-600°C. Inspect for damage before reuse. Proper cleaning allows 10-50+ reuses depending on sample type and care.
4. Do you supply lids, including pin and pin-less configurations?
   Cup and lid configurations can be reviewed together. Specify whether you need a pin or pin-less lid, along with the original part number, lid geometry and method requirements. Confirm availability, fit and venting details for the selected configuration; a fitted lid should not be assumed to provide a gas-tight seal.
5. What sample types should I use alumina crucibles for?
   Alumina crucibles are ideal for: polymers and plastics (all types), pharmaceuticals and drug formulations, materials requiring temperatures above 600°C (where aluminum pans fail), samples that react with aluminum (acids, some organics), and any application where you want reusable crucibles. If you're running routine low-temperature polymer work and cost is the priority, disposable aluminum pans may be more economical.
6. How do I know which crucible size fits my DSC instrument?
   Check your DSC manual for recommended crucible dimensions, or contact us with your instrument make and model (e.g., "TA Instruments Q2000," "Netzsch DSC 214"). We maintain a cross-reference database of standard crucible dimensions for all major DSC brands and can confirm the correct size for your system.
7. Should I use a lid for my DSC experiment?
   It depends on your sample and test goals. Use a lid when: your sample is volatile and you need to contain vapors, you want to create a specific atmosphere (use a sealed lid), or you need to prevent sample oxidation. Run without a lid when: studying oxidation or decomposition in air, sample has very low volatility, or manufacturer's method specifies open pan. For most polymer Tg and Tm measurements, a lid is recommended to prevent sample loss.

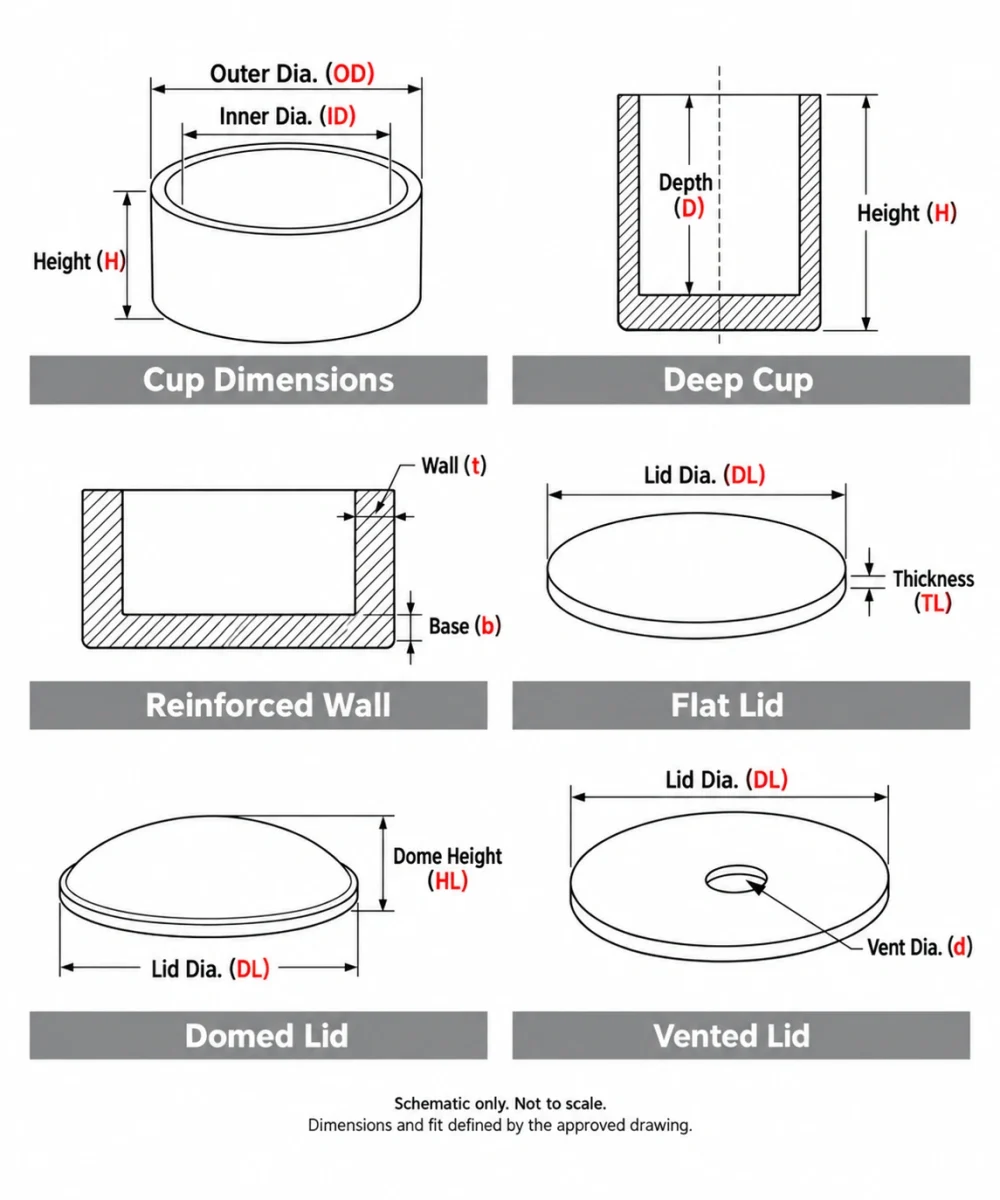

8. Can you make custom DSC crucibles to fit our instrument?
   Yes, we manufacture custom alumina crucibles to customer-specified dimensions, lid styles, and volumes. This is useful for non-standard DSC instruments, specialized sample holders, or unique application requirements. Minimum order quantities apply. Contact us with your dimensional requirements and we'll provide a quote and lead time.
9. What's your lead time for DSC alumina crucibles?
   Standard sizes in stock: 1-2 weeks for delivery. Standard sizes not in stock: 3-4 weeks. Custom designs: 4-6 weeks after design approval. Rush orders may be available—contact us to discuss your timeline.
