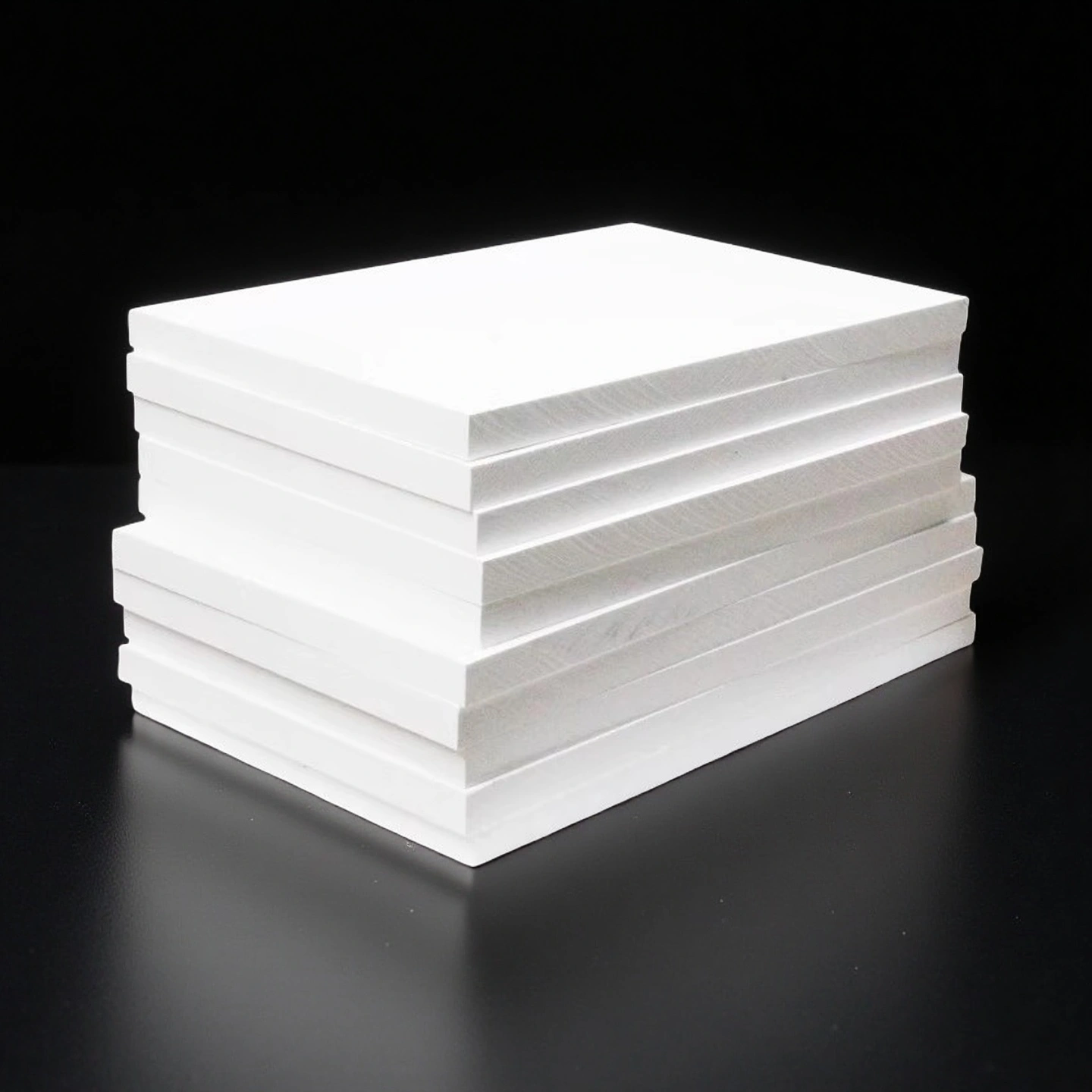

Shock-Tolerant Zirconia Fiber Board for Multi-Zone Heat Control Equipment

Solving Thermal and Structural Challenges with ADCERAX® Zirconia Fiber Board in Demanding Industrial Systems

ADCERAX® Zirconia Fiber Board addresses performance failures in extreme thermal environments where conventional insulation materials degrade rapidly. Its application across furnace doors, electrical heating systems, and molten metal vessels demonstrates measurable gains in durability, thermal stability, and system efficiency.

• Furnace Door Insulation under Continuous High-Temperature Cycling

  ✅Key Advantages

  1. Stable Geometry at 1650 °C
  Zirconia Fiber Board exhibits <2% linear shrinkage after 24-hour exposure to 1650 °C in cycling environments. This dimensional stability prevents gap formation and eliminates edge erosion during door opening/closing.
  2. Hot Gas Erosion Resistance
  Tested at flame velocities >40 m/s, the board maintained edge integrity and sealing contact. Its resistance to high-velocity gas impingement preserves thermal uniformity at the door interface.
  3. Extended Service Life
  In front-loading kilns operating at 1600 °C, Zirconia Fiber Board achieved >8 weeks of continuous use before requiring replacement—3× longer than aluminosilicate boards typically changed every 2–4 weeks.

  ✅ ️Problem Solved

  A Polish precision ceramics kiln previously experienced insulation failure at the furnace door every 3 weeks due to delamination and thermal cycling. After replacing with ADCERAX® Zirconia Fiber Board, the door seal remained intact for 9+ weeks, cutting downtime by 60% and reducing energy loss at the interface by 17.4%, measured via thermographic scan.

• Electrical Insulation Layer for Compact Heating Elements

  ✅Key Advantages

  1. Non-Conductive at High Temperatures
  Zirconia Fiber Board maintains electrical resistance above 10⁹ Ω even after 200 h at 1000 °C, outperforming alumina-silicate boards that drop below 10⁶ Ω under similar conditions.
  2. Zero Binder Emission
  The fully inorganic matrix emits no volatiles at startup. Testing shows no detectable outgassing (<1 ppm) under vacuum ramp to 1600 °C, eliminating contamination risks near high-voltage sensors.
  3. Moisture-Resistant Phase Structure
  The board’s yttria-stabilized tetragonal phase prevents conductivity shifts from absorbed moisture. Capacitance variance remained <0.3% across RH 20–80% at ambient temperature.

  ✅ ️Problem Solved

  A Canadian R&D furnace lab experienced measurement drift in a tube heating system due to insulation becoming conductive after humidity cycling. After switching to ADCERAX® Zirconia Fiber Board, voltage leakage issues were eliminated, with system drift reduced to <0.2% over a 6-month period. The lab maintained full electrical isolation without additional shielding.

• Flame-Exposed Lining in Molten Metal Transfer Vessels

  ✅Key Advantages

  1. High Flame Erosion Tolerance
  Zirconia Fiber Board withstood >100 ladle pour cycles with direct flame contact without spallation. Surface recession was <0.5 mm, compared to >2.5 mm in conventional ceramic boards.
  2. Slag Inertness and Non-Wetting
  ZrO₂-based surfaces showed minimal interaction with iron-oxide and aluminum-silicate slag. Wettability tests confirmed a contact angle >140°, reducing slag adhesion and corrosion.
  3. Thermal Shell Protection
  Use of Zirconia Fiber Board as inner lining reduced external shell temperature by 80–110 °C in 1550 °C molten metal environments, measured via infrared pyrometry, extending shell life by 30%.

  ✅ ️Problem Solved

  A Mexican foundry previously re-lined their aluminum transfer ladles every 50 pours due to board erosion and slag attack. With ADCERAX® Zirconia Fiber Board, lining lifespan increased to 130 cycles. Thermographic logs showed a 92 °C drop in external temperature, and operator-reported relining frequency was reduced from weekly to monthly.

Zirconia Fiber Board is used in critical high-temperature systems where reliability, cleanliness, and thermal integrity are essential. To ensure maximum product life and system compatibility, users should follow proper guidelines across storage, preparation, installation, and maintenance phases.

• Storage and Environmental Conditions

  1. Keep boards in a dry, enclosed space with humidity below 60% RH to prevent moisture absorption that could affect thermal performance. Prolonged exposure to humid conditions may cause surface softening or dimensional instability during initial heat-up. Use sealed wrap or plastic covers for storage beyond one week.
  2. Avoid stacking more than five units flat without separation layers to reduce compression stress. Boards should be stored with smooth surfaces facing upward to prevent edge damage or deformation. Improper stacking may lead to warping or internal cracking.
  3. Protect from direct sunlight and air drafts, especially in open warehouses or near HVAC outlets. UV exposure and fluctuating air currents can weaken binderless surfaces and lead to powdering during handling.

• Pre-Processing and Cutting Instructions

  1. Use diamond saw blades or CNC routers for precision cutting of Zirconia Fiber Board. Standard cutting tools may create fiber fraying or uneven edges. Always stabilize the board on a rigid platform during processing.
  2. Wear PPE including gloves, goggles, and masks when machining to avoid inhalation of airborne ceramic fibers. While non-hazardous, fine particulates may cause irritation with prolonged exposure. Operate in a well-ventilated area or under dust extraction.
  3. Avoid excessive localized pressure when marking or handling corners. Although dimensionally stable, the board may chip if subjected to high point-load stress, especially after shaping or slotting.

• Installation and Structural Integration

  1. Install Zirconia Fiber Board on flat, level surfaces using stainless anchors or ceramic bolts spaced evenly at ≤300 mm intervals. Improper fastening may lead to misalignment and uneven thermal load distribution.
  2. Leave 2–3 mm expansion gaps between adjacent boards to accommodate minor thermal expansion without edge compression. Tight installations without spacing can cause cracking during repeated cycles.
  3. Use high-purity ceramic adhesive when bonding to metallic or refractory structures. Avoid organic glues or silicone-based sealants, which can outgas or degrade under temperatures exceeding 1000 °C.

• Operational Use and Maintenance Tips

  1. Heat up and cool down gradually to avoid thermal shock, especially in systems cycling above 1600 °C. A recommended ramp rate is <5 °C/min during first heat-up for newly installed boards.
  2. Inspect surface integrity after every 500 h of operation or every 20 cycles, whichever comes first. Look for powdering, cracks, or discoloration which may indicate overexposure or installation issues.
  3. Replace only damaged zones when possible, using matching board density and configuration. Partial replacement minimizes downtime and preserves the original thermal design performance.

FAQs – Zirconia Fiber Board Technical Performance & Application Concerns

1. Q1: What makes Zirconia Fiber Board suitable for 2200 °C furnace environments?
   Zirconia Fiber Board is composed of stabilized zirconia fibers with a high-temperature threshold of up to 2200 °C in continuous operation. It remains structurally stable and resists shrinkage or delamination even after repeated heating cycles. Linear shrinkage is <2% after 24h at 1650 °C, verified by thermal cycling data. This makes it ideal for furnace hot-face insulation under extreme heat.
2. Q2: How does Zirconia Fiber Board perform under rapid thermal cycling?
   Thanks to its low thermal expansion and robust fiber structure, the board withstands over 50 cycles between room temperature and 1650 °C without cracking. It maintains tight sealing in furnace doors and movable structures. This ensures consistent performance in high-frequency operation systems.
3. Q3: Can Zirconia Fiber Board resist flame impingement in casting applications?
   Yes. It has been tested under flame velocities exceeding 40 m/s with minimal surface recession. The board’s dense ceramic matrix offers superior resistance to erosion and molten metal splash, making it ideal for ladles and tundish linings.
4. Q4: Is Zirconia Fiber Board electrically insulating at high temperatures?
   It maintains an electrical resistance of >10⁹ Ω at 1000 °C, suitable for use around high-voltage heating elements and sensors. It is also binder-free, so there's no risk of contamination or conductivity loss from thermal decomposition. This is especially important in lab-scale furnaces.
5. Q5: How does Zirconia Fiber Board contribute to energy savings in furnaces?
   With thermal conductivity of <0.12 W/m·K at 1000 °C, it provides a higher insulation value compared to traditional ceramic boards. Customers report insulation layer thickness reductions of 25–40%, resulting in up to 30% energy savings in continuous operations.

• ⭐️⭐️⭐️⭐️⭐️
  “We installed Zirconia Fiber Board in a batch sintering kiln operating at 1650 °C, and the results exceeded expectations. The material maintained dimensional integrity after 60+ thermal cycles, with no signs of edge erosion or cracking. It significantly outperformed our previous alumina boards.”
  — Markus W., Thermal Process Engineer, Kronberg Materials GmbH
• ⭐️⭐️⭐️⭐️⭐️
  “In our lab-scale heating systems, we struggled with insulation breakdown and sensor drift due to binder outgassing. ADCERAX’s Zirconia Fiber Board provided a clean, stable electrical insulation layer with zero contamination during temperature ramping. Our technicians noticed immediate improvements in measurement consistency.”
  — Emily R., Lab Manager, NovaTek Research Systems
• ⭐️⭐️⭐️⭐️⭐️
  “We switched to Zirconia Fiber Board for the hot-face layer in aluminum tundish linings. Its erosion resistance under direct flame was impressive—we extended relining intervals by nearly 3×. That alone has saved both material cost and weekly labor hours.”
  — David H., Maintenance Supervisor, AlloyFlow Casting Inc.
• ⭐️⭐️⭐️⭐️⭐️
  “ADCERAX supported our urgent retrofit project with rapid shipment and full cutting support. The Zirconia Fiber Board handled 2200 °C conditions during thermal testing and showed no powdering or structural collapse, even under vacuum. It’s now our go-to solution for all high-temp insulation zones.”
  — Sofia L., Project Lead, Ionex Advanced Furnaces
