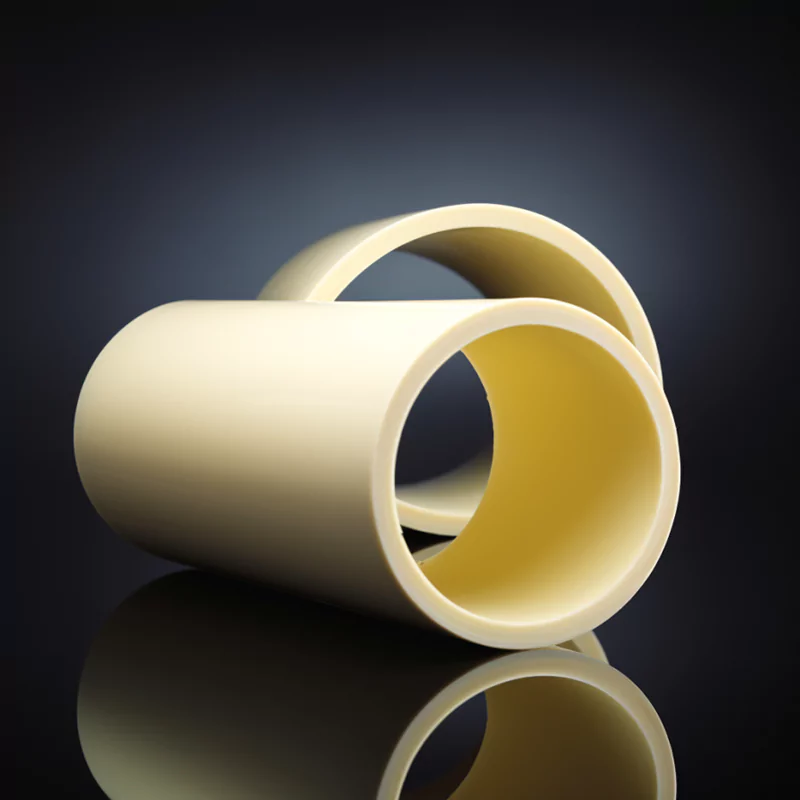

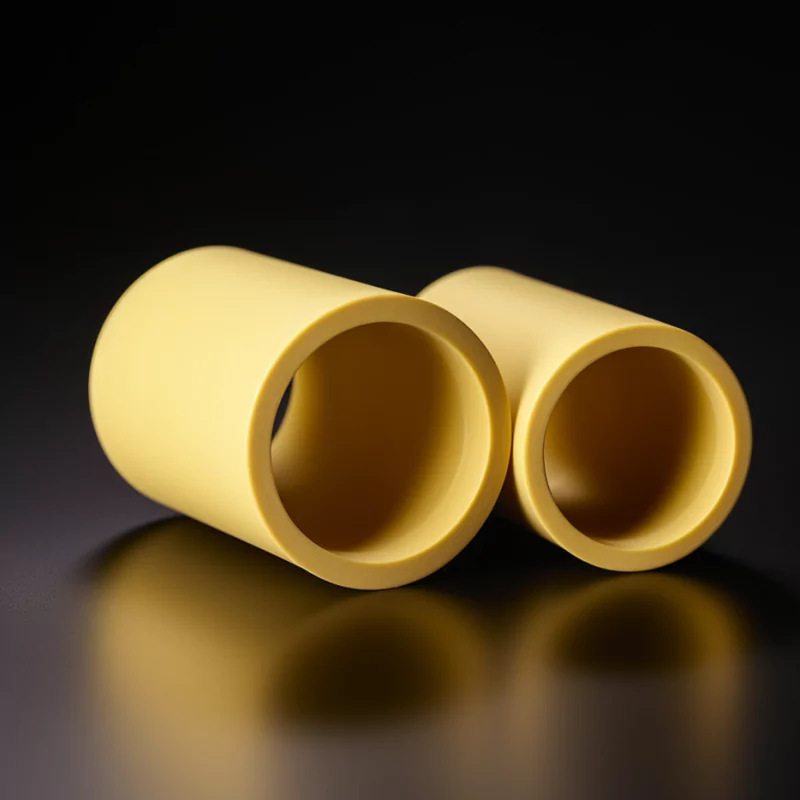

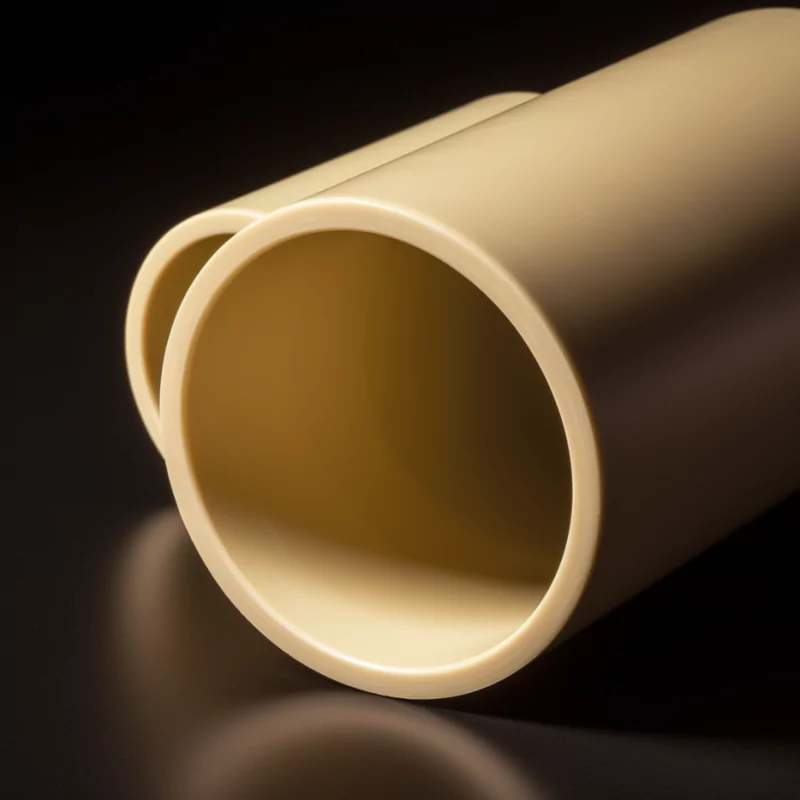

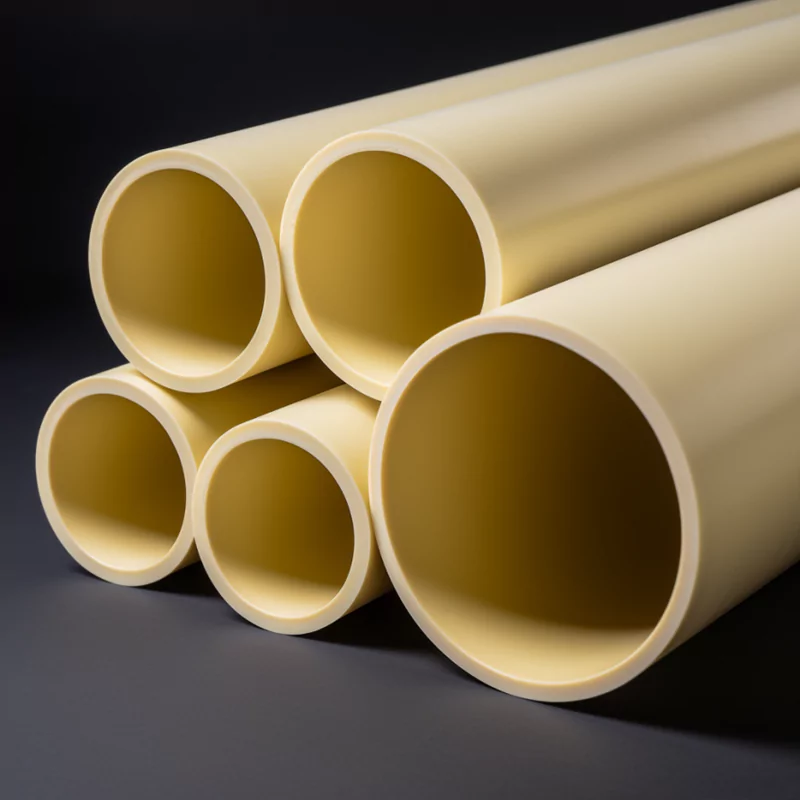

Magnesia Stabilized Zirconia Single-Bore Tubes

Applications — Where a Single-Bore MSZ Tube Is Used

Each section names the part function, gives the recorded material data behind the advantage, and lists what must be confirmed for your assembly.

• Abrasive slurry or solids handling

  Used as a bore sleeve or liner where a pump, valve or pipe passes abrasive slurry. Advantage: AD-ZRO-MG fracture toughness is 6–12 MPa·m½ at 20°C and Vickers hardness is 11.5 GPa, both typical material values; a dense, non-absorbing surface (water absorption 0% on a specified dense sinter) resists slurry wetting and sticking. Confirm: media size and concentration, flow velocity, seal interface and fit tolerance.

• High-temperature process and furnace internals

  Used as a short protective or guiding tube around a sensor, thermocouple or probe. Advantage: thermal conductivity is 2.5 W/(m·K) at 20°C and thermal expansion is 10.5 × 10⁻⁶/K over 40–80°C — the material insulates and moves less than many metals, reducing contact stress. Confirm: continuous and peak temperature, ramp rate, atmosphere and support length.

• Thermal-shock-cycled positions

  Used where the part repeatedly heats and cools in service. Advantage: the MSZ stabilizer system and 6–12 MPa·m½ toughness (method-dependent) are why this zirconia is chosen over alumina in some cycling positions. Confirm: the actual ΔT, cycle count and quench medium — no universal thermal-shock limit is stated for this product.

• Locating sleeves and alignment seats

  Used as a non-metallic locating bush or alignment sleeve. Advantage: no water absorption and 0% on a dense sinter keeps the fit dimensionally stable; 200 GPa Young's modulus and 0.28 Poisson's ratio give predictable stiffness. Confirm: mating diameters, concentricity, fit class and assembly load.

• Chemically exposed process contact

  Used where a bore contacts corrosive fluids, reagents or molten material. Advantage: an inert zirconia system with no water absorption resists chemical attack better than metal in many media. Confirm: chemical species, concentration, temperature and exposure time for your case — resistance is not implied for all acids, alkalis, melts or steam.

User Guide for Magnesia Stabilized Zirconia Tube Single Bore

The Magnesia Stabilized Zirconia Ceramic Tube Single Bore requires proper handling, operation, and maintenance to achieve its full service life. This guide provides practical recommendations from storage to daily use, helping customers minimize risks, avoid downtime, and ensure consistent performance in industrial environments.

• Storage and Handling

  1. Store in a clean, dry environment to prevent moisture absorption.
  2. Handle with padded gloves to avoid surface scratches or micro-cracks.

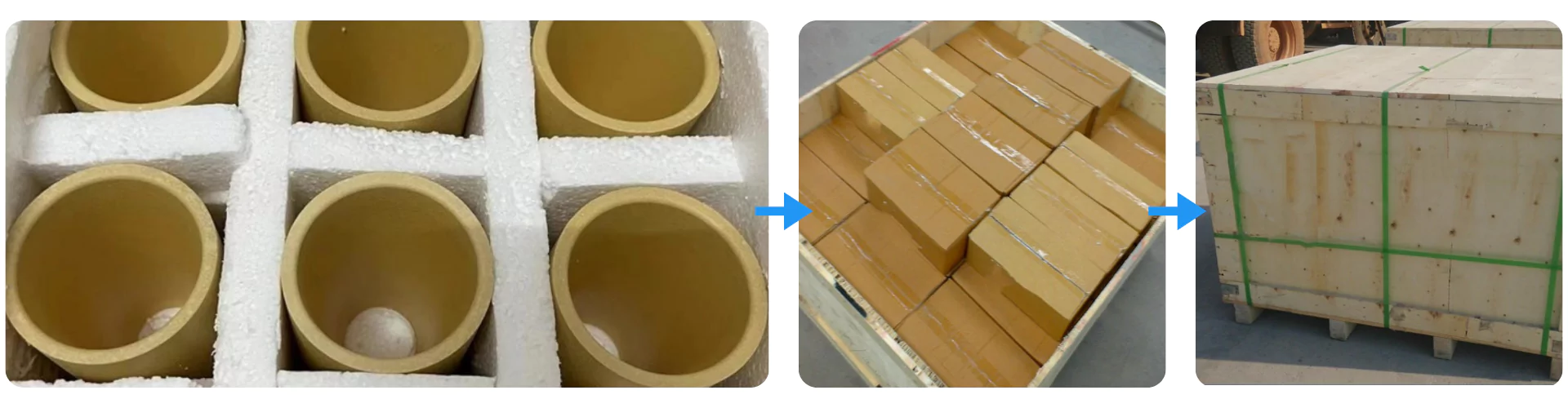

  3. Keep tubes separated with soft packing to avoid edge impact.

• Installation Practices

  1. Ensure fittings and housings are aligned to reduce stress points.
  2. Preheat gradually when introducing tubes to furnace environments.
  3. Avoid sudden temperature exposure during installation stages.

• Operating Recommendations

  1. Limit rapid immersion into liquids after high-temperature use.
  2. Monitor operating cycles to avoid exceeding ΔT 600°C thresholds.
  3. Replace immediately if performance degradation is detected.

• Maintenance and Service

  1. Clean with non-abrasive methods to preserve smooth surfaces.
  2. Avoid exposure to hydrofluoric acid or highly reactive fluoride salts.
  3. Request engineering consultation for custom maintenance strategies.

FAQs about Magnesia Stabilized Zirconia Tube Single Bore

1. Q: Can I order a tube with different dimensions than the listed models?
   A: Yes. Submit a part drawing or marked photograph with the required OD, ID, bore depth and overall length. Include tolerances for critical fits and note the intended application. We will review feasibility and provide a quotation with lead time.
2. Q: Does it protect a thermocouple or probe?
   A: It can be supplied as a protective or guiding tube, but protection depends on wall thickness, support, end configuration and the actual molten-metal or gas environment. Agree the service conditions and the acceptance criteria; no service life or temperature rating is stated for this product.
3. Q: How do I choose between Mg-PSZ and other zirconia grades?
   A: Compare the material properties—strength, toughness, thermal expansion—against your actual load, temperature cycle and medium. Mg-PSZ offers higher fracture toughness where crack resistance matters. Request material data sheets for yttria-stabilized or calcia-stabilized zirconia to compare side by side.
4. Q: Is Mg-PSZ better than alumina or other zirconias?
   A: No. Compare the actual failure mechanism, material grade, geometry, medium, load and operating cycle. Room-temperature toughness or density alone cannot predict a lifetime advantage, high-temperature suitability or a safe substitution for a part specified in another material.
5. Q: What if I only have a broken tube and need a replacement?

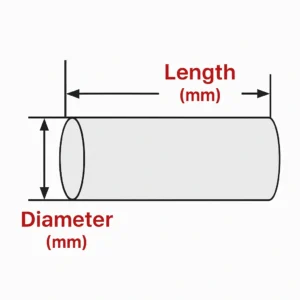

   A: Measure OD, ID and length from an intact tube or from the undamaged section. Photograph the tube next to a ruler, mark the dimensions, and note any visible material characteristics. If the original specification or drawing is available, include it with your enquiry. We can often match dimensions from clear measurements and images.
