If you need one simple rule: start with Al₂O₃ for general-purpose ceramic parts, move to ZrO₂ when fracture toughness and low thermal conductivity matter most, move to SiC when heat transfer, wear, low thermal expansion, gas tightness, or very high-temperature process duty dominate, and move to BN when machinability, non-wetting behavior, electrical insulation, and thermal shock matter more than mechanical strength.
That rule holds across most standard advanced-ceramic applications, and the four materials in this guide are best understood as four different answers to four different dominant engineering problems — not as a strength ranking or a price tier.
Four advanced ceramic materials, four different dominant design problems: Al₂O₃ for general-purpose baseline, ZrO₂ for toughness, SiC for high-temperature process duty and heat flow, BN for machinable non-wetting insulation.
The alumina crucibles and alumina component family represent the broad-baseline role in this guide, while boron nitride ceramic grades, silicon carbide ceramics, and zirconia crucible options each occupy their specific positions in the selection map below.
What each ceramic is really best at
A selection matrix is only useful if it connects material properties to engineering problems rather than simply listing numbers. The four materials in this comparison are each best understood through the constraint they were designed to solve, not through a single ranked property.
Al₂O₃ — the baseline engineering ceramic. Alumina is the most commonly used technical ceramic because of its generally useful combination of properties and good price/performance ratio. Sampled manufacturer data show hardness around 14 GPa, good corrosion and wear resistance, and a practical operating range that covers most general industrial ceramic duties. It is the right starting point for electrical insulators, wear parts, guides, pump seats, simple protection tubes, and general industrial components. It stops being the obvious choice when the design is limited by crack resistance, impact loading, severe thermal shock, or very high heat-flow requirements.
ZrO₂ — the toughness specialist. Zirconia is the choice when a ceramic needs to resist crack initiation and propagation more than any other ceramic in this set. Precision Ceramics describes zirconia as "ceramic steel" — the description reflects a fracture toughness around 10 MPa√m and flexural strength above 800 MPa in sampled YSZ data, both substantially higher than alumina. The tradeoff is high density (above 6.0 g/cm³), very low thermal conductivity (approximately 2.9 W/m·K), and temperature limits that are strongly grade- and stabilization-dependent. Zirconia is the right choice for impact-prone, crack-sensitive, wear-loaded, or thermally insulating precision parts. It is less attractive when low weight, high heat transfer, or the highest continuous structural temperature are the main priorities.
SiC — the process-route material. Silicon carbide is what you move to when the design problem is dominated by heat, heat flow, wear, low expansion, chemical resistance, and process stability simultaneously. Sampled data for sintered α-SiC show thermal conductivity around 125.6 W/m·K, CTE approximately 4.02×10⁻⁶/K, gas impermeability, and maximum air-service temperature around 1900°C. That combination makes SiC the dominant route in process tubes, thermocouple protection tubes, heat exchanger tubes, seals, nozzles, wear liners, and corrosive high-temperature service. It is not the best choice when easy machining after firing or fracture toughness under impact are the first limiting constraints.
BN — the specialist's ceramic. Boron nitride should be chosen for its combination of properties rather than for any single mechanical rating. Precision Ceramics' published comparison language states that BN has relatively poor mechanical properties compared with other ceramics in this set — flexural strength in the range of approximately 21–60 MPa depending on grade, far below alumina, zirconia, or SiC. What BN provides instead is machinability with conventional tooling, non-wetting behavior toward many molten metals and slags, excellent electrical insulation at high temperature, and strong thermal shock resistance. BN is ideal for hot electrical insulators, molten-metal-contact parts, non-wetting liners, setter plates, and fast-turn custom parts. It is the wrong default for structurally loaded parts, high-contact-stress wear components, or any application selected primarily for strength.
Alumina is the safest default starting point
The engineering case for alumina as the default is not that it is best at any single property — it is that it is adequate across the most properties simultaneously for the widest range of applications. When no single constraint is dominant, alumina is almost always the correct first choice.
BN's specialist combination is its advantage, and also its main selection risk
The risk with BN is not that engineers overlook its properties — it is that its machinability and non-wetting reputation can lead to it being specified for applications where structural loading is the real constraint. The property spread between BN and the other three materials in this set is large enough that mixing up their application roles creates real performance failures.
Representative property data by material
The table below summarizes representative values from sampled current manufacturer datasheets. These are not universal values for every grade of each material — they are a calibrated starting point for shortlisting.
| Material | Representative density | Flexural strength | Fracture toughness | Thermal conductivity | Max-use clue | What that usually means |
|---|---|---|---|---|---|---|
| Al₂O₃ | 3.93 g/cm³ | 400–450 MPa | 3.4 MPa√m | 32 W/m·K | Typically 1400–1800°C depending on grade and atmosphere | Best baseline for general technical ceramics, wear, insulation, and cost/performance |
| ZrO₂ (YSZ example) | >6.0 g/cm³ | >800 MPa | 10 MPa√m | 2.9 W/m·K | Grade- and stabilization-dependent; some YSZ grades show 800°C usable temperature | Best when toughness, crack resistance, and thermal insulation dominate |
| SiC | 3.15 g/cm³ | 380–550 MPa (test geometry dependent) | 4.6 MPa√m | 125.6 W/m·K | 1900°C in air for sintered α-SiC | Best for high heat flow, wear, low CTE, corrosive high-temp process duty |
| BN | 1.9 g/cm³ | ~21–60 MPa (grade dependent) | Not the primary selection criterion | 21–128 W/m·K (grade/orientation dependent) | ~850°C in air, ~2000°C inert for hot-pressed grades | Best for machinable non-wetting insulating parts — not for heavy structural loading |
Values are representative from sampled manufacturer datasheets; verify the exact grade with supplier data before specifying.
The property spread across these four materials is large enough that specifying the wrong material family — not just the wrong grade — creates real performance and failure risk. The most dangerous confusion is between BN and the structural ceramics, because BN's approachability (machinability, low weight) can make it feel like the obvious choice in situations where alumina, zirconia, or SiC would be structurally necessary.
The numbers point to four genuinely different use cases
A material with 125.6 W/m·K thermal conductivity (SiC) and a material with 2.9 W/m·K (ZrO₂) are not competing for the same application. The same is true for a material with 10 MPa√m fracture toughness (ZrO₂) versus one with approximately 21 MPa flexural strength (BN). The property table is not a ranking — it is a map of four different engineering tools.
Thermal conductivity is often the most important single separator in this group
When a design problem requires heat to move through the ceramic (heat exchanger tubes, heating element protection, thermocouple sheaths), SiC is in a different category from the other three. When a design problem requires heat not to move through the ceramic (thermal barrier, insulating precision component), ZrO₂ is in a different category. Alumina and BN both occupy mid-range positions that make them versatile for different reasons.
The most common wrong choices in this material set
Four specification errors appear most often when engineers work through this comparison for the first time. Each one is predictable from the property table above.
Using BN as a general structural ceramic. BN machines easily and handles heat well — those properties attract engineers who need fast, temperature-stable parts. But BN's published mechanical properties are substantially lower than alumina, zirconia, and SiC, and Precision Ceramics' own comparison documentation notes this explicitly. If the part carries significant structural load or contact stress, BN is a specialist route, not a default. The correct framing is: if the part needs to be non-wetting, machinable, and electrically insulating at high temperature, BN is often the only answer. If the part needs to be strong, the conversation should start with alumina.
Using ZrO₂ for the hottest process routes just because it is tough. Zirconia is the toughness leader in this comparison, but that does not make it the best high-temperature process material. Usable temperature limits for zirconia vary substantially by stabilization route and grade, and the lowest values in published YSZ datasheets can be well below alumina's practical limits. ZrO₂ is strongest as the toughness-and-insulation specialist. SiC is stronger as the high-temperature process-tube route when heat transfer, gas tightness, and chemical resistance at 1000°C+ are the governing requirements.
Using Al₂O₃ when the design is really limited by thermal shock or heat flow. Alumina is the right default more often than not, but it is not the answer when the design is thermally limited. Moderate thermal conductivity and moderate fracture toughness mean alumina underperforms relative to SiC in heat-flow-dominated duties and relative to ZrO₂ in shock/impact-dominated duties. When a component is failing in alumina because of cracking or insufficient heat transfer, the better question is "should this be SiC or ZrO₂?" rather than "can we find a better alumina grade?"
Using SiC where easy machining or prototype speed matter most. SiC's density and fired hardness make it difficult to machine after firing. In situations where complex geometry needs to be revised quickly or where small production quantities make custom pressing uneconomical, BN's full machinability with conventional tooling is a practical advantage — even though BN is weaker. The use case is hot insulators, melt-contact inserts, and non-wetting precision parts where the geometry matters more than the load-bearing requirement.
The selection rule that prevents all four errors: default to alumina, escalate to zirconia for toughness, escalate to SiC for process heat and wear, and switch to BN only when its special combination of machinability, non-wetting, and insulation is the real reason for buying ceramic at all.
When the decision clearly flips between materials

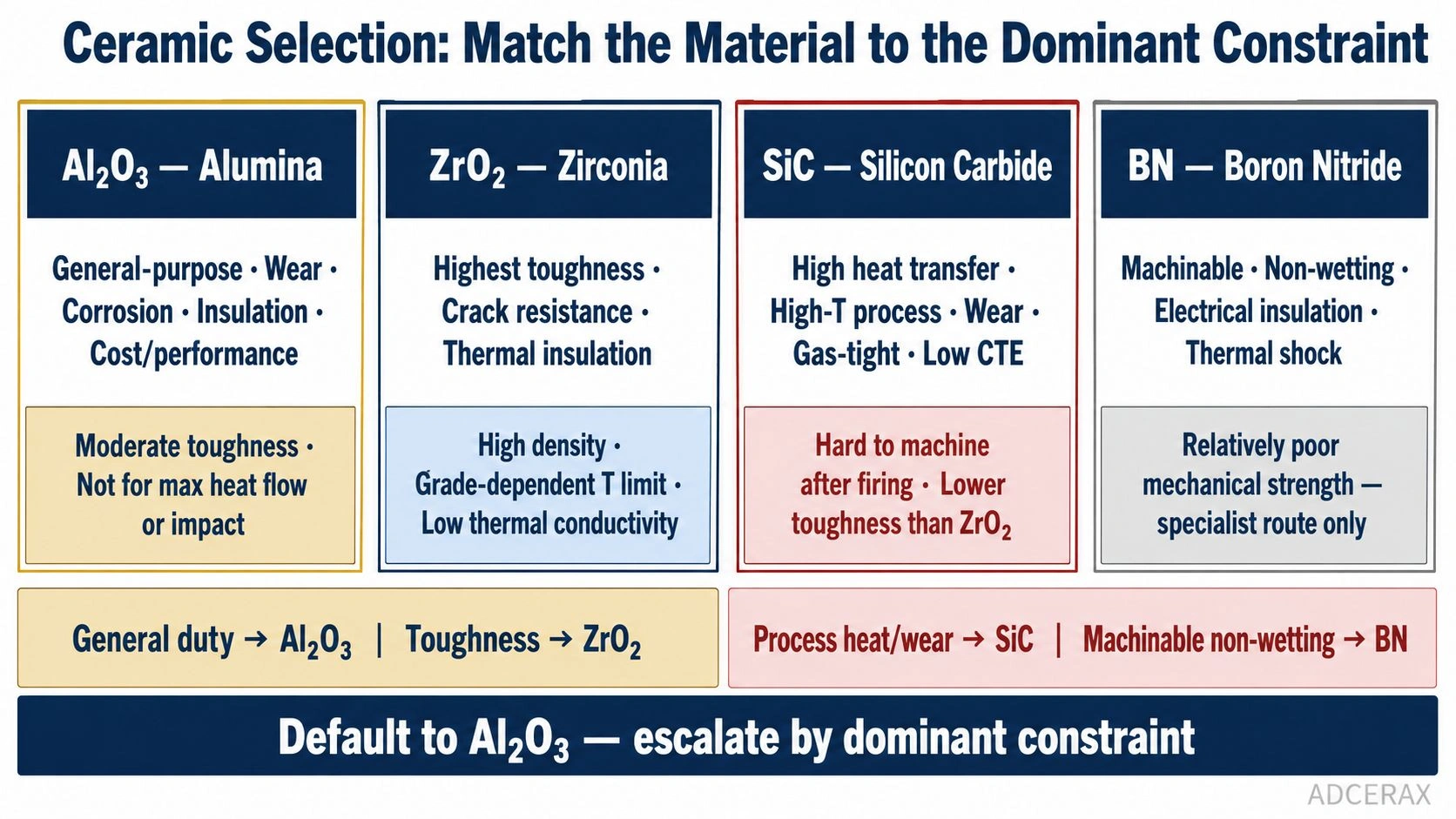

The Best-Fit Decision Matrix below translates the four material profiles into explicit selection triggers:
| If the dominant requirement is… | Best first-look material | Why | Main watch-out |
|---|---|---|---|
| General-purpose engineering ceramic with good cost/performance | Al₂O₃ | Most commonly used technical ceramic; broadly useful properties and good price/performance ratio | Toughness is only moderate; not the best shock or impact ceramic |
| Highest fracture toughness among common engineering ceramics | ZrO₂ | Around 10 MPa√m in sampled YSZ data; >800 MPa flexural strength; significantly tougher than alumina | High density; low thermal conductivity; temperature limit is grade-dependent |
| High thermal conductivity + high-temperature structural process duty | SiC | 125.6 W/m·K thermal conductivity; gas impermeability; low CTE; 1900°C air service in sintered α-SiC | Hard to machine after firing; toughness lower than zirconia |
| Machinable, non-wetting, electrically insulating hot part | BN | Machinable with conventional tools; non-wetting to most molten metals and slags; high-temperature insulator | Mechanical properties are relatively poor versus the other three |
| Wear + corrosion + dimensional stability at moderate-to-high temperature | Al₂O₃ or SiC | Alumina: strong wear/corrosion at lower cost; SiC: adds much better heat flow and higher process temperature | Pick SiC when heat flow or thermal shock matter; pick alumina when cost and generality matter more |
| Thermal insulation plus crack resistance | ZrO₂ | Very low thermal conductivity (2.9 W/m·K) combined with much higher fracture toughness than alumina | Not the obvious choice for the hottest sustained structural furnace route unless the grade supports it |
Representative guidance based on sampled manufacturer data; verify exact grade capabilities with supplier before finalizing specification.
The four dominant engineering requirements that separate Al₂O₃, ZrO₂, SiC, and BN are not a ranking — they are a map of four different design problems with four different answers.
The plain-English summary
Al₂O₃ is the safest default starting point. ZrO₂ is the tough one. SiC is the hot, hard, thermally conductive process material. BN is the machinable specialist for non-wetting hot insulating parts.
Escalate by constraint, not by performance tier
The most useful way to use this matrix is not to ask "which material is the most advanced" but "which constraint am I designing against?" A component that fails because the ceramic is not tough enough needs ZrO₂. A component that fails because the ceramic cannot shed heat fast enough needs SiC. A component that fails because it sticks to the mold or cannot be machined to a complex shape needs BN. A component that does not have a dominant failure constraint needs Al₂O₃.
What should go into the RFQ or design note
Before requesting a ceramic material quote, the specification must name the dominant engineering constraint — not just the part geometry and the material name. A specification that says "ZrO₂ crucible" has not explained why the application needs ZrO₂ rather than Al₂O₃, which is important because the cost difference is significant and the grade-dependent temperature limit of ZrO₂ may matter. A specification that says "BN part for thermal insulation" has not confirmed whether the part will carry structural load, which determines whether BN is adequate or the application actually needs Al₂O₃ or SiC instead.
The specification and RFQ checklist for advanced ceramic component selection:
- Dominant engineering constraint — state whether the limiting factor is toughness/impact, heat transfer, wear, temperature, non-wetting, machinability, electrical insulation, chemical resistance, or cost/availability; this single statement enables the material shortlist.
- Operating temperature — specify peak temperature, continuous operating temperature, and heating/cooling rate; the last item is critical for thermal shock assessment and separates BN from SiC from Al₂O₃ in rapid-cycle applications.
- Atmosphere — specify air, inert, reducing, or process-specific gas; SiC and BN both have atmosphere-dependent temperature ceilings that differ substantially from their vacuum or inert-gas limits.
- Mechanical loading — specify whether the part is structurally loaded, whether it experiences impact or shock, and what the contact stress is; this separates BN (low mechanical properties) from ZrO₂ (highest toughness) from the others.
- Thermal conductivity requirement — state whether heat should flow through the part (heat exchanger, heater protection) or be blocked by it (thermal barrier, insulating component); this separates SiC from ZrO₂ more clearly than any other single criterion.
- Machinability requirement — specify whether the part needs to be machined after firing to final geometry; if yes, BN is the only candidate in this set that supports post-fire machining with conventional tooling.
- Non-wetting or release requirement — specify whether the part must not bond to a melt or casting; BN is the strongest candidate for this requirement in most non-ferrous metal contact applications.
- Grade confirmation — for ZrO₂, specify the stabilization type (yttria, ceria, magnesia) and confirm the temperature rating for the exact grade; ZrO₂ temperature limits are more grade-sensitive than those of the other three materials.
If the purchasing document names only a material and a geometry without specifying the dominant constraint, the supplier cannot confirm whether the material family is correct — only that the geometry is manufacturable.
Conclusion
Al₂O₃, ZrO₂, SiC, and BN are four different answers to four different dominant engineering problems. Alumina covers the largest share of general industrial ceramic applications because it balances cost, wear resistance, chemical resistance, and adequate strength broadly. Zirconia adds toughness and low thermal conductivity where those are the binding constraints. SiC adds high thermal conductivity, high-temperature structural capability, and process reliability where heat, wear, and chemical resistance must coexist. BN adds machinability, non-wetting behavior, and high-temperature electrical insulation where structural loading is not the primary requirement. A selection that matches the material to the dominant constraint will nearly always outperform one that selects by price tier or generic reputation.
Specifying a ceramic component and need to confirm which material fits the application? Send the part geometry, dominant engineering constraint (toughness, heat transfer, wear, non-wetting, machinability), operating temperature, atmosphere, and mechanical loading conditions. ADCERAX engineers return a material-route recommendation with grade guidance, property confirmation, and manufacturability assessment; turnaround depends on inquiry complexity — no RFQ commitment required at this stage.
Frequently Asked Questions
Which ceramic should I default to if I am not sure which one to choose?
Start with Al₂O₃. Alumina is explicitly positioned by major technical ceramic suppliers as the most commonly used advanced ceramic because of its broadly useful combination of properties and good price/performance ratio. It has adequate strength, excellent wear and corrosion resistance, and good electrical insulation across a wide temperature range. The decision to move away from alumina should be driven by a specific constraint — toughness, heat flow, non-wetting — not by a general sense that a "more advanced" material is better.
Which ceramic in this comparison is the toughest?
ZrO₂. Sampled yttria-stabilized zirconia datasheets show fracture toughness around 10 MPa√m and flexural strength above 800 MPa — substantially higher than alumina at approximately 3.4 MPa√m and 400–450 MPa, and higher than the other two materials in this set. Zirconia's toughness advantage makes it the standard choice when the ceramic part fails by cracking under impact, thermal shock with crack propagation, or contact stress.
Which ceramic handles the hottest process duty best?
Usually SiC among these four, especially where high thermal conductivity, chemical resistance, gas tightness, and very high service temperature must coexist. Sintered α-SiC data from major suppliers show approximately 1900°C air-service temperature and thermal conductivity around 125.6 W/m·K. That combination makes SiC the dominant route in process tubes, heat exchanger tubes, thermocouple protection, and corrosive high-temperature environments where alumina's lower thermal conductivity and ZrO₂'s grade-dependent temperature limits become constraints.
Which ceramic is easiest to machine to complex geometry?
BN. Precision Ceramics positions boron nitride as machinable with conventional tooling — drills, mills, lathes — which allows complex post-fire machining that is not practical for alumina, zirconia, or SiC in their fired states. That machinability is one of BN's core value propositions for small-batch, complex-geometry, fast-turn hot insulating or non-wetting parts, even though the tradeoff is significantly lower mechanical strength than the other three ceramics.
Which ceramic is most often chosen for molten-metal non-wetting contact?
BN is the most common first-look choice for non-wetting contact with molten metals, because it is broadly non-wetting to most molten metals and slags and introduces no metallic contamination from the ceramic body. However, non-wetting alone does not make BN the right choice for every metal contact application — for structural foundry duty in molten aluminum, sialon and silicon nitride often carry stronger field-performance evidence. BN's non-wetting advantage is strongest in release, anti-stick, and controlled-atmosphere contact applications where structural loading is secondary.
