BN can be useful in thermal analysis above 1500°C when the test runs in vacuum, dry argon, dry nitrogen, or another dry inert atmosphere and when the sample benefits from BN's non-wetting behavior, machinability, thermal shock resistance, or lower contamination profile relative to alumina. BN is not a general replacement for alumina in air above 1500°C. Alumina remains the standard reusable TGA crucible up to approximately 1600°C, while BN becomes a specialized crucible or liner for non-oxidizing high-temperature tests where atmosphere, sample chemistry, sensor contact, and blank stability are validated before use.
That atmosphere-first qualification — BN as a conditional choice for non-oxidizing service, not a universal alumina upgrade — is the engineering principle this guide builds around.
BN crucibles and liners extend high-temperature thermal analysis beyond the practical alumina range — but only under dry, non-oxidizing atmospheres where BN oxidation and water-vapor volatilization are not relevant failure modes.
The boron nitride crucibles and BN liners at ADCERAX — covering hot-pressed HPBN and CVD PBN grades with custom volumes, wall thicknesses, and geometries for vacuum and inert high-temperature applications — are the starting point for the selection decisions described in this guide.
Why alumina is the default and where the limit appears
Alumina crucibles are the standard choice for thermal gravimetric analysis because they are chemically stable for most inorganic and organic samples, reusable over many cycles, and available in instrument-compatible geometries for all major TGA and STA systems. Mettler Toledo lists reusable alumina crucibles for TGA measurements up to 1600°C. Published thermal-analysis crucible overviews consistently describe alumina as a common TGA crucible material suitable for this temperature range.
The BN vs Alumina comparison table below maps the key decision variables:
| Decision variable | Alumina crucible | BN crucible/BN liner | What to verify |
|---|---|---|---|
| Standard TGA use | Common default up to ~1600°C | Specialized route | Method and temperature range |
| Air/oxidizing atmosphere | Strong candidate | Usually not suitable above BN air limit | Oxygen and water vapor |
| Vacuum/inert atmosphere | Possible but may reach practical limit | Stronger candidate above 1500°C | Dew point and gas purity |
| Molten sample sticking | May wet or react | Often better non-wetting behavior | Sample compatibility |
| Heat-flow comparability | Familiar baseline | Signal may change due to thermal properties | Blank and reference runs |
| Sensor contact | Common with alumina systems | Must check Pt/W/Rh/sensor contact | Instrument accessory limits |
| Reuse | Often reusable | Reuse depends on atmosphere and residue | Blank drift and surface change |
| Cost | Usually lower | Higher and more specialized | Justification by sample need |
Values indicative; verify with instrument manufacturer documentation, BN supplier data, and application-specific blank validation.
Alumina as standard TGA crucible material. Alumina's combination of chemical stability in oxidizing and mildly reducing atmospheres, low thermal expansion, reasonable thermal conductivity, and broad compatibility with furnace hardware and sensor materials makes it the natural default. For tests up to 1500–1600°C in air, an oxidizing atmosphere, or a sample that does not attack alumina, there is no engineering reason to specify BN.
Why 1500–1600°C becomes a practical transition zone. At temperatures approaching alumina's practical thermal-analysis range, two different problems can arise simultaneously: the alumina crucible itself may approach its usable limit for certain geometries and sample chemistries, and certain samples that are harmless at lower temperatures may begin to react with alumina above 1400°C. This transition zone is where engineers begin asking whether BN offers an advantage — and the answer depends almost entirely on the atmosphere.
When the issue is not temperature but sample–crucible interaction. Some samples begin to be specified for BN crucibles not because of temperature alone but because they wet alumina, react with alumina oxide, stick to the pan on cooling, or introduce Al-containing contamination into the analytical sample at high temperature. In these cases, BN's non-wetting behavior and chemical inertness toward many molten metals and reactive powders under inert or vacuum conditions makes it a functionally superior container even below 1500°C.
Why "higher temperature material" is not enough. The most common specification error in high-temperature thermal analysis is choosing a crucible material by its nominal maximum temperature rather than by the combined requirements of atmosphere, sample chemistry, sensor compatibility, blank stability, and heat-flow signal behavior. A BN crucible rated to 1800°C in vacuum is not useful in a 1550°C air test because it will oxidize and contribute to the mass-change signal rather than isolating the sample's own mass changes.
BN works above 1500°C only under the right atmosphere
After establishing that the temperature transition zone exists, the critical decision variable is the furnace atmosphere during the thermal-analysis run.
[CITE: Published BN material data from a thermal ceramics supplier lists hot-pressed boron nitride for use to 1000°C in air and 1800°C in vacuum or inert atmosphere — and NASA oxidation research on monolithic boron nitride confirms that BN oxidation behavior depends strongly on microstructure and that small amounts of water vapor can volatilize boron oxide species at elevated temperature — establishing that "BN above 1500°C" is always a conditional statement that requires confirming the atmosphere is dry, non-oxidizing, and free of water vapor before BN can function as a stable, non-reacting thermal-analysis container.]

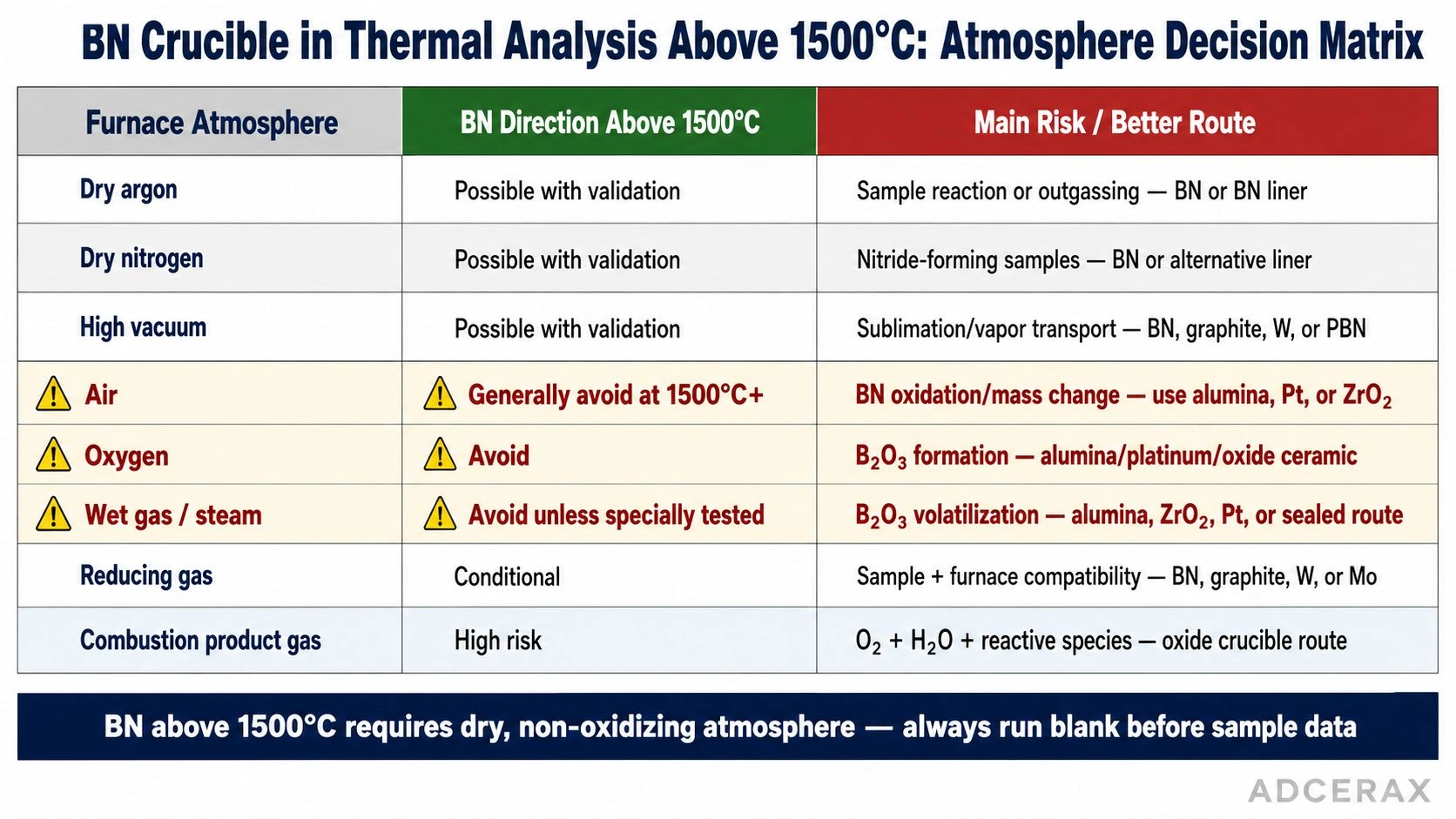

The Atmosphere Decision Matrix below maps each furnace atmosphere to BN suitability above 1500°C:
| Atmosphere | BN direction above 1500°C | Main risk | Better route |
|---|---|---|---|
| Dry argon | Possible with validation | Sample reaction or outgassing | BN crucible or BN liner |
| Dry nitrogen | Possible with validation | Nitride-forming samples/chemistry | BN or alternative liner |
| High vacuum | Possible with validation | Sublimation/vapor transport/outgassing | BN, graphite, tungsten, or PBN depending on sample |
| Air | Generally avoid at 1500°C+ | BN oxidation/mass change | Alumina, platinum, zirconia, or other oxide route |
| Oxygen | Avoid | Oxidation and boron oxide formation | Alumina/platinum/oxide ceramic |
| Wet gas/steam | Avoid unless specially tested | Boron oxide volatilization | Alumina, zirconia, platinum, or sealed route |
| Reducing gas | Conditional | Sample and furnace compatibility | BN, graphite, W, or Mo depending on chemistry |
| Combustion product gas | High risk | Oxygen + water vapor + reactive species | Oxide crucible route |
Vacuum, argon, nitrogen: where BN becomes attractive. In a dry, non-oxidizing furnace atmosphere, BN's combination of high thermal stability, non-wetting behavior, electrical insulation, and machinability into custom geometries makes it a genuine candidate above the alumina practical range. For samples that would contaminate alumina, wet alumina, or react with alumina above 1400°C, BN under dry inert gas or vacuum resolves the sample–crucible interaction problem while extending the thermal-analysis window.
Air and oxygen: where BN becomes risky. The air limit for hot-pressed BN is commonly cited around 850–1000°C by thermal ceramics suppliers. Above this boundary, BN begins to oxidize — forming B₂O₃, which can melt, flow, and volatilize. In a TGA measurement, B₂O₃ formation and volatilization appear as mass changes that cannot be distinguished from sample-derived mass changes without a controlled blank run. In an air TGA above 1500°C, BN is not a stable container; it is a reacting one.
Why water vapor matters even when oxygen seems controlled. Nitrogen and argon atmospheres are often described as "inert," but delivered industrial gas contains trace moisture that must be measured and controlled. Even a few parts per million of water vapor at temperatures above 1000°C can react with BN surface phases to produce volatile boron-hydroxide species. If the thermal-analysis instrument's gas line is not dried, or if the furnace does not maintain a clean dew point, nominally "inert" gas can still produce BN surface changes that affect blank stability.
Why BN blank stability must be validated. Before using any BN crucible or liner for sample measurements above 1500°C, a blank run — heating the empty BN crucible through the same thermal cycle — must be completed and the mass drift recorded. An acceptable blank for most quantitative thermal analysis is a mass change smaller than the measurement uncertainty of the target analysis. If the blank shows measurable mass loss or gain, the BN crucible is reacting with the atmosphere, and the material choice or atmosphere must be corrected before sample data is collected.
When BN is better than alumina in high-temperature thermal analysis
After confirming that the atmosphere is compatible, the use cases where BN is technically preferred over alumina above 1500°C fall into several distinct categories.

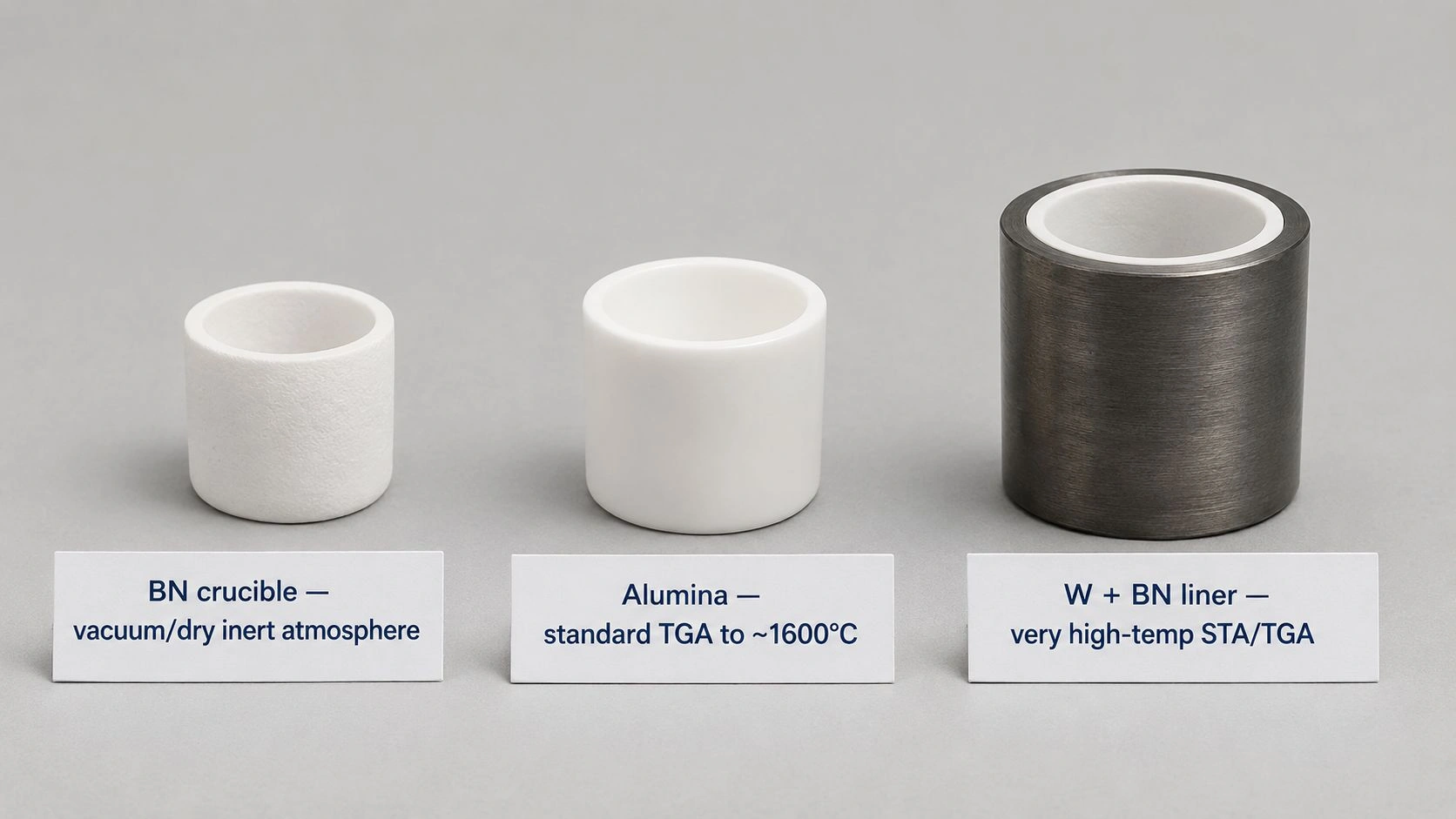

The High-Temperature Thermal Analysis Crucible Route table maps the main material candidates:
| Crucible route | Best-fit use | Main advantage | Main limitation |
|---|---|---|---|
| Alumina | Standard TGA, oxidizing tests, many inorganic samples | Stable, reusable, common | Practical thermal-analysis range near 1600°C |
| BN | Inert/vacuum high-temperature sample-contact tests | Non-wetting, machinable, thermal shock resistant | Not for hot air/wet oxidizing atmospheres |
| BN liner | Sample-contact barrier inside W/graphite systems | Separates sample from structural crucible | Contact reactions and temperature limits |
| Tungsten | Very high-temperature inert/vacuum STA/TGA | High temperature capability | Oxidation risk; sample reactions |
| Graphite | Inert/vacuum high-temperature tests | Thermal shock, machinability | Oxidizes; carbon contamination |
| Platinum/Pt-Rh | Oxidizing DSC/STA where chemistry permits | Good thermal conductivity and inertness in many systems | Cost, melting/softening and sample alloying |
| Zirconia | Oxide route for selected aggressive samples | Corrosion resistance and thermal barrier behavior | Thermal shock and heat-flow limitations |
Non-wetting sample containment. Samples that are liquid or semi-liquid above 1500°C — certain metal alloys, glass melts, reactive oxide systems — can wet alumina and stick permanently to the pan. BN's non-wetting behavior toward many of these systems allows the sample to be recovered after the thermal-analysis run, reduces baseline errors from mechanical sample–pan adhesion, and prevents the signal-masking effect of frozen melt bridges between the sample and pan. The alumina crucible alternatives and the ceramic laboratory crucible options at ADCERAX illustrate how crucible material choice follows function rather than temperature rating.
BN liners for tungsten or graphite crucibles. When the test temperature exceeds practical alumina range and requires a high-strength structural crucible — typically tungsten or graphite for very high-temperature STA or TGA — BN can serve as a liner that separates the sample from the structural crucible wall. Published NETZSCH thermal-analysis accessory documentation lists BN liners for high-temperature crucible systems. However, the same documentation notes that BN contact with platinum, tungsten, rhodium, or Pt/Rh alloys at 1600°C must be validated, because reactions can occur at the BN–metal interface. This means BN liner selection must include review of the crucible body material and the instrument's sensor or carrier plate.
Thermal shock and machinable custom geometry. Some thermal-analysis applications require non-standard crucible geometries — unusual volumes, specific lid-to-sample clearances, notched walls for thermocouple access, or custom bottom profiles for sample contact. BN's machinability allows these geometries to be produced without the forming and sintering constraints that apply to dense oxide ceramics. For specialized high-temperature inert-atmosphere analysis where a non-standard geometry is required, BN is often easier to produce in prototype quantities than zirconia or other refractory oxide alternatives.
Low contamination in vacuum or inert analysis. For analytical thermal measurements where the sample must remain free of Al, Si, Ca, Fe, or other ceramic-derived impurities — reactive rare-earth alloys, semiconductor precursors, certain catalyst systems — BN's composition (boron and nitrogen only) limits the range of ceramic-derived contaminants relative to alumina or mixed-oxide crucible routes. The TGA alumina crucible options and the alumina crucibles category at ADCERAX remain the default routes where alumina contamination is not a concern — BN should be specified only when the analytical objective specifically requires it.
Do not misdiagnose thermal-analysis problems as "alumina limit" only
When a high-temperature thermal-analysis run shows unexpected baseline drift, an unusual heat-flow curve, mass changes that do not match the expected sample behavior, or apparent sample contamination, the crucible material is one of several possible causes. Attributing every problem to the alumina crucible's temperature limit leads to switching to BN without solving the actual problem.
Baseline drift vs crucible reaction. Baseline drift in TGA above 1500°C is most commonly caused by buoyancy effects from changing gas density with temperature, gas flow instability, sensor contamination from previous runs, or radiation effects on the balance mechanism — not by alumina reaching a chemical limit. Confirming the instrument's buoyancy correction and running a calibration blank before attributing drift to the crucible material is the correct diagnostic sequence.
Sample evaporation vs crucible failure. Mass loss in a high-temperature TGA run can come from sample volatilization, surface desorption, phase-change evolution, or reactive gas release — none of which are caused by the crucible material. If the mass-loss profile correlates with the expected thermodynamics of the sample rather than with any crucible mass-change pattern visible in the blank run, the sample is the source.
Thermal lag and heat-flow signal changes. Switching from alumina to BN changes the thermal conductivity and thermal mass of the crucible, which changes the heat-flow response in DSC or STA measurements. NETZSCH confirms that crucible material affects heat transport to the sample, influencing the thermal-analysis signal. This is not a problem with BN — it is an expected consequence of changing the crucible material. Historical data collected with alumina cannot be directly compared with new data collected with BN without accounting for this change.
BN oxidation mistaken for sample mass change. If BN is used in a test atmosphere that is not confirmed dry and non-oxidizing, B₂O₃ formation and volatilization can produce mass changes that look like sample-derived events. A characteristic signature is mass loss in the 900–1200°C range that cannot be assigned to any feature of the sample's known chemistry — which is the BN crucible reacting, not the sample. A blank run with the same atmosphere and temperature profile reveals this immediately.
RFQ checklist for BN thermal analysis above 1500°C
A complete RFQ for BN crucibles or liners in high-temperature thermal analysis must provide the instrument and method context alongside the atmosphere and sample chemistry — without both, the supplier cannot confirm whether BN is appropriate or whether PBN, a BN liner, or a different crucible material is the better choice.
[CITE: Engineering guidance on BN crucible specification for thermal analysis above 1500°C confirms the complete RFQ sequence: analysis method and instrument model, maximum temperature and dwell time, atmosphere with oxygen level and dew point, sample chemistry including molten state, vapor pressure, and reaction sensitivity, sensor and carrier-plate material for contact compatibility review, crucible role (main container or liner inside tungsten/graphite), crucible geometry including volume/OD/ID/wall/lid and bottom flatness, blank-stability requirement, reuse plan with surface-change tracking, and packaging or pre-bake protocol — because a supplier who receives only "BN crucible for TGA above 1500°C" cannot confirm atmosphere suitability, sensor contact compatibility, or blank stability without the remaining application context.]
| RFQ field | Why it matters | Recommended wording |
|---|---|---|
| Analysis method | TGA, DSC, STA, DTA require different crucible behavior | "Specify TGA/DSC/STA/DTA and instrument model" |
| Maximum temperature | Defines material boundary | "Peak temperature and dwell time above 1500°C" |
| Atmosphere | Primary BN compatibility driver | "Vacuum/Ar/N₂/air/O₂/wet gas; include dew point" |
| Sample chemistry | Controls reaction and wetting | "List metals, oxides, carbides, nitrides, salts, or powders" |
| Sensor material | Avoids instrument damage | "State Pt, W, Rh, alumina, sapphire, or sensor-plate contact" |
| Crucible role | Main container vs liner | "BN crucible or BN liner inside tungsten/graphite" |
| Geometry | Affects heat transfer and baseline | "Volume, OD, ID, height, wall, lid, bottom flatness" |
| Blank requirement | Prevents false mass signals | "Run empty BN through same cycle; record mass drift" |
| Reuse plan | Controls contamination | "Single-use, limited reuse, or cleaned/reused with tracking" |
| Packaging/pre-bake | Controls moisture and contamination | "Dry pack, clean pack, pre-bake recommendation" |
RFQ fields are the minimum for a BN thermal-analysis crucible inquiry; add instrument accessory compatibility, post-run inspection protocol, and signal comparability requirement with alumina baseline as needed.
For new BN crucible applications above 1500°C, running a blank thermal cycle with the actual atmosphere, temperature profile, and sensor contact configuration is the minimum validation before sample data is collected. A blank that shows zero measurable drift is the threshold for proceeding; a blank that shows mass change requires atmosphere correction or material change before the crucible is qualified.
Evaluating BN crucibles or liners for thermal analysis above 1500°C? Share your method, instrument model, maximum temperature, atmosphere and dew point, sample chemistry, sensor material, crucible geometry, and blank-stability target. ADCERAX can review whether alumina, BN, PBN, tungsten, graphite, platinum, or a BN-lined route fits the test; turnaround depends on inquiry complexity — no commitment required at this stage.
Frequently Asked Questions
Can BN crucibles be used above 1500°C?
Yes, but mainly in vacuum or dry inert atmospheres — argon, nitrogen, or high vacuum with confirmed low moisture. BN should not be used as a general high-temperature crucible in air above its oxidation limit, which most suppliers place around 850–1000°C for hot-pressed BN. Published supplier data lists BN for use to 1800°C in vacuum or inert atmosphere while limiting air use significantly below that.
Why not just use alumina above 1500°C?
Alumina is the standard default and covers most thermal-analysis needs up to approximately 1600°C. BN becomes useful when the test temperature exceeds alumina's practical range, when the sample reacts with or sticks to alumina, or when contamination from the ceramic body must be minimized for specific analytical objectives. The switch to BN should be driven by a documented functional need, not by temperature alone.
Can BN be used in air above 1500°C?
Generally no. BN oxidation and boron oxide volatilization become significant above BN's published air limit. In a TGA measurement, B₂O₃ formation and loss produce mass changes that cannot be distinguished from sample-derived events without a confirmed blank run showing zero drift. In air above 1500°C, alumina, platinum, or a zirconia route is more appropriate.
Is BN better as a crucible or as a liner?
Often, BN works best as a liner inside a tungsten, graphite, or other high-temperature structural crucible when the structural crucible provides mechanical strength and BN provides the sample-contact barrier. Published NETZSCH thermal-analysis accessories documentation lists BN liners for high-temperature crucible systems and notes that contact with platinum, tungsten, rhodium, or Pt/Rh alloys must be validated at 1600°C because reactions can occur.
Will switching to BN change the thermal-analysis signal?
Yes, it can. Crucible material affects thermal conductivity, heat transport to the sample, thermal lag, and baseline behavior. Published guidance from NETZSCH confirms that crucible materials differ in how they conduct heat to the sample, which influences DSC-type thermal-analysis measurements. Historical alumina-baseline data cannot be directly compared with new BN-baseline data without accounting for this change.
What information should I send to a supplier?
Send the analysis method and instrument model, maximum temperature and dwell time, furnace atmosphere and dew point, sample chemistry including molten state and vapor pressure, sensor and carrier-plate material, whether BN is required as the main crucible or as a liner, crucible geometry requirements, blank-stability criterion, reuse plan, and packaging or pre-bake requirement.
